Foutz Motorsports Rear Hydraulic Bump Stop Kit 2022-2026 Ford Bronco Raptor

• Designed specifically for the Bronco Raptor rear suspension
• Uses full-size 2.5" diameter hydraulic bump stops
• 2.5" of bump stop travel for improved suspension control
• Helps improve ride quality over rough terrain
• Provides additional protection during hard compression events
• Completely bolt-on installation at the frame
• No frame modifications or welding required
• Axle pads bolt directly to the rear axle
• Axle pads are located using the existing factory spring mounts
• Fully CAD designed for proper geometry and fitment within available space
• MIG welded and finished in textured black powder coat

This kit uses a full-size 2.5" diameter bump stop with 2.5" of travel to provide increased control during suspension compression.

The hydraulic bump stop helps absorb large impacts and control the suspension as it approaches full compression, improving ride quality and providing additional protection in rough terrain.

Choose your preferred bump stop brand when ordering.

The kit is designed to accept full-size 2.5" diameter bump stops from:

• Fox
• King
• ADS

Select the bump stop brand you want to include at checkout.

The mounting components are fully CAD designed and engineered around the available packaging constraints of the Bronco Raptor rear suspension.

The kit components are MIG welded and finished with textured black powder coat for durability in off-road conditions.

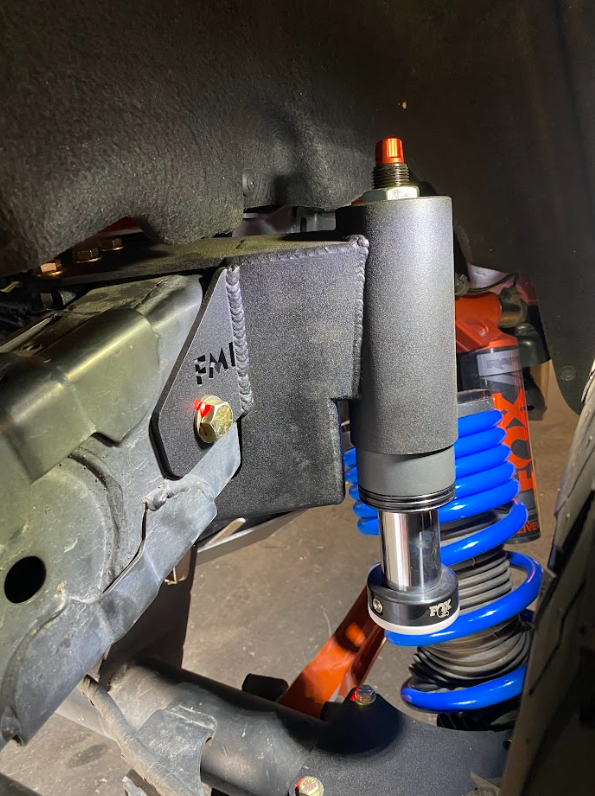

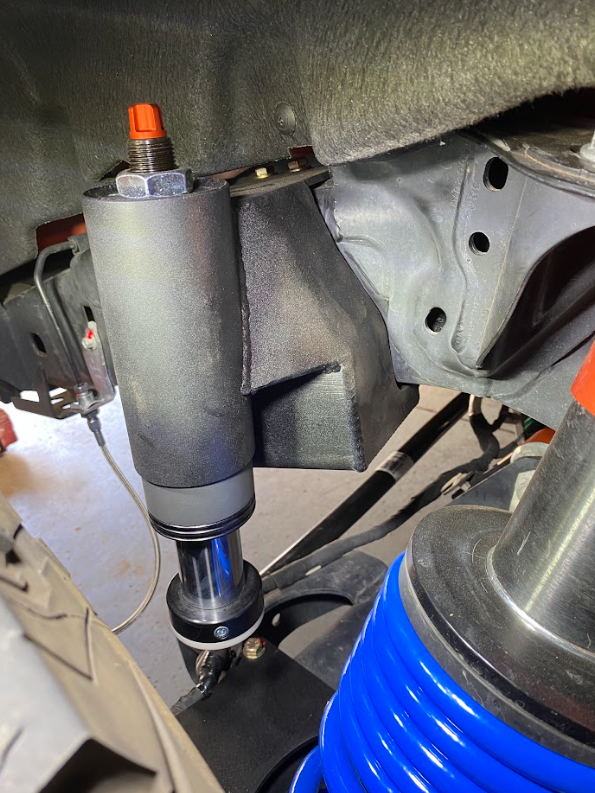

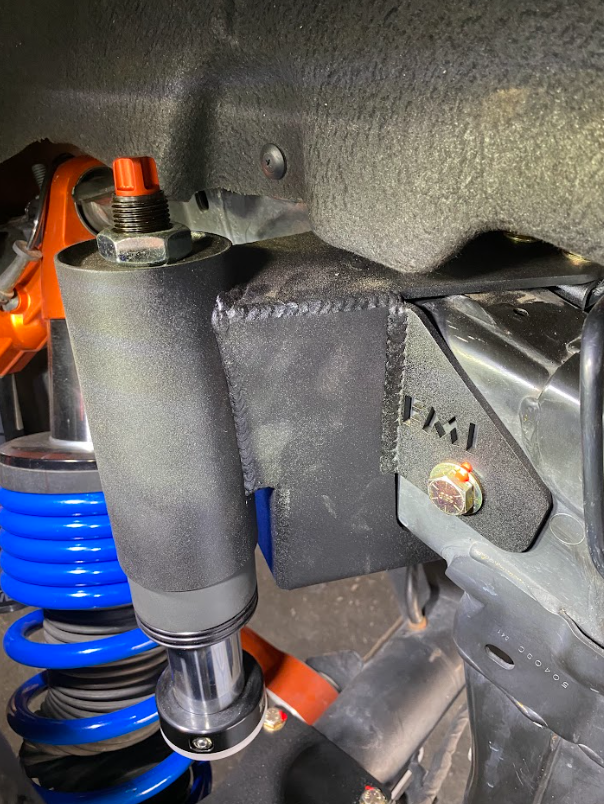

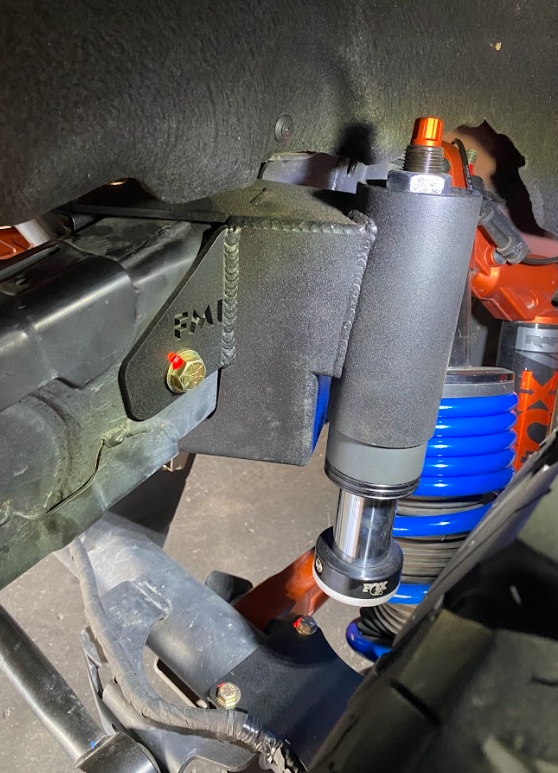

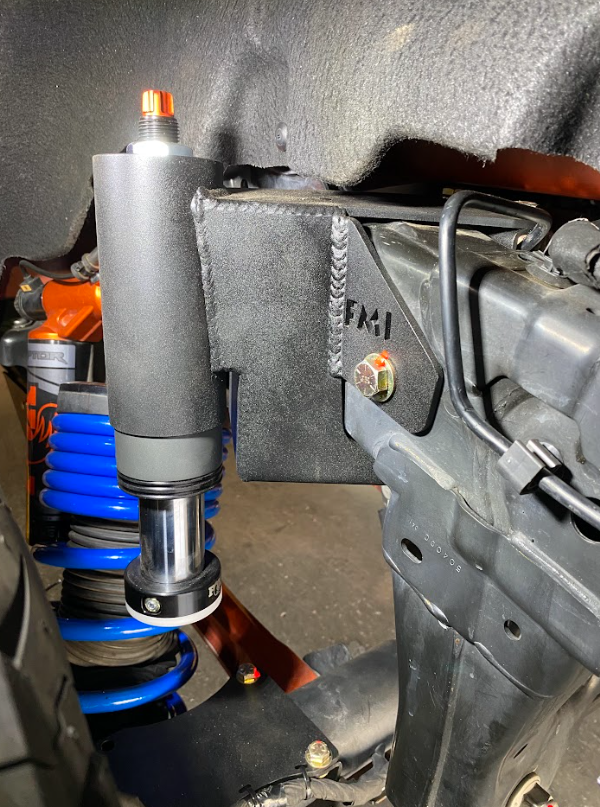

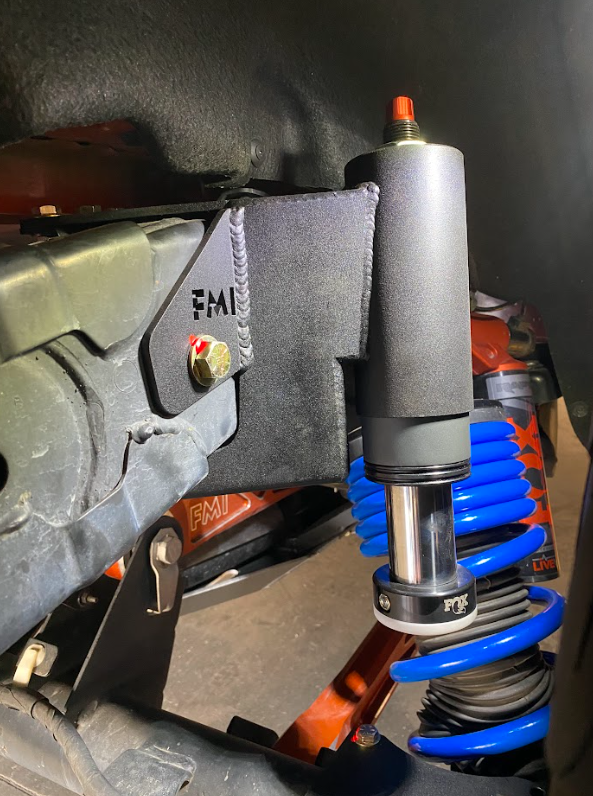

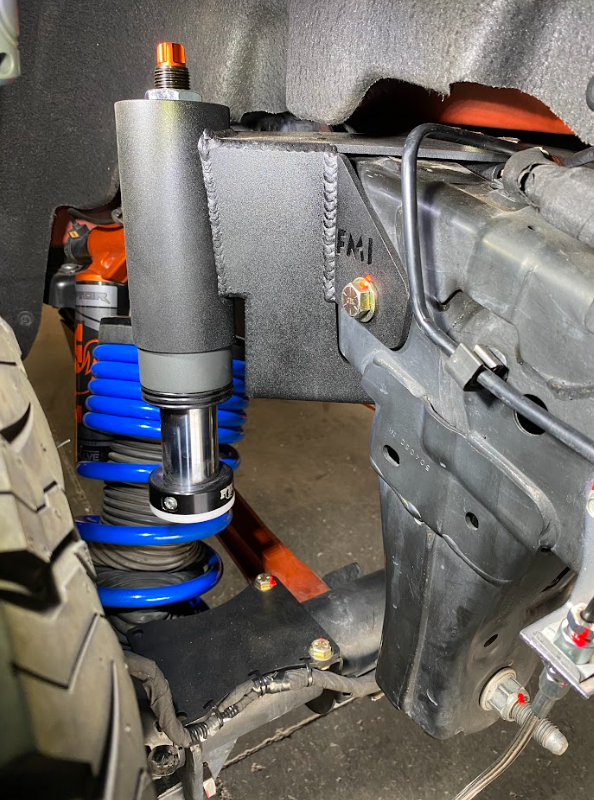

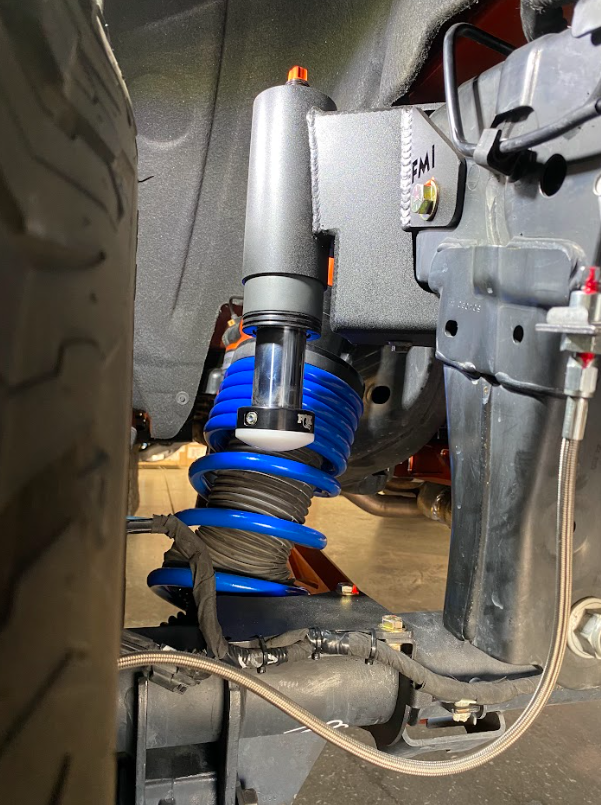

The frame-side mounts bolt directly to the factory frame over the stock bump stop area.

• No frame modifications
• No frame welding
• Completely bolt-on frame installation

The included axle pads bolt directly to the rear axle and are located using the existing factory spring mounts on both sides.

A couple of small factory welded brackets used for wire management must be removed from the rear axle during installation.

• Ford Bronco Raptor
• Designed for the factory rear suspension
• Compatible with Fox, King, or ADS 2.5" diameter bump stops

The frame mounts bolt to the factory frame in the stock bump stop area with no frame modifications or welding required.

The axle pads bolt to the rear axle using the existing spring mounts for positioning.

Installation does require removal of a couple of small factory welded wire management brackets from the rear axle.

• (2) Frame-mounted bump stop sections
• (2) Rear axle bump pad kits
• (1) Installation hardware kit

Bump stops are selected separately when ordering.

This is a new kit. Please allow 4–6 weeks for production and delivery.

What does the Bronco Raptor Rear Bump Stop Kit do?

The kit adds hydraulic bump stops to the rear suspension to help control compression, improve ride quality over rough terrain, and provide additional protection during hard suspension impacts.

What size bump stops does the kit use?

The kit is designed for full-size 2.5" diameter bump stops with 2.5" of travel.

What bump stop brands are compatible?

The kit is designed to work with Fox, King, and ADS 2.5" diameter bump stops.

Do I have to weld the frame mounts?

No. The frame-side mounts bolt directly to the factory frame with no frame modifications or welding.

Do the axle mounts require welding?

No. The axle pads bolt to the rear axle and are positioned using the existing factory spring mounts.

Does anything need to be removed during installation?

Yes. A couple of small factory welded brackets used for wire management must be removed from the rear axle.

Is this a bolt-on kit?

Yes. The frame-side and axle-side mounting components bolt onto the vehicle. No frame welding or modifications are required.

Does the kit include bump stops?

Bump stops can be included with the kit. Choose Fox, King, or ADS when ordering.

How long does this kit take to ship?

Please allow 4–6 weeks for production and delivery.
