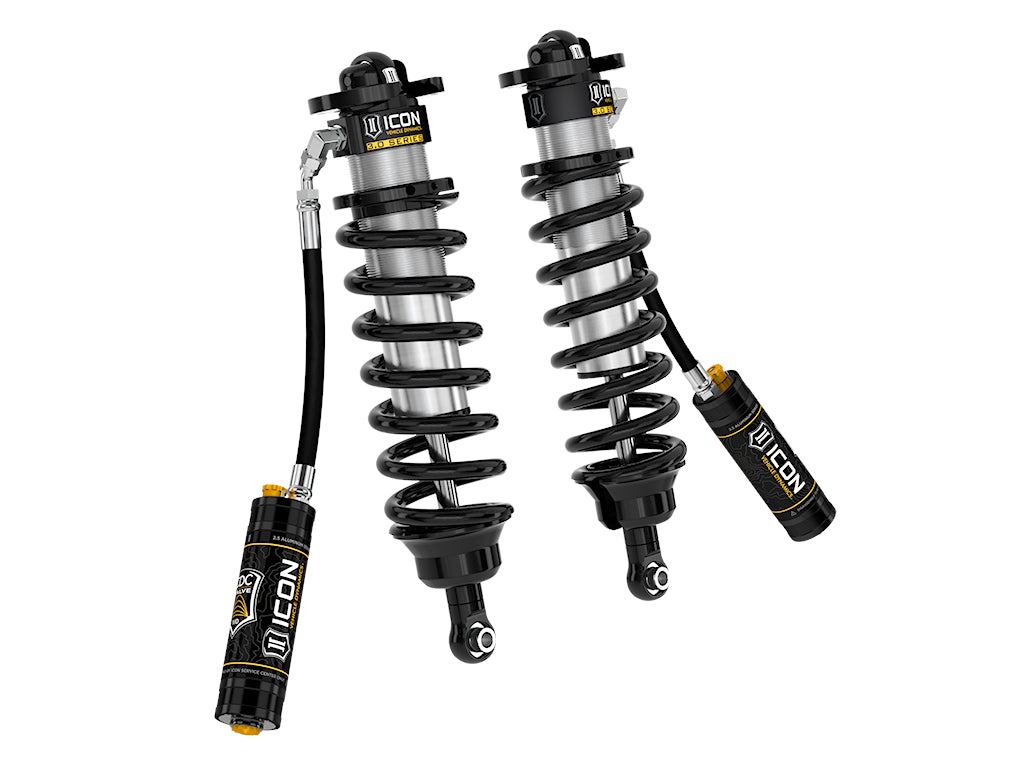

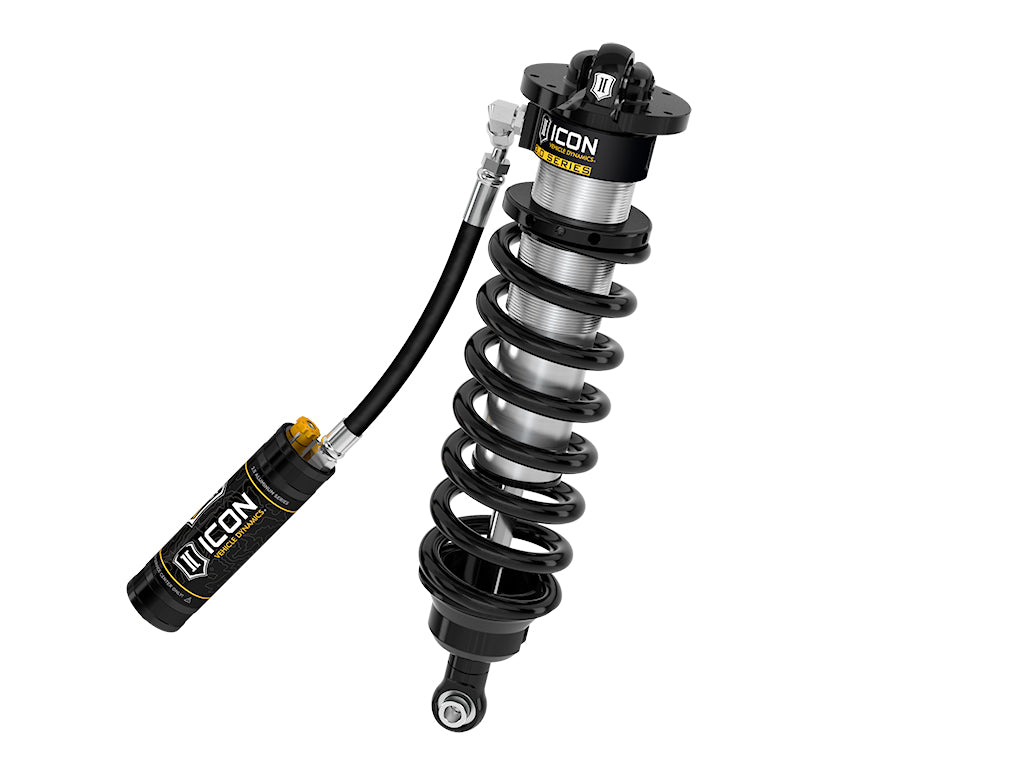

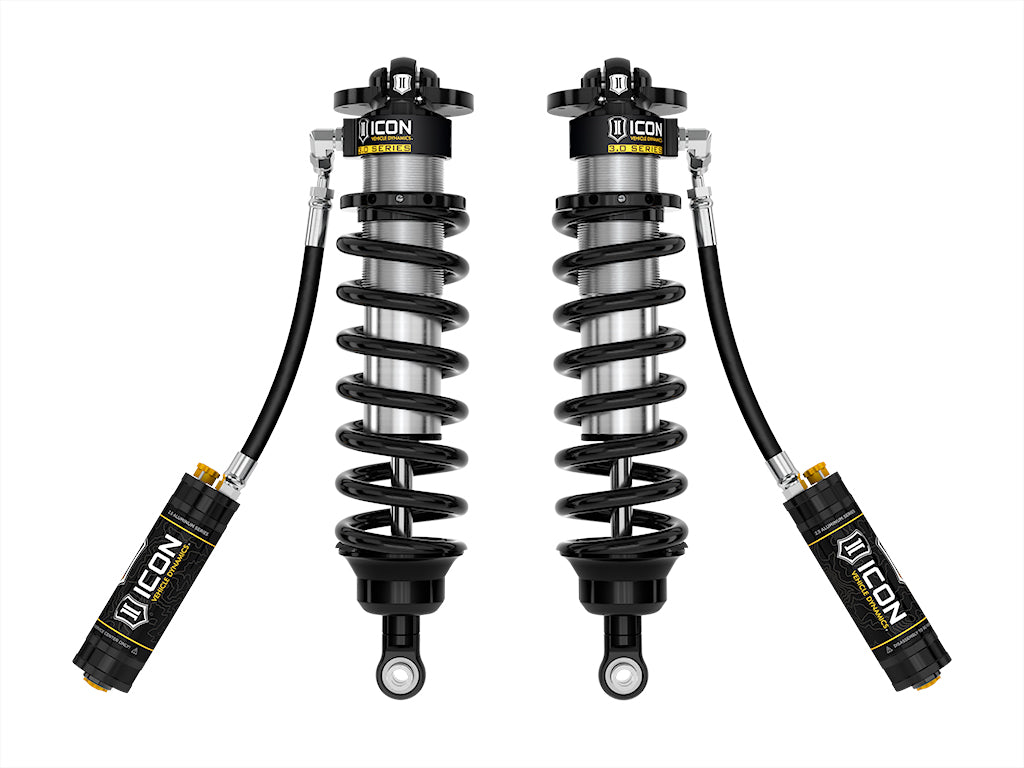

ICON's 3.0 Series Coilovers with CDCV for 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia are designed to take the off-road capability of the trucks to new levels by increasing wheel travel by up to 40 Percent and significantly improving the damping ability of the front shocks.
Features and Benefits:
- 3.0 Series shocks boast 50 Percent more piston surface area in the ride zone of the shock's travel, and 100 Percent in the InchBump Zone Inch, compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40 Percent of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
- ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 3.0 Series rear shocks with CDCV, vehicle control can be precisely dialed in front to rear, resulting in the best overall driving experience.

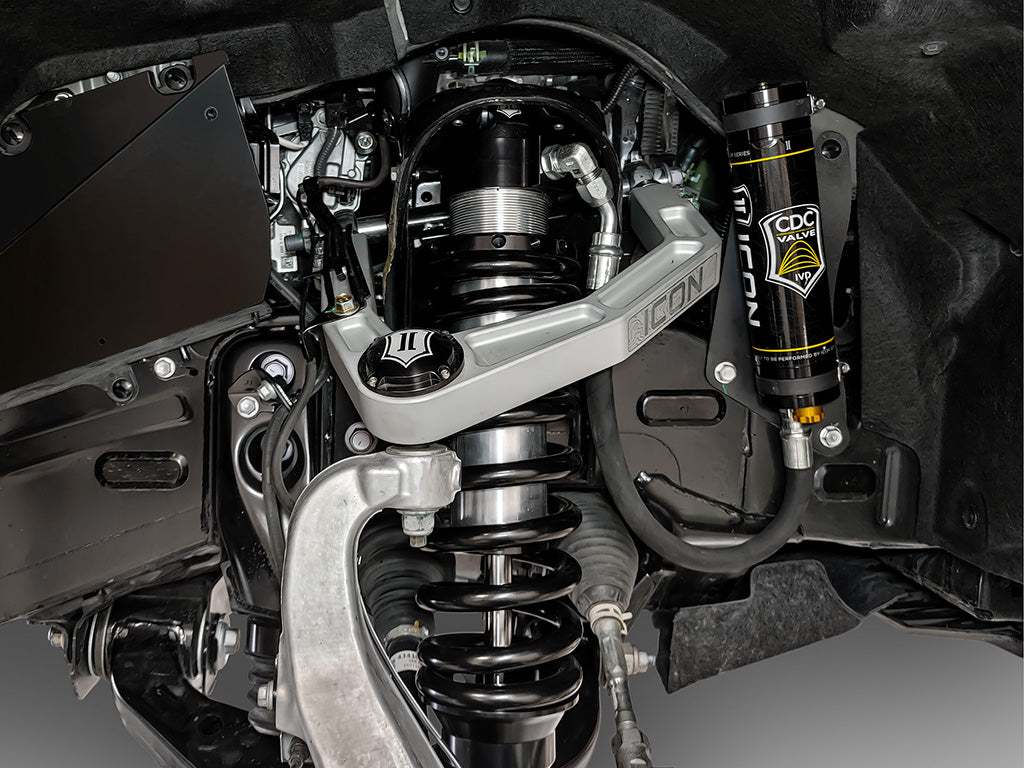

- These 3.0 Series coilovers are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Built-in ride height adjustability yields 1.25 to 3.25 Inch of front lift height on Tundra or 3-4.25 Inch of lift on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.
- 40 Percent increase in front wheel travel over stock
- Adjustable up to 1.25-3.25 Inch of front lift height over stock on Tundra or 3-4.25 Inch of front lift on Sequoia
- Vehicle specific design and tuning for superior shock damping and control
- 3.0 Inch Body diameter for increased oil volume and larger piston area
- ICON's multi-stage, tunable hydraulic InchBump Zone Inch exponentially increases bottom-out resistance in the last 40 Percent of compression travel
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- 7/8 Inch diameter induction hardened, chrome plated shock shafts
- Fully Rebuildable and Re-tunable
Details
- Material: Aluminum, Steel
- Active Or Passive Suspension: Passive
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Assembled: Yes
- Body Diameter: 3 Inch
- Coil Over Springs Included: Yes
- Compressed Length: 16.38
- Cylinder Color: Gray
- Cylinder Finish: Ceramic Coated
- Cylinder Material: Steel
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Dust Shield Included: No
- Extended Length: 22.04
- Front Spring Rate: 600 Inch
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: No
- Internal Construction Type: Single Tube
- Lower Mount Type: Eyelet
- Maximum Lift: 3.25 Inch
- Maximum Ride Height Raising Distance: 3.25
- Minimum Lift: 1.25 Inch
- Remote Reservoir: Yes
- Reservoir Style: Remote
- Self Leveling: No
- Service Parts: 254100G - 1 Gallon Icon Performance Shock Oil
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center Of Eyelet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
- Travel Length: 5.67
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive, Linear
- Add On Part: 252012 - -4 To -10 Hose Shield Kit, 58461Dj - 22-25 Tundra/23-25 Sequoia Tubular UCA Dj Pro Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 55154 - 22-25 Tundra/23-25 Sequoia Sway Bar Drop Kit, 55164 - 22-25 Tundra/23-24 Sequoia Aluminum Skid Plate Spacer Kit, 198001 - Billet Spanner Wrench Kit, 58561Dj - 22-25 Tundra/23-25 Sequoia Billet UCA Dj Pro Kit, 191010 - Icon Raptor 3.0 Coil Wrap W/Logo Pair
