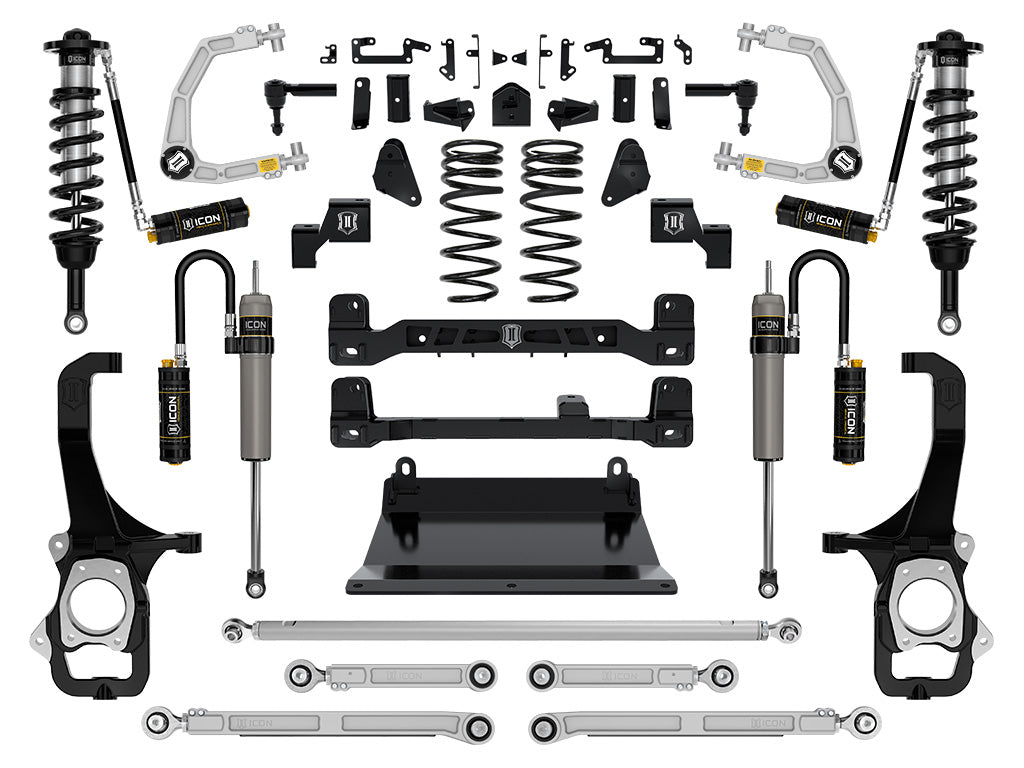

2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling.
Features and Benefits:
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- System allows for up to 40 Percent increase in front wheel travel over stock without overstressing OE components
- Optimized design to fit 37 Inch tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Maintains factory track width
- Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
- Adjustable front ride heights from 5-6 Inch of front lift over stock (up to 6 Inch of lift with only 4 Inch of crossmember drop)
- Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
- Single piece high-strength ductile iron steering knuckles with built-in 4 Inch drop
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
- Billet rear upper and high clearance lower links improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system
- Billet rear lower links have replaceable nylon rock sliders to protect the links from trail damage
- On-vehicle adjustable billet rear track bar properly centers rear axle while also improve rear suspension performance
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
Details
- Active Or Passive Suspension: Passive
- Adjustable Compression: Yes
- Adjustable Control Arm: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Bushings Included: No
- Coil Quantity Front: 2.0
- Coils Quantity Front: 2.0
- Coils Quantity Rear: 2.0
- Damping Adjustment Type: Manual
- Front Reservoir Style: Remote
- Front Shock Body Diameter: 2.5
- Front Spring Rate Type: Linear
- Grade Type: Performance
- Maximum Lift Front: 6.0 Inch
- Maximum Lift Rear: 3.5 Inch
- Minimum Lift Front: 5.0 Inch
- Minimum Lift Rear: 3.0 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: No
- Rear Reservoir Style: Remote
- Rear Shock Body Diameter: 2.5
- Rear Spring Rate Type: Progressive Triple Rate
- Recommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- StrutS Included: No
- Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 191014 - .25 Inch Collar Spanner Pin Wrench, 191013 - Nipple Greasing Adapter Kit, 198001 - Billet Spanner Wrench Kit, 55153 - 22-25 Tundra/23-25 Sequoia Air Ride/Auto Headlight Bracket Kit
