• Weld-on bump stop can, MIG welded in-house and shipped raw
• Your choice of 2.5" diameter, 2.5" stroke bump stop from FOX, King, ADS or Carbon, or the bump can only

The bump pad it contacts is part of the FMI Fabricated Lower Control Arm, not this kit.

When the front suspension hits full compression on a hard landing or a big whoop, something has to stop it. Without a proper bump stop, that final impact is taken by the shock and the suspension parts and passed straight into the chassis.

A bump stop is a short-stroke damper set at the end of the travel. In the last part of compression the lower arm's bump pad meets the bump stop, and the bump stop absorbs the hardest part of the hit progressively instead of letting the suspension crash into its limit. The result is reliable full compression protection and a truck that rides better when the terrain gets rough.

Mounting the can directly to the frame gives the bump stop a solid base for the loads it sees.

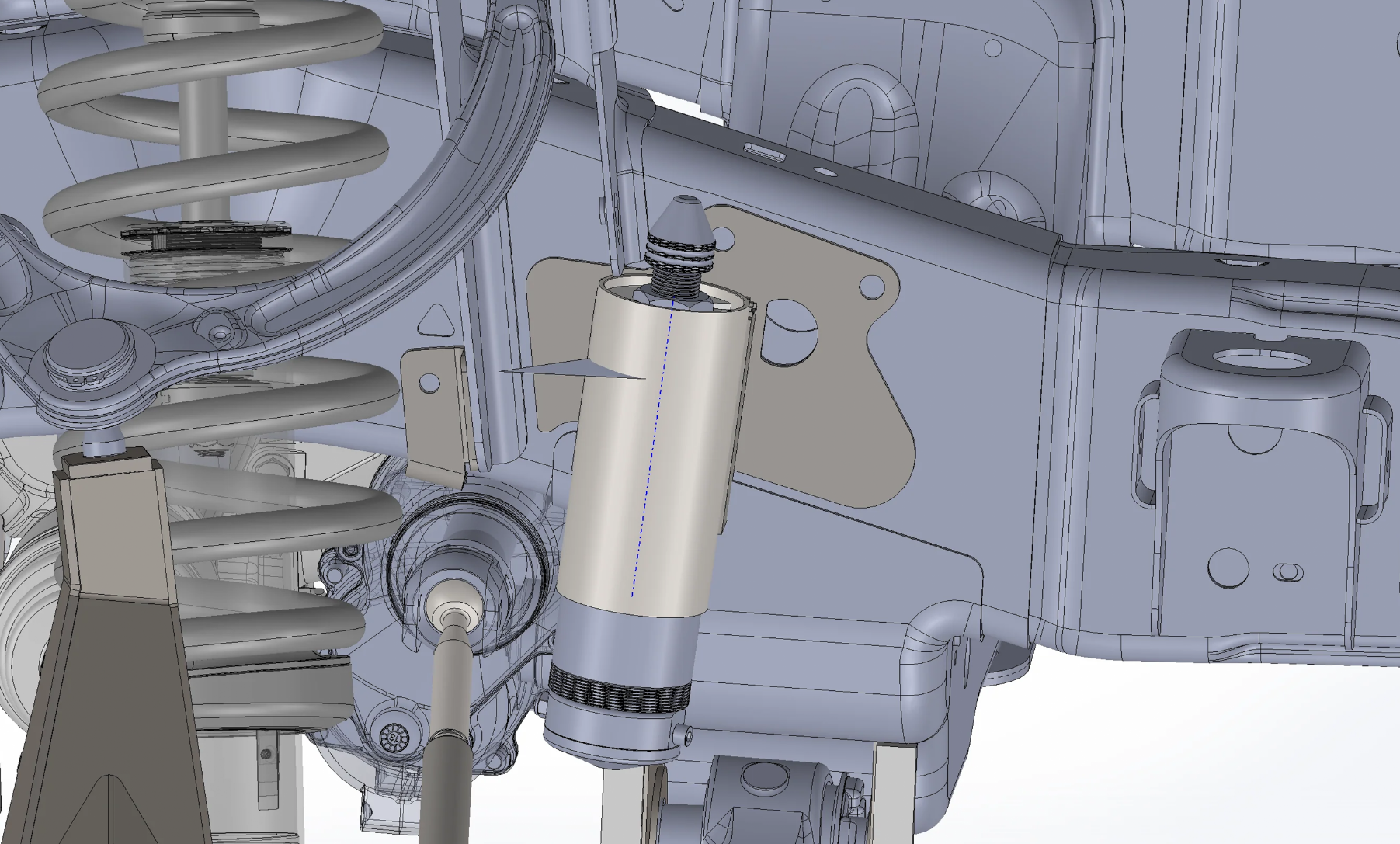

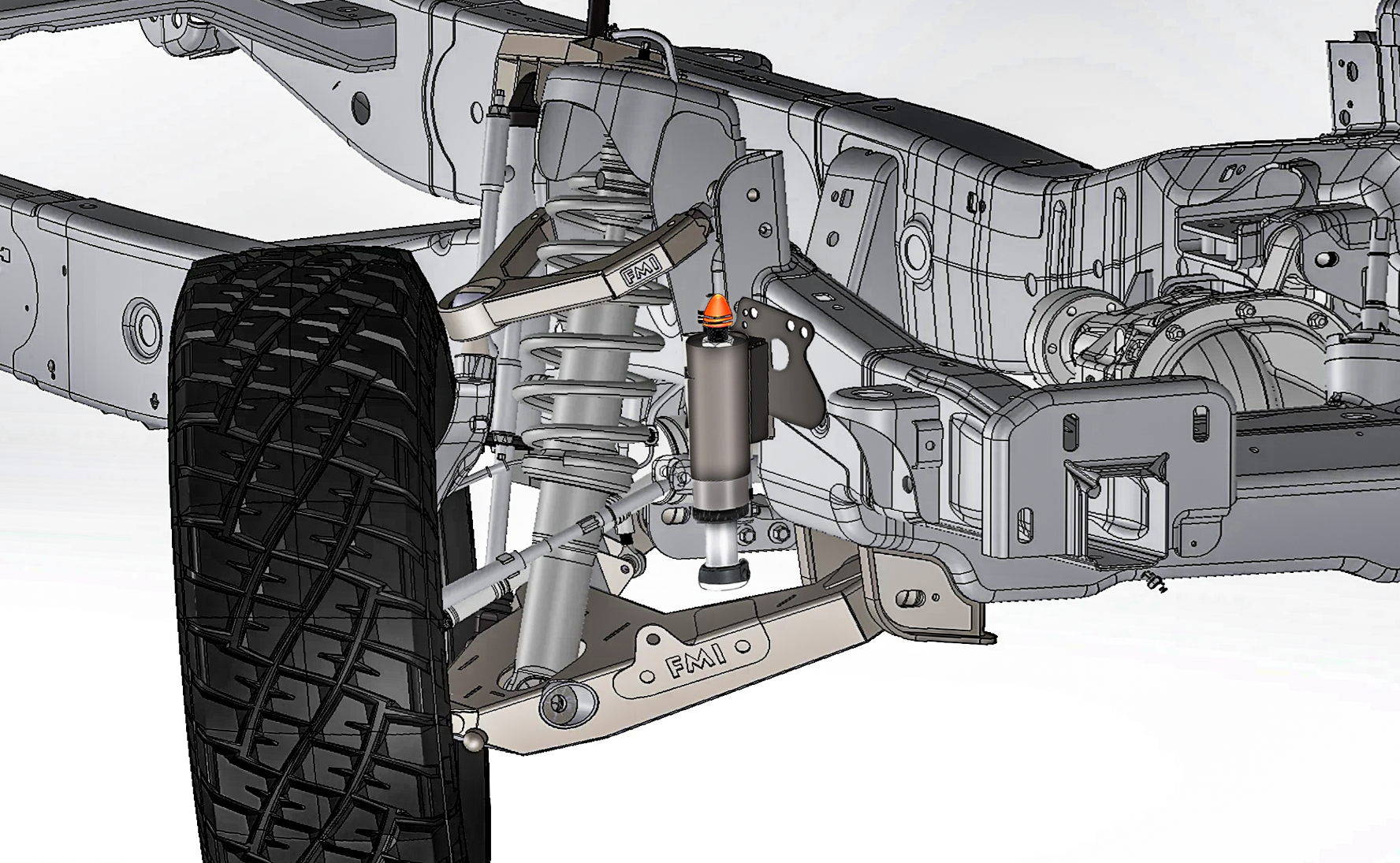

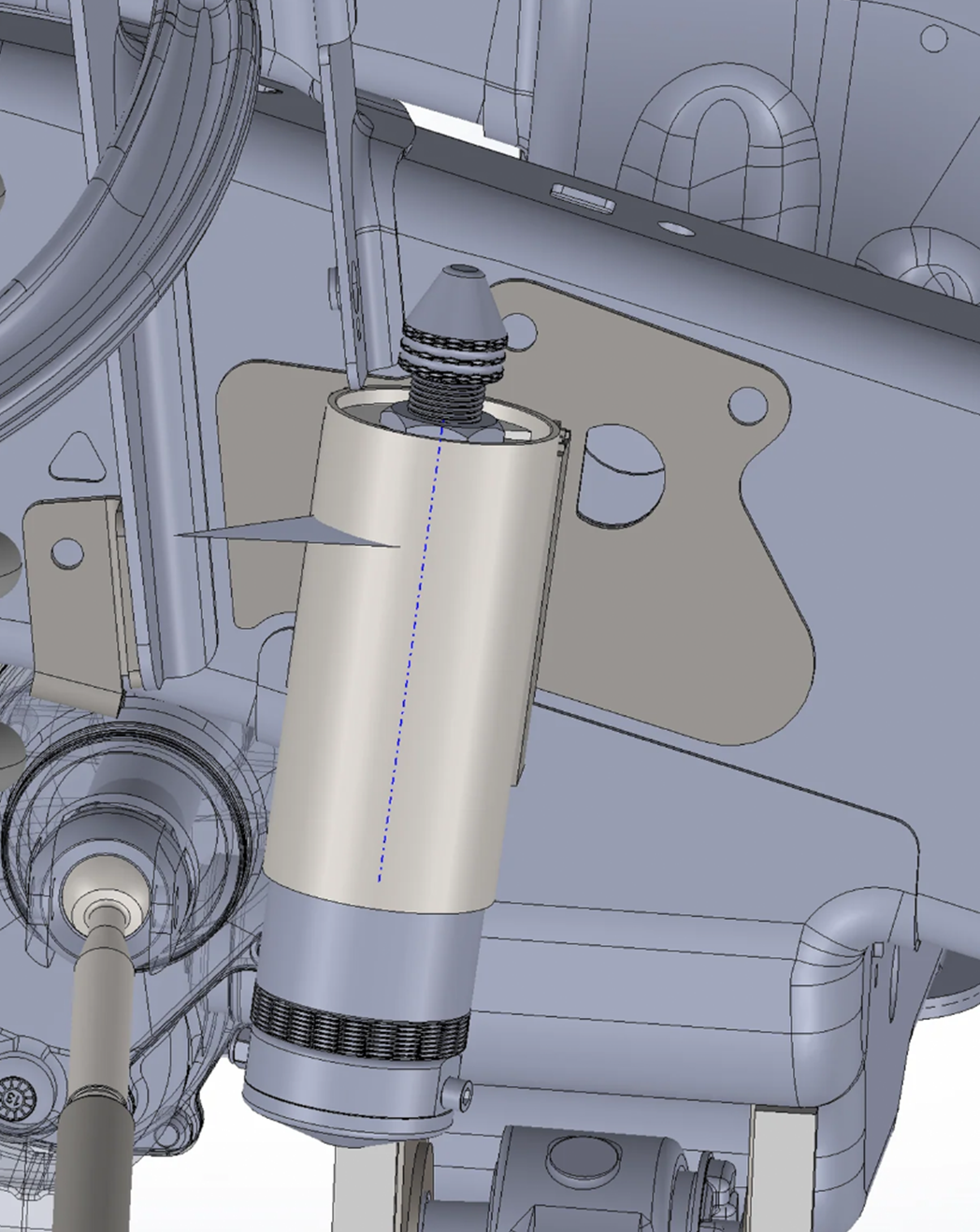

The bump stop can is MIG welded in-house and mounts directly to the frame for strength and durability. It is designed to line up with the integrated bump pad on the Foutz Motorsports Fabricated Lower Control Arm.

The can ships raw, ready to be welded in.

Choose your bump stop when you order:

• FOX
• King
• ADS
• Carbon
• No bump stop, bump can only

Fits the Gen 3 Ford F-150 Raptor, model years 2021 through 2026.

Requires the Foutz Motorsports Fabricated Lower Control Arm Kit. This bump stop is engineered to work with the bump pad built into that arm.

Welding the bump stop mount to the frame is required. Installation should be done by a qualified welder or fabricator.

Does this work with the factory lower control arm?

This kit is engineered for the Foutz Motorsports Fabricated Lower Control Arm, which has the bump pad built in. Contact us if you are running a different arm.

Do I have to weld it?

Yes. The bump stop mount welds to the frame. Have a qualified welder or fabricator do the install.

What size is the bump stop?

2.5" diameter with 2.5" of stroke.

Which bump stop brands can I choose?

FOX, King, ADS or Carbon. You can also order the bump can only, with no bump stop.

Does it come painted?

No. The can is MIG welded in-house and shipped raw so it can be welded to the frame.

Which years does it fit?

2021 through 2026 Gen 3 Ford F-150 Raptor with the FMI Fabricated Lower Control Arm.
