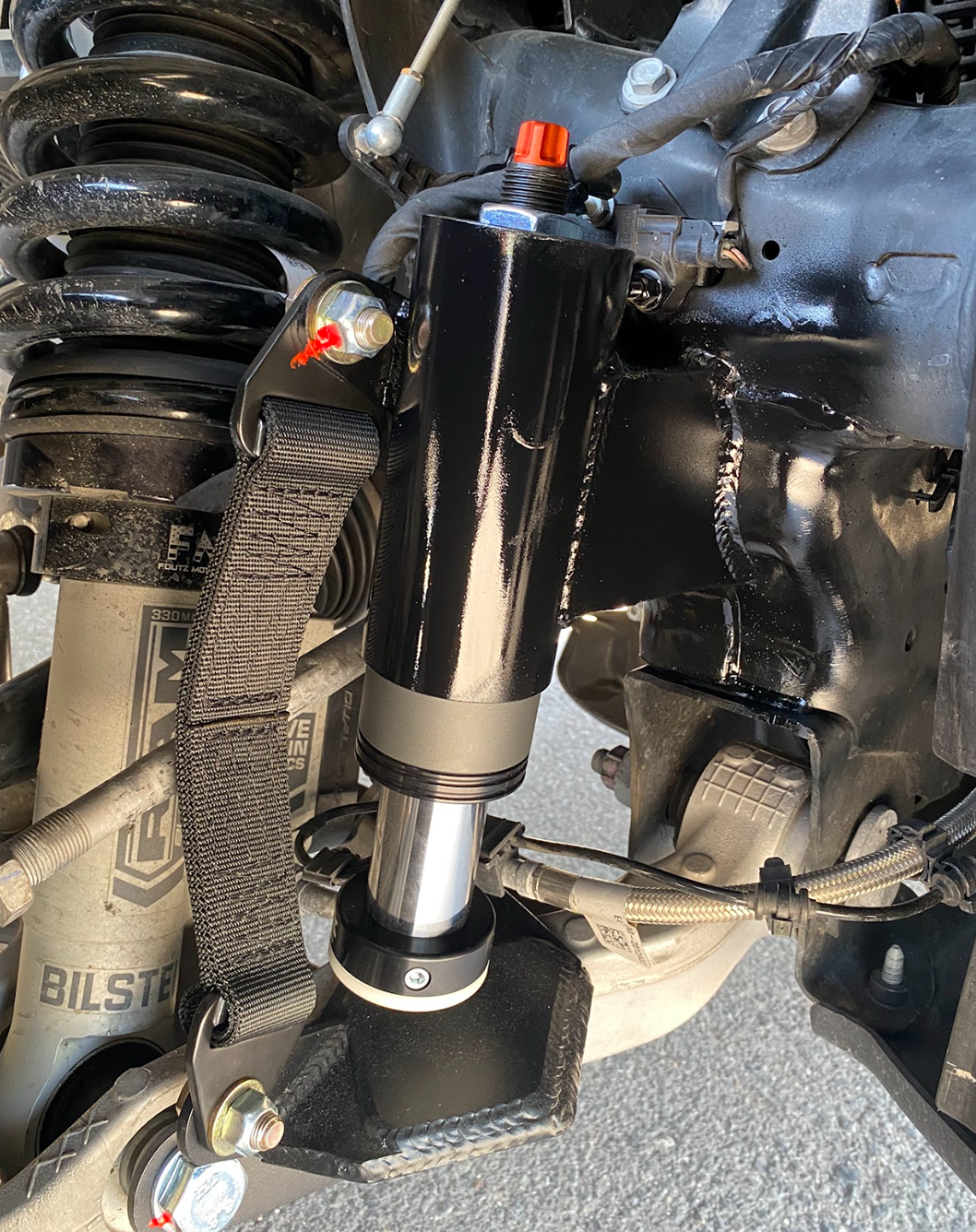

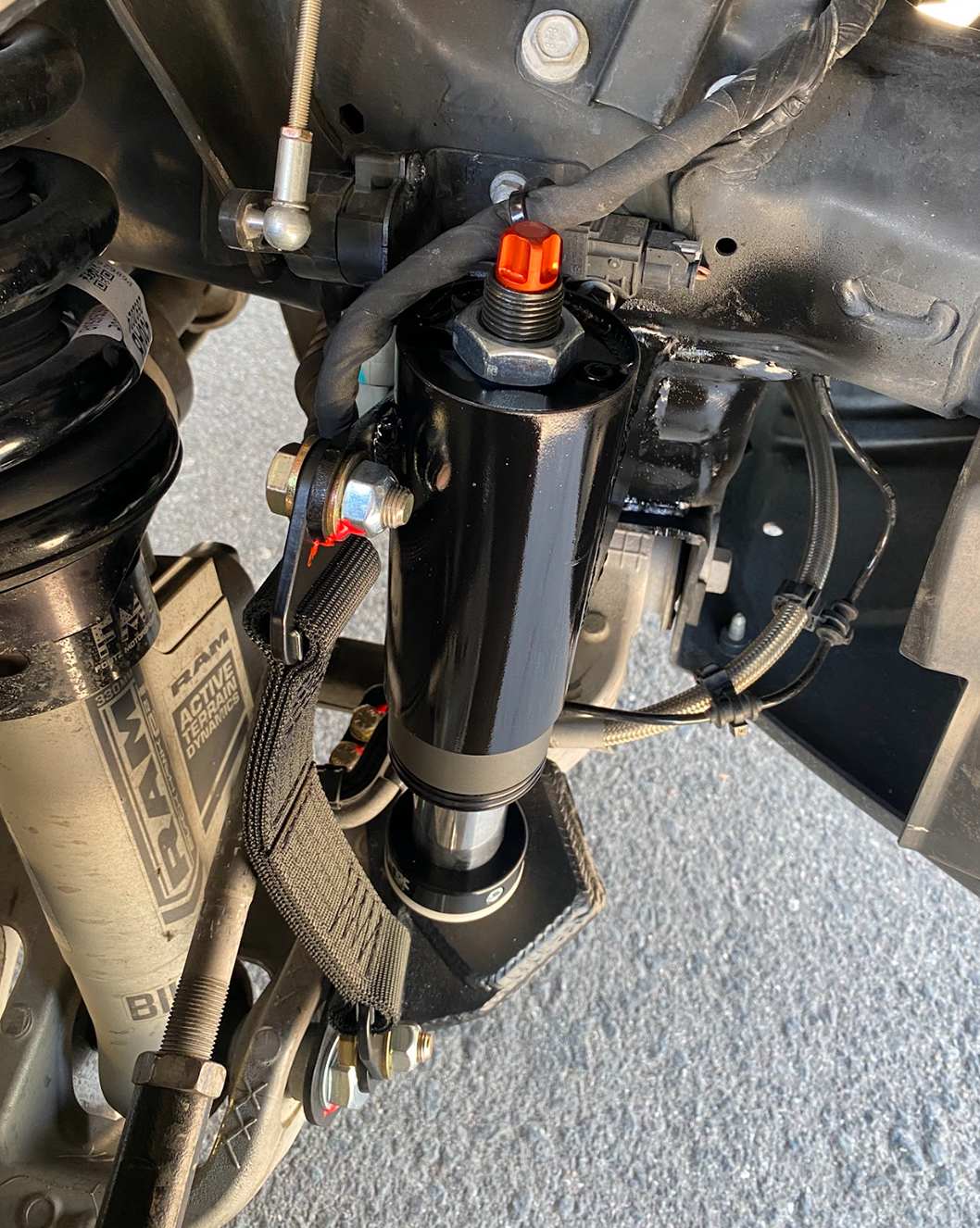

• 12" limit straps, 4 layers of military-grade webbing with black-plated steel mounting tabs

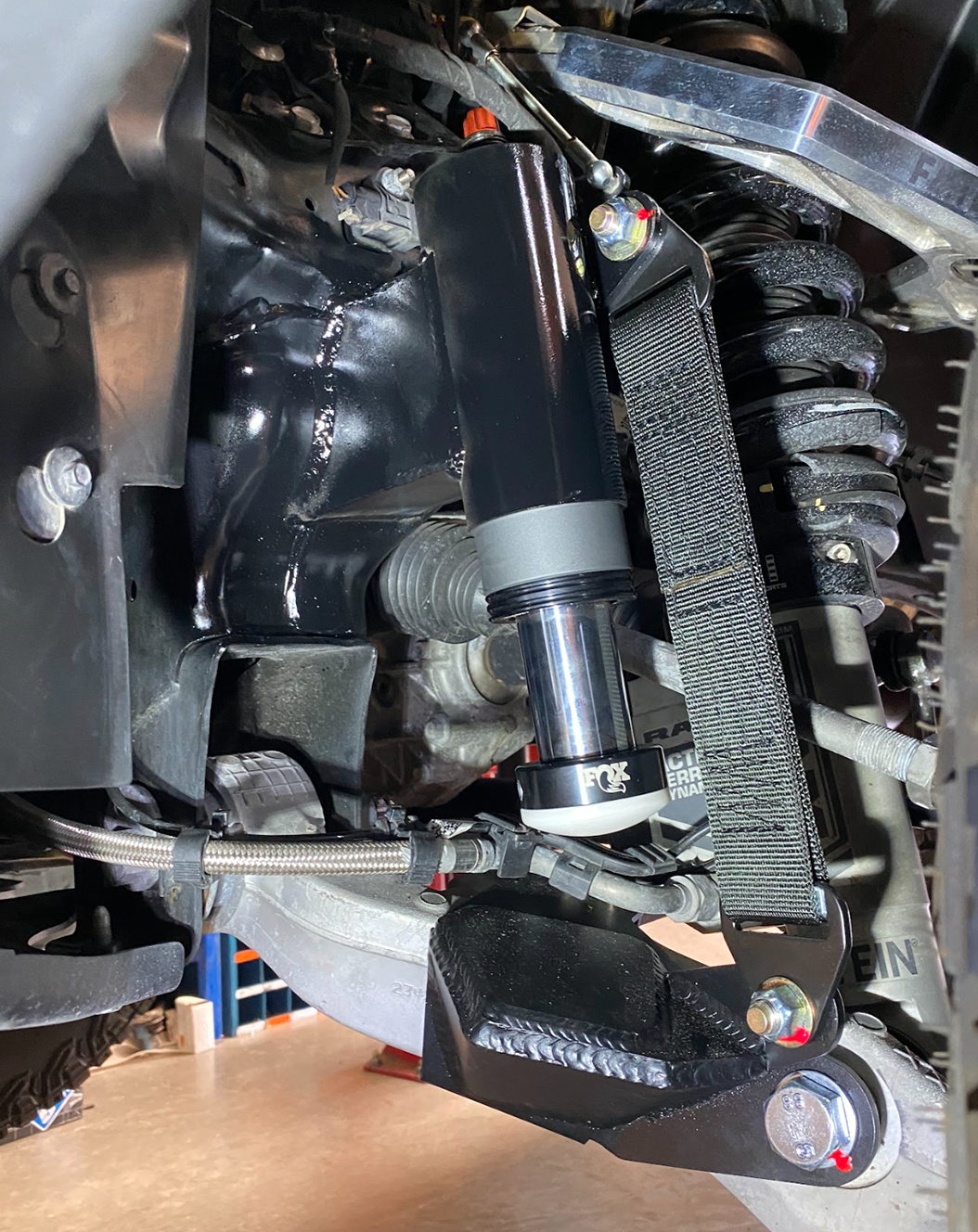

• Mounting brackets with a built-in bump stop pad, which clamp around the front of the stock lower control arm

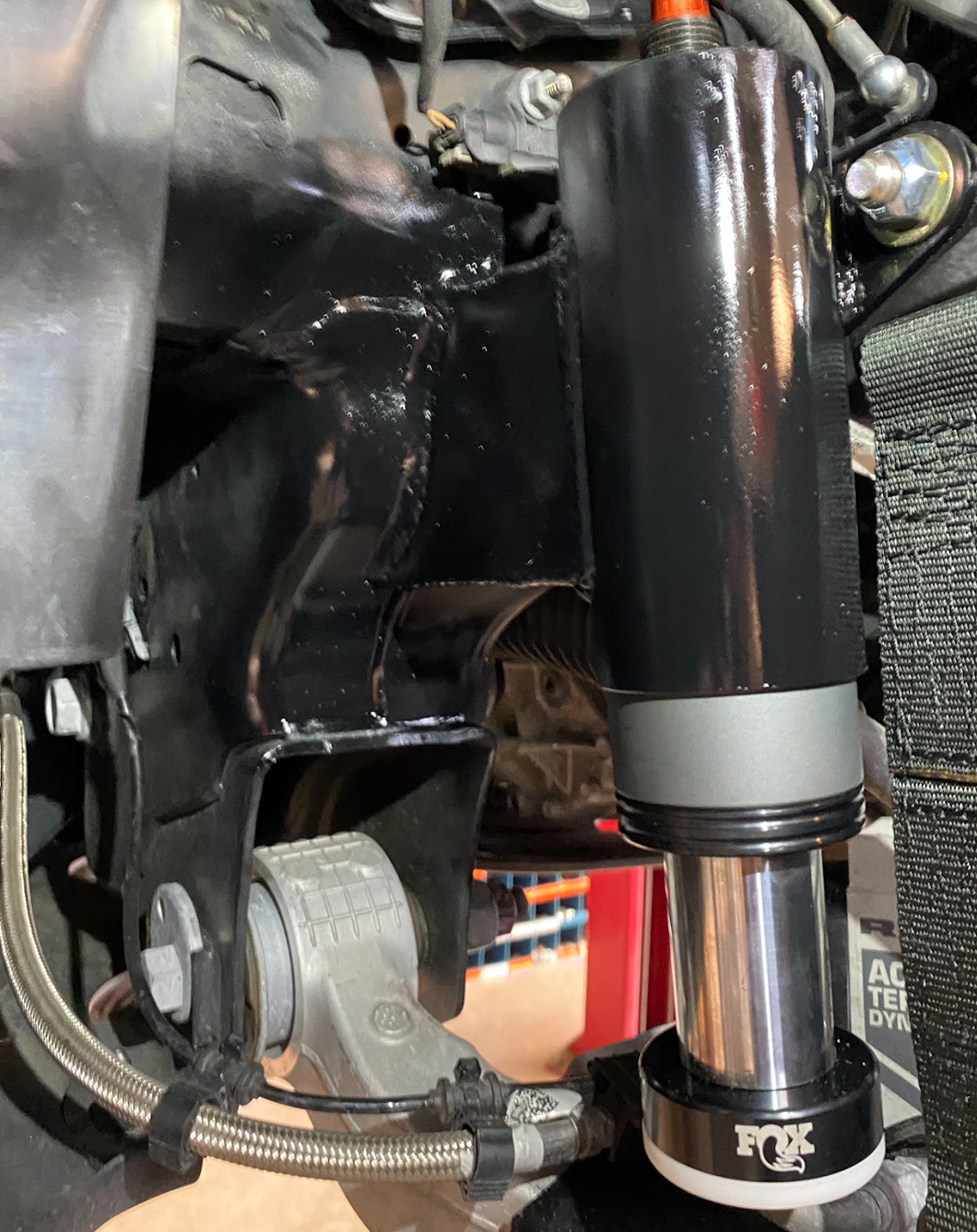

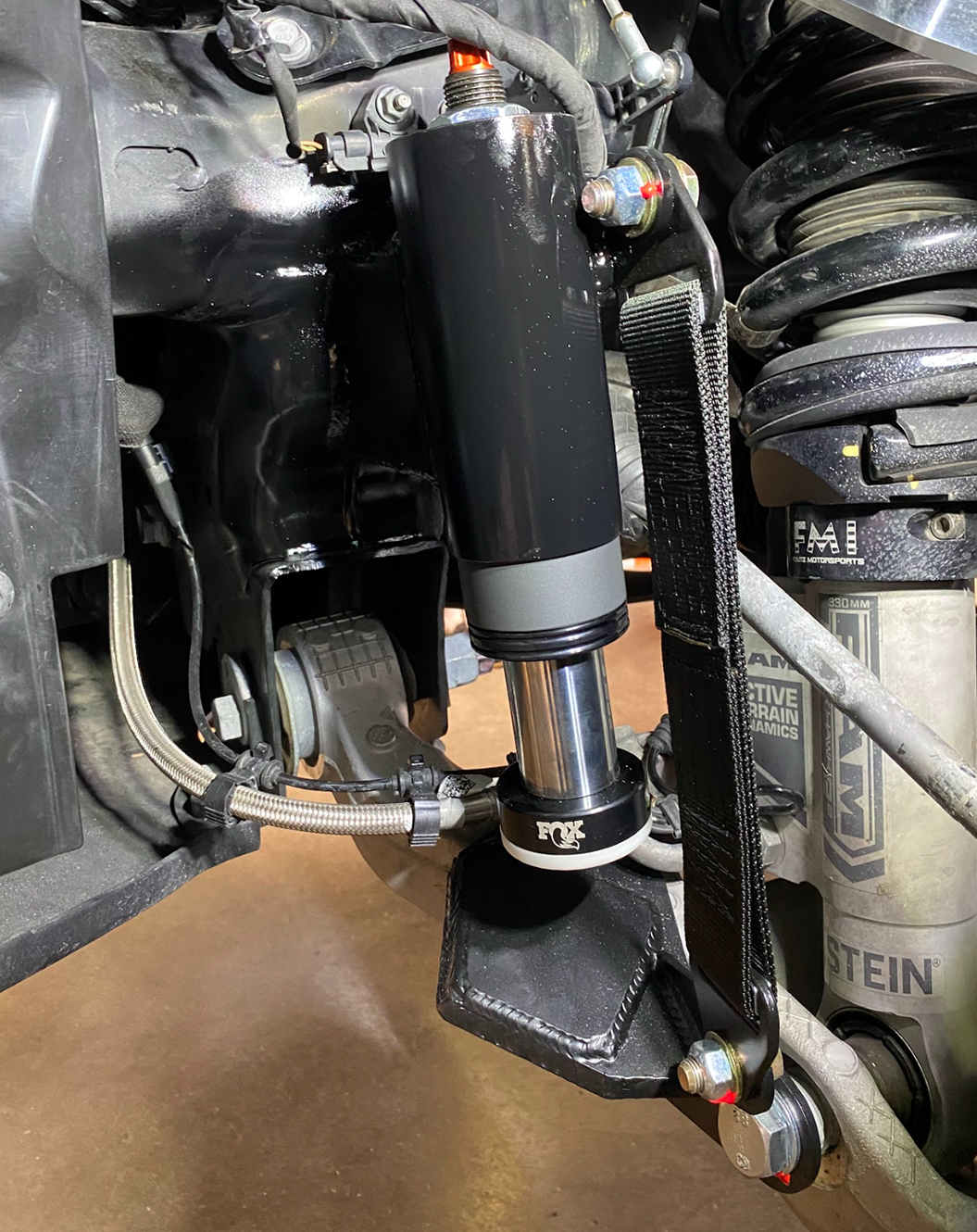

• Front bump stop mount, set up for a 2.5" OD, 2.5" travel bump stop

Choose FOX, King, ADS or Carbon in the bump stop options. The hydraulic bump stop in the brand you select is included with the kit.

Every time the front wheel drops into a hole or the truck gets airborne, the suspension extends until something stops it. Without a limit strap, that something is the shock itself, which means the shock's internals and the top shock mount take the load. The limit strap restrains top-out so the shock is not solely responsible for stopping droop, protecting the top shock mount from premature damage.

The other end of travel is just as hard on parts. A bump stop catches the suspension before it bottoms out and absorbs the biggest hits, giving you full bottom-out protection.

If you are running aftermarket springs on your Ram TRX, this kit is a must-have.

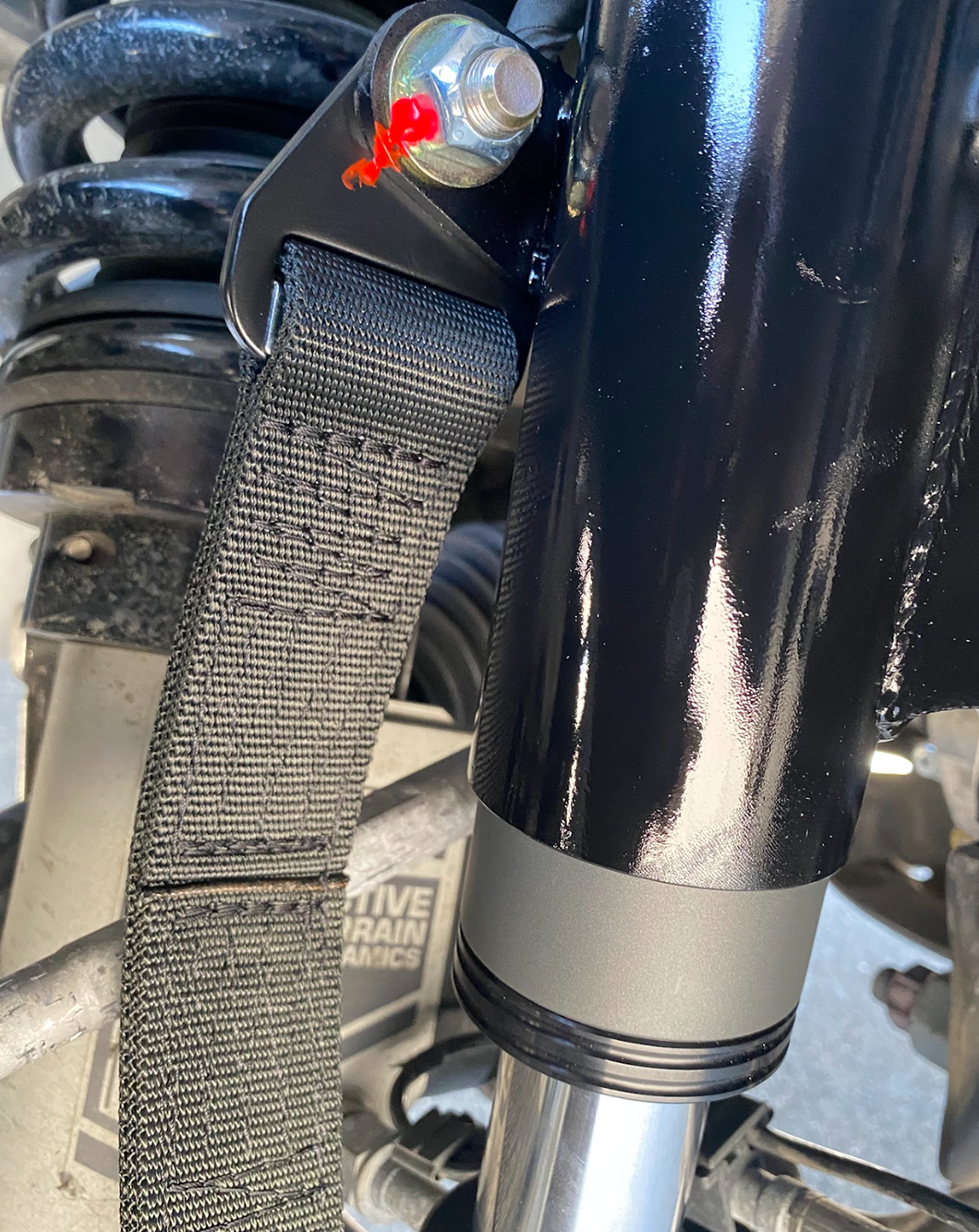

The 12" straps are built to handle serious off-road abuse and keep their strength and reliability, unlike lower-grade straps that stretch or wear out. Each strap uses 4 layers of military-grade webbing with black-plated steel mounting tabs for long life.

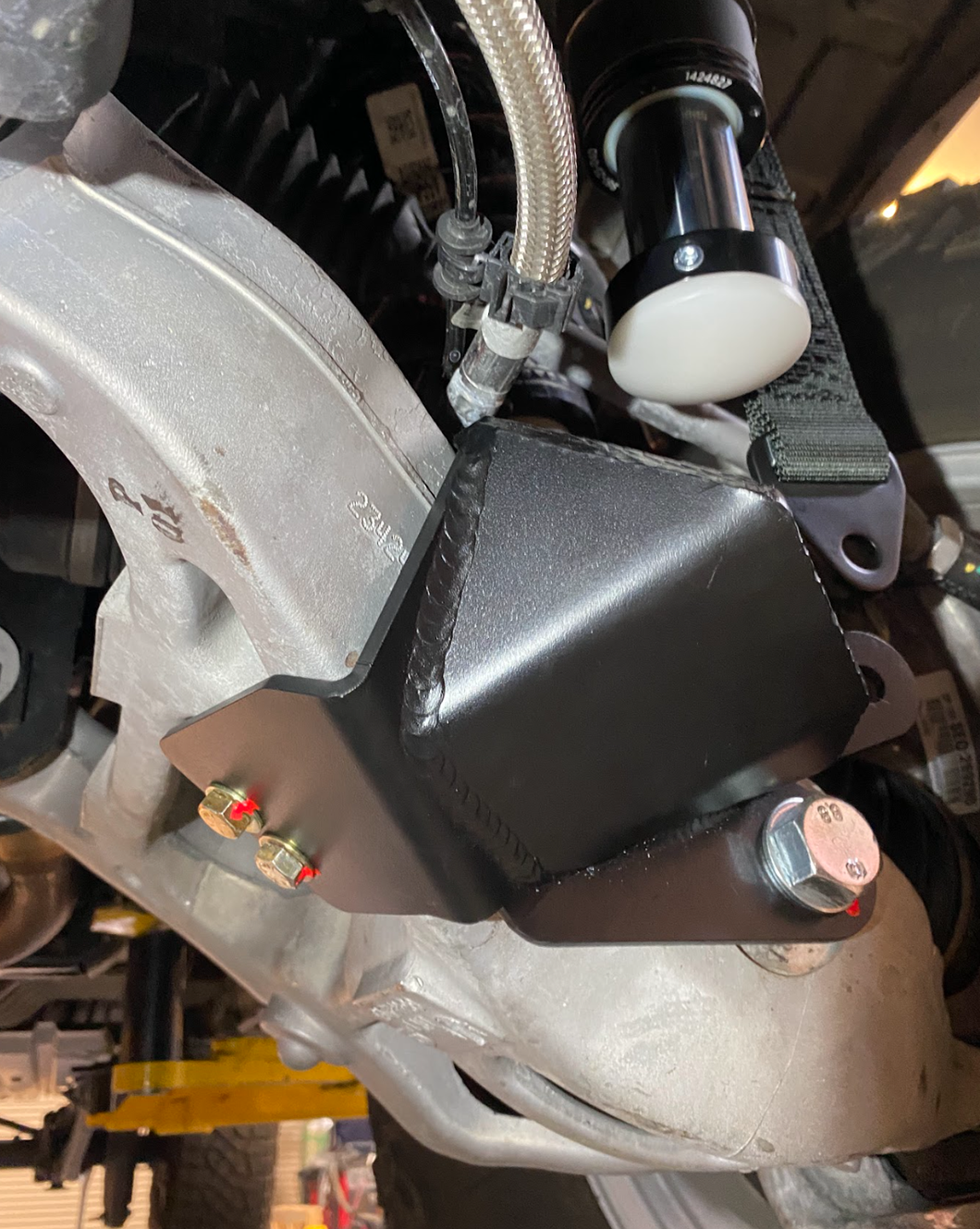

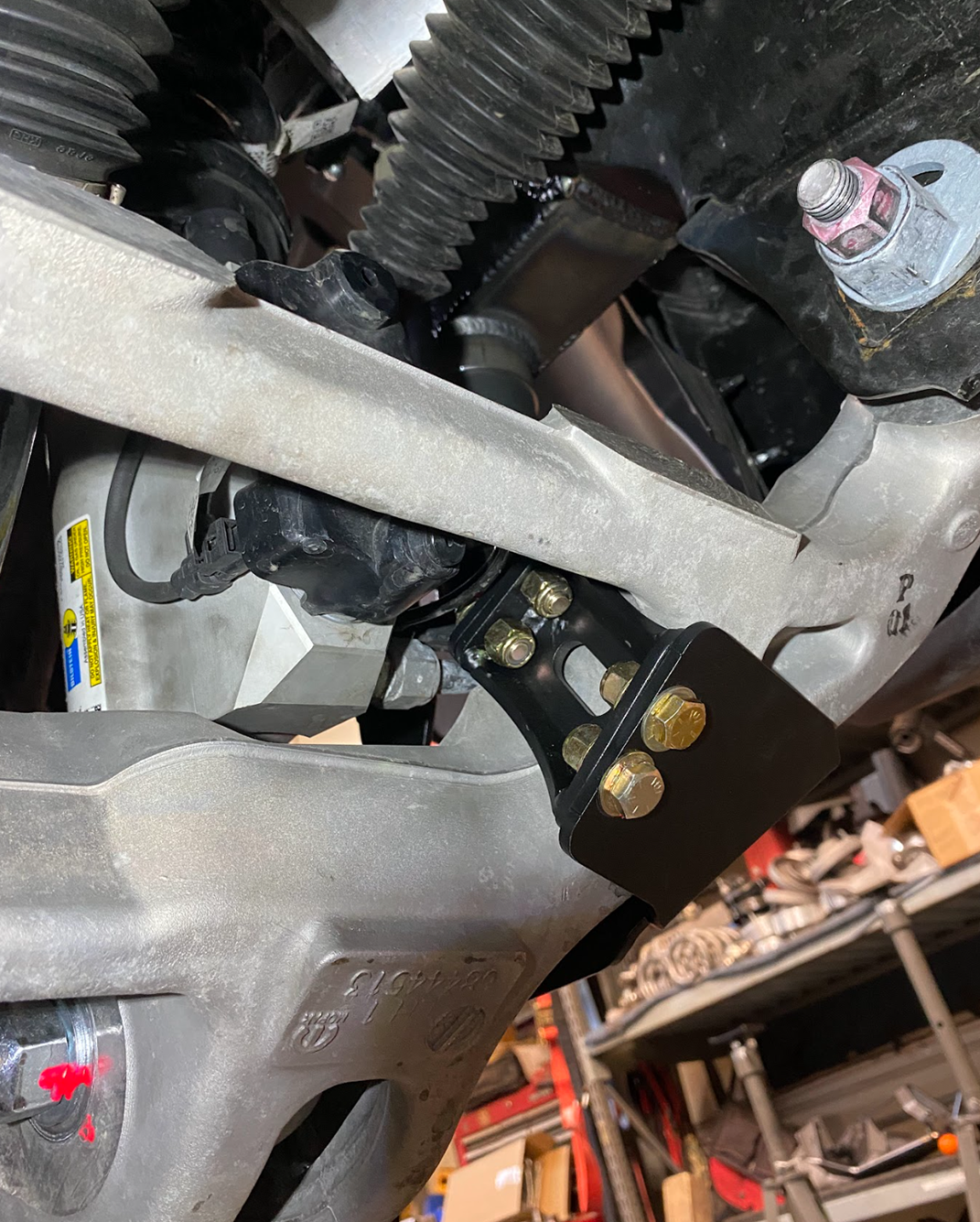

• The brackets clamp around the front of the stock lower control arm.
• A bump stop pad is built into the brackets, so a front bump stop can be added at any time.
• MIG welded in-house and finished in hammer black powder coat for durability and strength.
• Engineered to work with FOX, King, ADS or Carbon front bump stops. The 2.5" OD, 2.5" travel bump stop delivers full bottom-out protection.

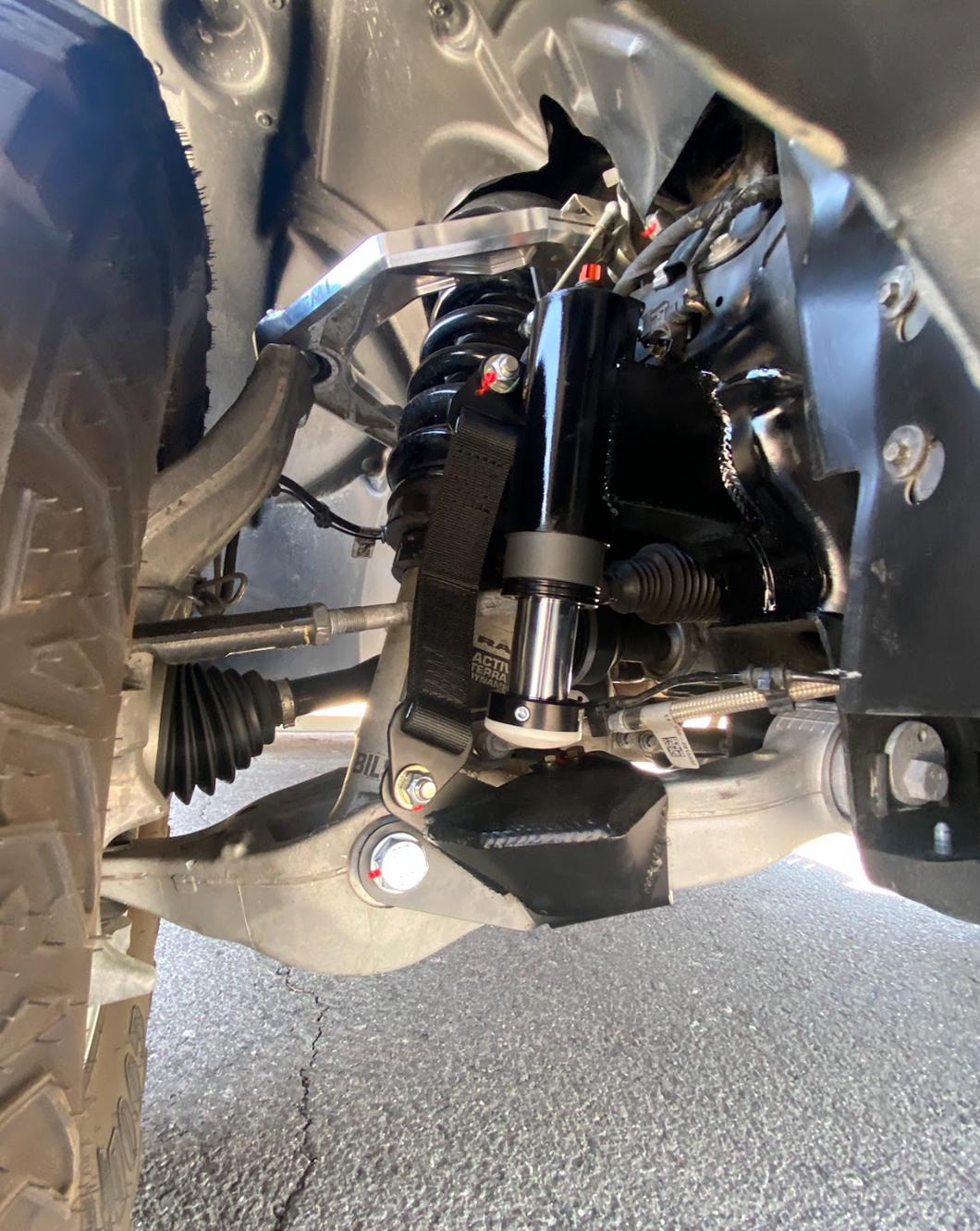

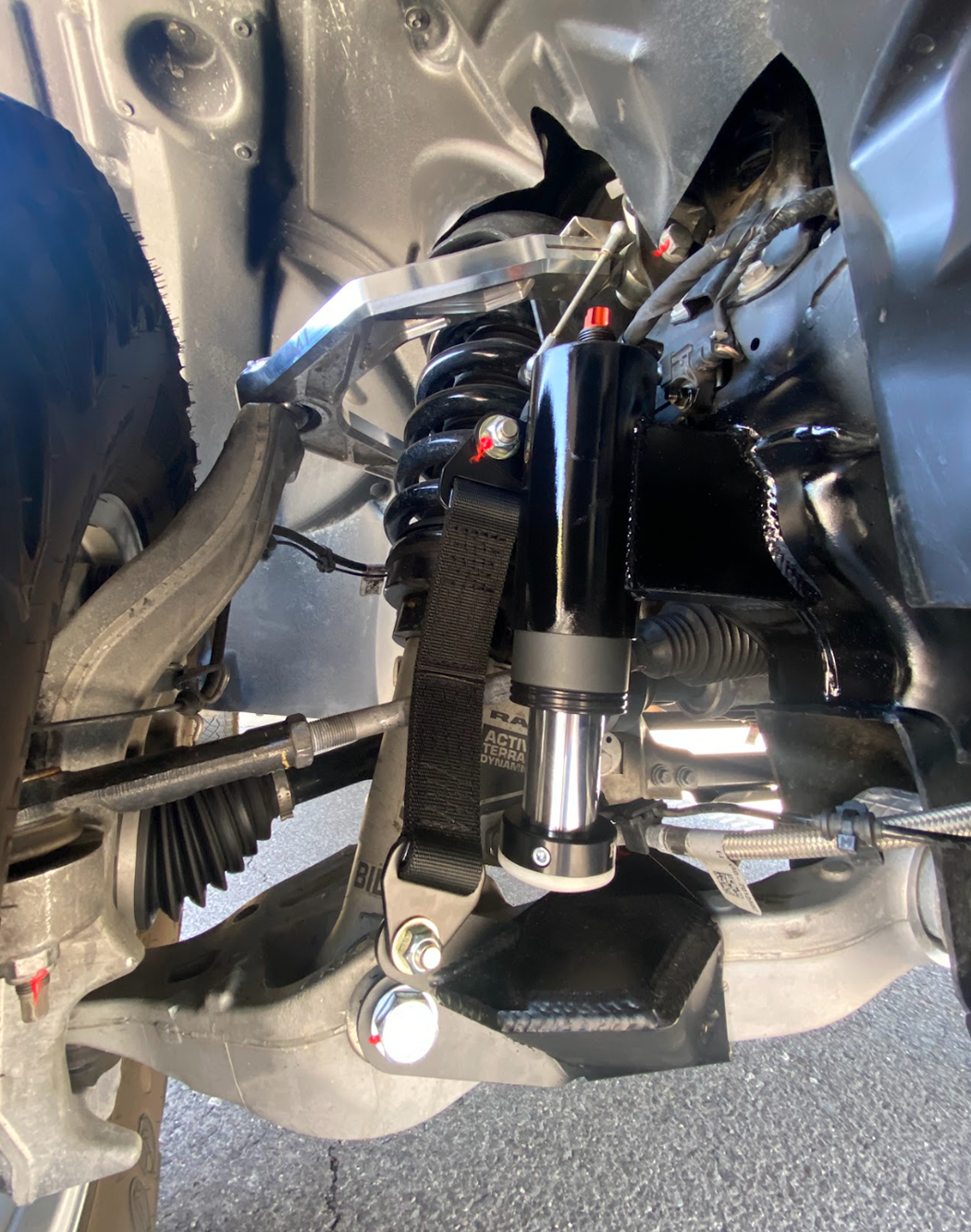

Fits the 2021–2024 Ram TRX with the factory stock lower A-arm.

The brackets bolt directly to the factory cast aluminum lower A-arm. The bump stop mount must be welded to the frame, so the kit should be installed by a qualified welder or fabricator.

Is the bump stop included?

Yes. Select FOX, King, ADS or Carbon in the options, and that hydraulic bump stop is included with the kit.

Does this work with my stock lower control arms?

Yes. It is designed to work with the factory stock lower A-arm on the 2021–2024 Ram TRX.

Does installation require welding?

Yes. The bump stop mount welds to the frame, and installation should be done by a qualified welder or fabricator.

Which bump stops does it work with?

FOX, King, ADS or Carbon front bump stops, in a 2.5" OD, 2.5" travel size.

What does the limit strap protect?

It limits top-out travel so the shock is not solely responsible for stopping droop, which protects the top shock mount from premature damage.

How long are the straps?

12", made from 4 layers of military-grade webbing with black-plated steel mounting tabs.

Do I need this if I have aftermarket springs?

It is strongly recommended. With aftermarket springs on a Ram TRX, this kit is a must-have.
