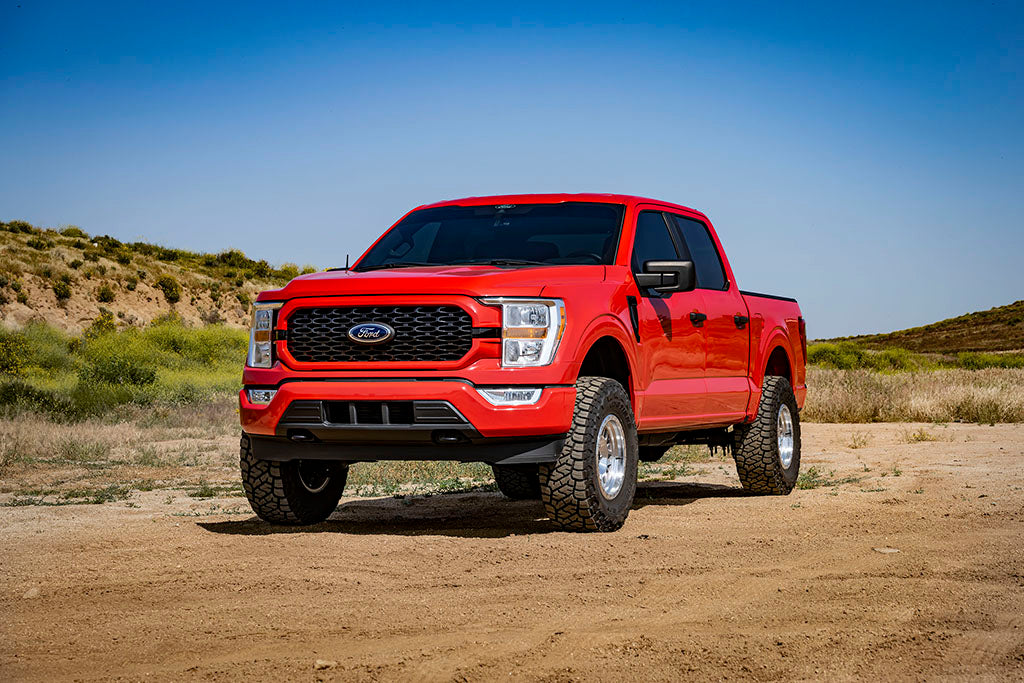

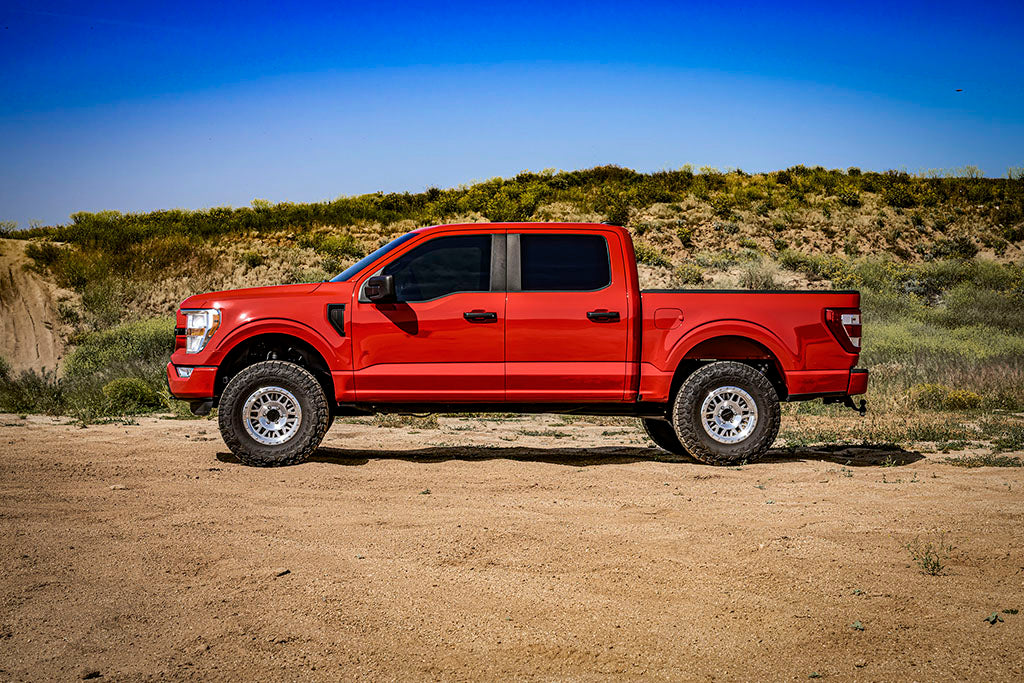

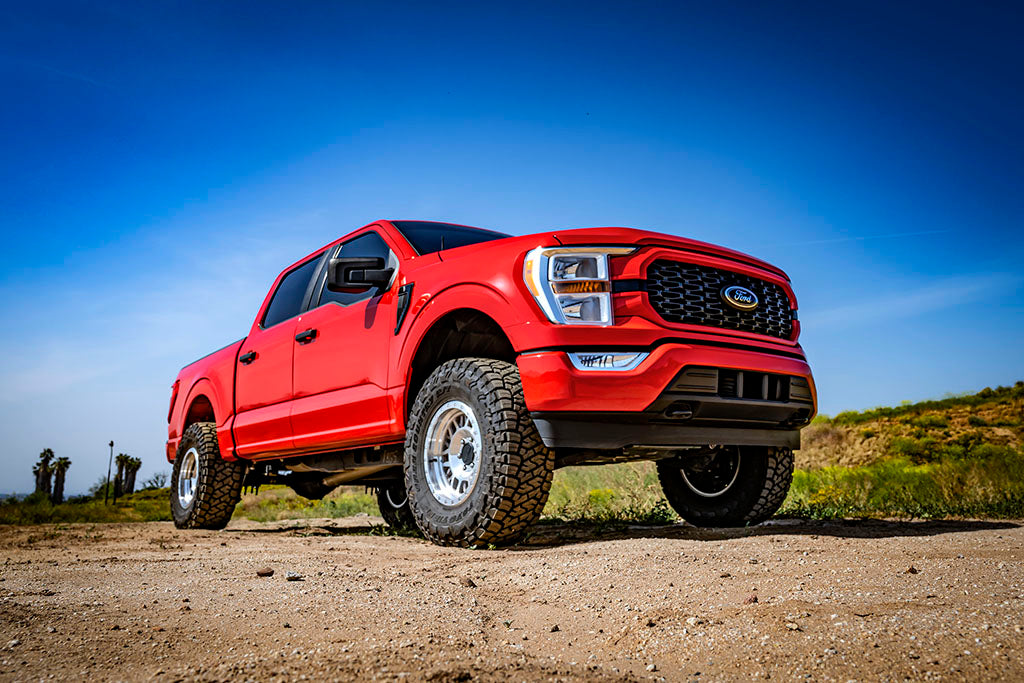

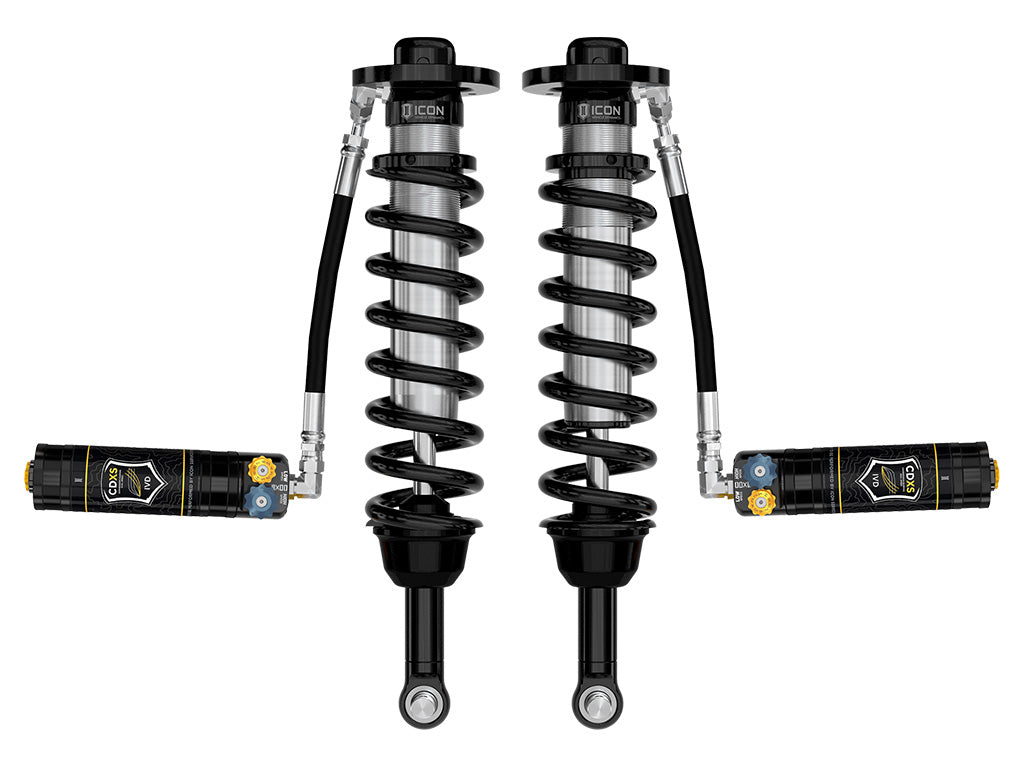

ICON Vehicle Dynamics V.S. Series 2.5 Inch coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 Tremor and F-150 4WD trucks equipped with ICON's Front Knuckle Kit.
These coilovers feature an application specific length for F-150 Tremor or other F-150 sub-models equipped with ICON's Front Knuckle Kit, allowing the most wheel travel possible as well as a taller lift height range than other ICON coilover options. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 2.5-3 Inch of lift height adjustability on F-150 Tremor or 3.5-4.5 Inch of lift height adjustability on other F-150 sub-models allow the use of larger, more aggressive wheel and tire combinations.
The larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

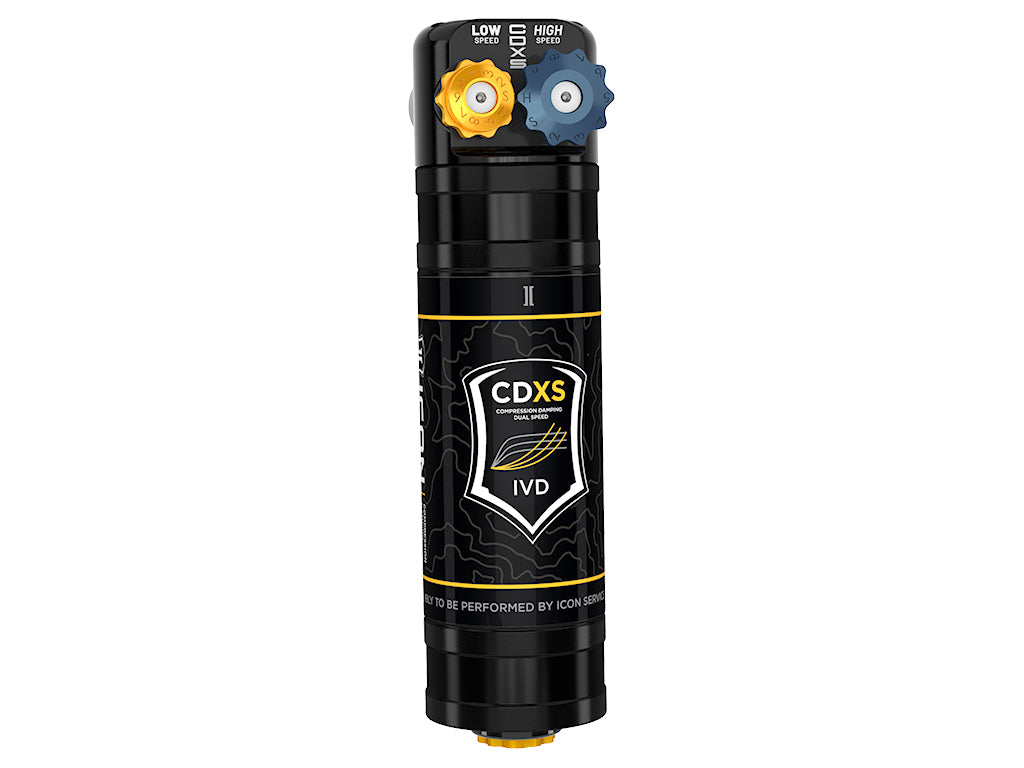

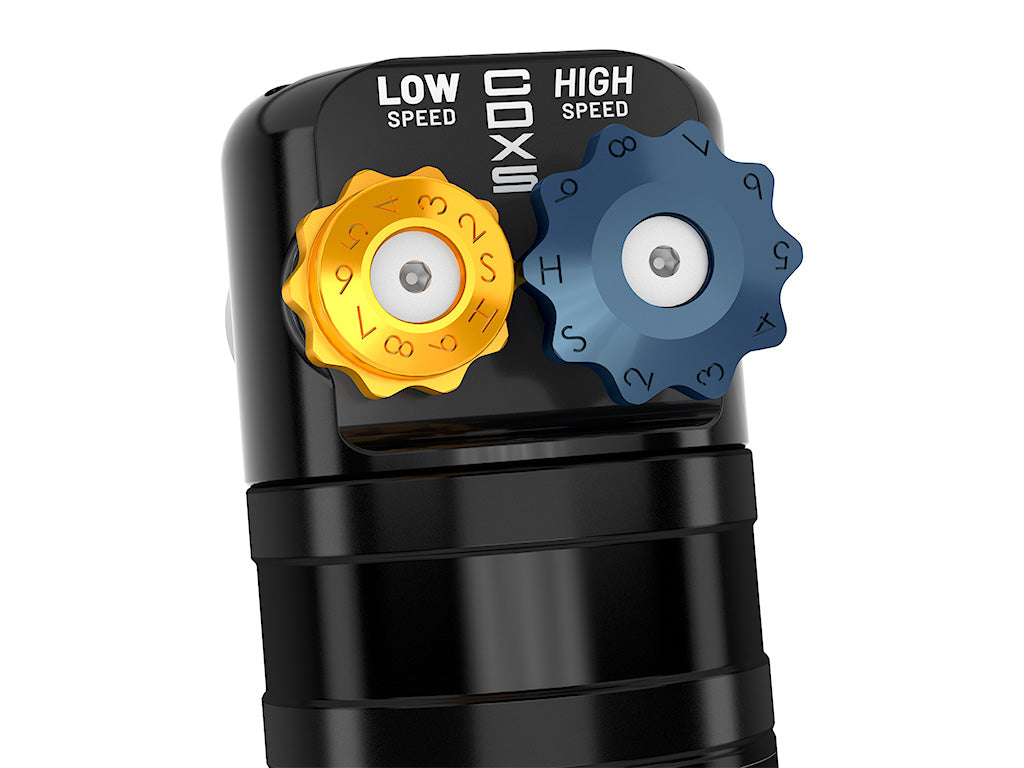

ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.
When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150.
Features and Benefits:
- Application specific length for F-150 Tremor or other F-150 sub-models with ICON Front Knuckle Kit
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 2.5-3 Inch of lift height over stock on F-150 Tremor or 3.5-4.5 Inch over stock on other F-150 sub-models with ICON Front Knuckle Kit
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- ICON engineered coil Springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8 Inch shaft
- FK rod end bearings for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pin
- 100 Percent Bolt-on - no drilling, cutting, or welding necessary for installation
Details
- Material: Steel, Aluminum
- Active Or Passive Suspension: Passive
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Assembled: Yes
- Body Diameter: 2.5 Inch
- Coil Over Springs Included: Yes
- Compressed Length: 18.67
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Cylinder Material: Steel
- Damping Adjustment Type: Dual Speed/Manual
- Damping Type: Oil
- Dust Shield: No
- Dust Shield Included: No
- Extended Length: 24.03
- Front Spring Rate: 550 Inch
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: Yes
- Internal Construction Type: Single Tube
- Lower Mount Type: Bar Pin
- Maximum Lift: 4.5 Inch
- Maximum Ride Height Raising Distance: 4.5
- Minimum Lift: 3.5 Inch
- Oem Wheels & Tires Fitment: Not Compatible With All Available OE Wheel/Tire Combinations. Aftermarket Wheels With Lower Offset/Less Backspace Recommended.
- Recommended Aftermarket Tires: 34 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset
- Remote Reservoir: Yes
- Reservoir Style: Remote
- Self Leveling: No
- Service Parts: 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252001 - 2.5 Fixed Spanner Wrench, 611019 - Coilover Hardware Kit Pair, 254100G - 1 Gallon Icon Performance Shock Oil, 252004 - Economy Needle Charging Tool, 252010 - 2.5 Ifp Rebuild Kit, 252003 - Seal Install Tool 2.5/3.0
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Flat On Bar Pin
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
- Travel Length: 5.37
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
- Add On Part: 98523Dj - 21-24 F150 Billet UCA Dj Pro Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 98522Dj - 21-24 F150 Tubular UCA Dj Pro Kit, 198001 - Billet Spanner Wrench Kit, 97721Xp - 21-24 F150 4Wd Tremor Rear 2.5 Vs Pb Cdxs Pair, 252012 - -4 To -10 Hose Shield Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5)
