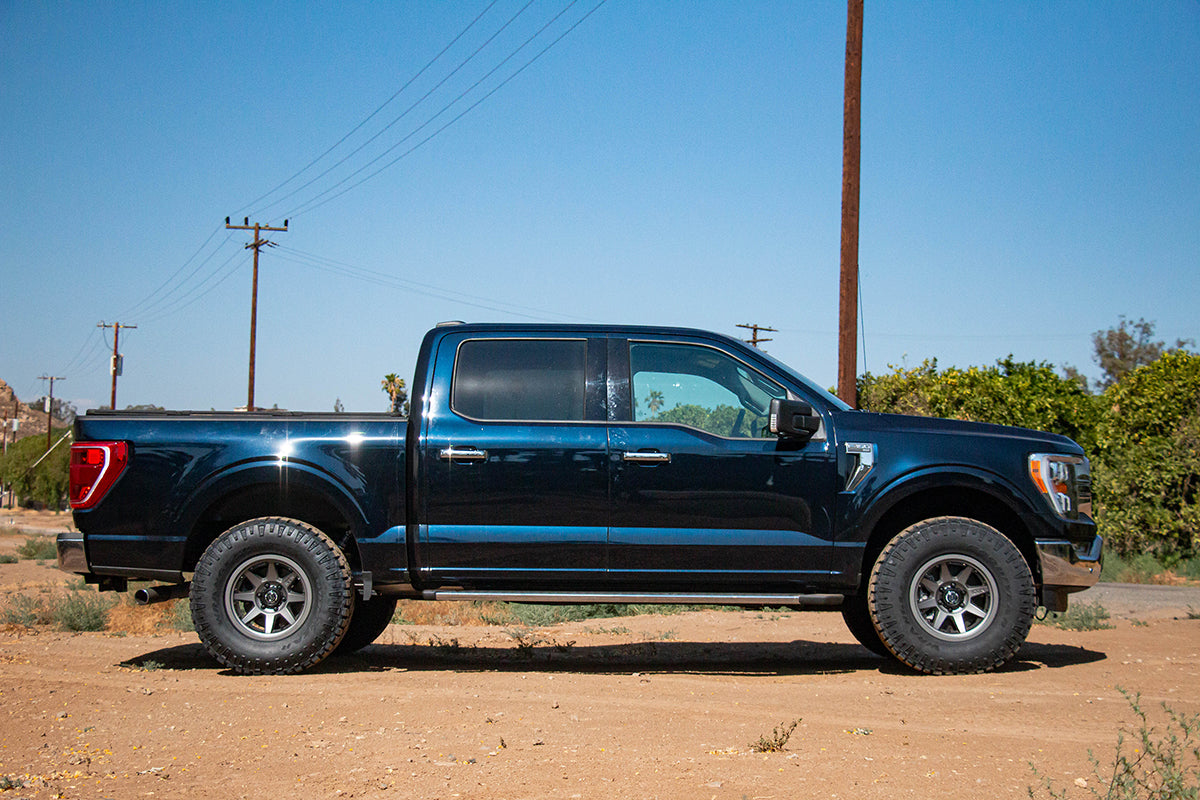

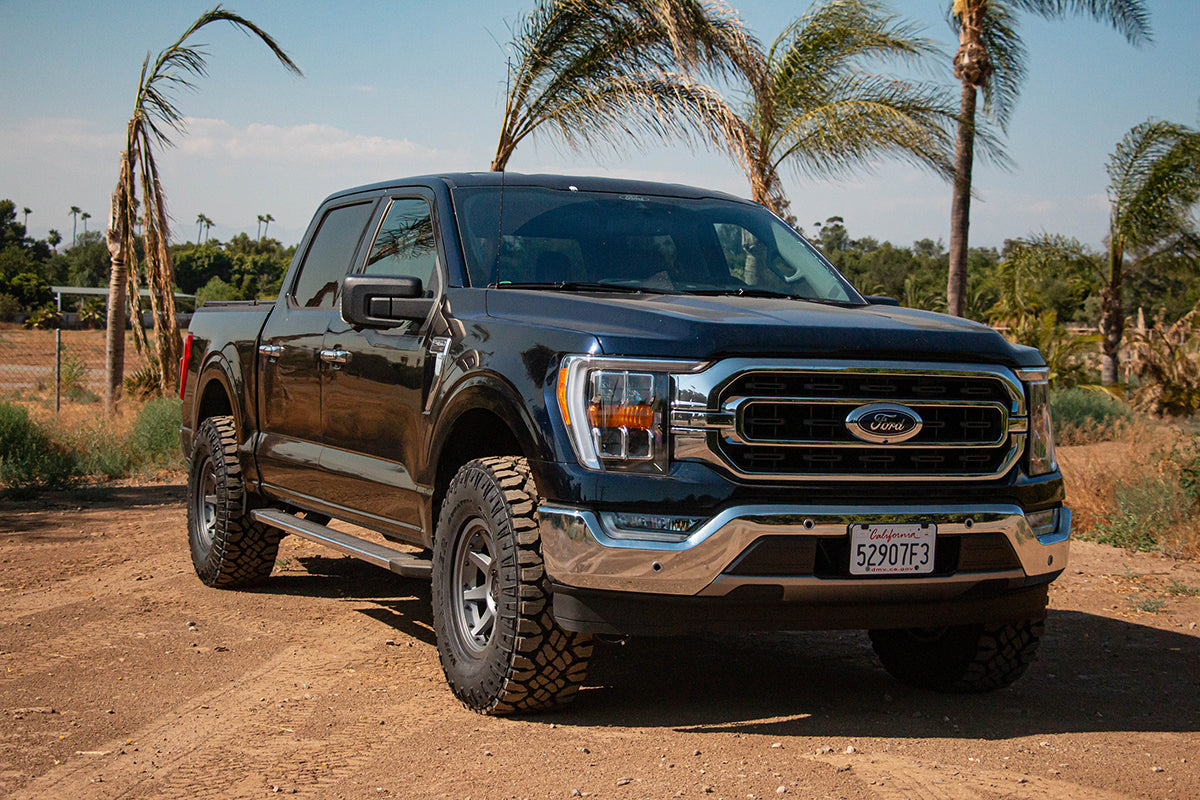

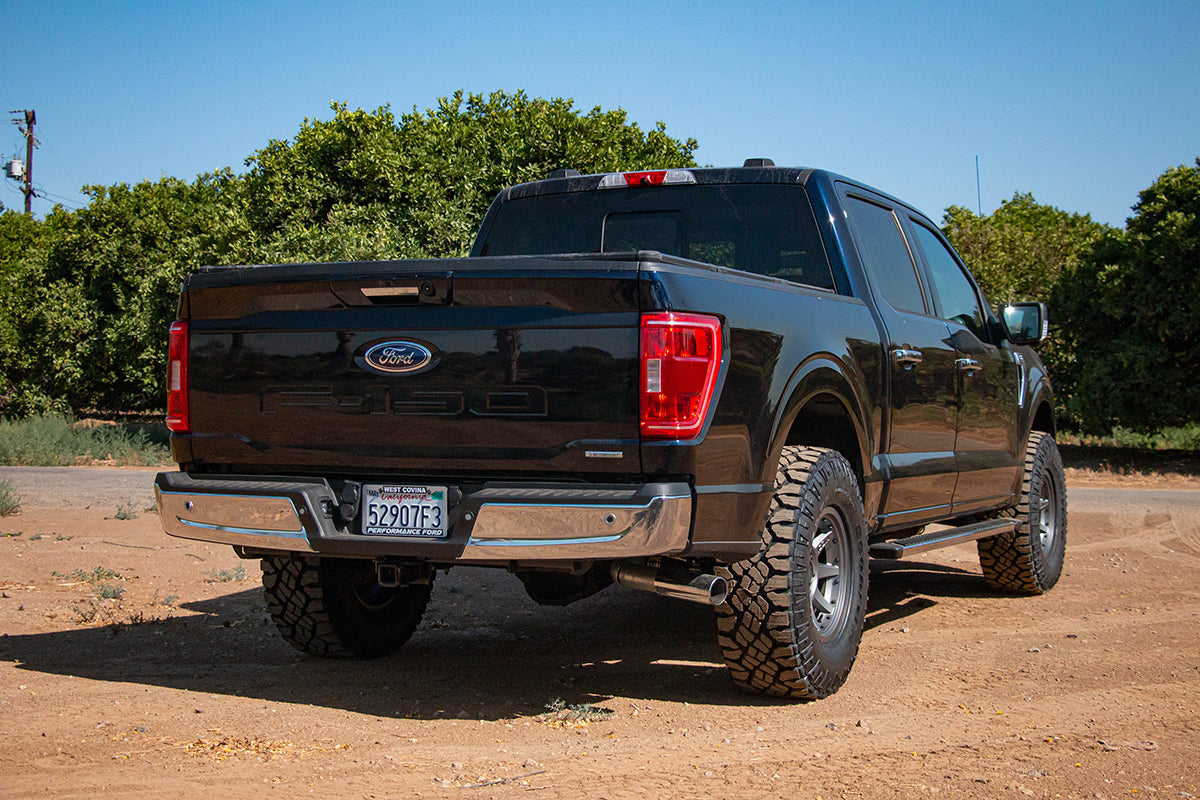

ICON Vehicle Dynamics 2021-2024 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

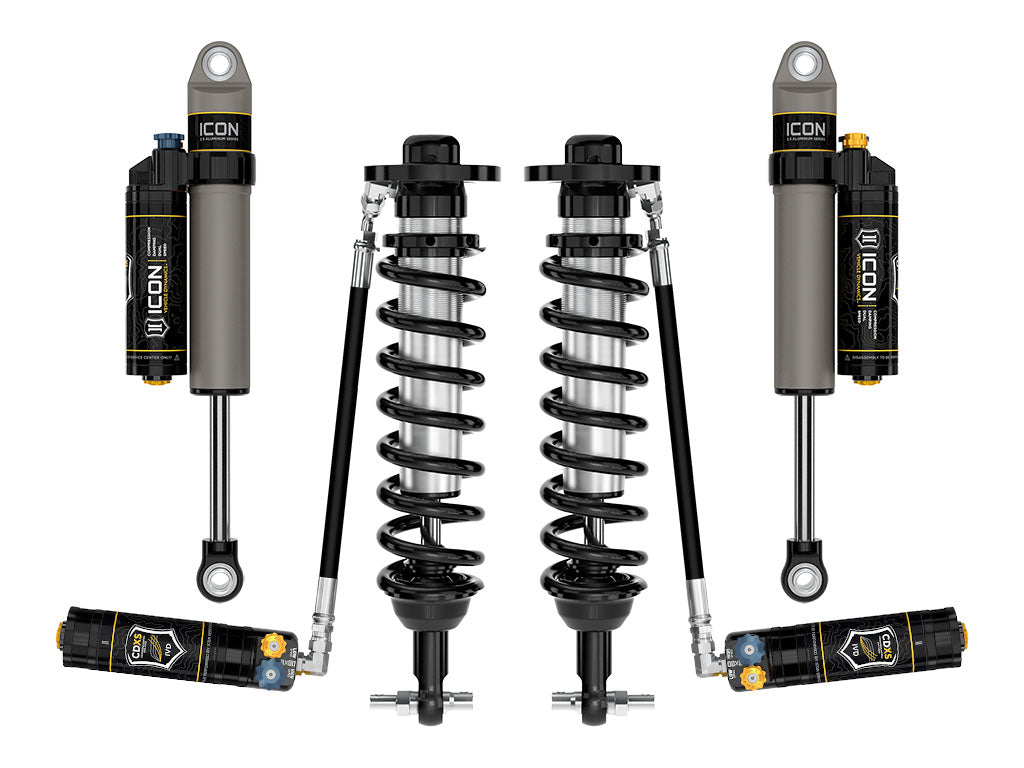

The Stage 4 system includes vehicle-specific tuned 2.5 Inch coilover shocks featuring CDXS equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are also height adjustable from 0-2.75 Inch of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2.5 Aluminum Series CDXS piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance.
CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. The ICON Vehicle Dynamics 2021-2024 F-150 4WD Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Features and Benefits:
- Increased wheel travel and ride quality over stock with no change in towing capacity
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- Adjustable coilovers from 0-2.75 Inch of lift height
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- 6061 Aircraft grade aluminum CNC machined components
- High strength alloy CNC machined lower bar pins
- FK rod end bearings for extended longevity and minimal deflection
- Corrosion resistant CAD plated coilover shock bodies with 7/8 Inch shafts
- 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- 100 Percent Bolt-on system - no cutting or welding necessary for install
Details
- Active Or Passive Suspension: Passive
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Bushings Included: Yes
- Coils Quantity Front: 2.0
- Damping Adjustment Type: Dual Speed Manual
- Front Reservoir Style: Remote
- Front Shock Body Diameter: 2.5
- Front Spring Rate Type: Linear
- Grade Type: Performance
- Maximum Lift: 2.75 Inch
- Maximum Lift Front: 2.75 Inch
- Minimum Lift Front: 0.0 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Piggyback
- Rear Shock Body Diameter: 2.5
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 252012 - -4 To -10 Hose Shield Kit
