ICON Vehicle Dynamics 2021-2024 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

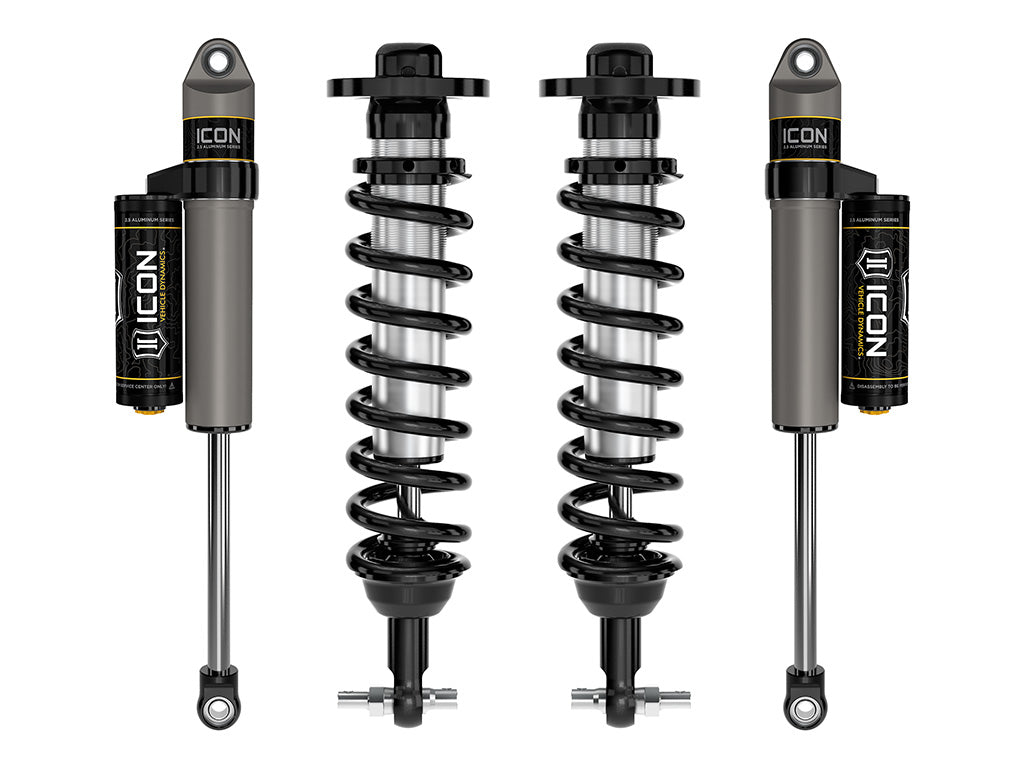

The Stage 2 system includes vehicle-specific tuned 2.5 Inch coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are also height adjustable from 0-2.75 Inch allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2024 F-150 4WD Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Features and Benefits:
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Adjustable coilovers from 0-2.75 Inch of lift height
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- 6061 Aircraft grade aluminum CNC machined components
- High strength alloy CNC machined lower bar pins
- FK rod end bearings for extended longevity and minimal deflection
- Corrosion resistant CAD plated coilover shock bodies with 7/8 Inch shafts
- 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- 100 Percent Bolt-on system - no drilling, cutting or welding necessary for install
Details
- Active Or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Bushings Included: Yes
- Coils Quantity Front: 2.0
- Front Shock Body Diameter: 2.5
- Front Shock Diameter: 2.5
- Front Spring Rate Type: Linear
- Grade Type: Performance
- Maximum Lift: 2.75 Inch
- Maximum Lift Front: 2.75 Inch
- Minimum Lift Front: 0.0 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Rear Shock Body Diameter: 2.0
- Rear Shock Diameter: 2.5
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset
- Reservoir Style: Internal
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5)
