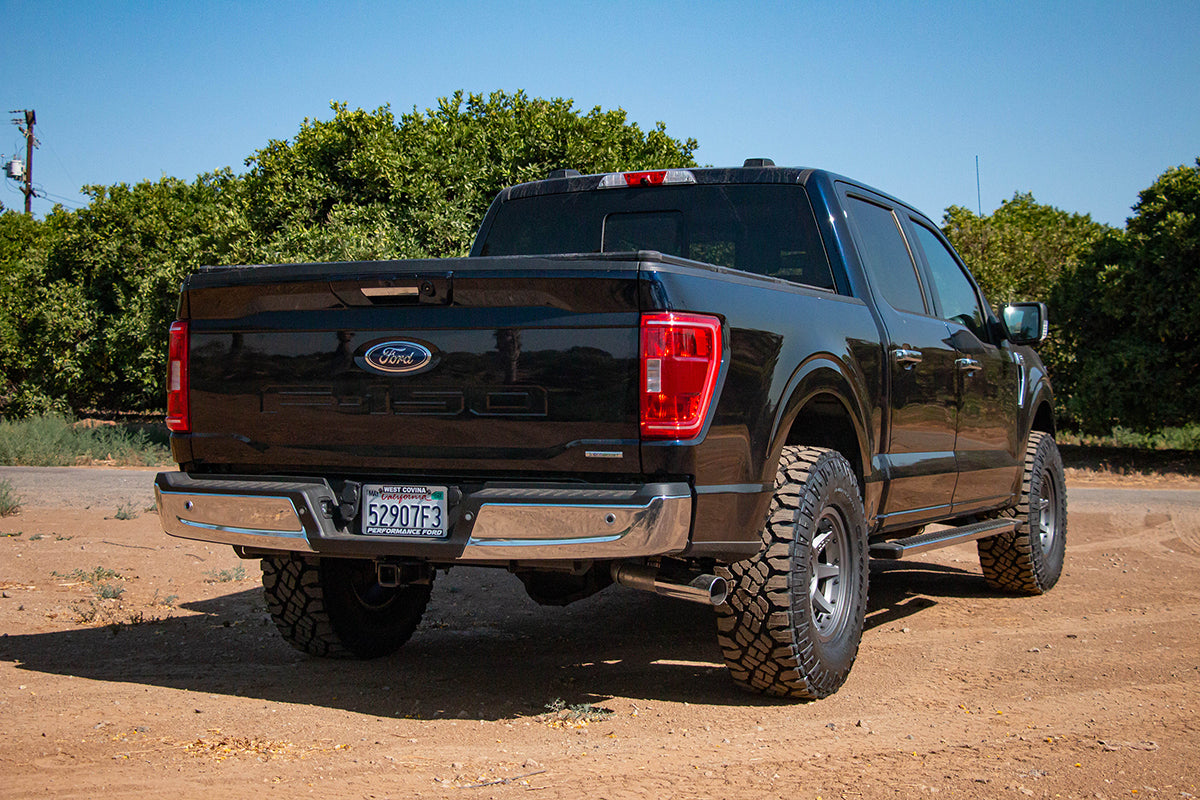

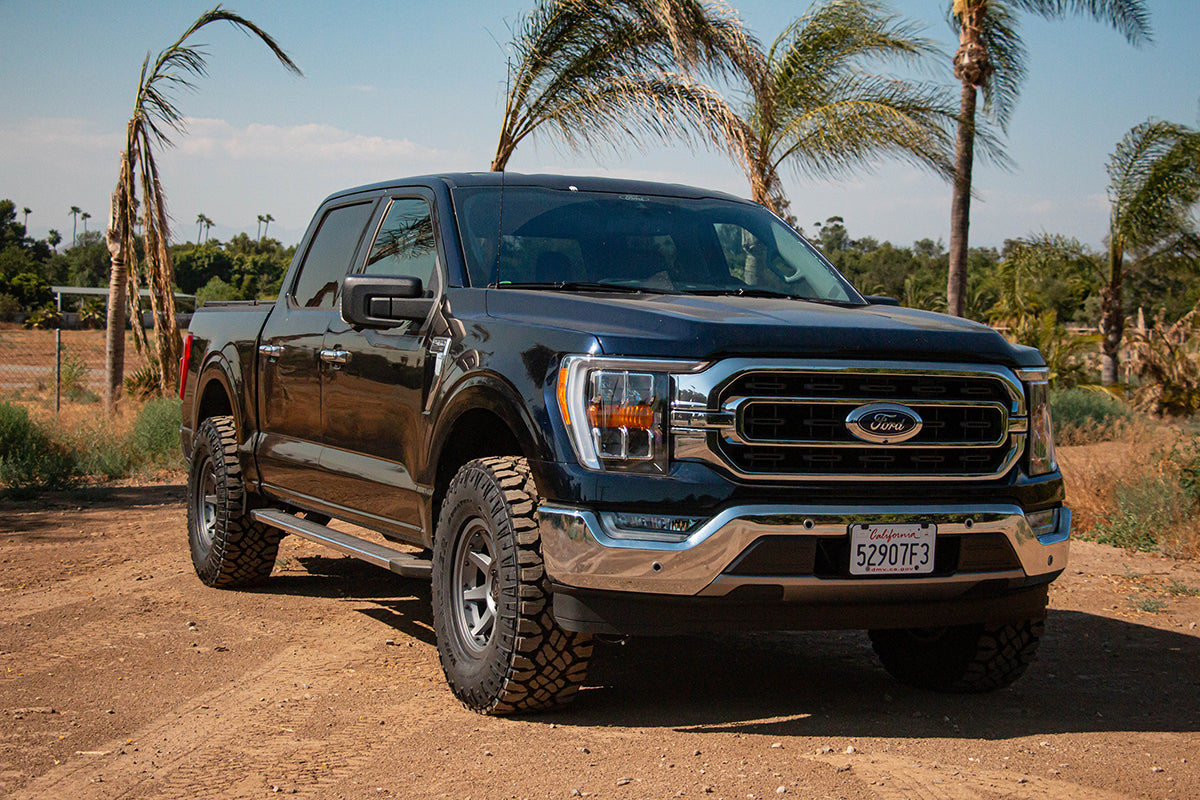

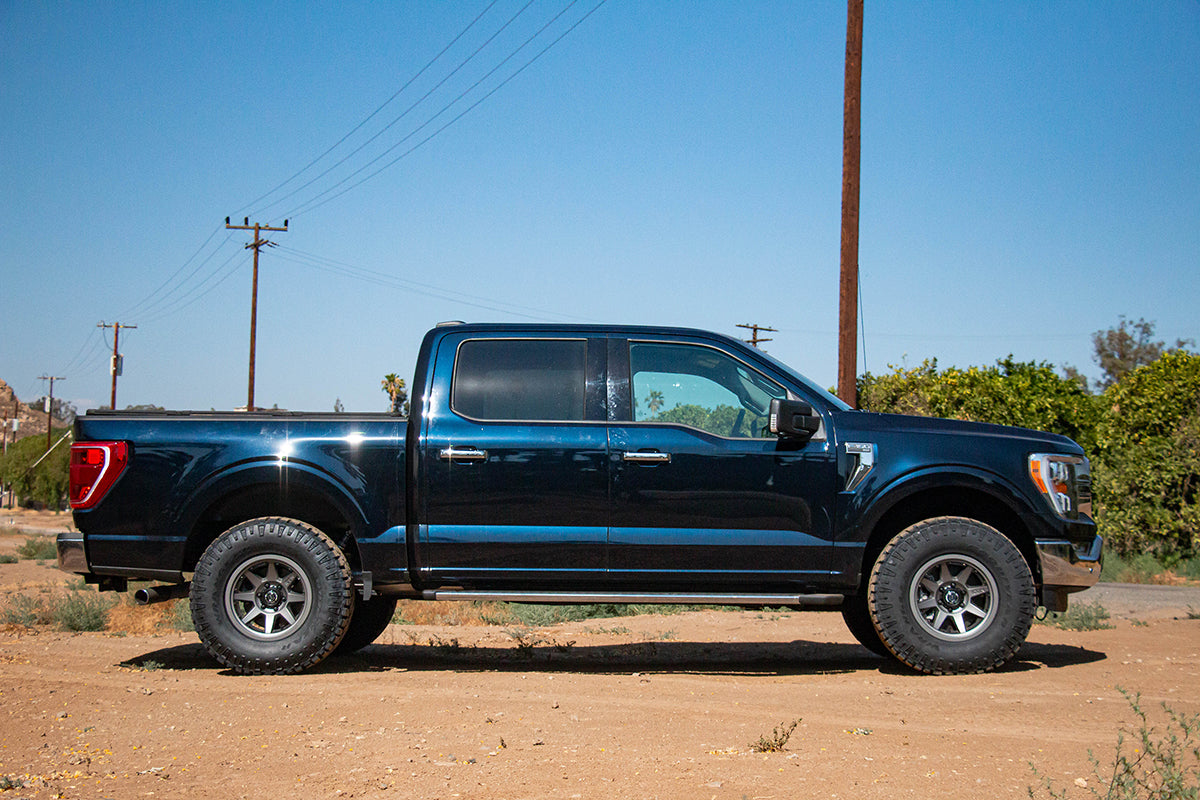

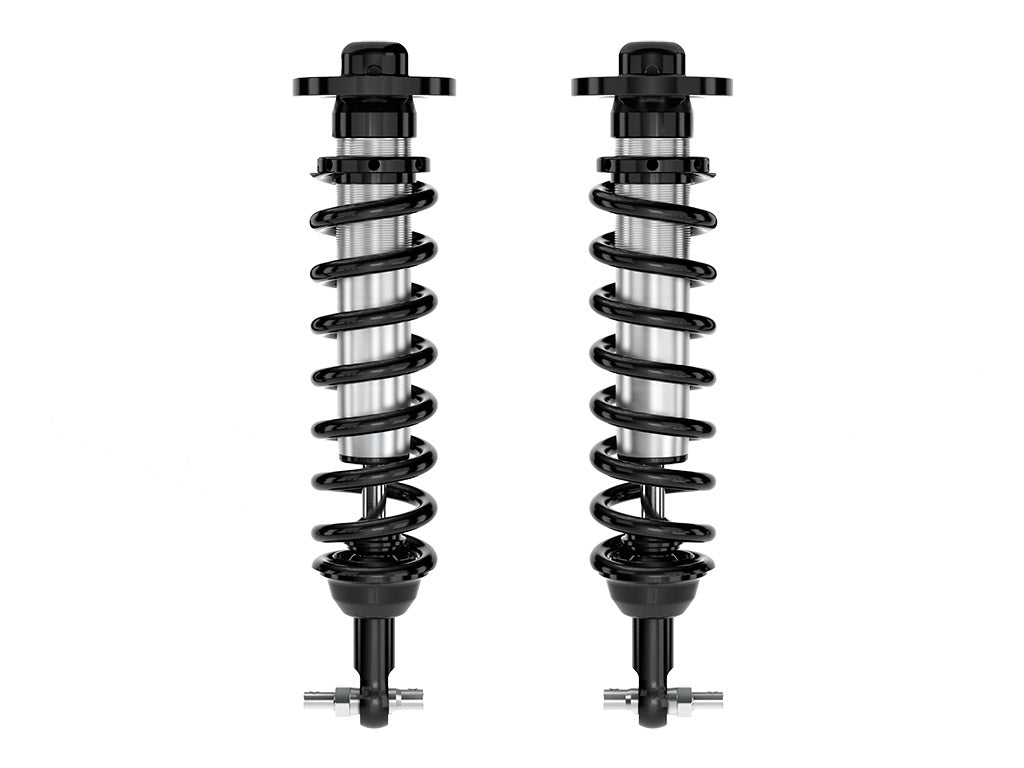

ICON Vehicle Dynamics V.S. Series 2.5 Inch coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 4WD trucks.
ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 0-2.75 Inch of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.
When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
Features and Benefits:
- Increased wheel travel and ride quality over stock
- FK rod end bearings for extended longevity and minimal deflection
- 100 Percent Bolt-on - no drilling, cutting or welding necessary for installation
- Unique valving developed for the 2021-2024 F-150
- Vehicle specific tuned for superior shock damping and control
- Adjustable 0-2.75 Inch lift height
- ICON engineered Eibach Springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8 Inch shaft
- High strength alloy CNC machined lower bar pin
Details
- Material: Aluminum, Steel
- Active Or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Assembled: Yes
- Body Diameter: 2.5 Inch
- Coil Over Springs Included: Yes
- Compressed Length: 18.29
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Cylinder Material: Steel
- Damping Type: Oil
- Dust Shield Included: No
- Extended Length: 23.46
- Front Spring Rate: 550 Inch
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: Yes
- Internal Construction Type: Single Tube
- Lower Mount Type: Bar Pin
- Maximum Lift: 2.75 Inch
- Maximum Ride Height Raising Distance: 2.75
- Minimum Lift: 0.0 Inch
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset
- Remote Reservoir: No
- Reservoir Style: Internal
- Self Leveling: No
- Service Parts: 611019 - Coilover Hardware Kit Pair, 254100G - 1 Gallon Icon Performance Shock Oil, 257337 - 7/8 Shaft 11.25 Oal, 7.00 Travel, 252001 - 2.5 Fixed Spanner Wrench, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252010 - 2.5 Ifp Rebuild Kit, 252004 - Economy Needle Charging Tool, 252003 - Seal Install Tool 2.5/3.0
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
- Travel Length: 5.17
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
- Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit, 96518 - 09-24 F150 2/4Wd 04-08 F150 4Wd Rear Vs 2.0 Ir, 97720P - 09-24 F150 2/4Wd 04-08 F150 4Wd Rear 2.5 Vs Pb Pair, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5)
