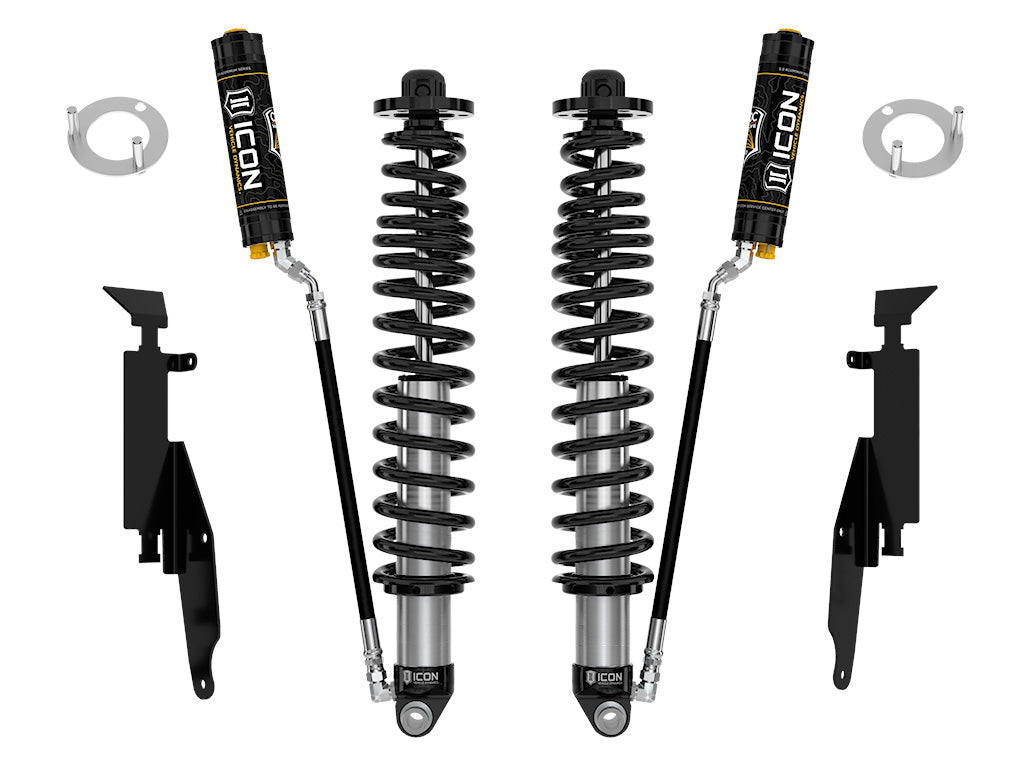

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks with CDCV are an incredible upgrade for the rear end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 2-3 Inch of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25 Inch of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations.
ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.

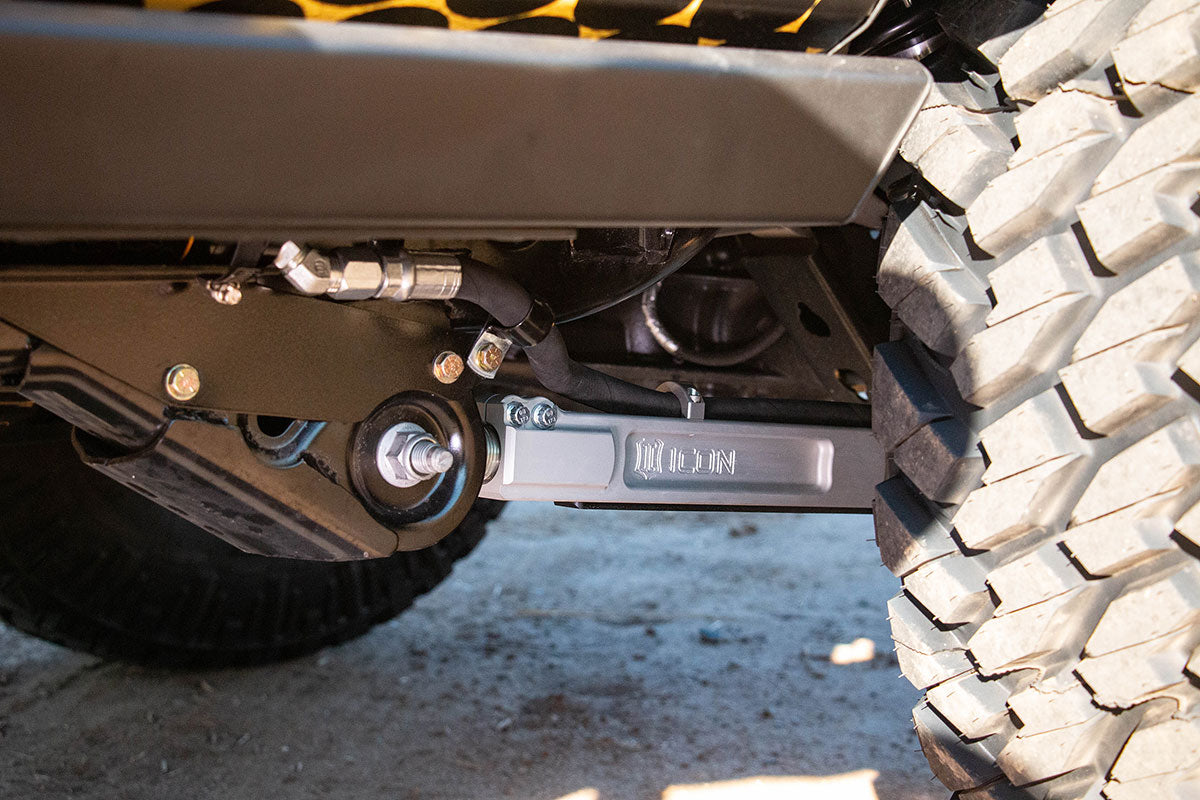

These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. This shaft up orientation also requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design.
When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
Features and Benefits:
- Increased wheel travel (up to 14 Inch) and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- Adjustable up to 2-3 Inch of rear lift height on non-Sasquatch or 1.25-2.25 Inch of rear lift on Sasquatch Broncos
- Unique ICON engineered dual rate coil springs with increased spring rates for heavier equipped Broncos
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shaft
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- 100 Percent Bolt-on - no drilling, cutting or welding necessary for installation
Details
- Material: Steel, Aluminum
- Active Or Passive Suspension: Passive
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Assembled: Yes
- Body Diameter: 2.5 Inch
- Coil Over Springs Included: Yes
- Compressed Length: 18.54
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Cylinder Material: Steel
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Dust Shield Included: No
- Extended Length: 29.21
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: Yes
- Internal Construction Type: Single Tube
- Lower Mount Type: Eyelet
- Maximum Lift: 3.0 Inch
- Maximum Ride Height Raising Distance: 3.0
- Minimum Lift: 1.25 Inch
- Oem Wheels & Tires Fitment: Yes
- Rear Spring Rate: 220, 300
- Recommended Aftermarket Tires: (With Sasquatch Package): 35 Inch X 12.50 Inch (37 Inch Tires Require Coilover Bump Stop Spacers), (Without Sasquatch Package): 35 Inch X 12.50 Inch (37 Inch Tires Require Coilover Bump Stop Spacers)
- Recommended Aftermarket Wheels: (Without Sasquatch Package): Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset, (With Sasquatch Package): Icon Alloys - 20x9 Inch W/ 5.00 Inch Backspace / 0mm Offset, (With Sasquatch Package): Icon Alloys - 18x9 Inch W/ 5.00 Inch Backspace / 0mm Offset, (Without Sasquatch Package): Icon Alloys - 18x9 Inch W/ 6.00 Inch Backspace / 25mm Offset, (With Sasquatch Package): Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset
- Remote Reservoir: Yes
- Reservoir Style: Remote
- Self Leveling: No
- Service Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Center Of Eylet
- Shock Absorber Rod End Measuring Point: Top Of Mounting Plate
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Progressive Dual Rate
- Travel Length: 10.67
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
- Add On Part: 611073 - 21-23 Bronco Hose Route Kit Rear Link 1.75 Inch, 252012 - -4 To -10 Hose Shield Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 611072 - 21-23 Bronco Hose Route Kit OEM Rear Link 1.9 Inch, 198001 - Billet Spanner Wrench Kit, 44200T - 21-23 Bronco Rear Adj Track Bar Kit, 611074 - C/O Bump Stop Spacer Kit 7/8 Inch Shaft 3/8 Inch Tall
