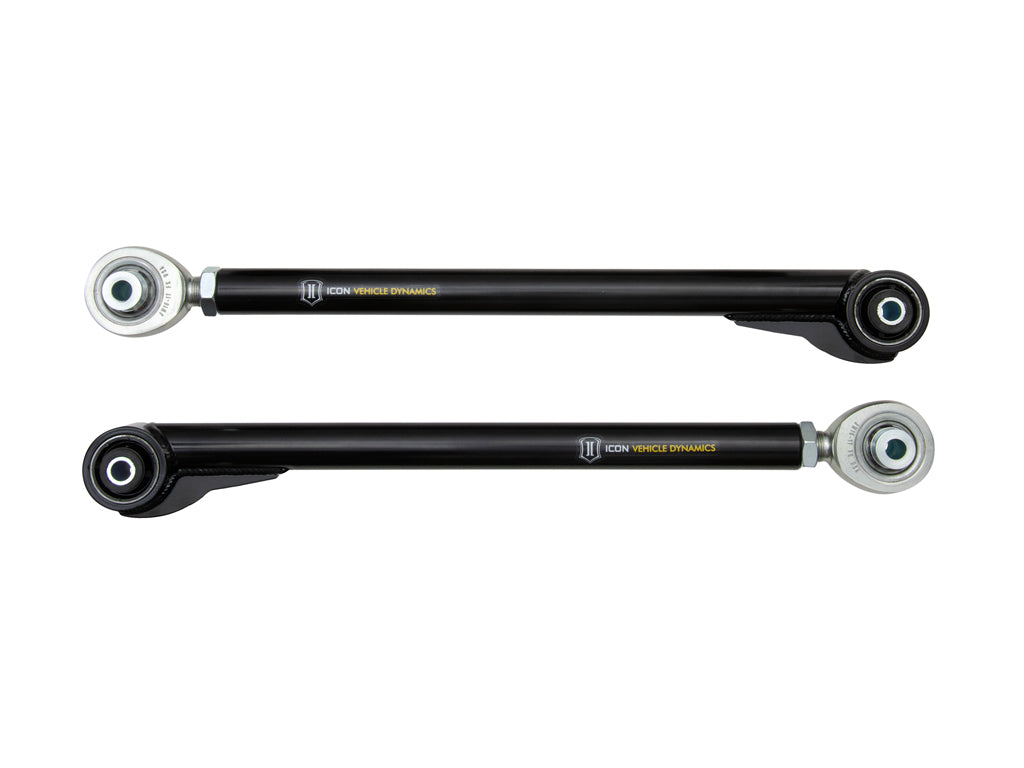

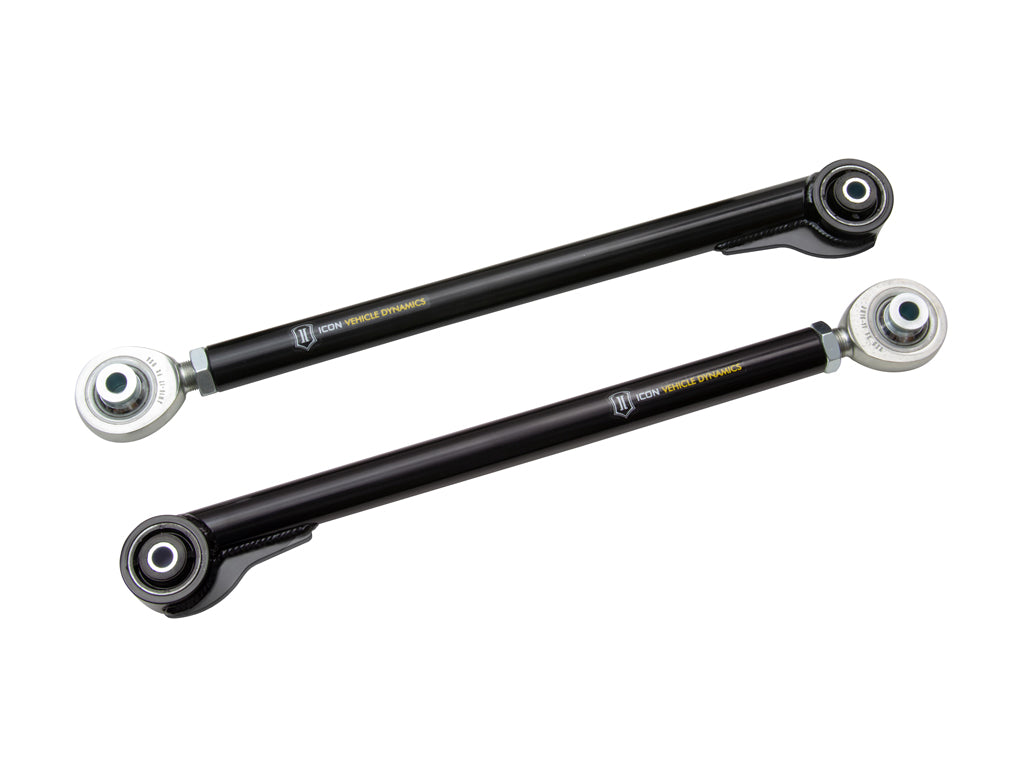

The ICON Tubular Rear Lower Link System helps free up rear axle movement on the 2020-2023 Jeep Gladiator and 2019-2023 Ram 1500 to allow for increased suspension travel and articulation. Formed using 1 1/2 Inch x .313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish.
These lower links are designed specifically for high clearance for reduced contact with trail obstacles and massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. Hit the trail with the confidence of knowing your suspension components are covered by ICON's Limited Lifetime Warranty.
Features and Benefits:
- CNC machined & notched 1026 DOM steel construction
- Multi durometer bushing for noise free operation and maximum angularity
- No grease required for life of bushings
- Quality JM16T PTFE-lined FK Rod Ends
- Adjustable for various lift heights & driveline angles
- High clearance barrel design reduces risk of off-road hangups
- ICON1K tested in extreme off-road conditions
- Fabricated components covered under ICON's lifetime warranty
Details
- Color: Black
- Material: Dom Steel
- Finish: Powdercoated
- Adjustable: Yes
- Adjustable Control Arm: Yes
- Attachments Included: No
- Ball Joint Included: Yes
- Ball Joint Mounting Type: Thread In
- Ball Joint Stud Type: Threaded
- Bushing Color: Black
- Bushing Material: Polyurethane, Rod End Bearing
- Bushings Included: Yes
- Construction: Tubular
- Control Arm Color: Black
- Control Arm Construction: Tubular
- Control Arm Material: Steel
- End 1 Type: Rod End Bearing
- End 2 Type: Bushing
- Grade Type: Performance
- Grease Fitting Included: No
- Mounting Bracket Included: No
- Mounting Hardware Included: Yes
- Pre Assembled: Yes
- Pre Greased: No
- Quantity: Pair
- Reinforced: Yes
- Set: Yes
- Suspension Grade Type: Performance
- Suspension Type: Spring
- Add On Part: 22064 - 20-23 Jeep JT/19-23 RAM 1500 Billet Rear Adjustable Upper Link Kit, 22068 - 20-23 Jeep JT/19-23 RAM 1500 Rear Adj Track Bar Kit
