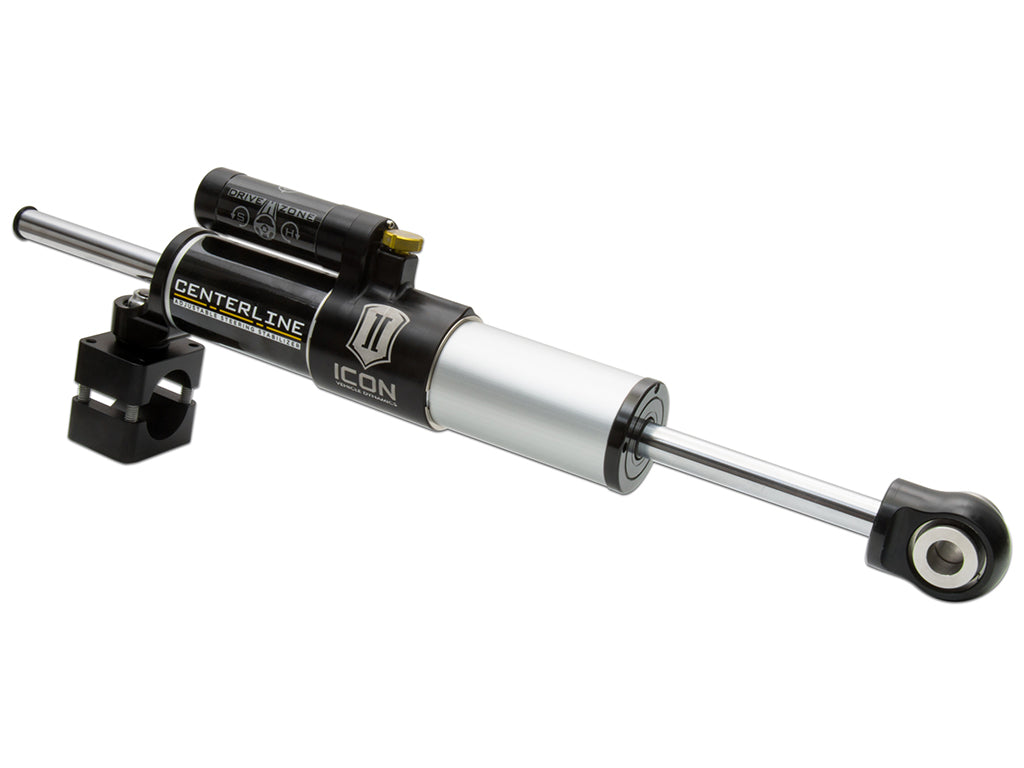

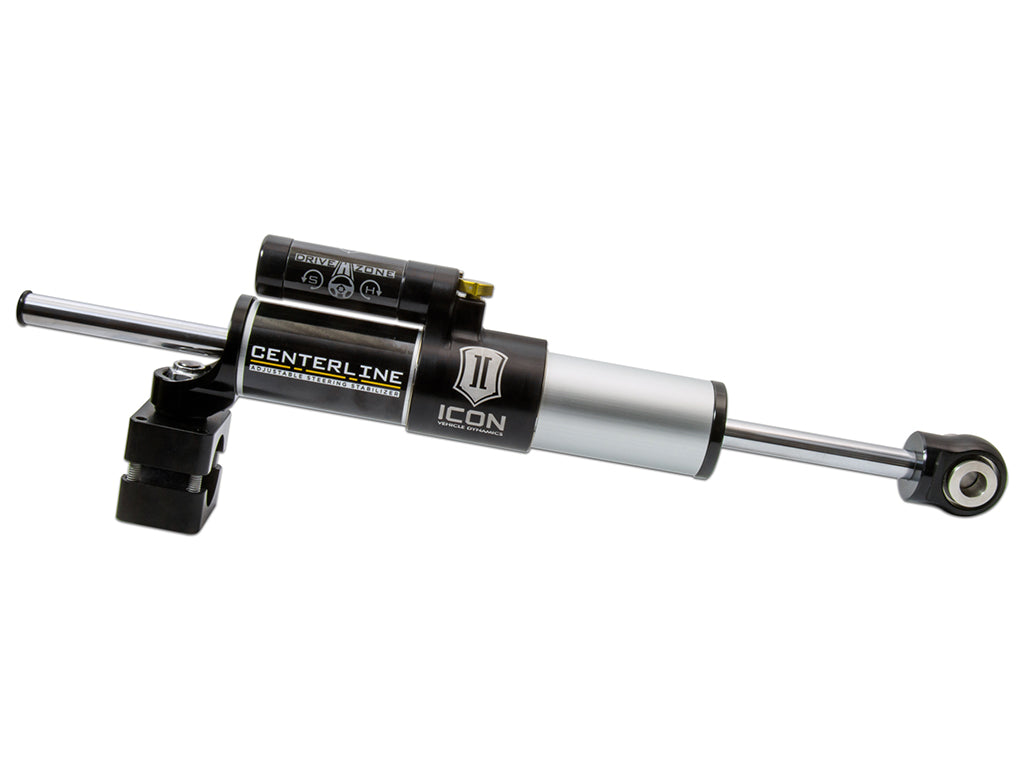

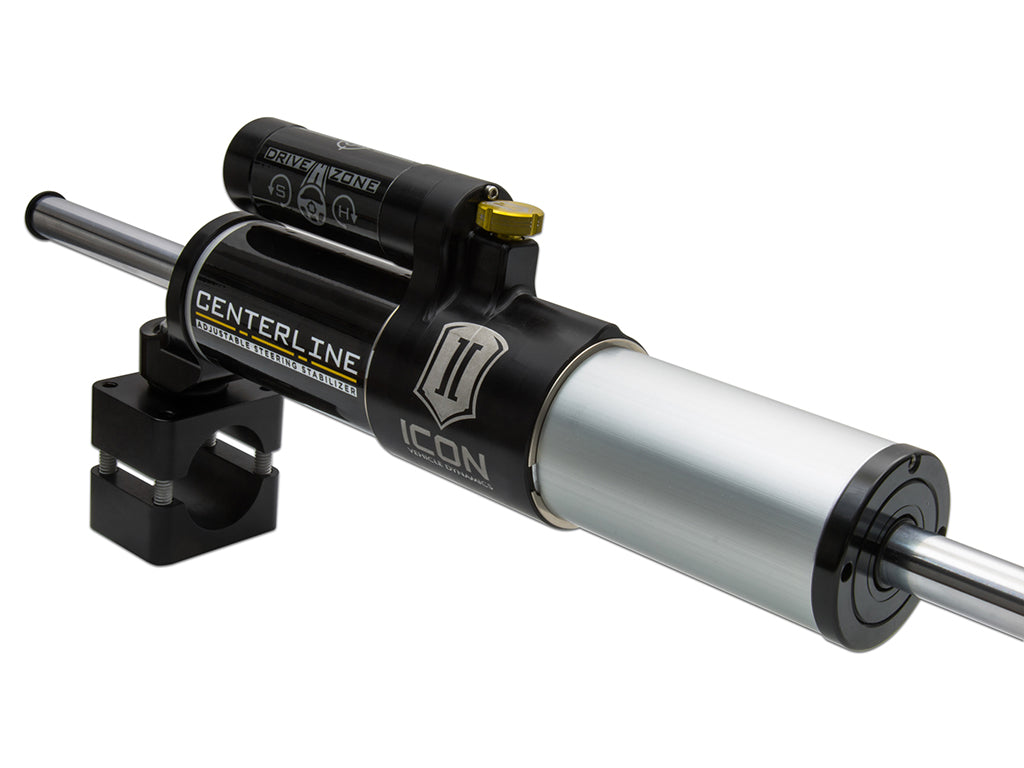

Engineered to provide consistent steering damping with a through-shaft design, the new ICON Centerline Steering Stabilizer features an adjustable InchDrive Zone Inch that can be custom-tailored to an individual's desired steering feel. Developed with a wide range of aftermarket JL/JT components in mind, this stabilizer is a high clearance design with a rotatable reservoir that allows for fitment on all ICON lift systems as well as most other lifts on the market.
In addition to providing steering damping without the push or pull associated with a traditional stabilizer, the ICON Centerline Stabilizer features an adjustable InchDrive Zone Inch with 9 levels of damping that affects 110 degrees of steering wheel input to the left or right of center. This allows the end user to customize how tight or how loose their vehicle handles in the middle of the steering range.
Features and Benefits:
- This new Centerline Steering Stabilizer shares the same great build features as our proven ICON 2.0 Aluminum Series shocks. These features include a clear anodized 6063 aluminum shock body for corrosion resistance and 5/8 Inch chrome plated hardened steel shafts for durability, premium 5WT shock oil that provides consistent damping characteristics across a wide operating temperature range, and a high temperature long wear seal pack that stands up to harsh conditions found both on and off-road. The CNC machined billet aluminum Centerline Stabilizer tie rod clamp and rod end also feature FK Rod End bearings for precise and reliable operation.
- Through shaft design eliminates push/pull sensation associated with traditional stabilizers
- Increased steering damping over stock unit
- Provides symmetrical steering feel throughout input range
- Adjustable InchDrive Zone Inch with 9 clicks of damping adjustment
- 100 Percent bolt-on installation
- High clearance design and rotatable reservoir for proper fitment on all lift heights
- Mounts to OE tie rod
- Optional clamps for aftermarket heavy duty tie rods (1-5/8 Inch)
- Fully serviceable ICON 2.0 Aluminum Series shock
- 6063 clear anodized aluminum shock body provides excellent corrosion resistance and superb heat dissipation
- 5/8 Inch chrome plated hardened steel shaft
- 5WT shock oil for consistent suspension damping along a wide temperature range
- FK Rod End bearings for precise function
Details
- Color: Light Grey, Black
- Adjustable Damping: Yes
- Boot Included: No
- Cylinder Diameter: 2.0
- Cylinder Material: Aluminum
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Mounting Bracket Included: Yes
- Service Parts: 202006 - 2.0 Centerline Stabilizer Rebuild Kit
- Shaft Diameter: 0.625
- Shaft Material: Chrome
- Steering Stabilizer Configuration: Through-Shaft
- Upper Mount Type: Eyelet
- Add On Part: 22044 - 18-23 JL/20-23 JT/07-18 JK 1 Inch Front Bump Stop Spacer Kit, 614525 - Universal Tube Clamp Kit 1.625
