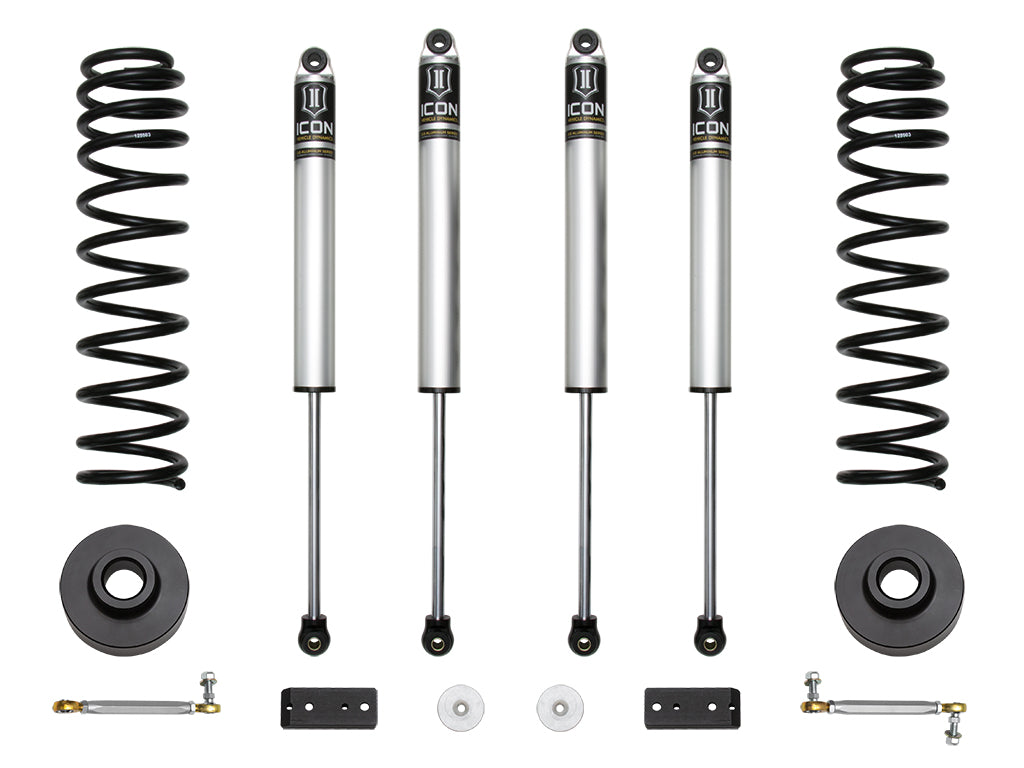

Aimed at drastically improving (not just maintaining) on and off-road ride quality the ICON Jeep Gladiator JT Stage 1 system includes front dual rate coil springs, rear billet aluminum coil spacers, 2.0 Aluminum Series shocks, front bump stops, adjustable sway bar end links, and all necessary hardware for a complete install. The JT is a very capable vehicle off of the showroom floor and with the addition of an ICON suspension system this capability is only expanded upon with improved suspension geometry and more robust components resulting in significant performance gains.
Features and Benefits:
- Through an accelerated testing process dubbed the InchICON1K Inch R&D program, ICON has logged over a thousand miles in the dirt pushing the JT to off-road extremes to identify limiting factors in OE components, develop products that remove these limits, and further extrapolate performance out of this vehicle. This 2 Inch suspension system has been tweaked, tuned, and revised several times over the course of this ICON1K testing in an effort to provide unparalleled ride quality and vehicle dynamics for everything from rock crawling to high-speed desert running. By removing the aforementioned Inchlimiting factors Inch this ICON suspension system completely redefines the potential of the 2020-2023 Jeep Gladiator with wheel travel gains over 30 Percent!
- 2 inch front lift height over stock
- Fits 35 Inch tires (37 Inch with extended bump stop spacer kit)
- 33 Percent front, 23 Percent rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Dual rate coil springs with lifetime guarantee against sagging/breakage
- Billet aluminum rear 1.375 Inch coil spacers eliminate the factory rake
- 2.0 Aluminum Series shocks with vehicle specific valving
- Adjustable, billet aluminum front sway bar links
- 100 Percent bolt-on system makes for an easy install
- InchICON 1K Inch tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Details
- Adjustable Damping: No
- Bushings Included: Yes
- Coil Spring End 1 Type: Open
- Coil Spring End 2 Type: Open
- Coils Quantity Front: 2.0
- Front Spring Rate Type: Progressive Dual Rate
- Grade Type: Performance
- Maximum Lift Front: 2.0 Inch
- Maximum Lift Rear: 1.38 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (37 Inch X 12.50 Inch With Optional Bump Stop Spacer Kit Part # 22071)
- Recommended Aftermarket Wheels: Icon Alloys - 20x9 W/ 4.5 Inch Backspace / -12mm Offset, Icon Alloys - 18x9 W/ 4.5 Inch Backspace / -12mm Offset, Icon Alloys - 17x8.5 W/ 4.5 Inch Backspace / -6mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 22071 - 20-Up JT Extended Bump Stop Spacer Kit, 22042 - 20-Up JT / 18-Up JL / 07-18 JK Front Hyd Bump Stop Kit
