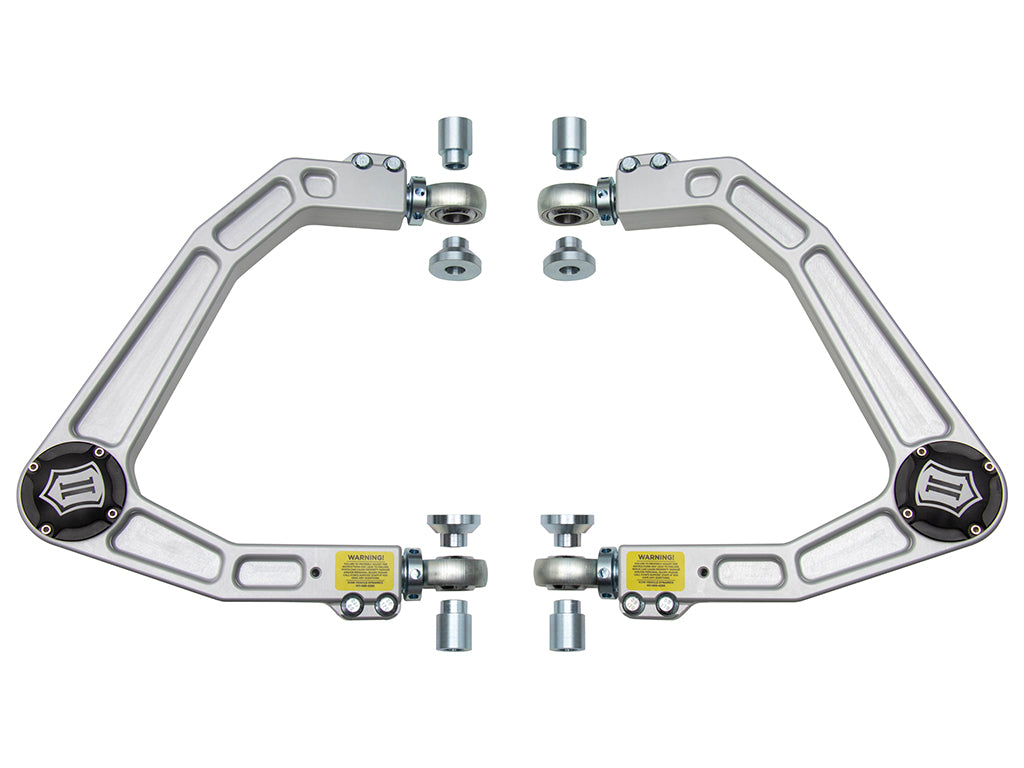

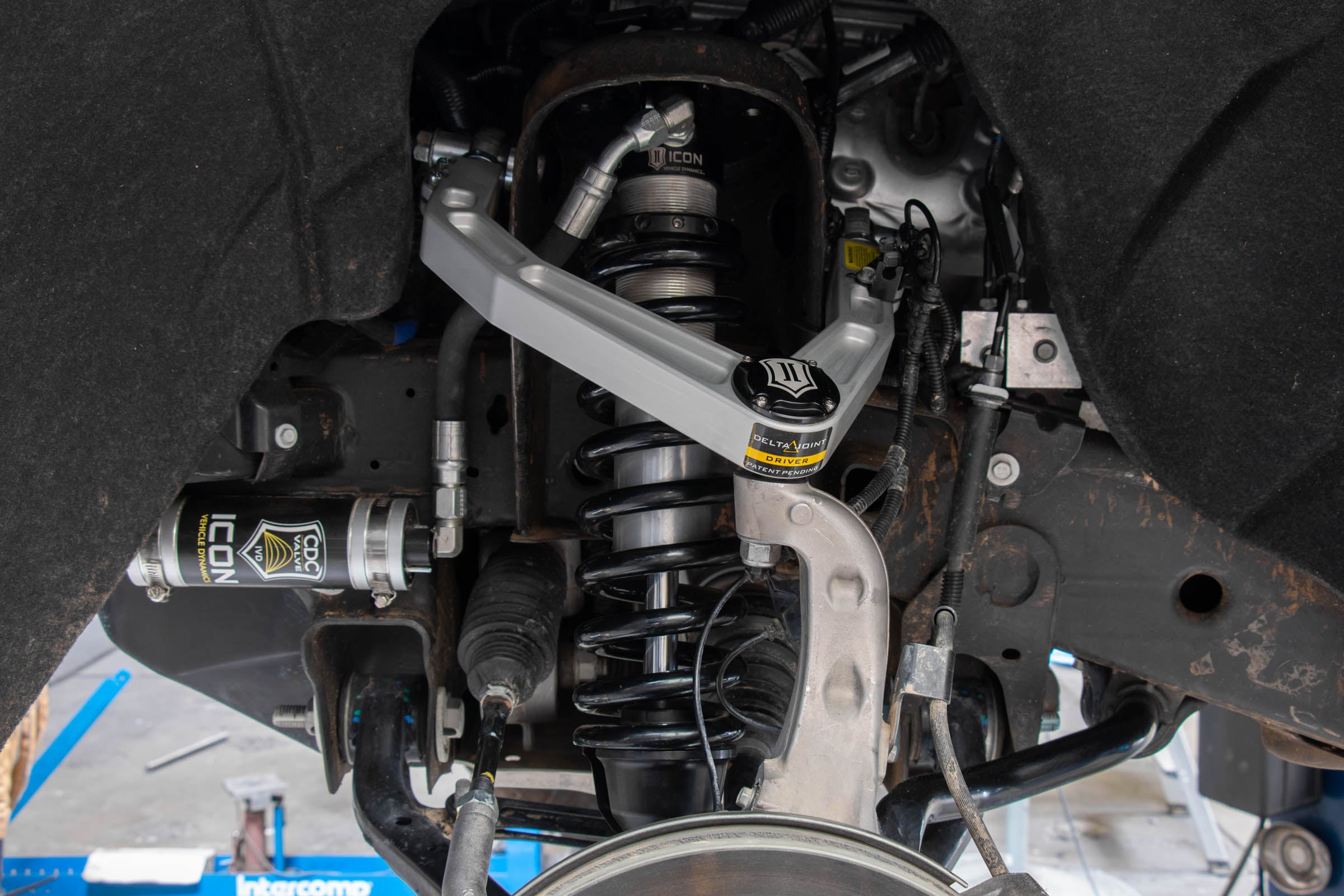

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2019-2024 GM Silverado/Sierra 1500 pickup or 2021-2023 GM SUV with corrected front-end geometry, adjustable camber and caster, and improved suspension component clearance. These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties.
Replacing the OE ball joint with the available ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 7/8 Inch Heim joints provide precise and smooth function throughout the range of travel while ICON's signature double adjuster sleeve allows for on-vehicle camber and caster adjustment.
Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect upgrade for the 2019-2024 GM 1500 pickup truck or 2021-2024 GM SUV.
Features and Benefits:
- These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- CNC machined 6061 billet aluminum construction for light weight and exceptional strength
- Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
- Camber and caster adjustability allows for precise wheel alignment
- ICON double adjuster sleeves allow for on-vehicle adjustment
- Vehicle specific taper pin provides OE-like fitment
- PTFE Lined 7/8 Inch FK Rod Ends for improved response
- Built in o-ring sealed dust cover cap
Details
- Color: Gray
- Material: Aluminum
- Finish: Anodized
- Adjustable: Yes
- Adjustable Control Arm: Yes
- Ball Joint Included: Yes
- Ball Joint Mounting Type: Press In
- Ball Joint Stud Type: Threaded
- Bushing Color: Silver
- Bushing Material: Rod End Bearing
- Bushings Included: Yes
- Construction: Billet
- Control Arm Color: Silver
- Control Arm Construction: Billet
- Control Arm Material: Aluminum
- End 1 Type: Rod End Bearing
- End 2 Type: Ball Joint
- Grade Type: Performance
- Grease Fitting Included: Yes
- Mounting Bracket Included: No
- Mounting Hardware Included: Yes
- Pre Greased: No
- Quantity: Pair
- Reinforced: Yes
- Service Parts: 614519 - Delta Joint Install Press Adapter Tube
- Suspension Grade Type: Performance
- Suspension Type: Air, Spring
- Add On Part: 191014 - .25 Inch Collar Spanner Pin Wrench, 191013 - Nipple Greasing Adapter Kit
