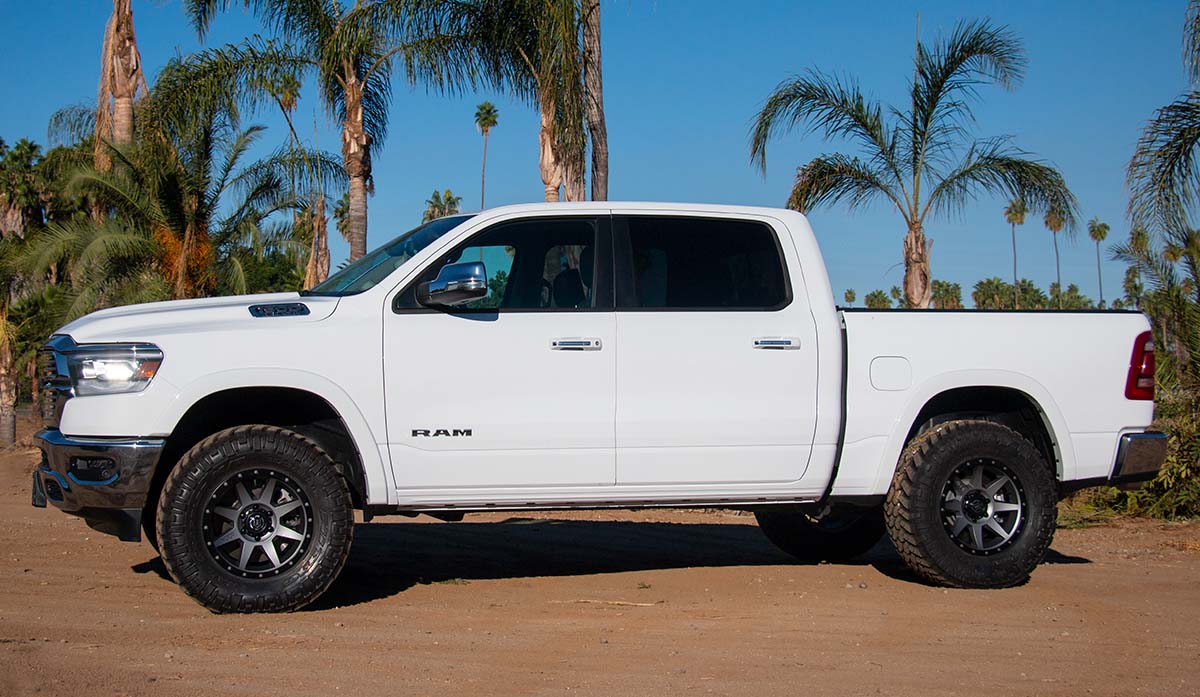

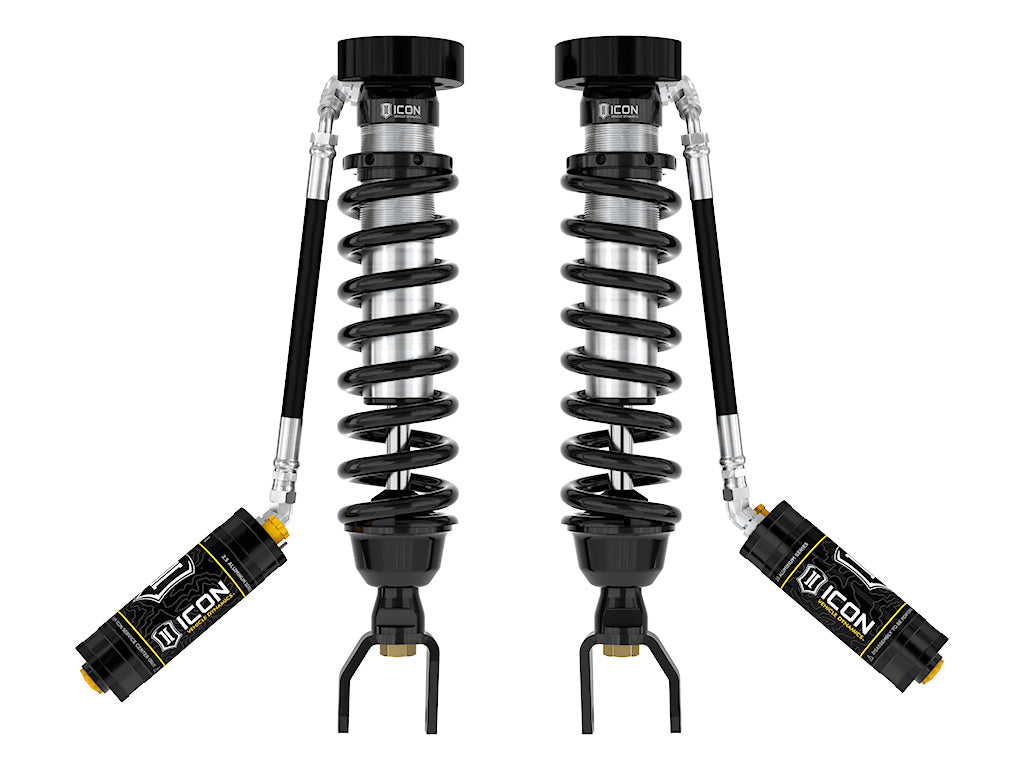

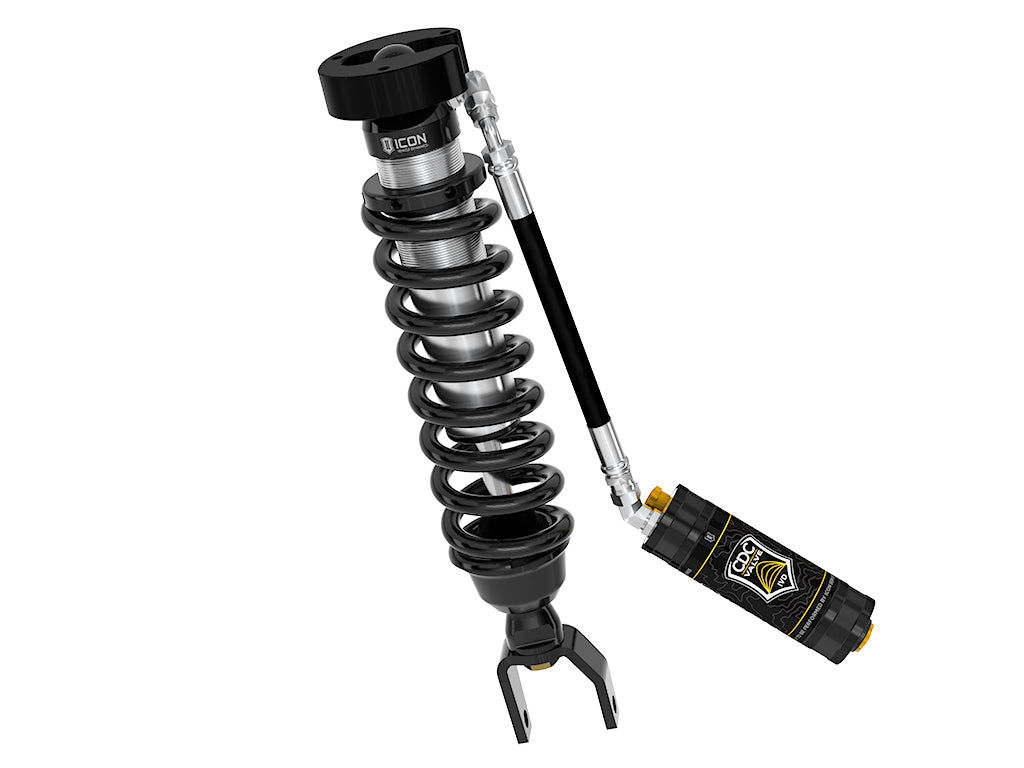

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-2023 Ram 1500 trucks. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3 Inch of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations.
The larger 2.5 Inch shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions.
The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of compression damping adjustment, from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.
Features and Benefits:
- Increased wheel travel and ride quality over stock
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8 Inch diameter shaft
- High strength alloy CNC machined lower mounting clevis
- FK rod end bearings for extended longevity and minimal deflection
- 100 Percent Bolt-on - no drilling, cutting or welding necessary for installation
- Unique valving developed for the lighter weight and chassis dynamics of the 2019-2023 Ram 1500
- Vehicle specific tuned for superior shock damping and control
- Adjustable from 2-3 Inch of front lift height over stock
- Remote reservoirs maintain cooler operating temperatures and consistent operation during extended off-road use
- ICON CDCV equipped for external tuneability of your shocks
Details
- Material: Steel, Aluminum
- Active Or Passive Suspension: Passive
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Assembled: Yes
- Body Diameter: 2.5 Inch
- Coil Over Springs Included: Yes
- Compressed Length: 18.04
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Cylinder Material: Steel
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Dust Shield Included: No
- Extended Length: 23.77
- Front Spring Rate: 700 Inch
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: Yes
- Internal Construction Type: Single Tube
- Lower Mount Type: Clevis
- Maximum Lift: 3.0 Inch
- Maximum Ride Height Raising Distance: 3.0
- Minimum Lift: 2.0 Inch
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
- Remote Reservoir: Yes
- Reservoir Style: Remote
- Self Leveling: No
- Service Parts: 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 254100G - 1 Gallon Icon Performance Shock Oil, 254101G - 1/2 Gallon Icon Performance Shock Oil
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center Of Clevis Holes
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
- Travel Length: 5.73
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
- Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 218560DJ - 19-23 RAM 1500 Billet UCA Dj Kit, 218550DJ - 09-23 RAM 1500 Tubular UCA Dj Kit, 198001 - Billet Spanner Wrench Kit, 217716CP - 19-23 RAM 1500 0-3 Inch Rear 2.5 Vs Pb Cdcv Pair
