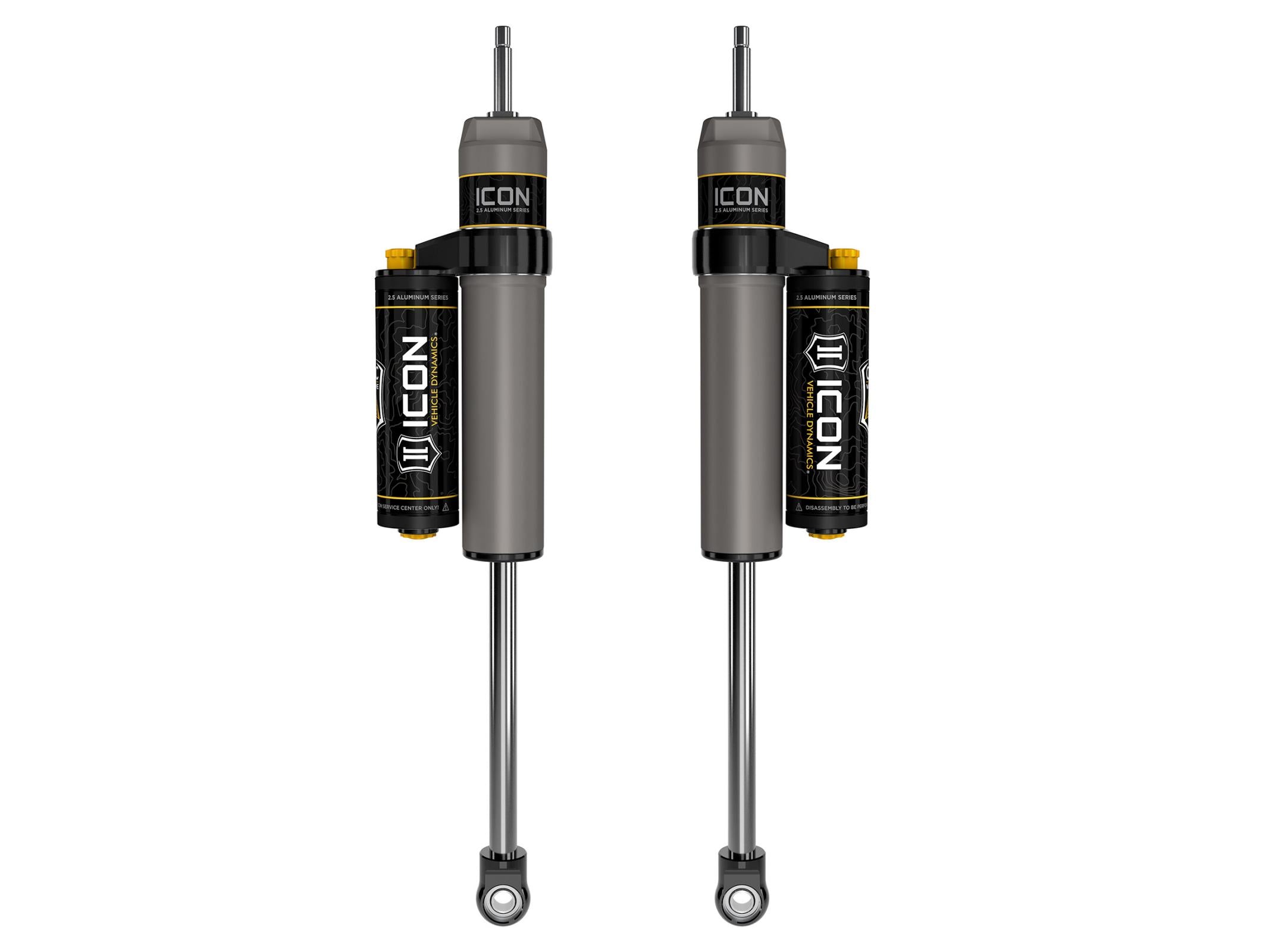

ICON's 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.
Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below thetop cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Features and Benefits:
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100 Percent Rebuildable
- 100 Percent Revalveable
- ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression
- Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with piggyback reservoir
- Double-sealed Schrader caps reduce risk of damage
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8 Inch diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
Details
- Adjustable: Yes
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Boot Included: No
- Bore Diameter: 2.25
- Cylinder Color: Gray
- Cylinder Diameter: 2.5
- Cylinder Material: Aluminum
- Damping Adjustment Type: Manual
- Damping Type: Oil
- External Reservoir: Yes
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Mounting Hardware Included: Yes
- Service Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 257340 - 7/8 Shaft 14.25 Oal, 10.00 Travel, 611007 - 9/16 Medium Duty Stem Bushing Kit, 252003 - Seal Install Tool 2.5/3.0, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252001 - 2.5 Fixed Spanner Wrench, 252002 - Universal Spanner Wrench (2.0/2.5/3.0)
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Shoulder Of Stem
- Shock Absorber Rod End Measuring Point: Center Of Eyelet
- Tube Outside Diameter: 2.5
- Upper Mount Type: Stem
- Valving Type: Digressive
- Add On Part: 211015C - 19-23 RAM 1500 2-3 Inch 2.5 Vs Cdcv Coilover Kit, 212150 - 09-23 RAM 1500 Rear 1.5 Inch Dual Rate Spring Kit
