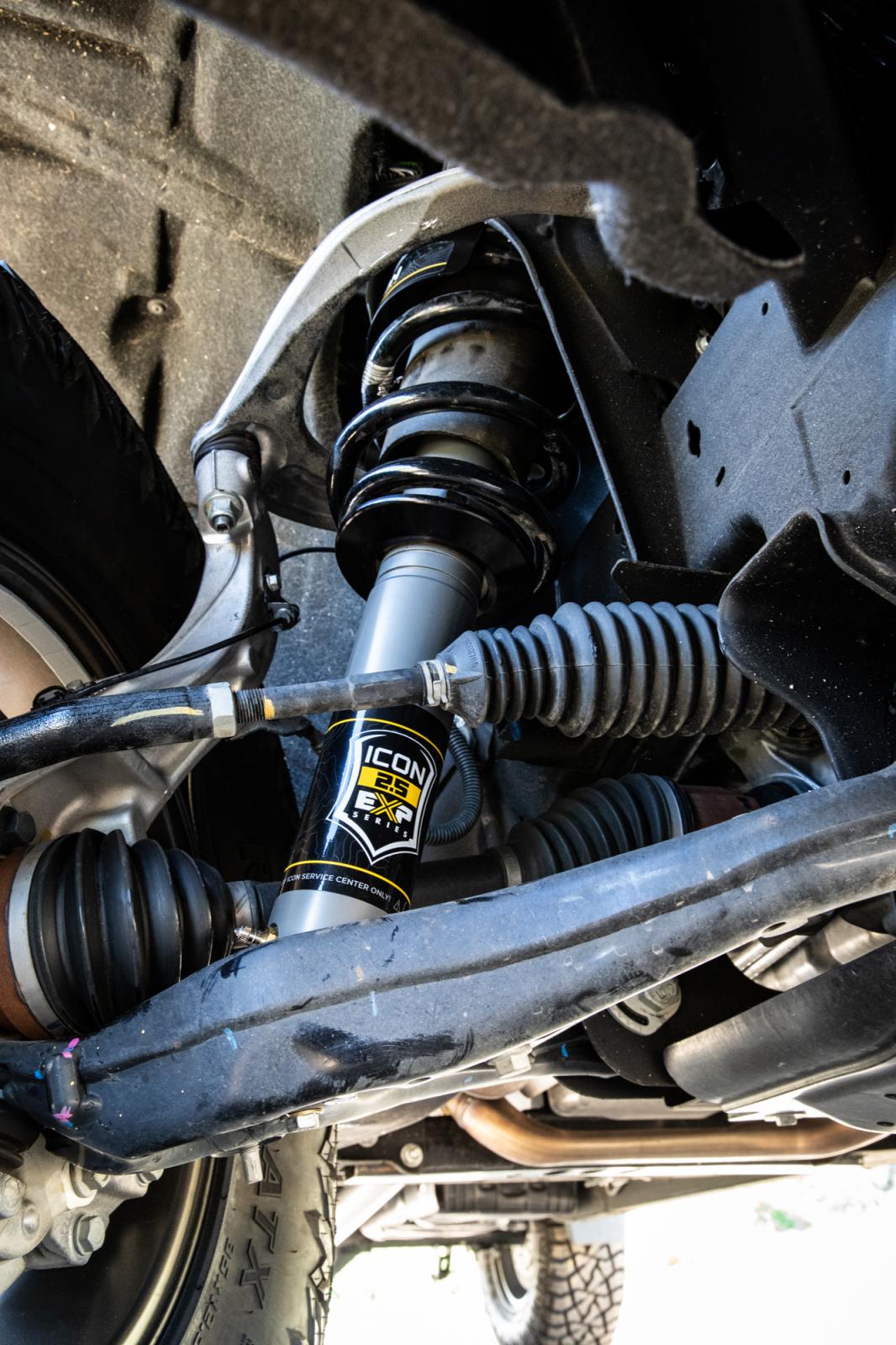

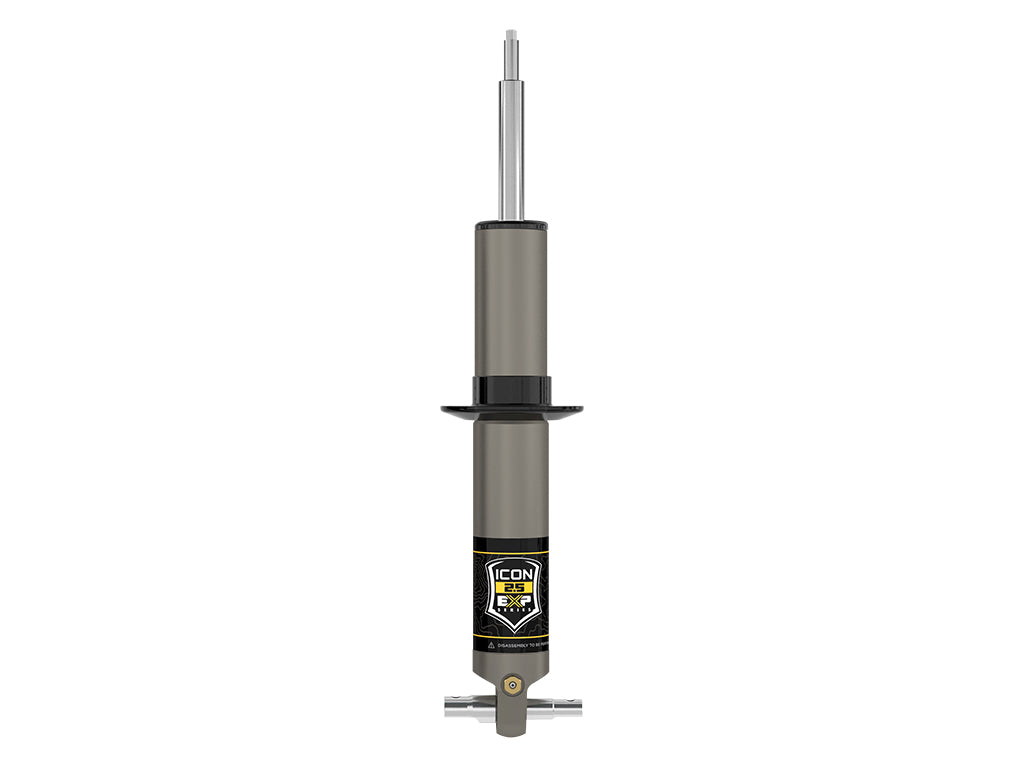

EXP Series for the 2019-2023 GM 1500 is based on ICON's proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion.
The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation.
Features and Benefits:
- The 6061-billet aluminum coil spring seat is CNC machined to fit the truck's OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 2.375 Inch to 3.75 Inch of lift over stock.
- EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the 2019-2023 GM 1500 in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
- Vehicle specific design for the 2019-2023 GM 1500 trucks
- Adjustable ride heights from 2.375-3.75 Inch of front lift over stock with the use of snap ring
- Utilizes factory coils
- 2.5 Aluminum Series Shock with Internal Reservoir
- CNC machined 6061 aluminum components with a black anodize finish
- PTFE lined bearings for extended longevity and minimal deflection
- Inverted shaft up design featuring 7/8 Inch diameter, induction hardened, chrome plated shaft
- One-piece impact extruded aluminum hard anodized cylinders offer excellent corrosion resistance and consistent finish
- 100 Percent Bolt-on - no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
Details
- Material: Aluminum, Steel
- Active Or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Assembled: No
- Body Diameter: 2.5 Inch
- Coil Spring Included: No
- Coil Spring InsulatorS Included: No
- Compressed Length: 16.75
- Cylinder Color: Gray
- Cylinder Finish: Hard Anodized
- Cylinder Material: Aluminum
- Cylinder Outside Diameter: 2.5
- Damping Type: Oil
- Dust Shield Included: No
- Extended Length: 22.11
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: No
- Internal Construction Type: Single Tube
- Lower Mount Type: Bar Pin
- Maximum Lift: 3.75 Inch
- Maximum Ride Height Raising Distance: 3.75
- Minimum Lift: 2.375 Inch
- Remote Reservoir: No
- Reservoir Style: Internal
- Self Leveling: No
- Service Parts: 252010 - 2.5 Ifp Rebuild Kit
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Flat On Bar Pin
- Shock Absorber Rod End Measuring Point: Shoulder Of Stem
- Travel Length: 5.37
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
