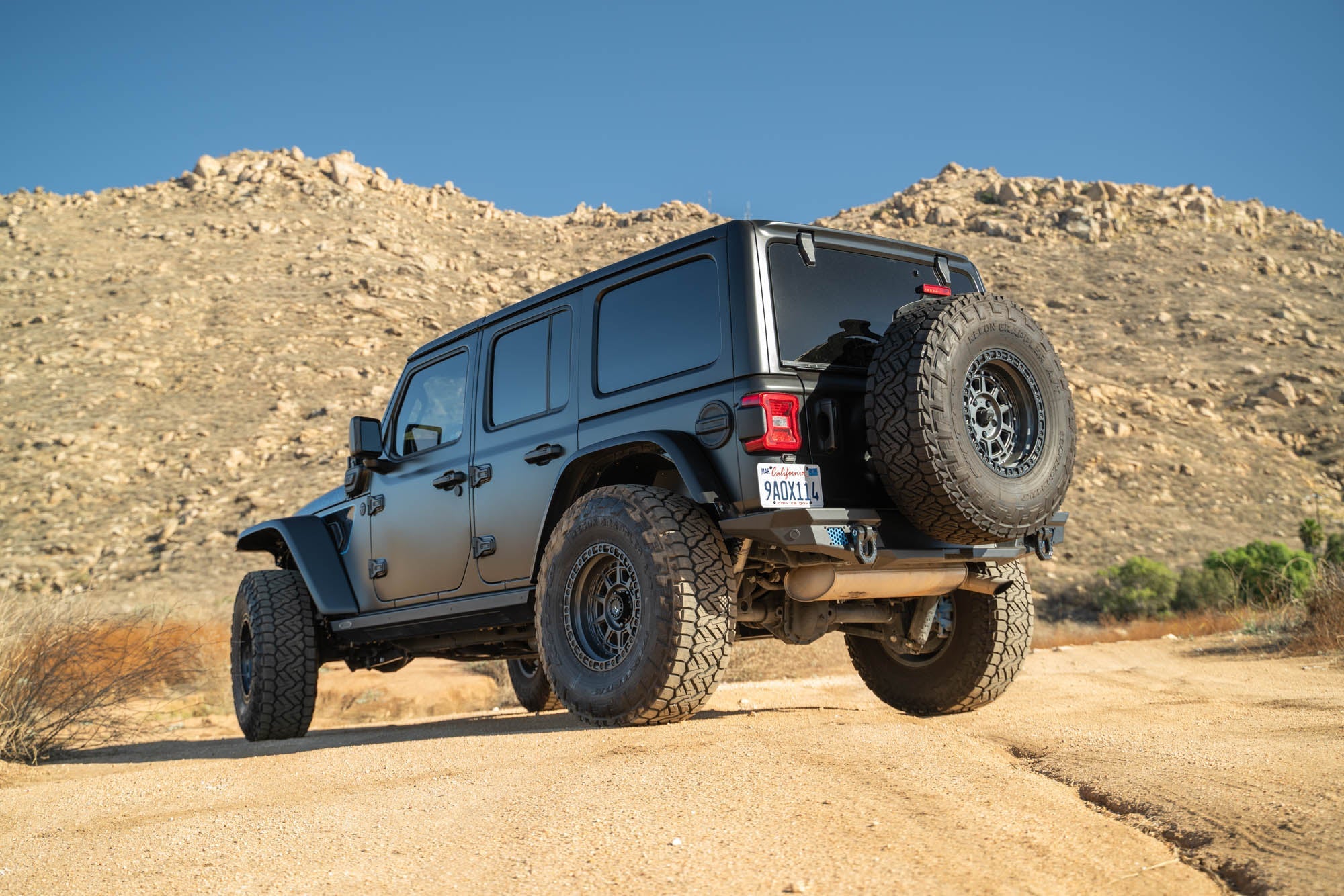

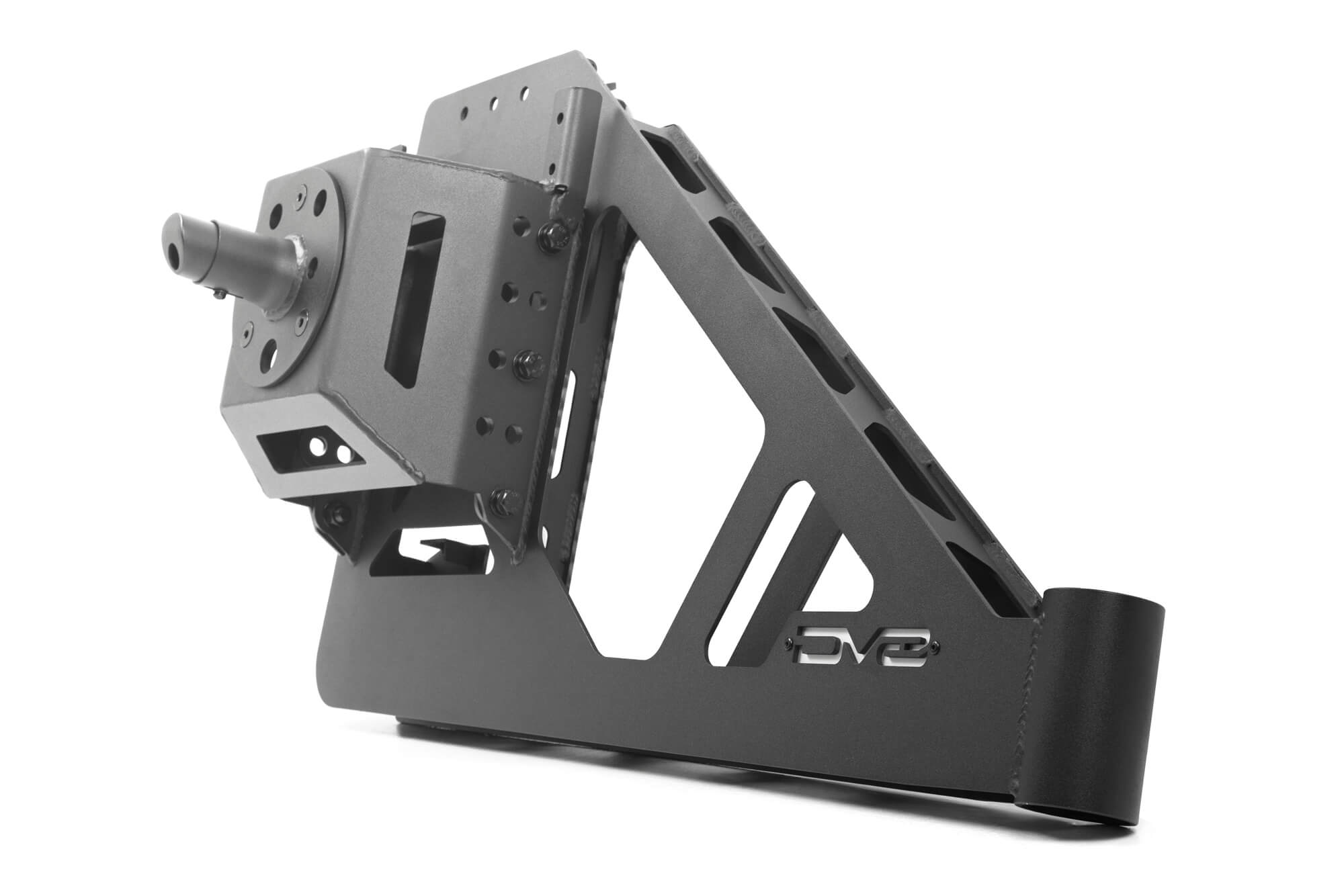

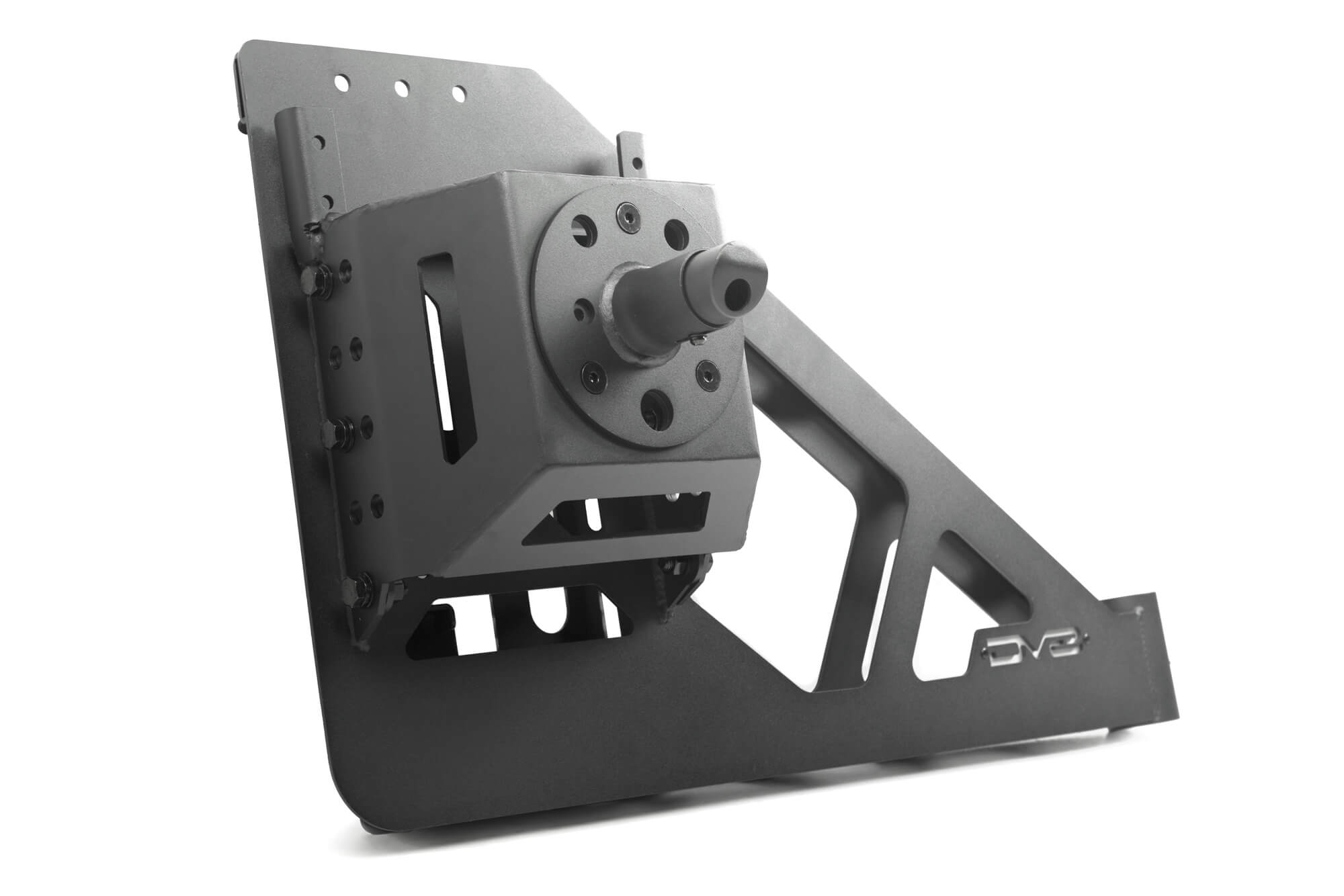

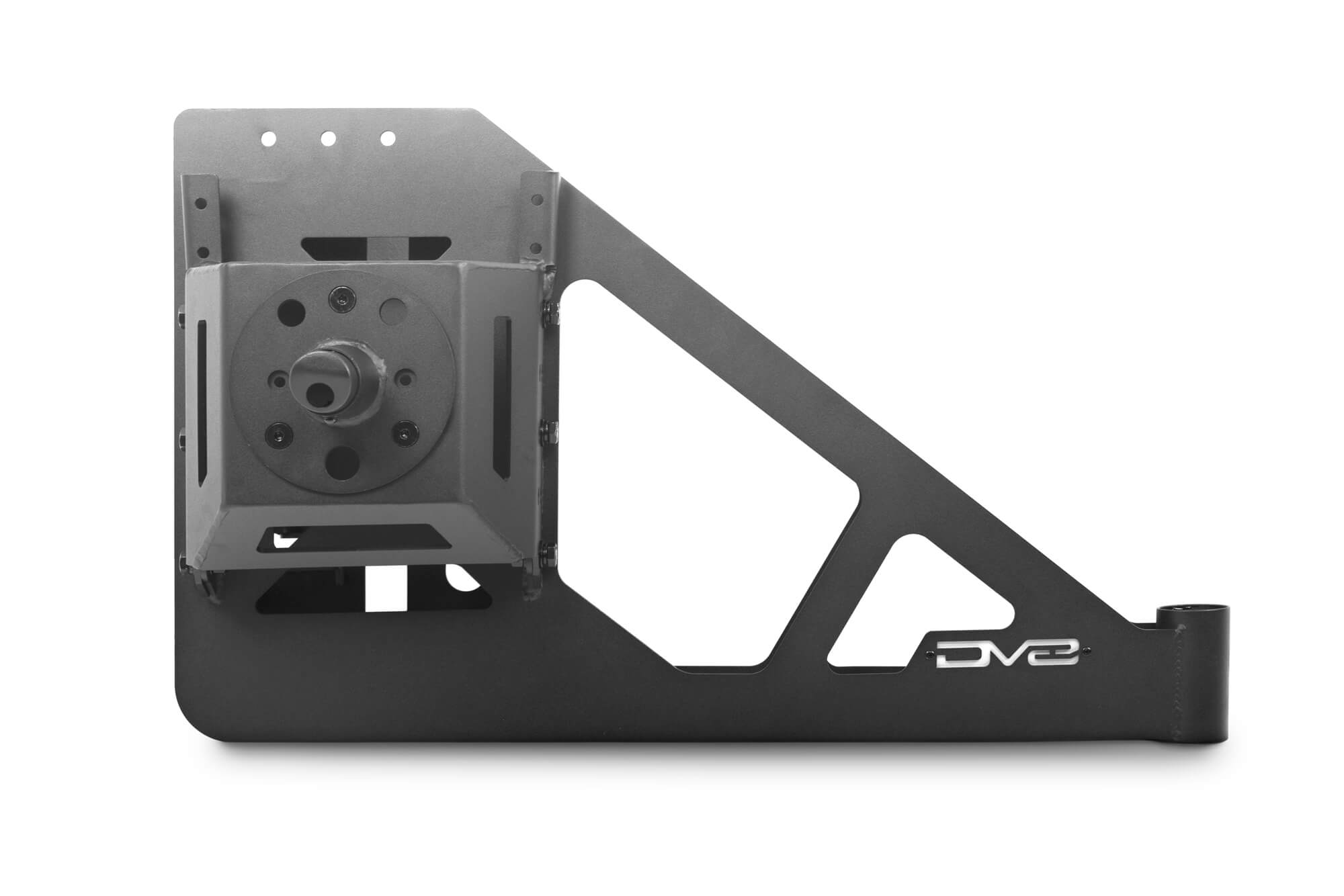

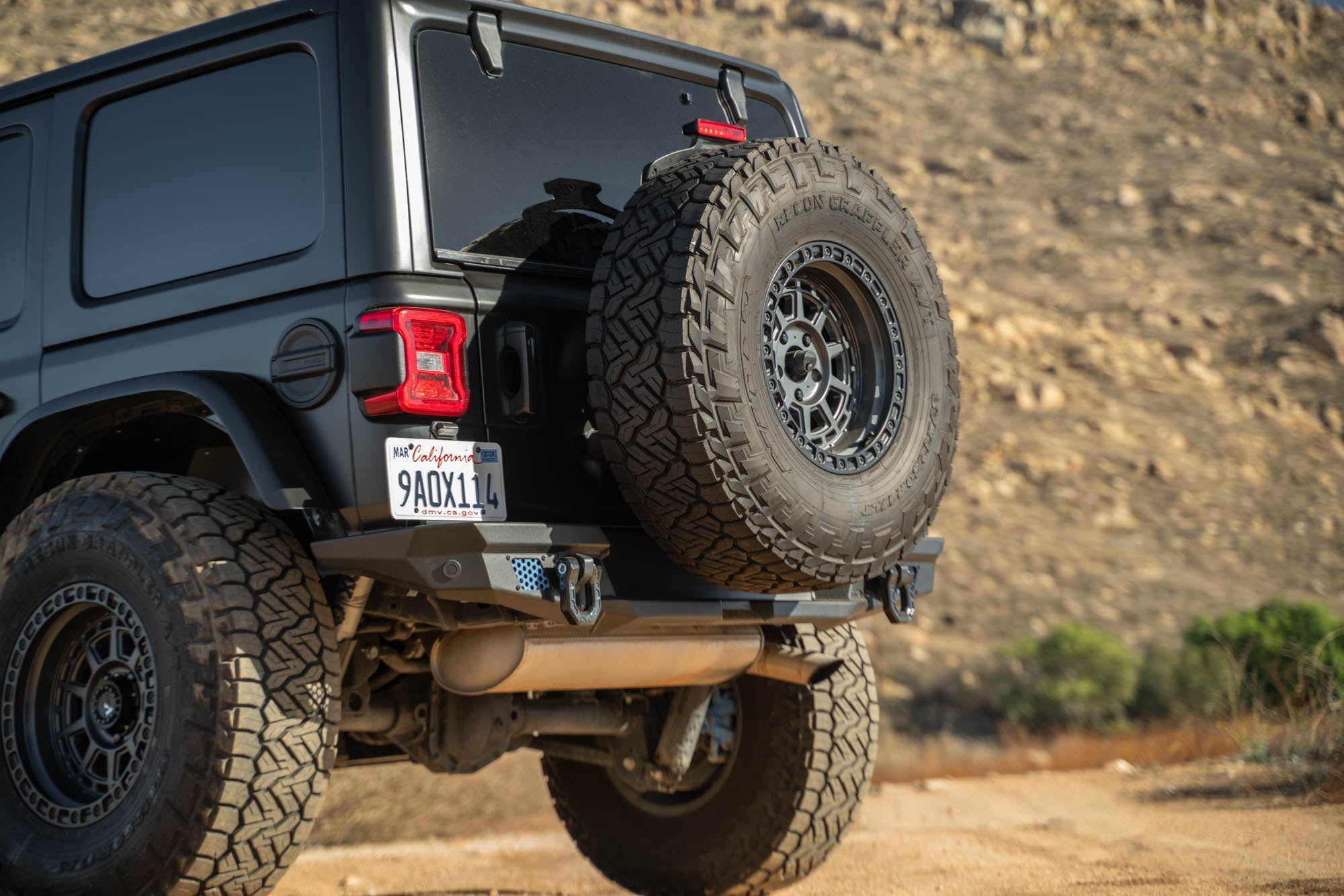

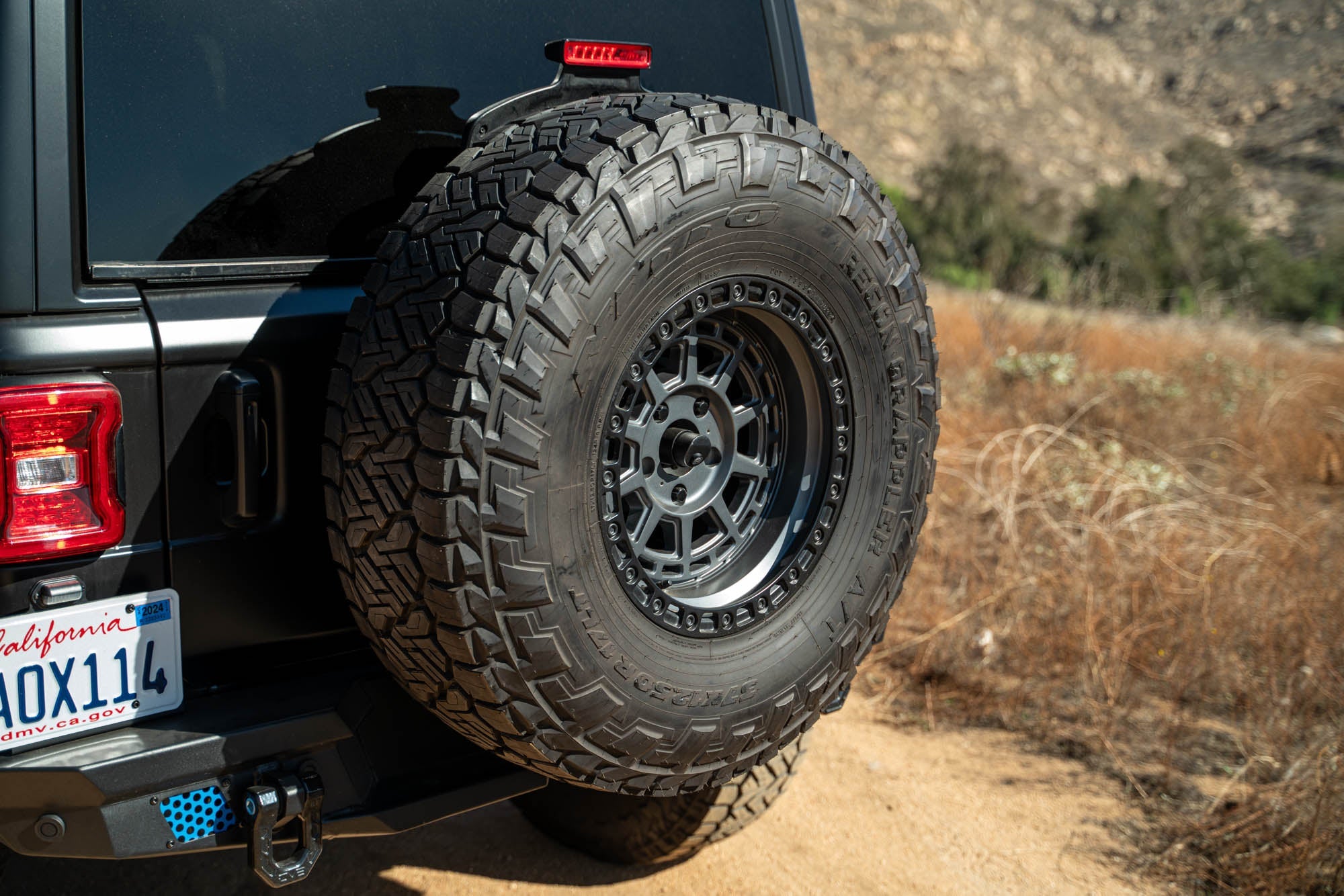

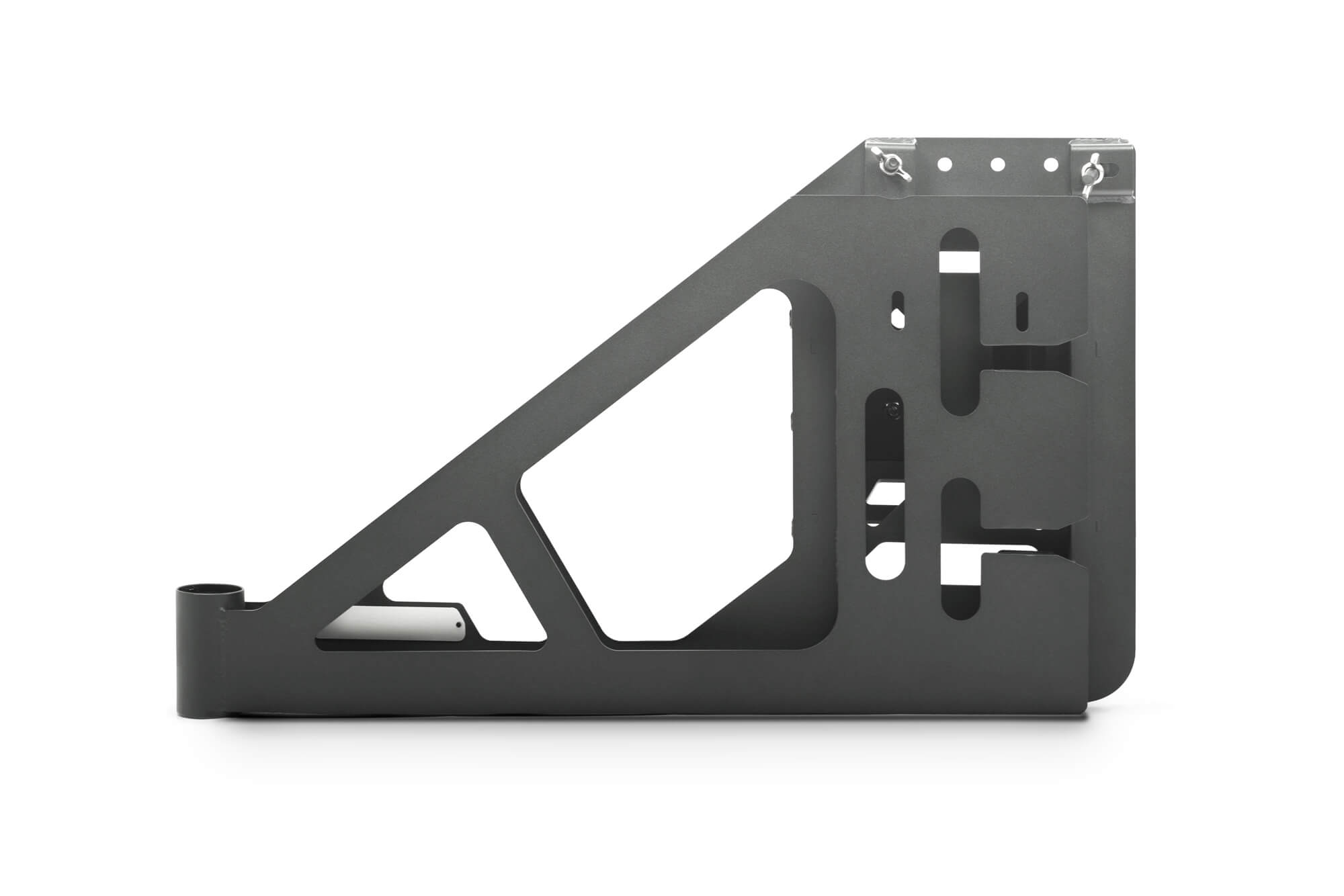

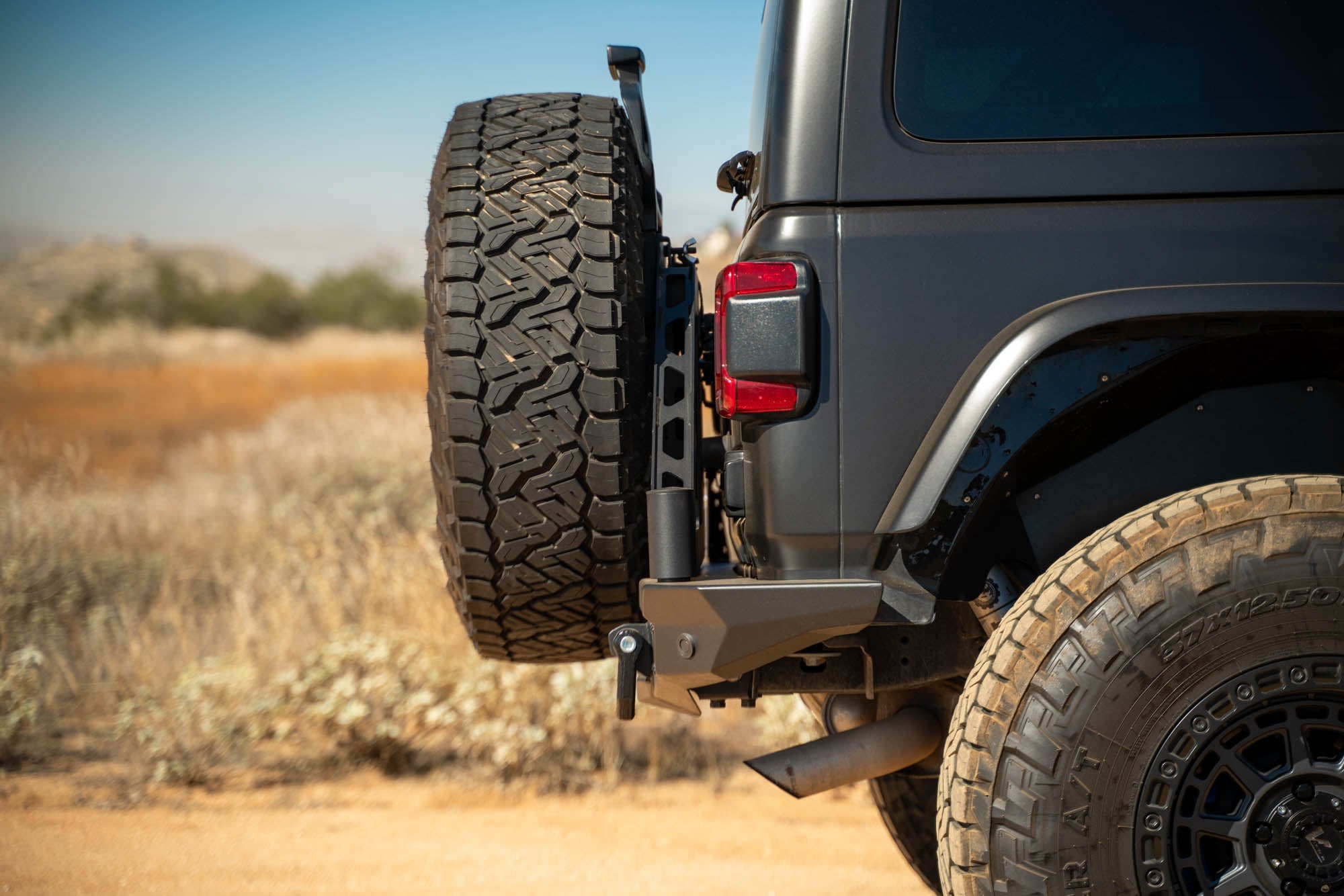

Our MTO Series Spare Tire Swing Gate was designed to support larger & heavier aftermarket wheels & tires. This add-on tire carrier is compatible with our MTO Series Steel Rear Bumper.

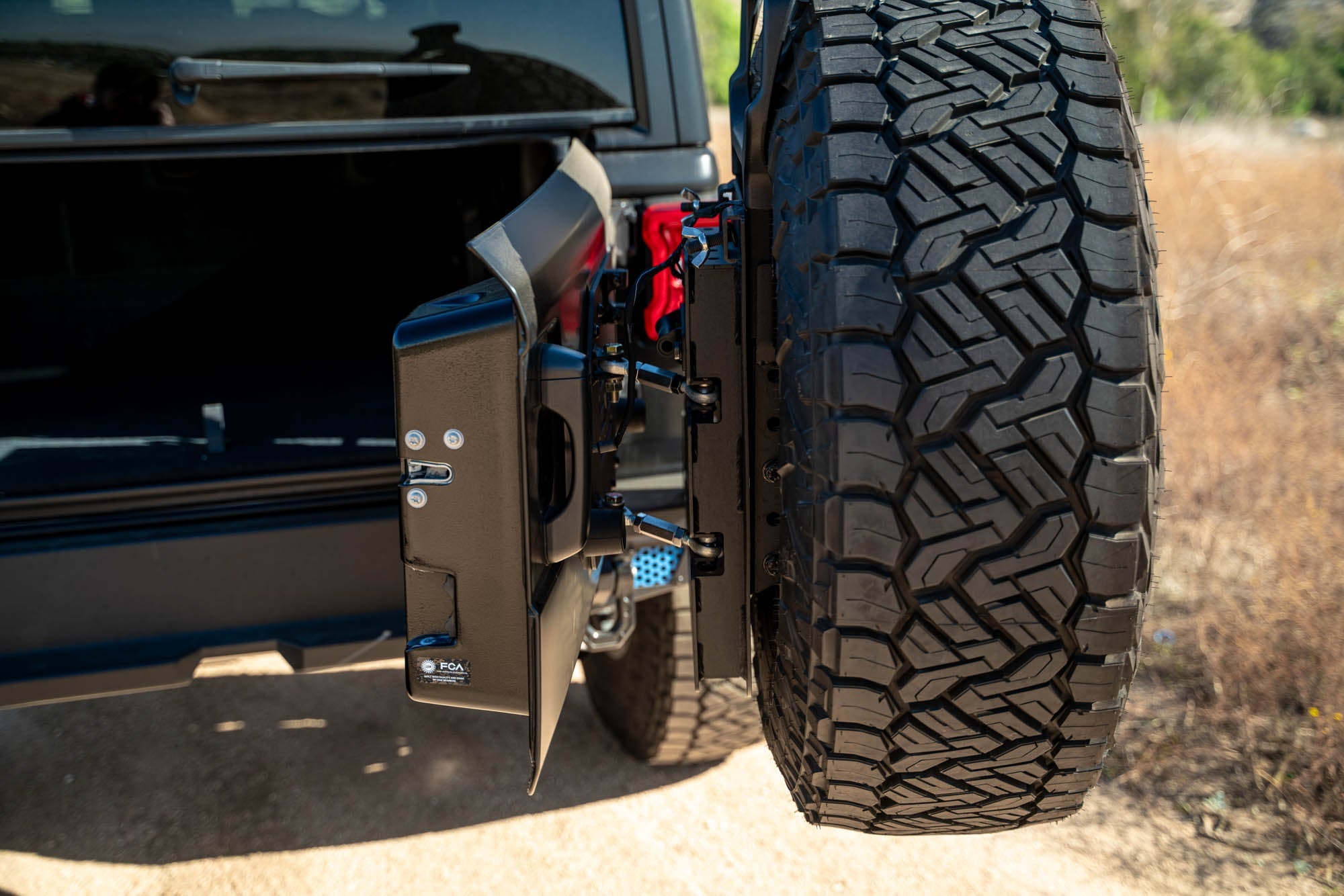

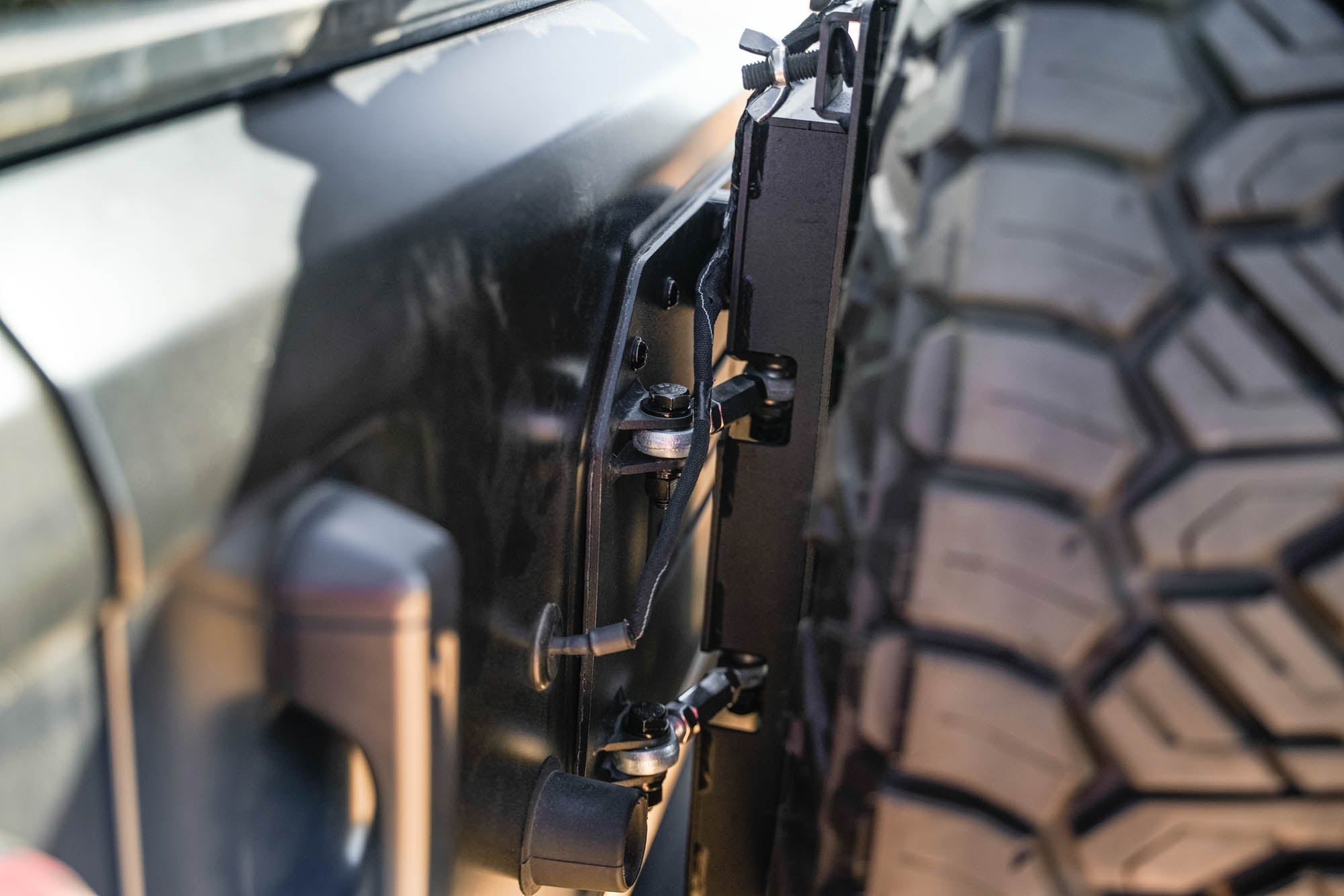

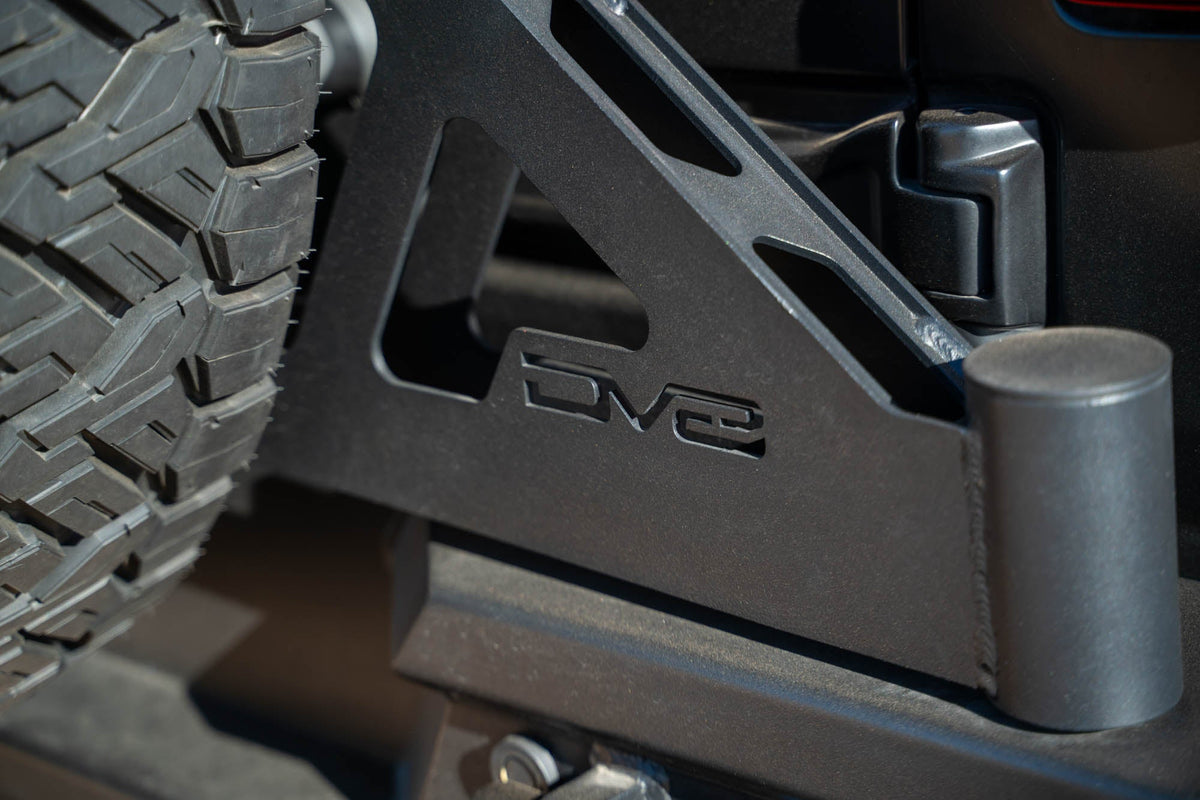

The swing gate opens with the tailgate, and transfers the extra tire/wheel weight off of the aluminum tailgate and redirects it to the bumper. A dual taper bearing and dual heim pivot provide smooth opening & closing of the carrier.

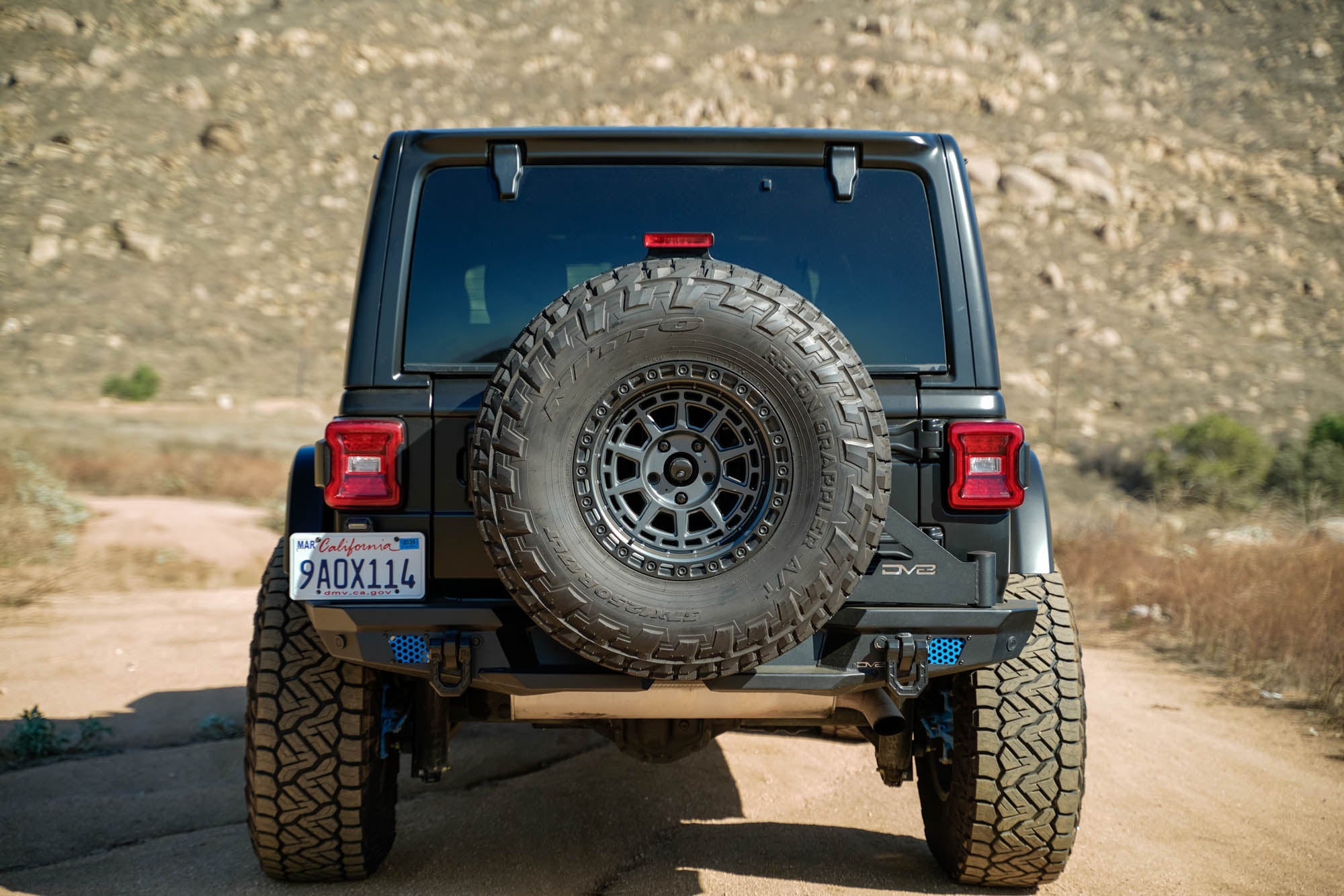

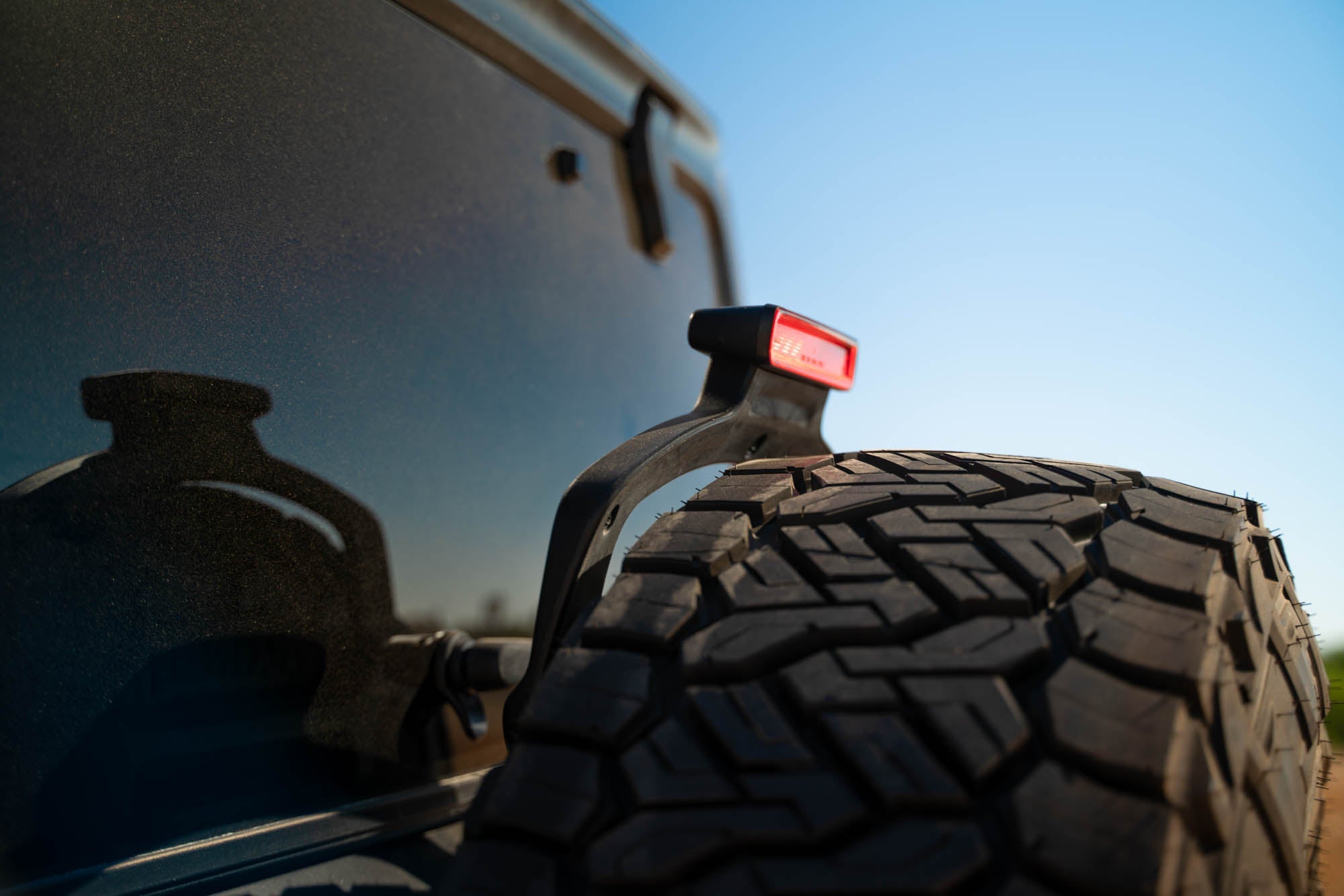

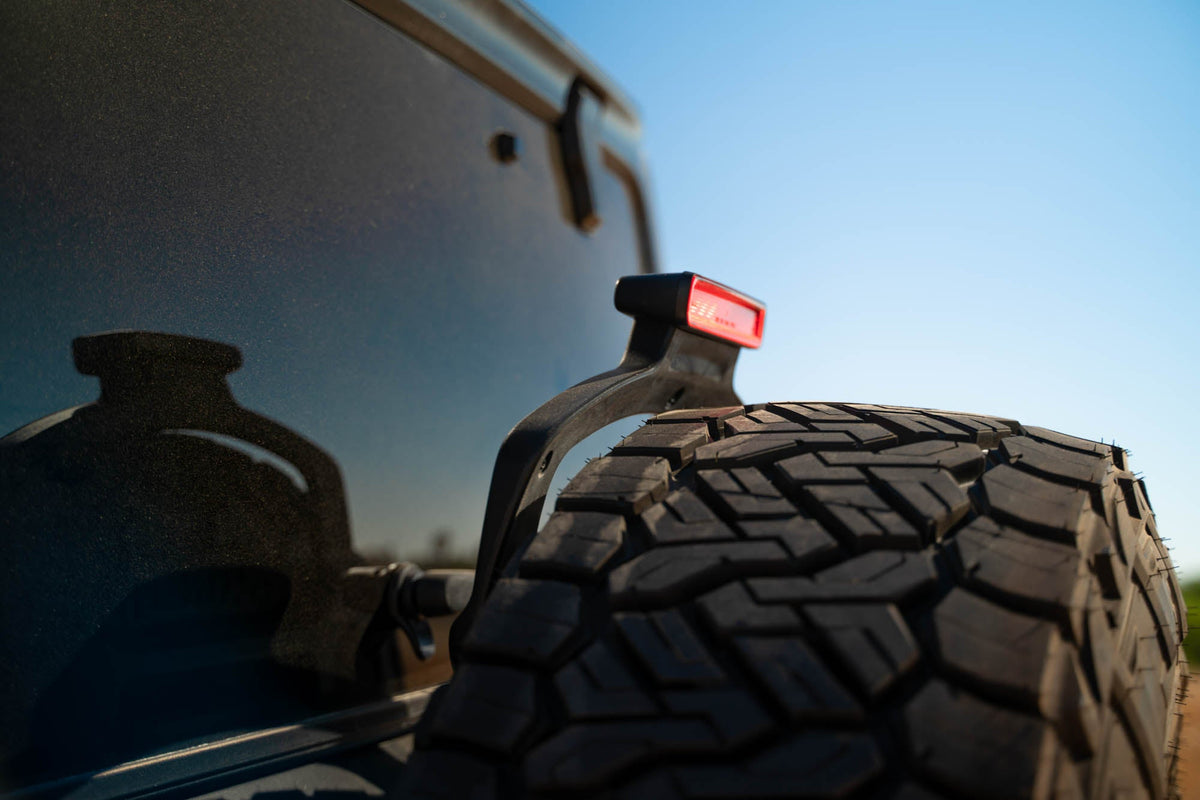

The MTO Series spare tire carrier features an adjustable camera mount that enables you to relocate and align the factory rear camera. The third brake light is also accommodated in the design of the carrier, and retains full functionality.
Additionally, the carrier features a mounting point for use with a Hi-Lift style jack or similar accessories. Installation is a bolt-on process, with no drilling required.
Fitment Note: The carrier can fit up to a 20-inch wheel and a 38 Inchx13. 5 Inch tire.
We recommend use with wheels of 4+ inch backspacing, as this is not compatible with -44 offset wheels. This is not compatible with wheels wider than 9.
5-inches. Will work with factory wheels with 2 Inch or larger wheel spacer.
Features and Benefits:
- Moves Wheel/Tire Weight off the Aluminum Tailgate to our Reinforced Steel MTO Bumper
- Single Action Swing Gate Opens Along with the Tailgate
- Dual Taper Bearing and Dual Heim Pivot for Easy & Smooth Opening & Closing
- Fits up to a 38 Inchx13.50 Inch Tire
- Fits up to a 20 Inch Wheel
- Recommended for 4+ Backspacing (Not Compatible with -44 Offset Wheels)
- Not Compatible with Wheels Wider than 9.5 Inch
- Adjustable Camera Mount for Perfecting Fitment
- Built-In Hi-Lift Style Jack Mount
- Accepts Factory Third Brake Light

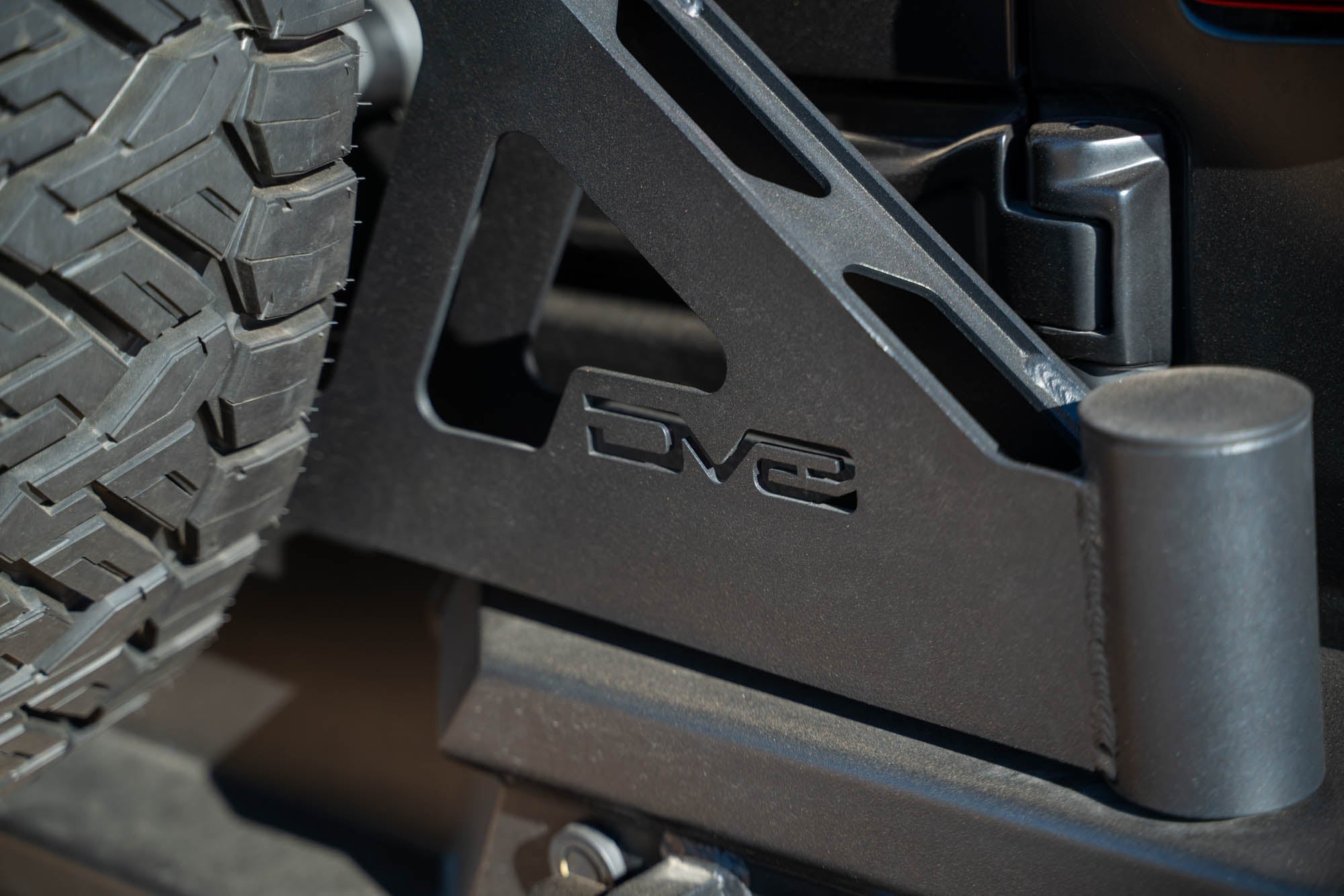

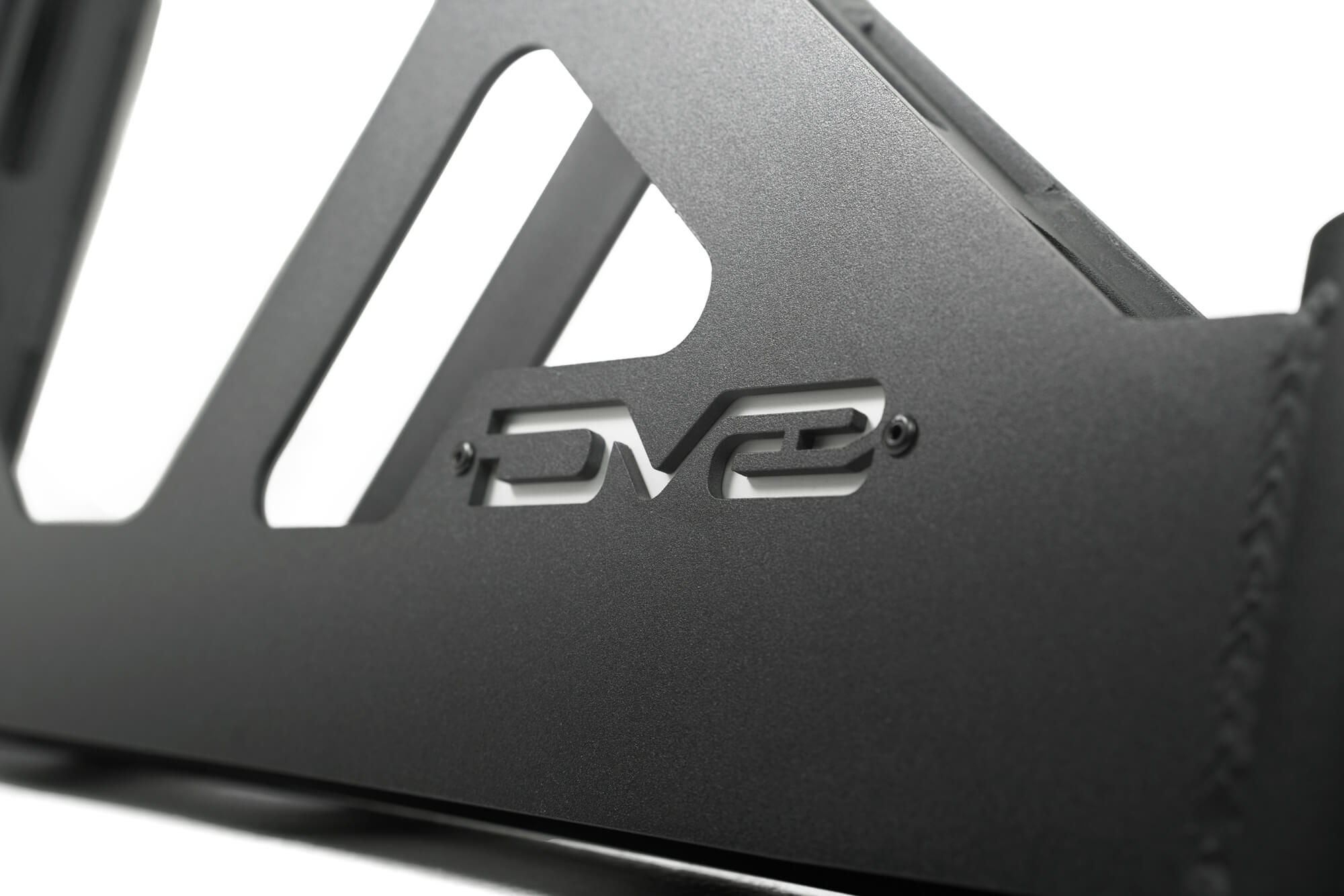

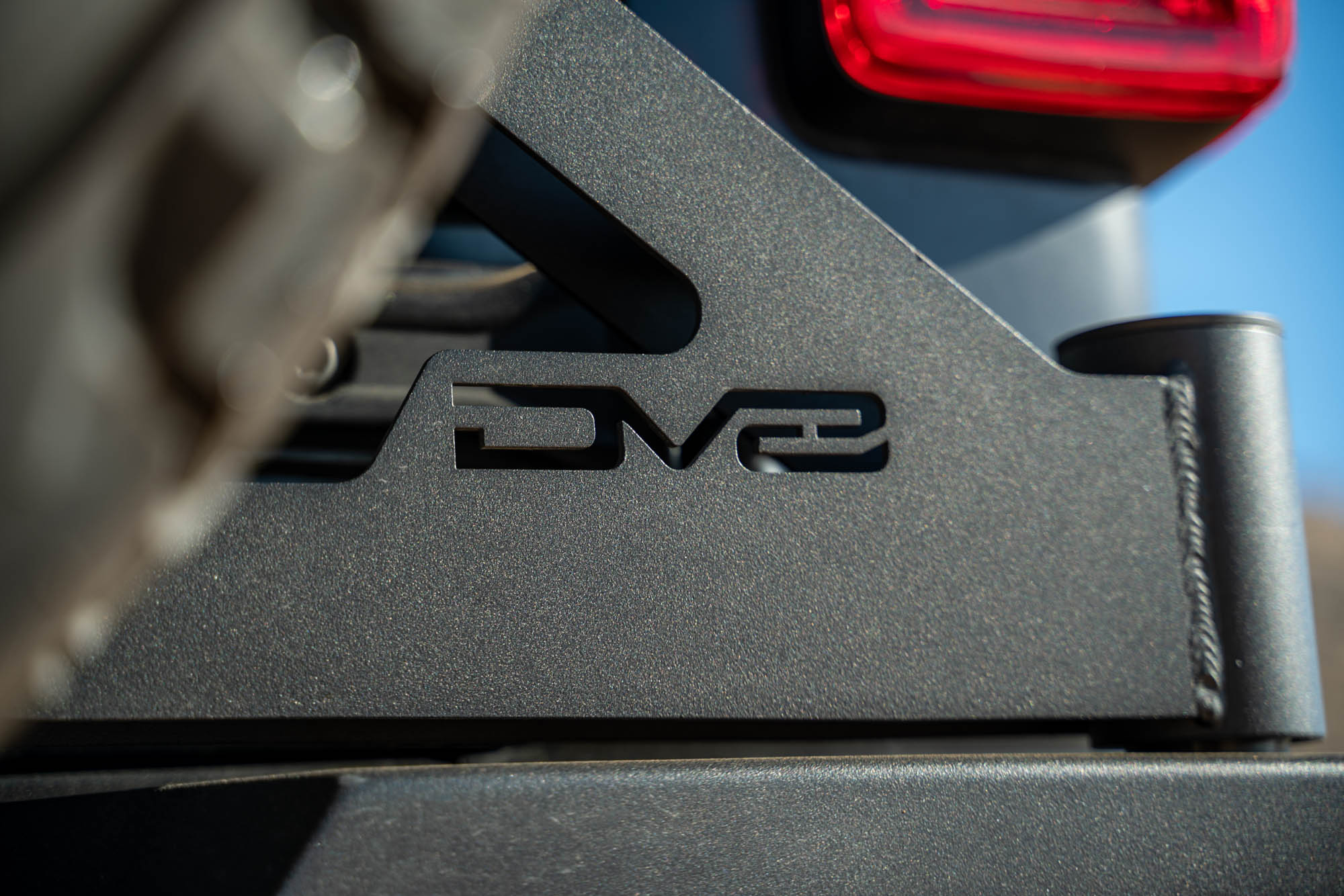

- Removable Aluminum Logo Plate that can be Color Matched to Your Build

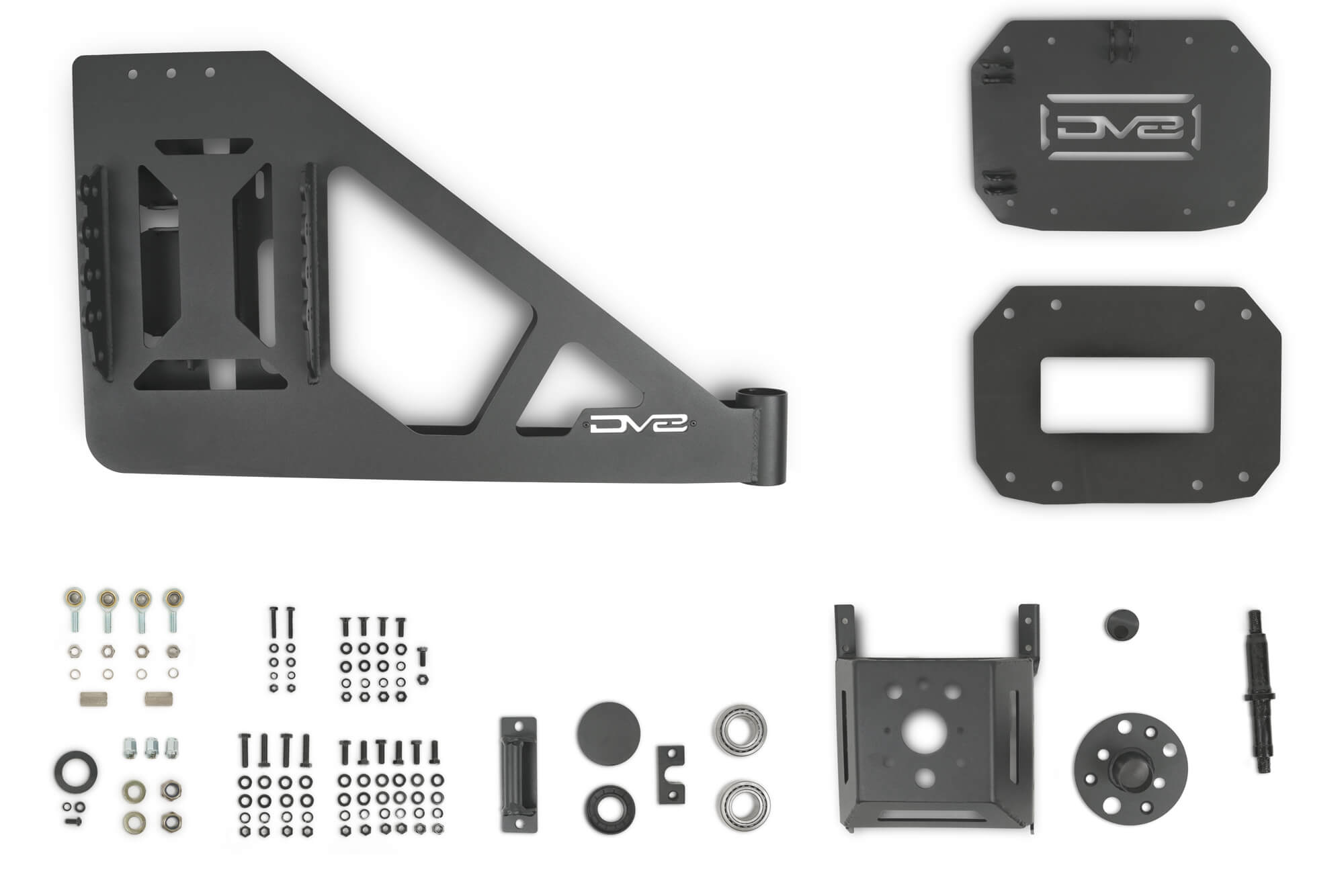

- Fully Bolt-On Installation
Fitment Notes:
- Only compatible with RBJL-13. Will work with factory wheels with 2 Inch or larger wheel spacer. Not compatible with Mopar On-Board Air Compressor option
Details:
- Mount Type: Bolt On
- Location: Rear
- Series: Made To Overland (MTO Series)
- Doors: 2/4 Door
- Color: Black
- Finish: Micro-Texture Powdercoat
- Material: Steel
- Warranty Time: 1 Year
