• 1 rear differential skid assembly
• 1 hardware kit (Grade 8)

The rear differential is the lowest point under most trucks, and the bottom of the cover is the first thing to drag over a rock or ledge. A dented cover or a damaged seal means a leaking axle, and a leaking axle on the trail is a problem that only gets worse.

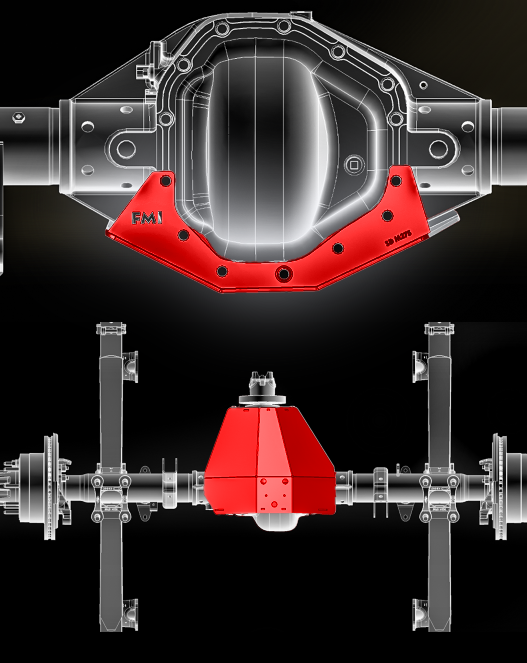

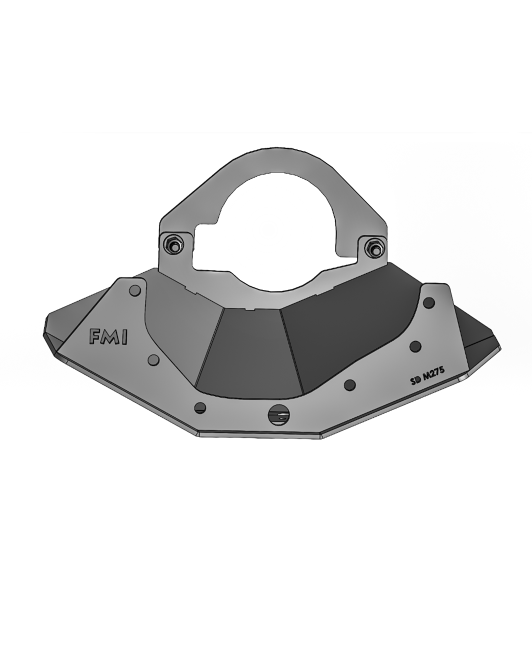

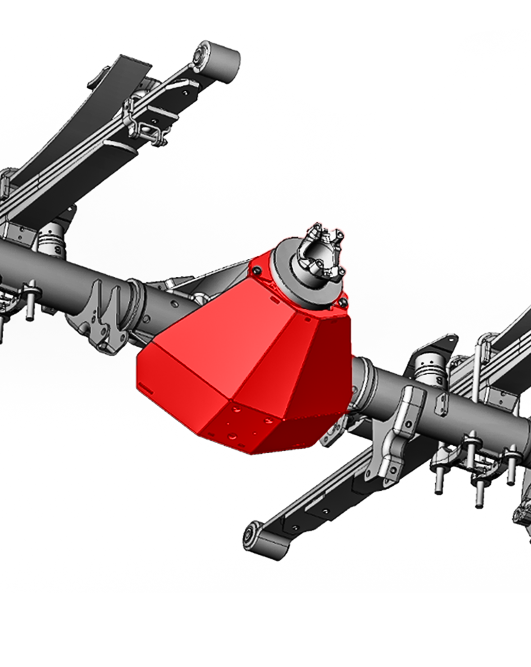

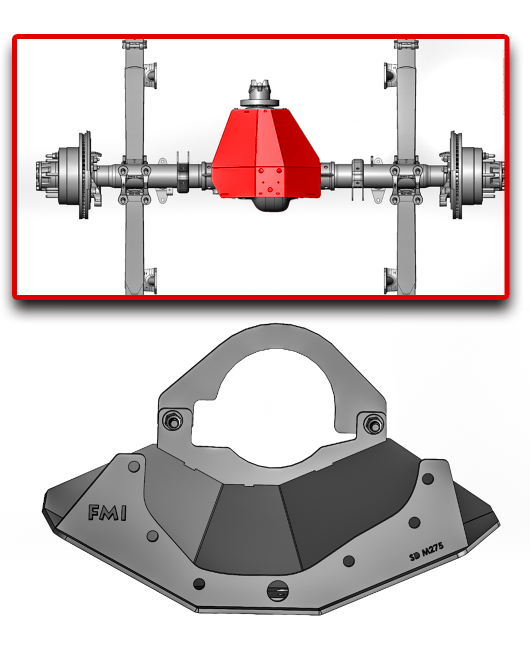

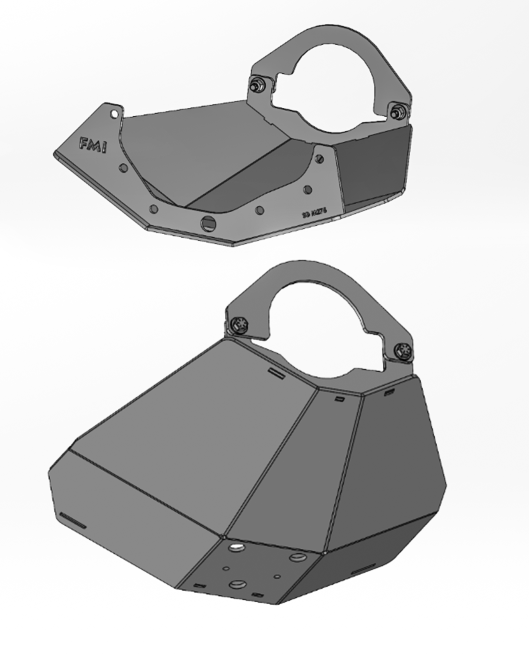

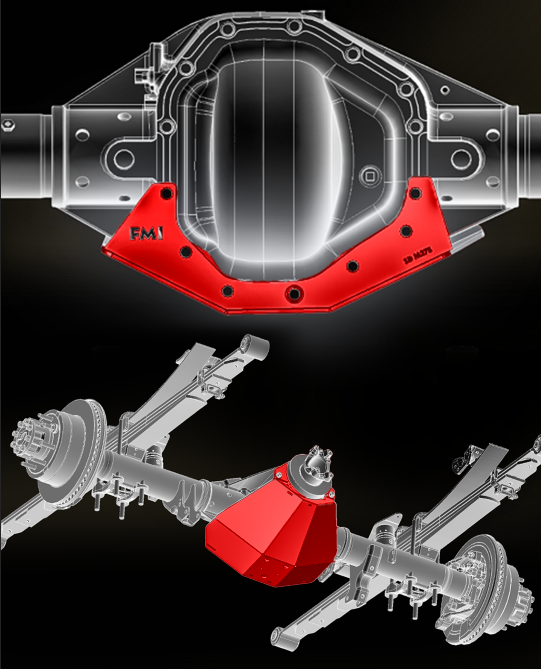

This skid supports and covers the lower section of the differential, so impacts land on 3/16" steel instead of on the cover seal.

• Supports and covers the lower differential section to protect the axle from rock damage
• Protects the front of the third member casting all the way up to the pinion yoke
• Covers the bottom of the rear axle housing
• Made from 3/16" thick steel, powder coated textured black
• All Grade 8 hardware; custom fit to clear the fuel tank

2017 and newer Ford Super Duty trucks with the Dana M275 / M300 rear axle housing (14 bolt cover) only.

Not sure which rear axle you have? Count the bolts in your rear differential cover before ordering. The Dana M275 / M300 cover has 14 bolts. The Sterling 10.25 / 10.50 has 12, and the Sterling 11.6 has 16.

Your axle should look like this for this kit to work correctly:

If you have a different axle, please consult our sales representative for the correct options for your truck.

How do I know if I have the Dana M275 / M300?

Count the bolts on the rear differential cover. The Dana M275 / M300 has 14. The Sterling 10.25 / 10.50 has 12, and the Sterling 11.6 has 16.

Will it hit the fuel tank?

No. The skid is custom fit to clear the fuel tank.

Is installation difficult?

It is designed for a quick installation process using the included Grade 8 hardware.

I have a different axle, or something else I want covered. Can you help?

Yes. Contact us if there is something you would like us to look into covering. Call 480-718-9800, 9am to 5pm MST, or email info@foutzmotorsports.com.
