• Front differential skid plate for the Dana M256 front axle
• Grade 8 hardware

The front differential hangs low and leads the truck into every rock and ledge. A stamped steel cover that takes a hit can dent into the ring gear or lose its seal and start leaking, and either one can end the trip.

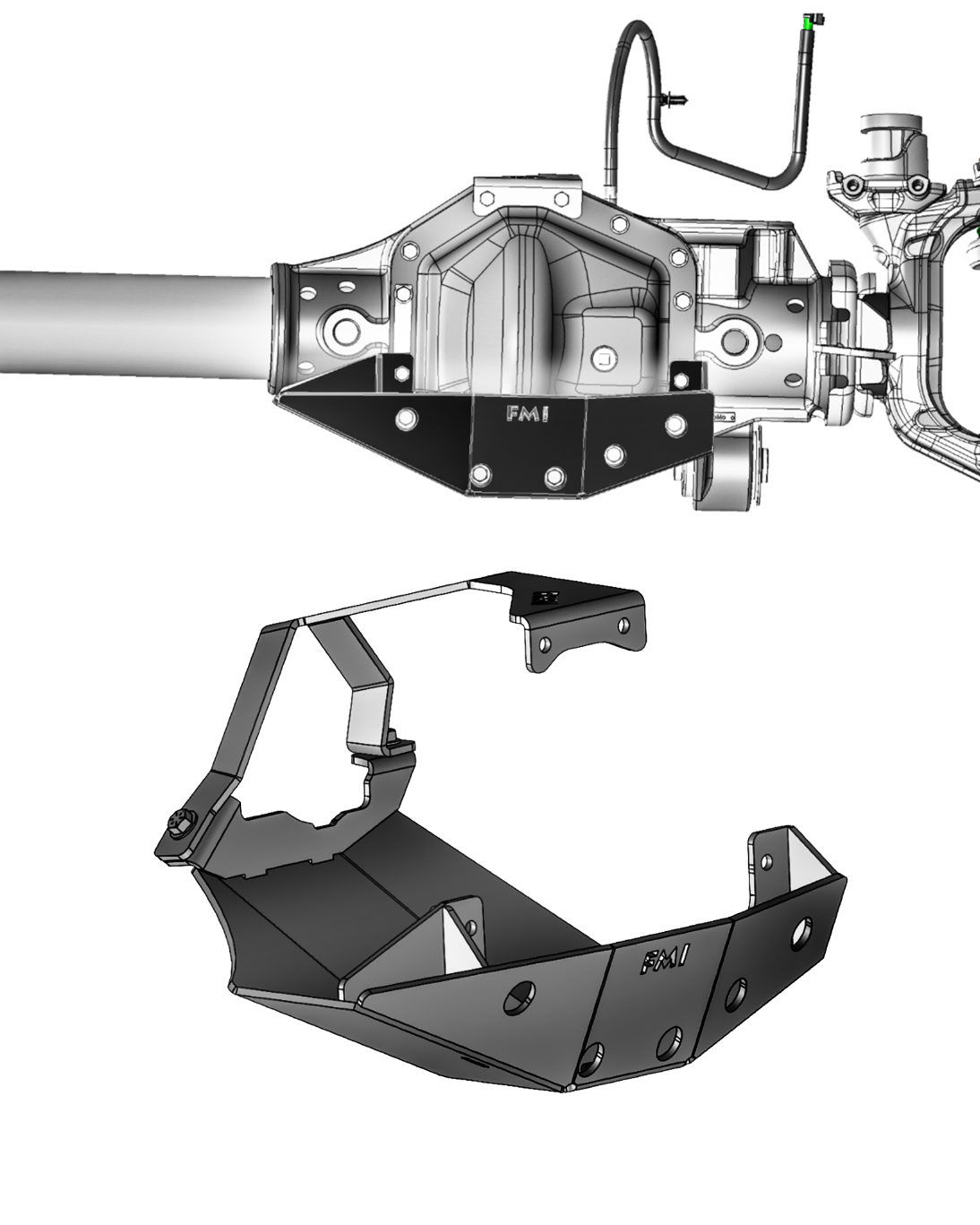

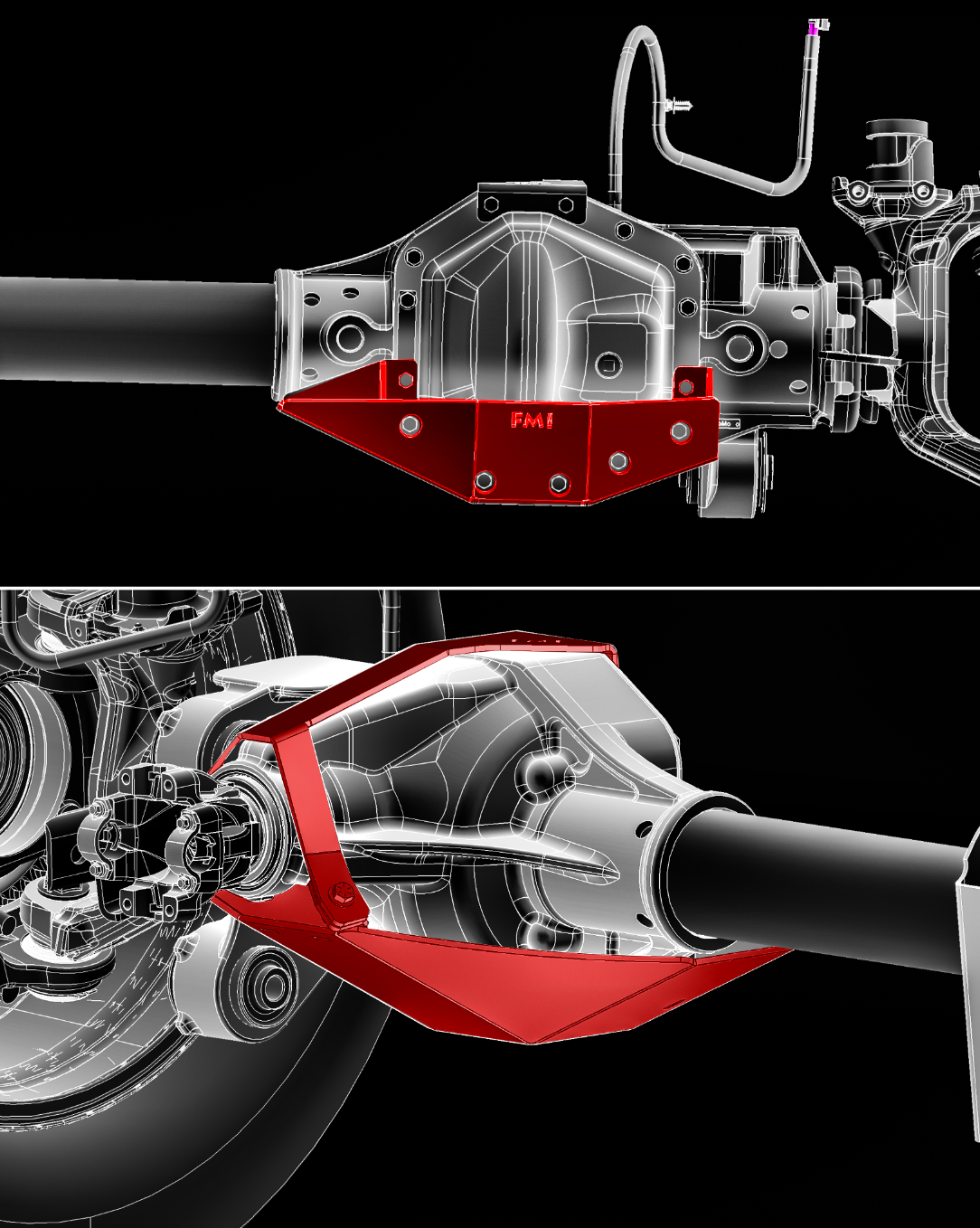

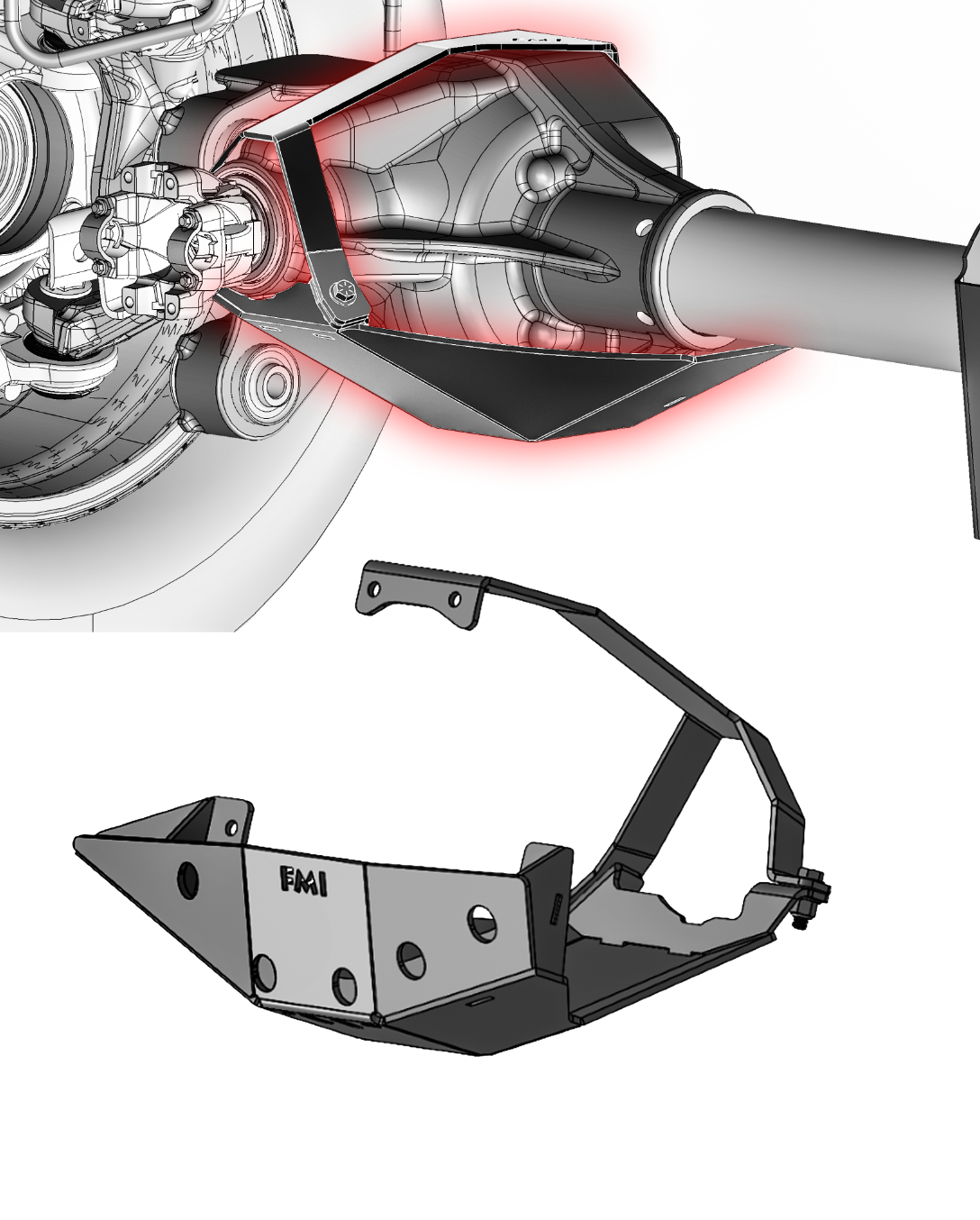

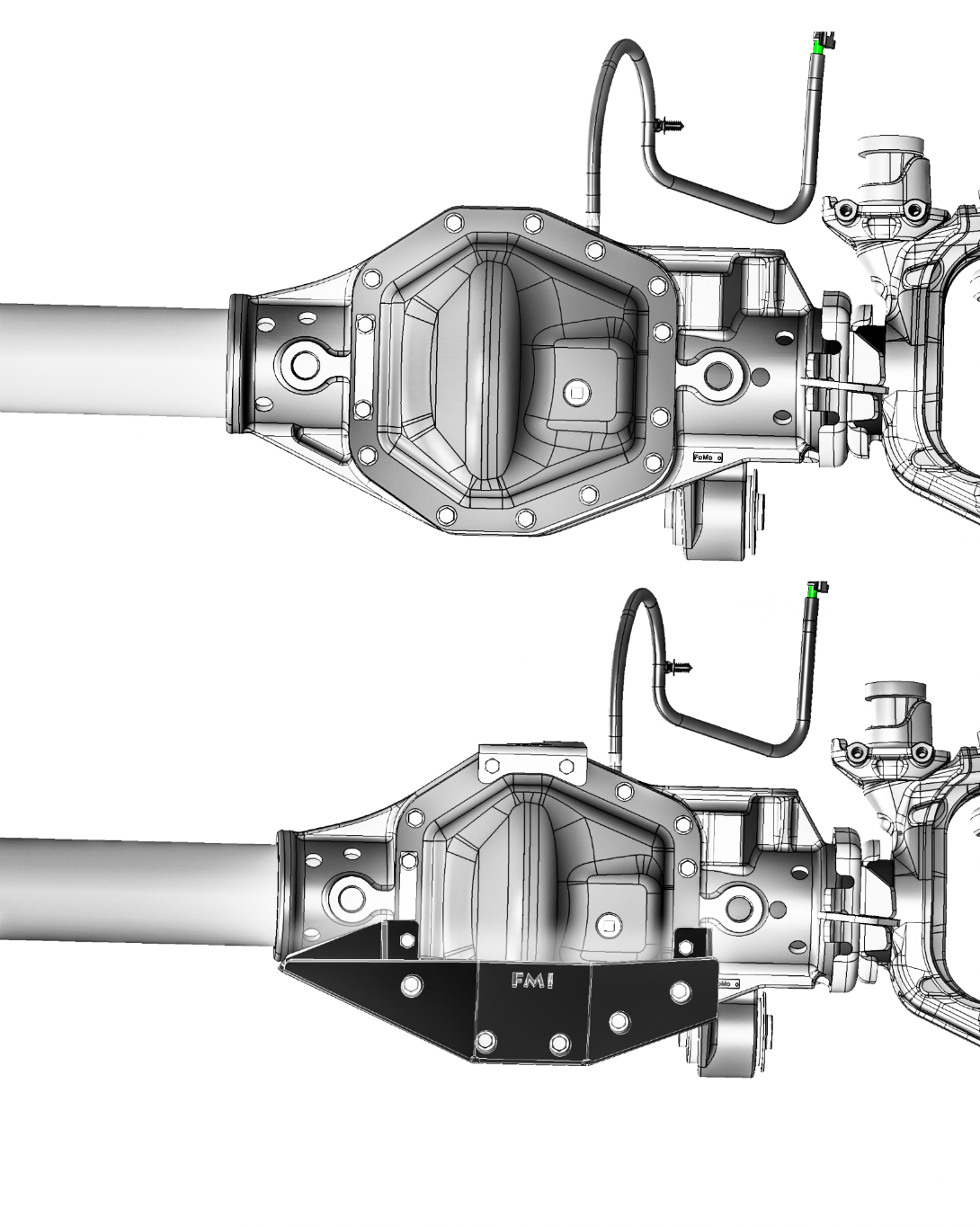

A 3/16" steel skid over the lower section of the differential takes that hit instead, so the cover and the ring and pinion behind it stay protected.

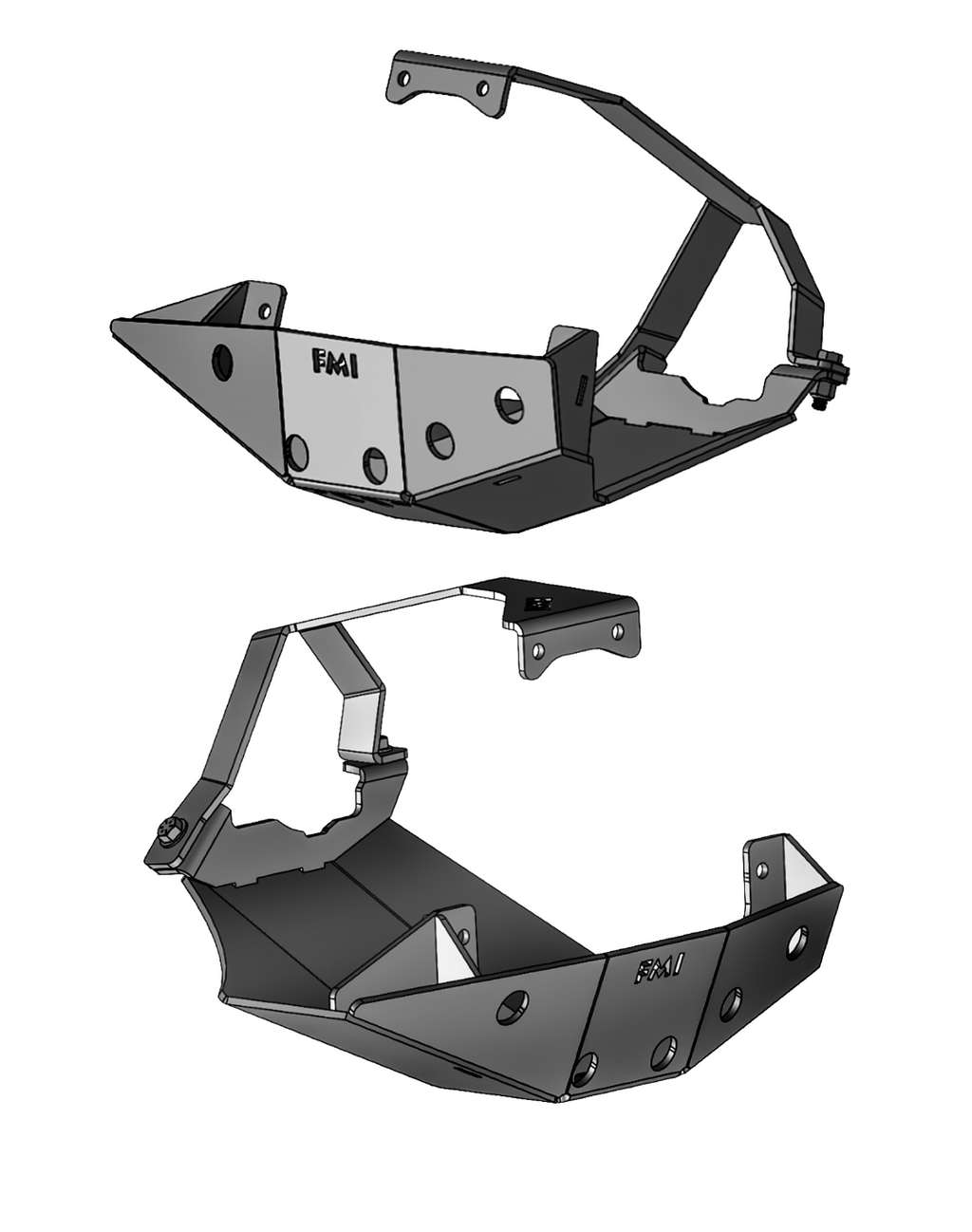

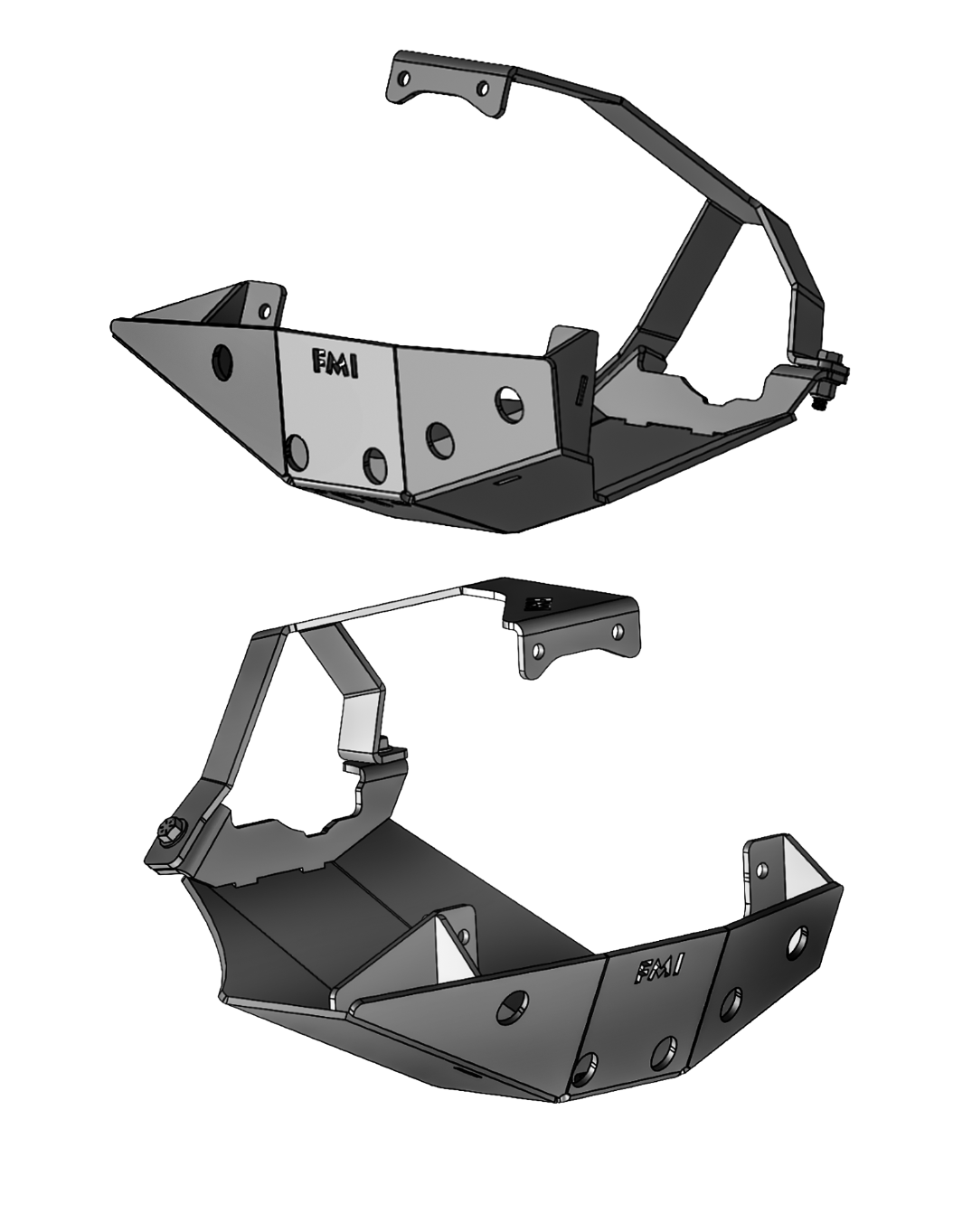

• 3/16" thick steel, precision cut and powder coated in textured black
• Full lower differential coverage to protect the most vulnerable section from direct rock impacts
• Grade 8 hardware included for a complete bolt-on kit
• Race inspired design, drawn from Foutz Motorsports off-road race trucks

2017 and newer Ford Super Duty trucks with the Dana M256 front axle (14 bolt cover) only.

Not sure which front axle you have? Count the bolts in your front differential cover before ordering. The Dana M256 cover has 14 bolts; the Dana 60 has 10. The rear Dana M275 / M300 axle also has a 14 bolt cover, so make sure you are counting the front differential. If your truck has the Dana 60 front axle, it needs a different part number.

For help choosing the correct differential skid for your truck, call your sales representative at 480-718-9800.

Bolt-on. No drilling, no cutting and no fabrication, using the Grade 8 hardware in the kit.

How do I know if I have a Dana M256?

Count the bolts on the front differential cover. The Dana M256 has 14; the Dana 60 has 10. The rear axle also has a 14 bolt cover, so be sure you are counting the front.

Will it fit the Dana 60 front axle?

No. This skid only fits the Dana M256. The Dana 60 needs a different part number.

Do I have to drill or cut anything?

No. It is a complete bolt-on kit with Grade 8 hardware included.

How thick is it?

3/16" steel, powder coated textured black.
