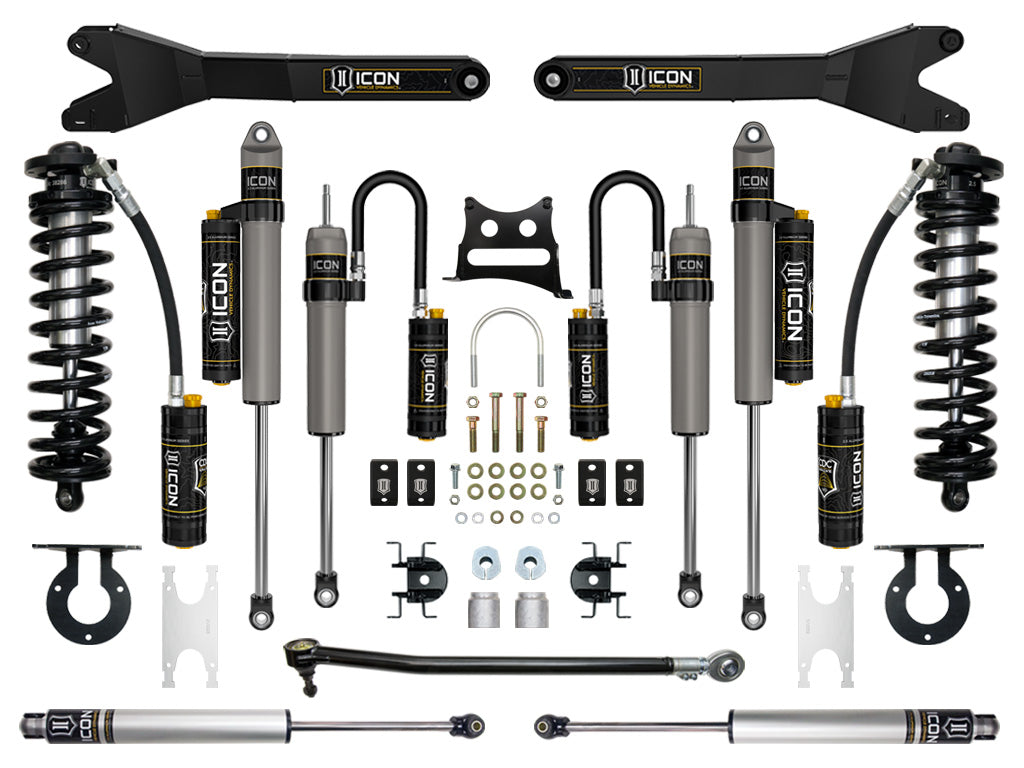

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2022 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment.
The 2.5 Inch Remote Reservoir Coilover featured in these kits is based off of ICON's 2.5 Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
Features and Benefits:
- This Stage 6 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37 Inch tall tire clear without coming in contact with the radius arm.
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers provide 2.5-3 Inch or 3.25-3.75 Inch of lift, depending on year model of truck
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft
- Corrosion resistant anodized aluminum shock bodies on rear and secondary front shocks
- Eibach coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
- Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
Details
- Active Or Passive Suspension: Passive
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Bushings Included: Yes
- Coil Quantity Front: 2.0
- Coil Spring Color: Black
- Coil Spring Material: Steel
- Coils Quantity Front: 2.0
- Damping Adjustment Type: Manual
- Front Reservoir Style: Remote
- Front Shock Body Diameter: 2.5
- Front Spring Rate Type: Linear
- Grade Type: Performance
- Maximum Lift: 3.75 Inch
- Maximum Lift Front: 3.75 Inch
- Maximum Lift Height Front: 3.75 Inch
- Minimum Lift Front: 1.5 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Piggyback
- Rear Shock Body Diameter: 2.5
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit, 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit, 191014 - .25 Inch Collar Spanner Pin Wrench
