Description
The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components. Partnering with our friends at Dynatrac, ICON is happy to pair our suspension components with Dynatrac HD BallJoints to provide a complete front-end suspension solution to solve common steering problems that can lead to loose steering feel, decreased stability, erratic tracking down the road, uneven tire wear, and even death-wobble.

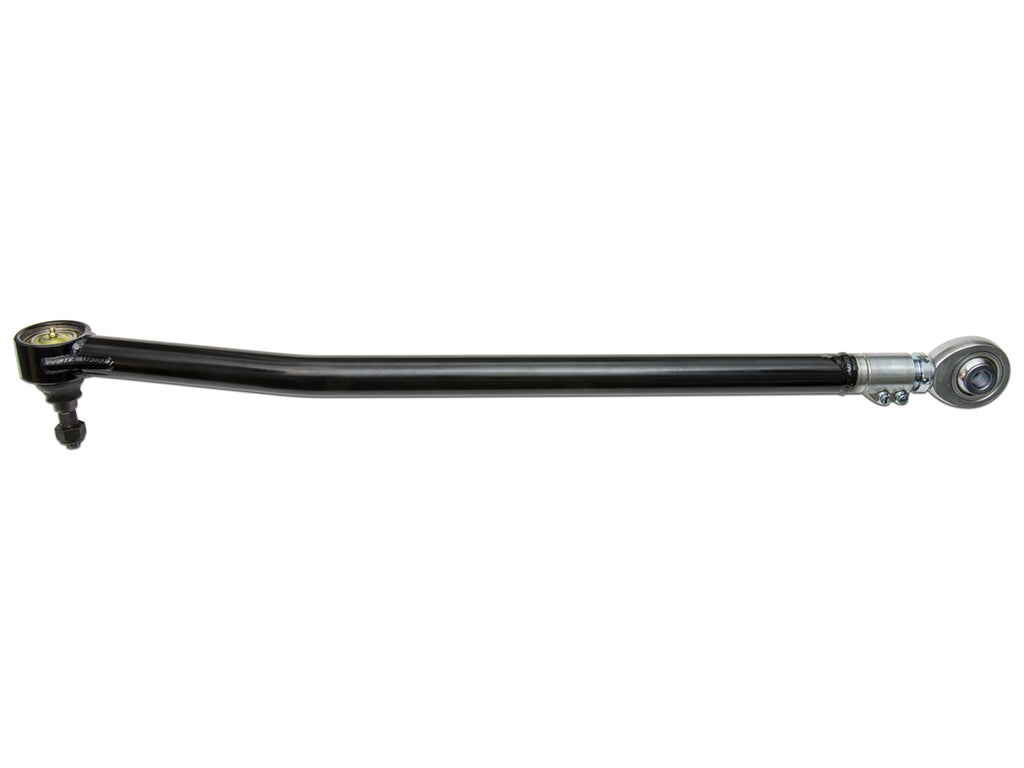

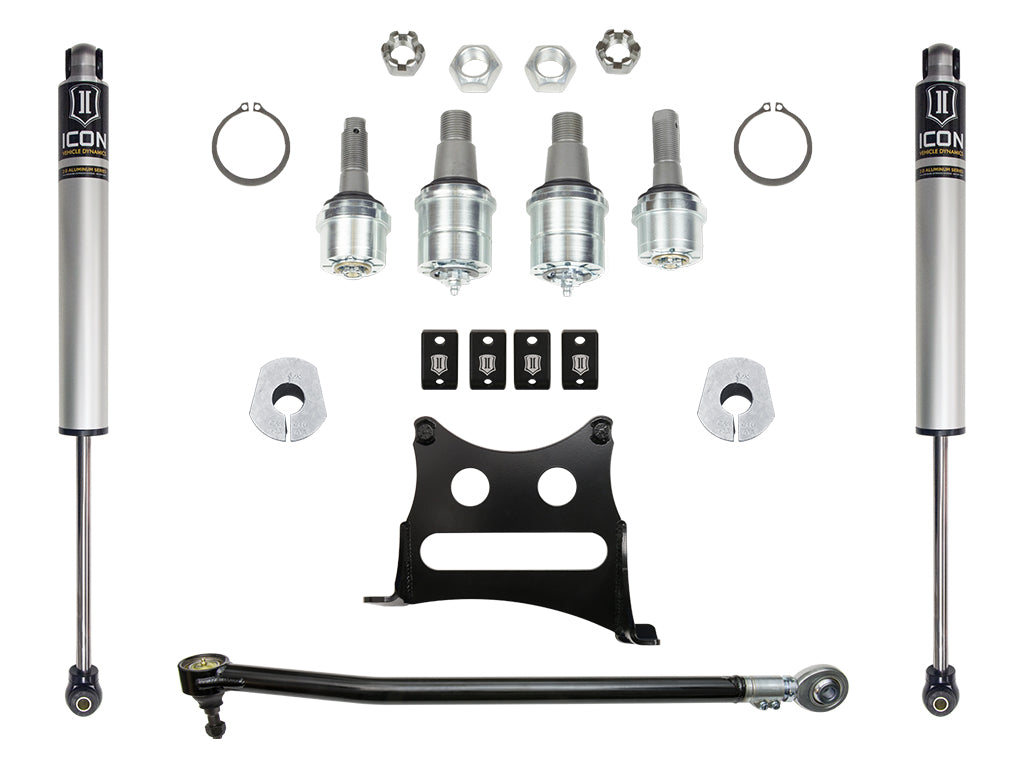

Features and Benefits:- This Stage 4 Ultimate Front End Kit for the 2017-2022 Ford F-250 and F-350 Super Duty 4WD features the ICON Adjustable Track Bar to help center the axle of your Super Duty and allow for increased suspension travel and articulation. A massive FK Rod End at one end, along with greaseable and replaceable OE style ball joint at the other end yields the best combination of maximum travel and articulation while also removing bushing deflection for improved handling characteristics. ICON's exclusive rod end Double Adjuster Sleeve allows for fast, easy Inchon-vehicle Inch adjustment of track bar length without requiring removal or disassembly of the track bar. This allows for easy correction of axle location and dialing in precise tracking whenever adjustments are made to ride height. The track bar is made of CNC bent 1.625 Inch x .250 Inch wall 1026 DOM tubing with CNC machined threaded end and ball joint housing with a multi-stage black powder coat finish.

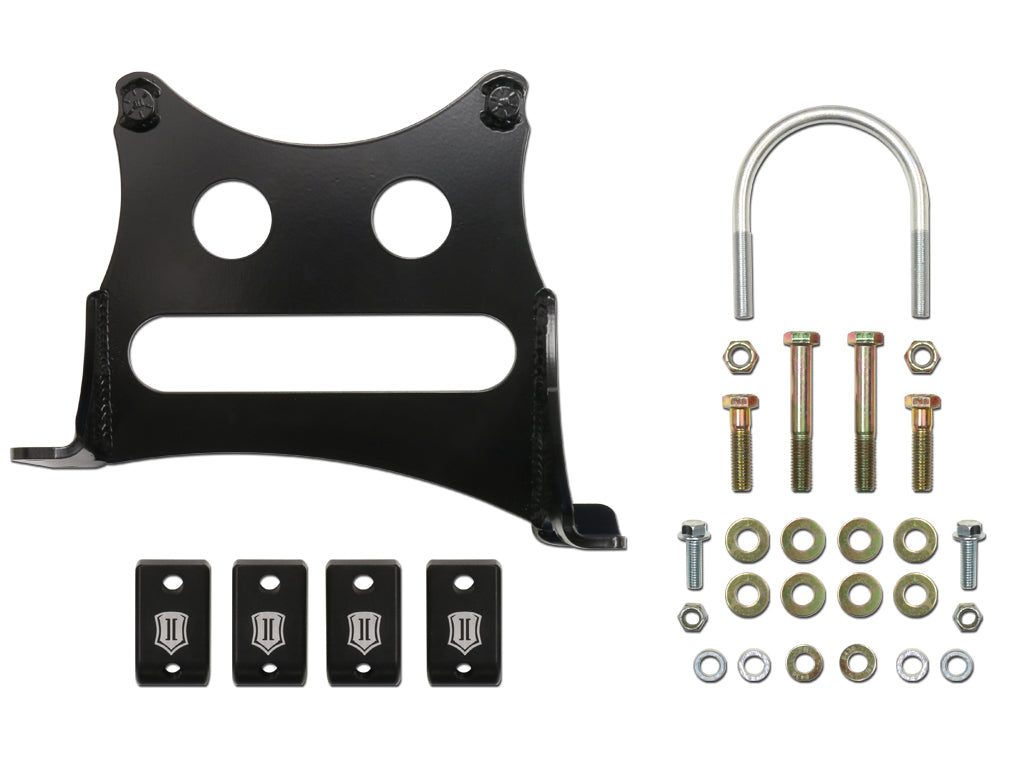

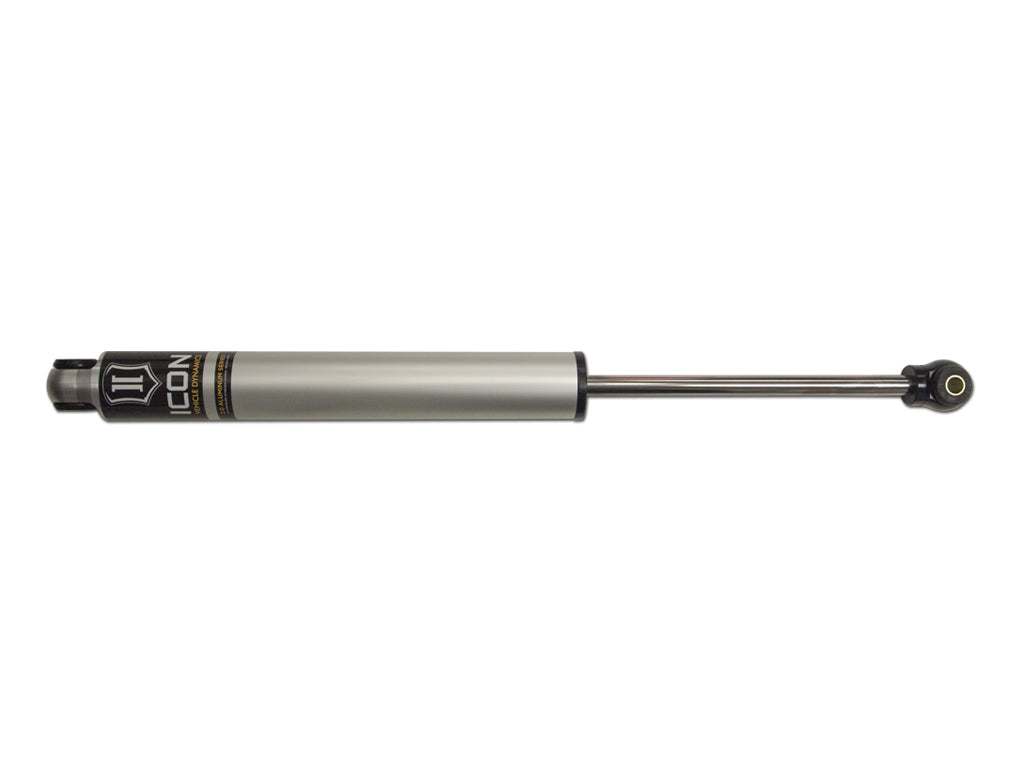

- To properly damp unwanted steering inputs, Stage 4 includes an ICON Dual Steering Stabilizer System designed to minimize bump steer feedback and smooths out the roughest of terrains felt through the steering wheel. By mounting the 2.0 Aluminum Series shock absorbers in an opposing manner the push/pull effect from their internal pressure is canceled out. This allows for far greater steering damping than available from a single, similarly sized steering stabilizer shock while ensuring the truck tracks straight down the road. This system bolts to the factory differential cover and wraps around the axle for a secure fit without cutting, welding or drilling. The shocks are connected to the tire rod with black anodized billet aluminum clamps for a secure fit and clean finish.

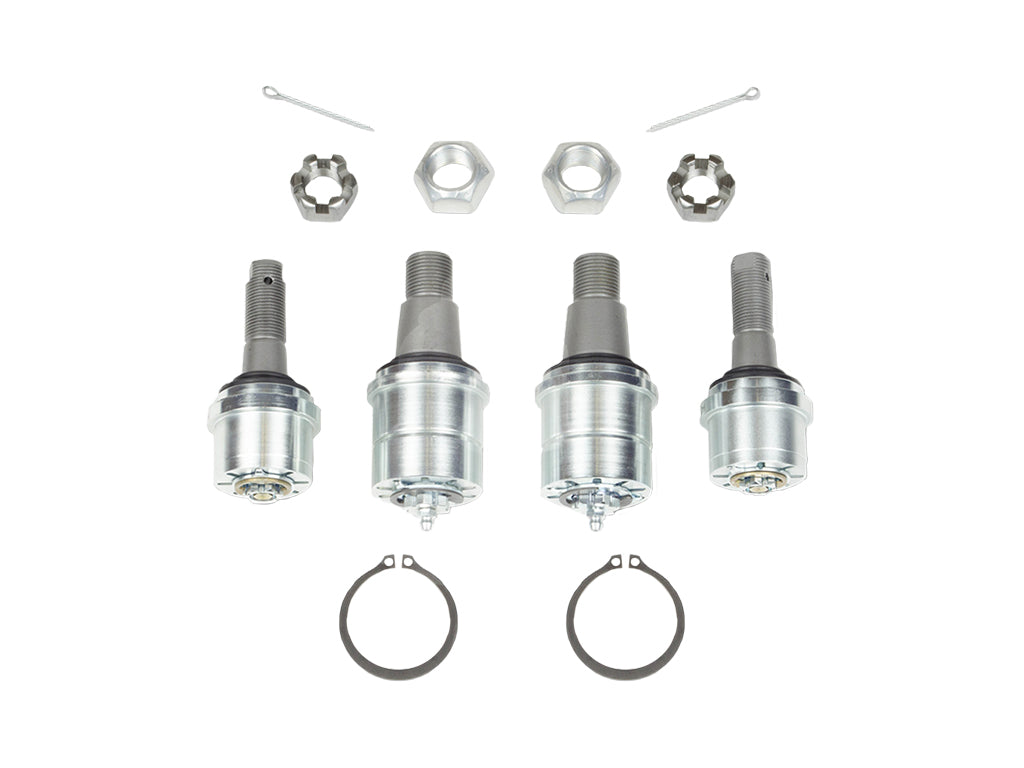

- Stage 4 also includes a full set of front upper and lower Dynatrac HD BallJoints. Dynatrac HD Balljoints feature heat-treated high-strength billet bodies with chromoly stems along with a heat-treated, precision-ground stainless-steel ball. Unique seals prevent contamination, and the ball joints have greaseable fittings and PTFE-coated wear points to provide a long, durable service life. These high-end ball joints Are also rebuildable what still installed in the front axle housing. The OEM ball joints often wear quickly with larger off-road tires, many road miles, or extreme off-roading. Replacing worn factory ball joints with Dynatrac HD BallJoints, built specifically for the rigorous demands of these vehicles, provides a long-term solution and help maximize the overall drivability of the Ford F-250 and F-350 Super Duty.

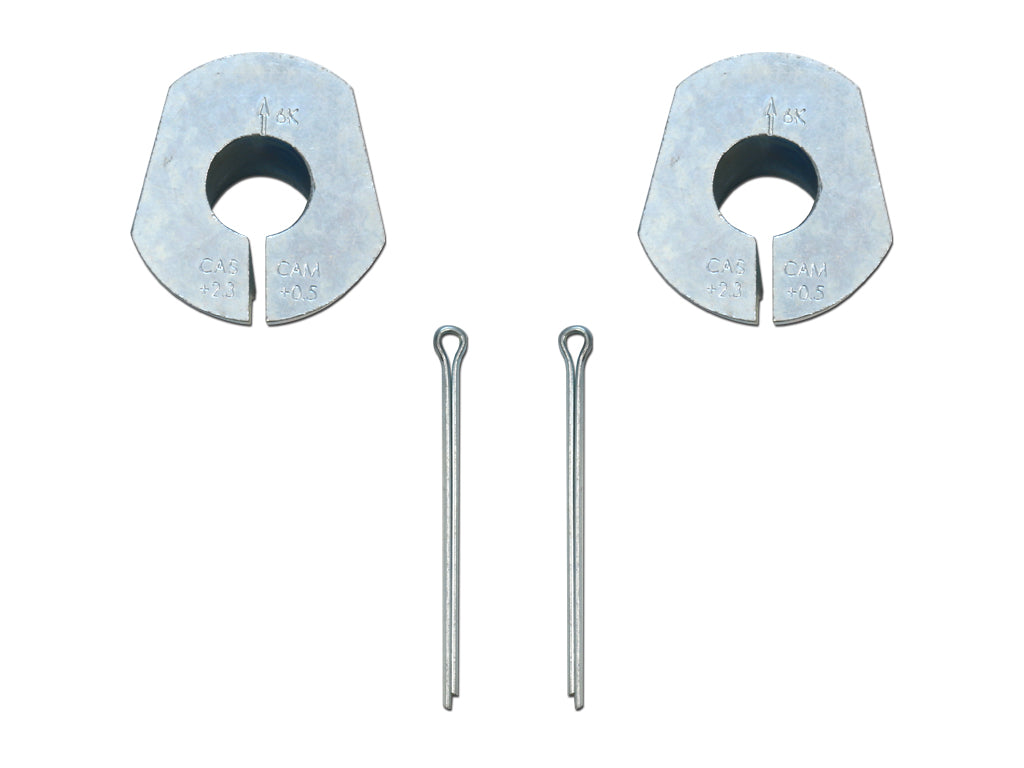

- Being able to set the Caster and Camber Alignment into proper specifications is critical for balance and stability of your Ford Super Duty. So, to round out the Stage 4 kit is the ICON Vehicle Dynamics' 2005-2024 Ford F-250/F-350 Super Duty Alignment Cam Kit to provide additional caster to align your Super Duty back into factory spec when lifted with our suspension systems. Ford Super Duty Alignment Cams ensure that your vehicles suspension and steering are working in precise coordination, improving overall drivability.
- Full set of genuine Dynatrac front upper and lower ball joints
- Improves steering feel and vehicle control
- CNC machined, high-strength components
- Heat-treated, high-strength billet bodies with chromoly stems
- Heat-treated, precision-ground stainless-steel ball
- Sealed, greaseable design and PTFE coated wear points ensure long service life
- On-vehicle rebuildable design
- Adjustable track bar helps to free up bind during front suspension travel and articulation
- Heavy Duty PTFE-lined FK Rod End for maximum articulation and minimal deflection
- On-vehicle adjustable track bar for precise track alignment using ICON's double adjuster
- Greaseable and replaceable OE style track bar ball joint
- CNC machined and bent 1.625 Inch X .250 inch wall 1026 DOM tubing
- Dual opposing stabilizer design eliminates the push/pull sensation associated with traditional stabilizers
- Dual 2.0 Aluminum Series shocks offer increased steering damping over stock unit
- Provides symmetrical steering feel throughout input range
- CNC laser cut steel stabilizer bracket
- 6061 billet aluminum tie rod clamps, anodized for corrosion resistance
- Alignment cams add 2.3 Inch of caster and .5 Inch of camber over stock
- Ensures proper front-end alignment when installed in conjunction with compatible suspension lifts
- Zinc plated cams for corrosion resistance
- Includes new ball joint cotter pins
- Adjustable: No
- Adjustable Damping: No
- Cotter Pin Hole: Yes
- Dust Boot Included: Yes
- Grade Type: Heavy Duty
- Grease Fitting Included: Yes
- Greaseable: Yes
- Mount Type: Press In
- Add On Part: 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit, 191014 - .25 Inch Collar Spanner Pin Wrench, 64037 - 05-25 FSD 2 Inch Bump Stop Spacer Kit
/
