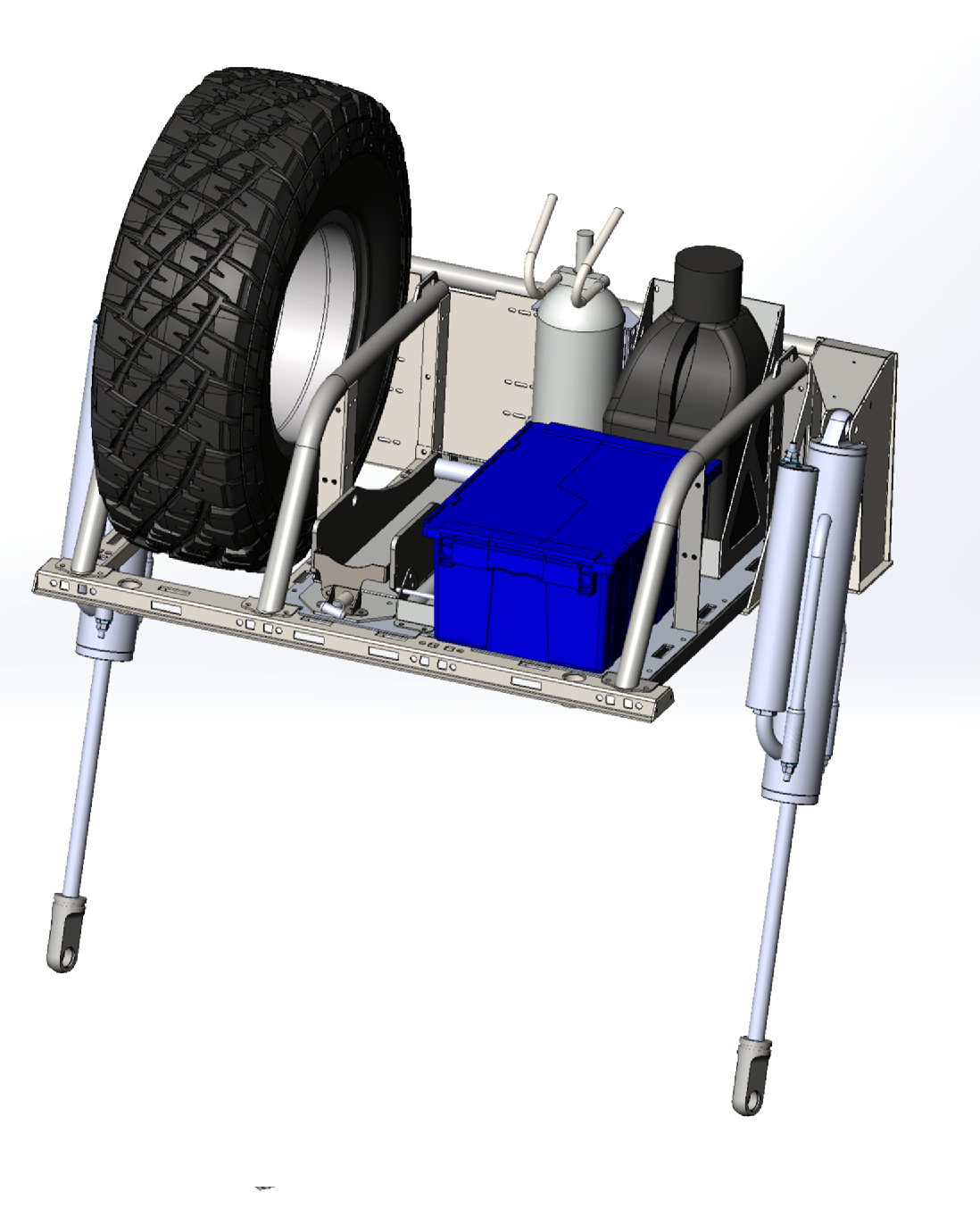

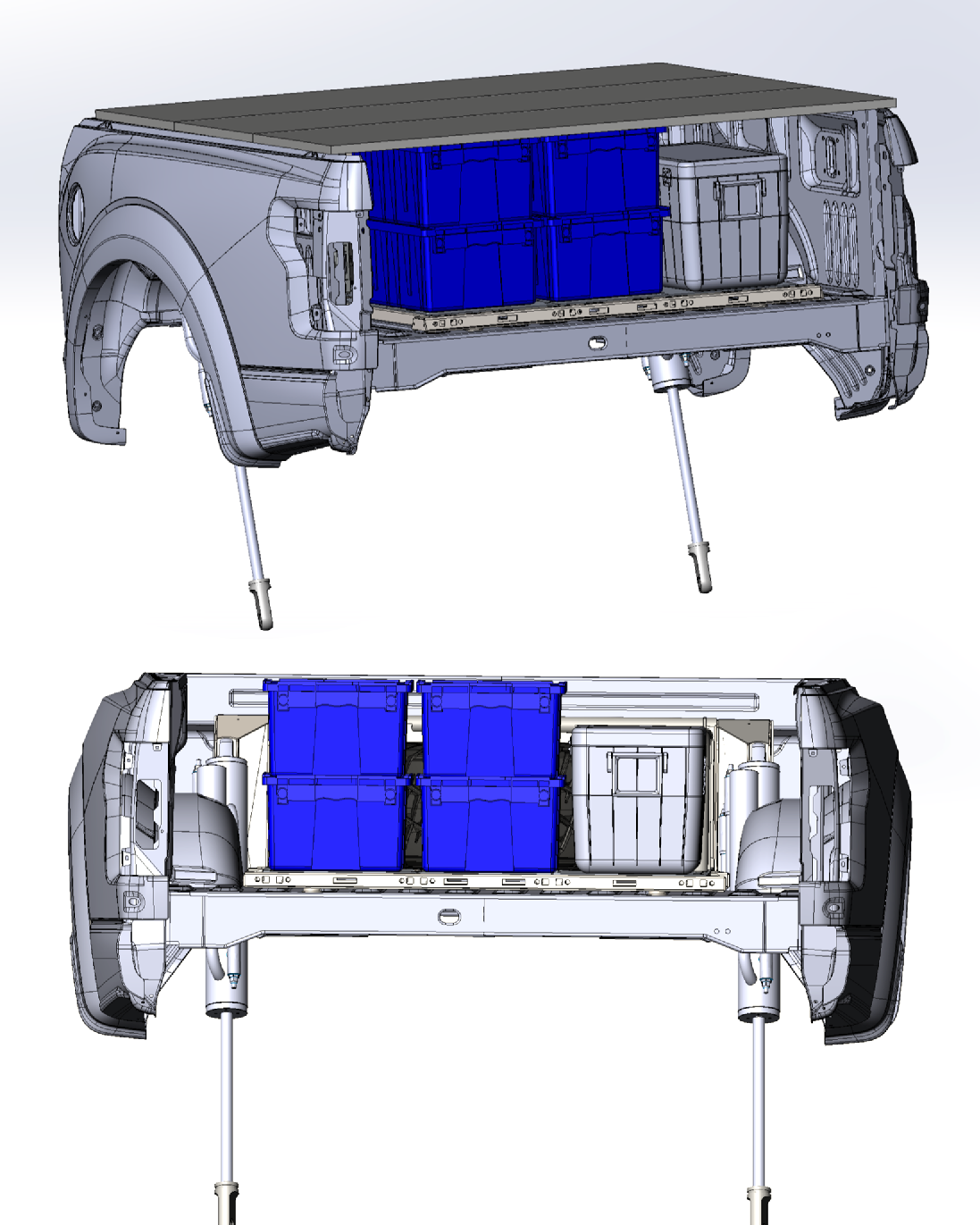

• Bed cage kit with side shock mounts for through-the-bed mounting of a 3.5 x 16" or 4.0 x 16" bypass shock

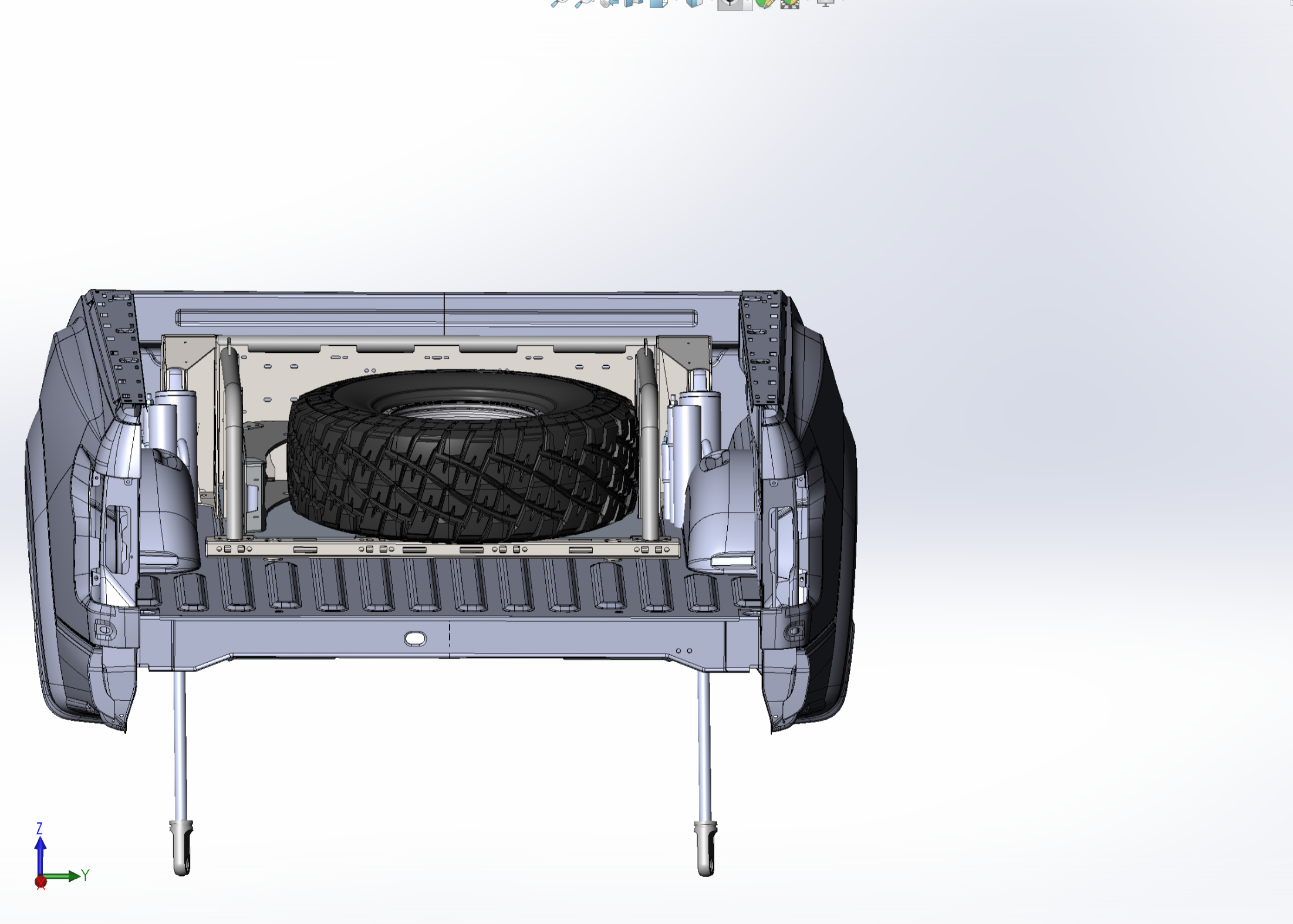

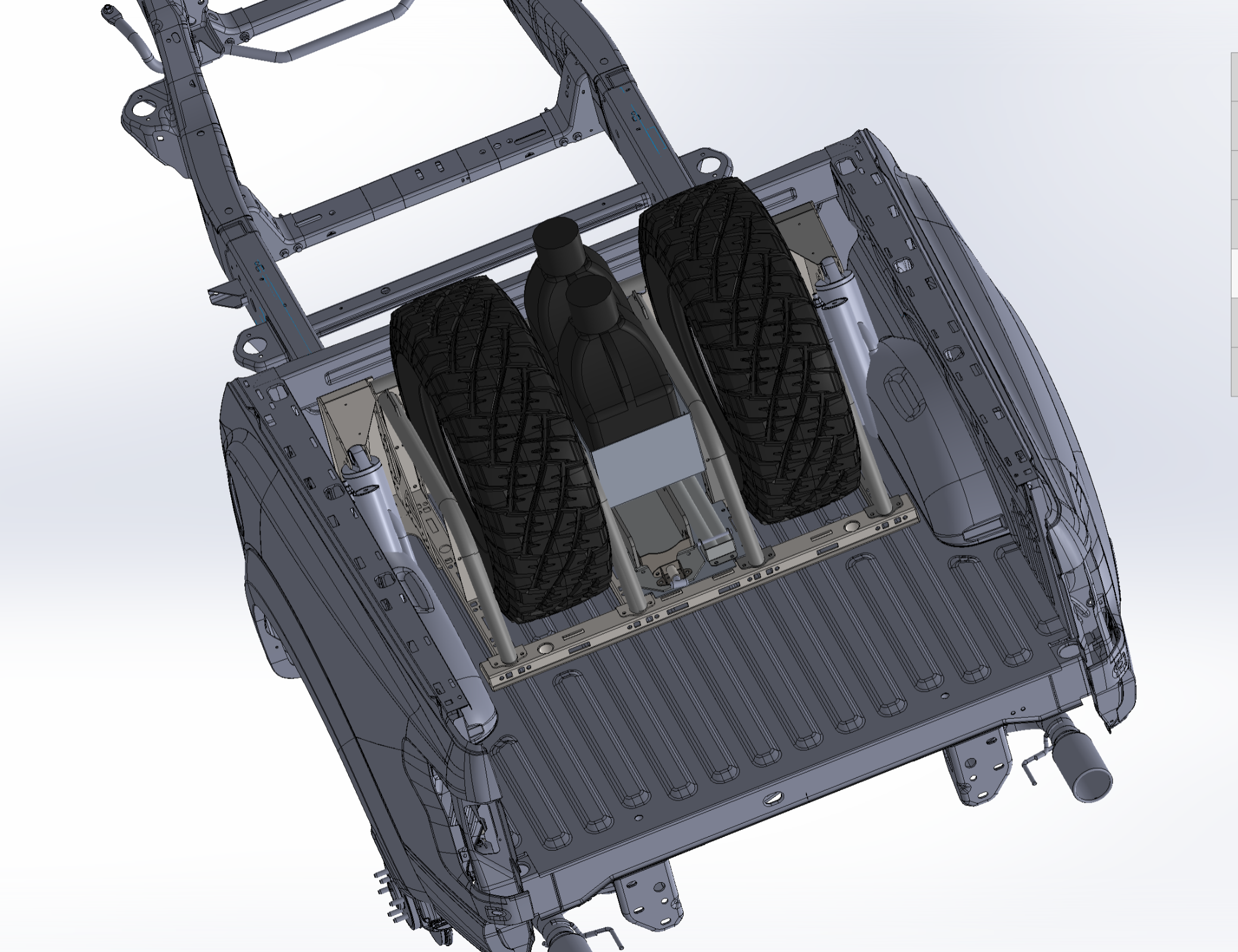

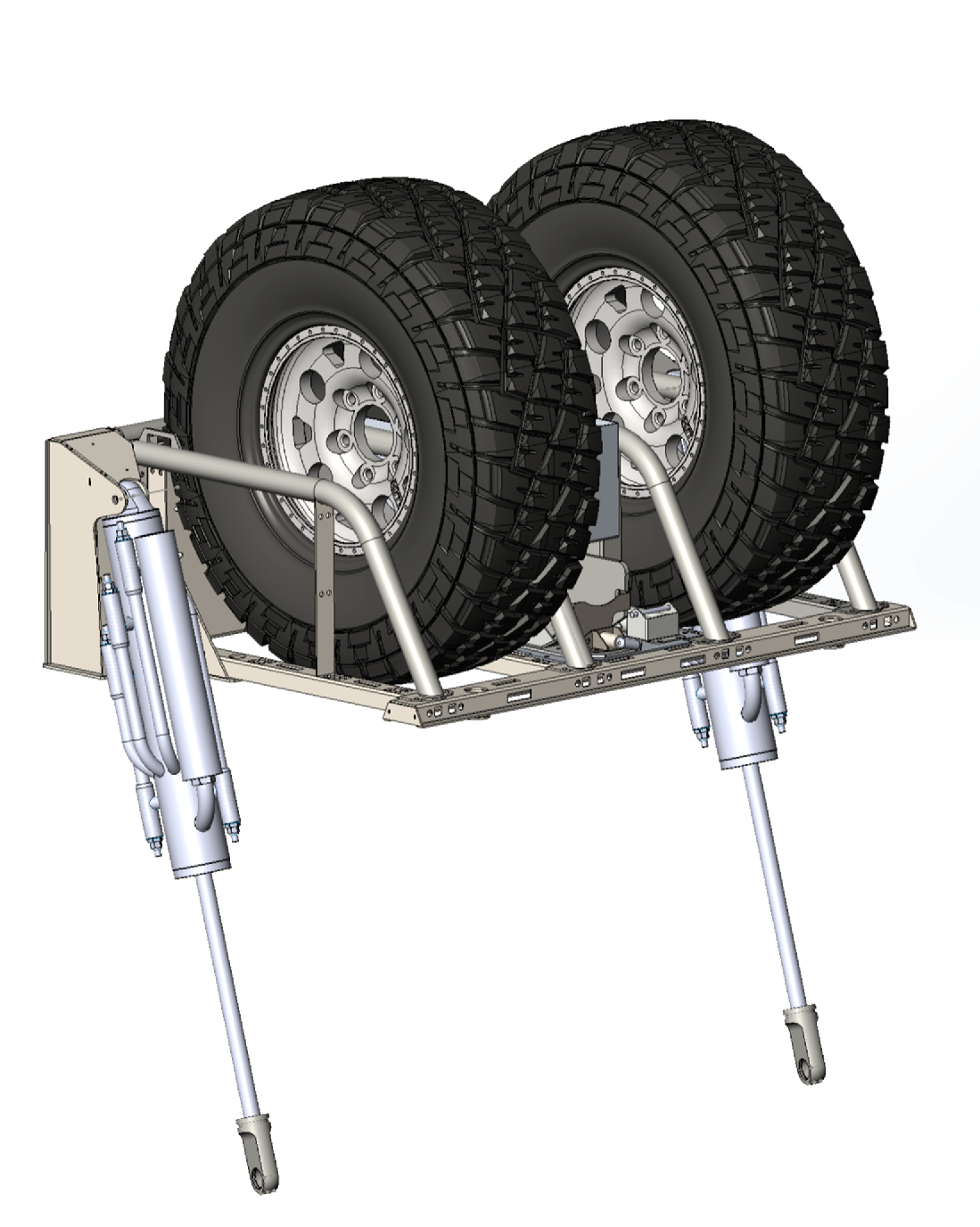

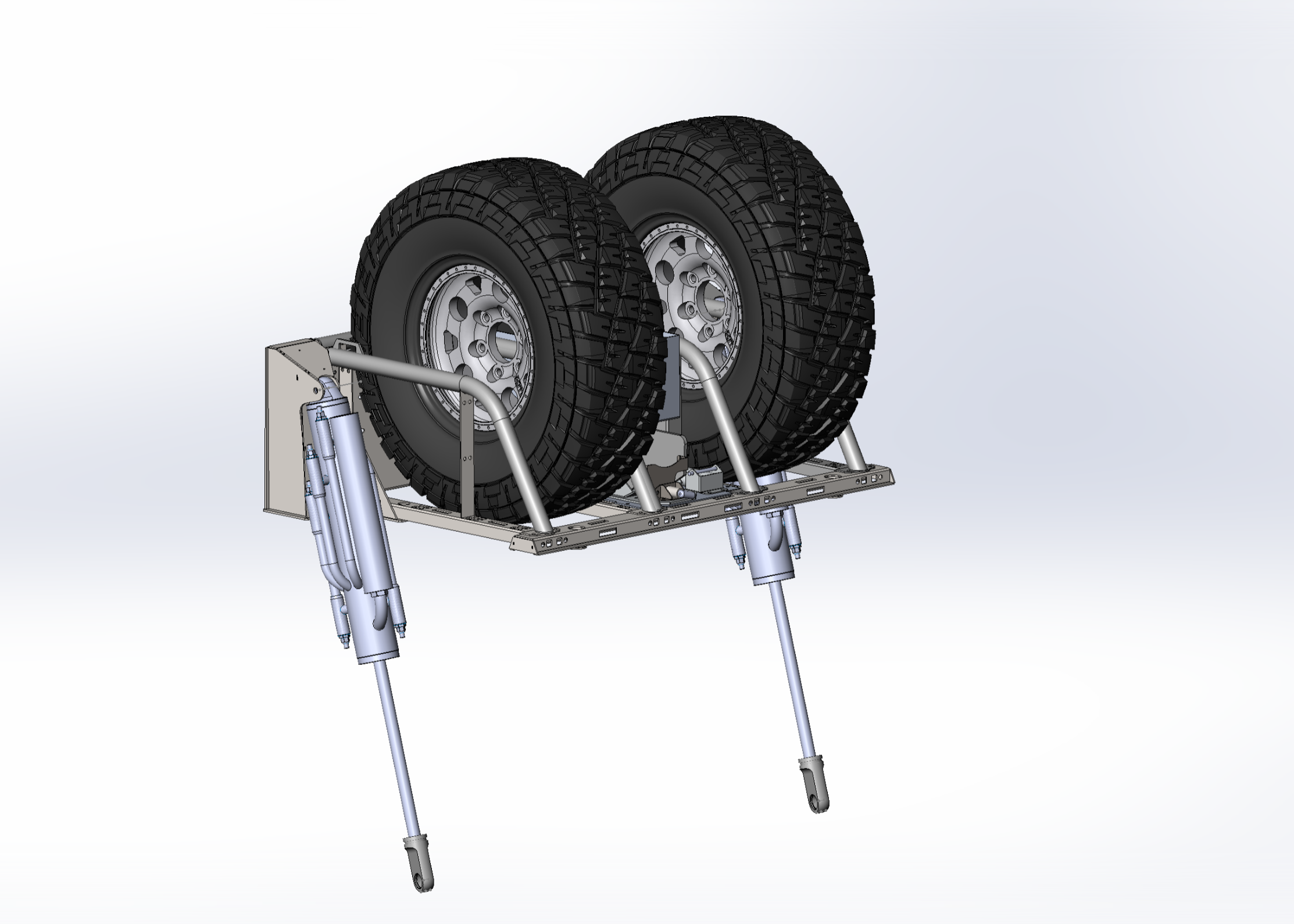

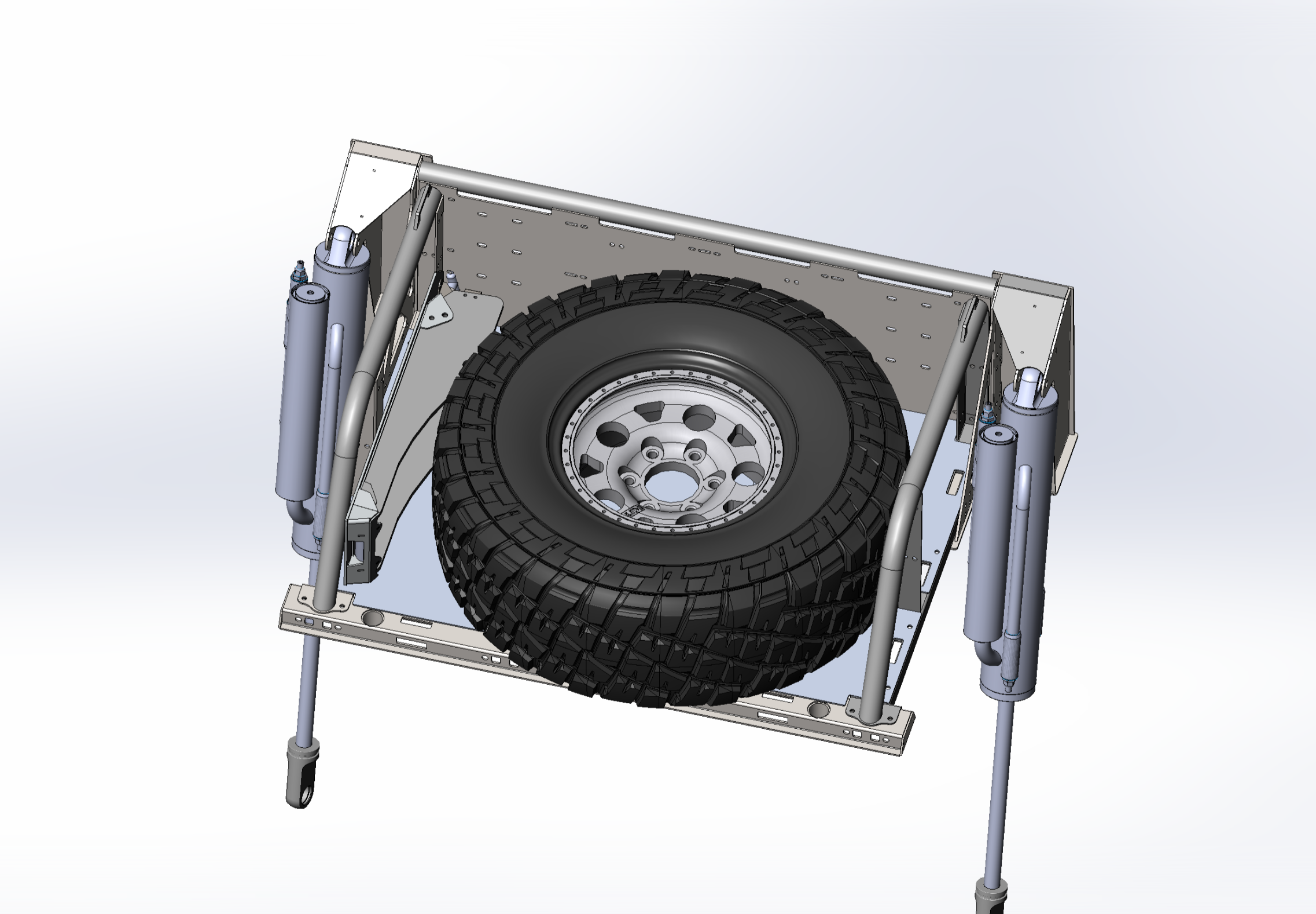

• Dual stand-up tire configuration or single flat spare mount
• Quick-release jack add-on
• Frame mount support kit
• Gen 3 Raptor rear limit strap kit
• Rear coil spring mounts with integrated panhard bar mount in the stock Gen 3 location

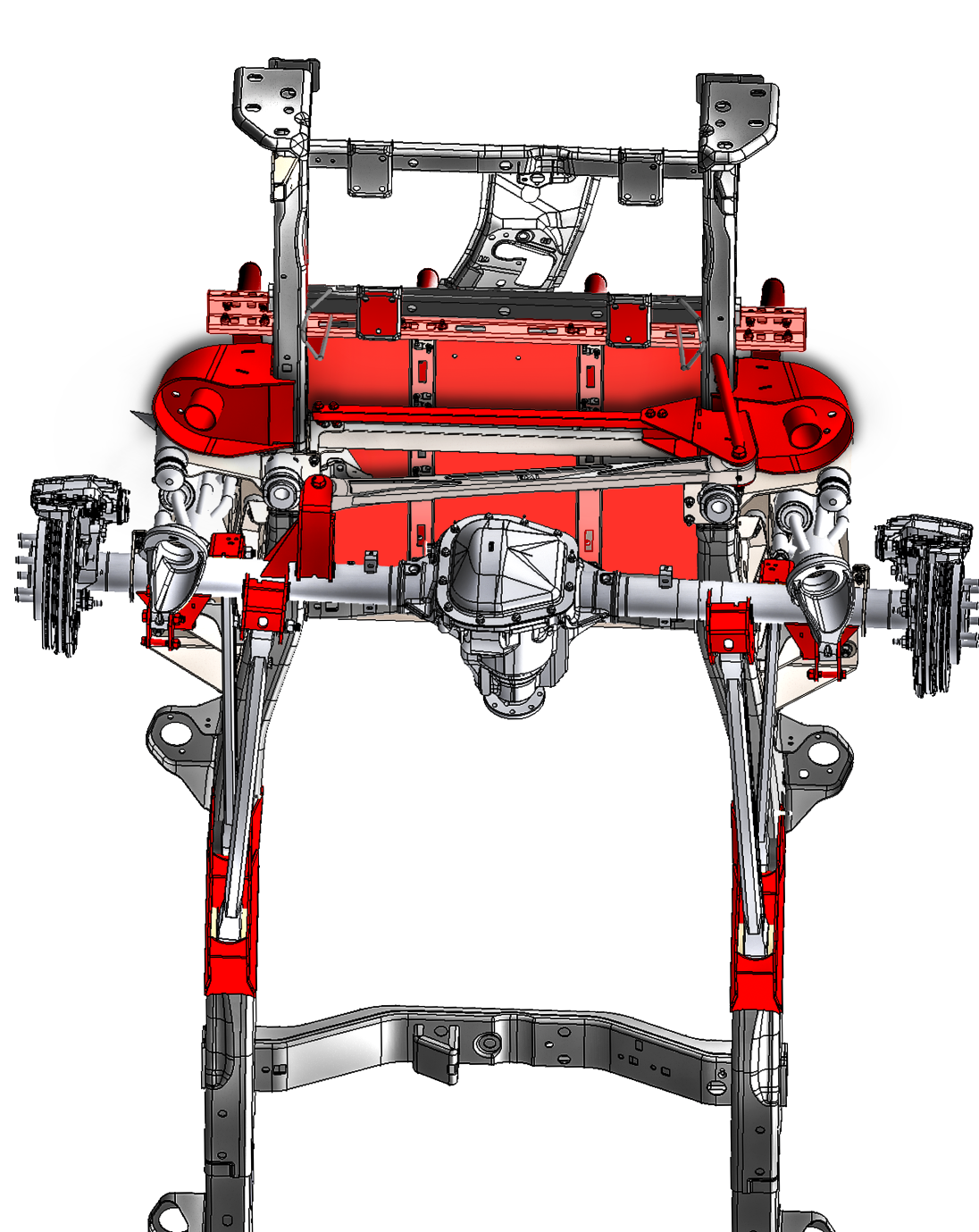

• Rear link mounts that weld to the frame in the stock Gen 3 location

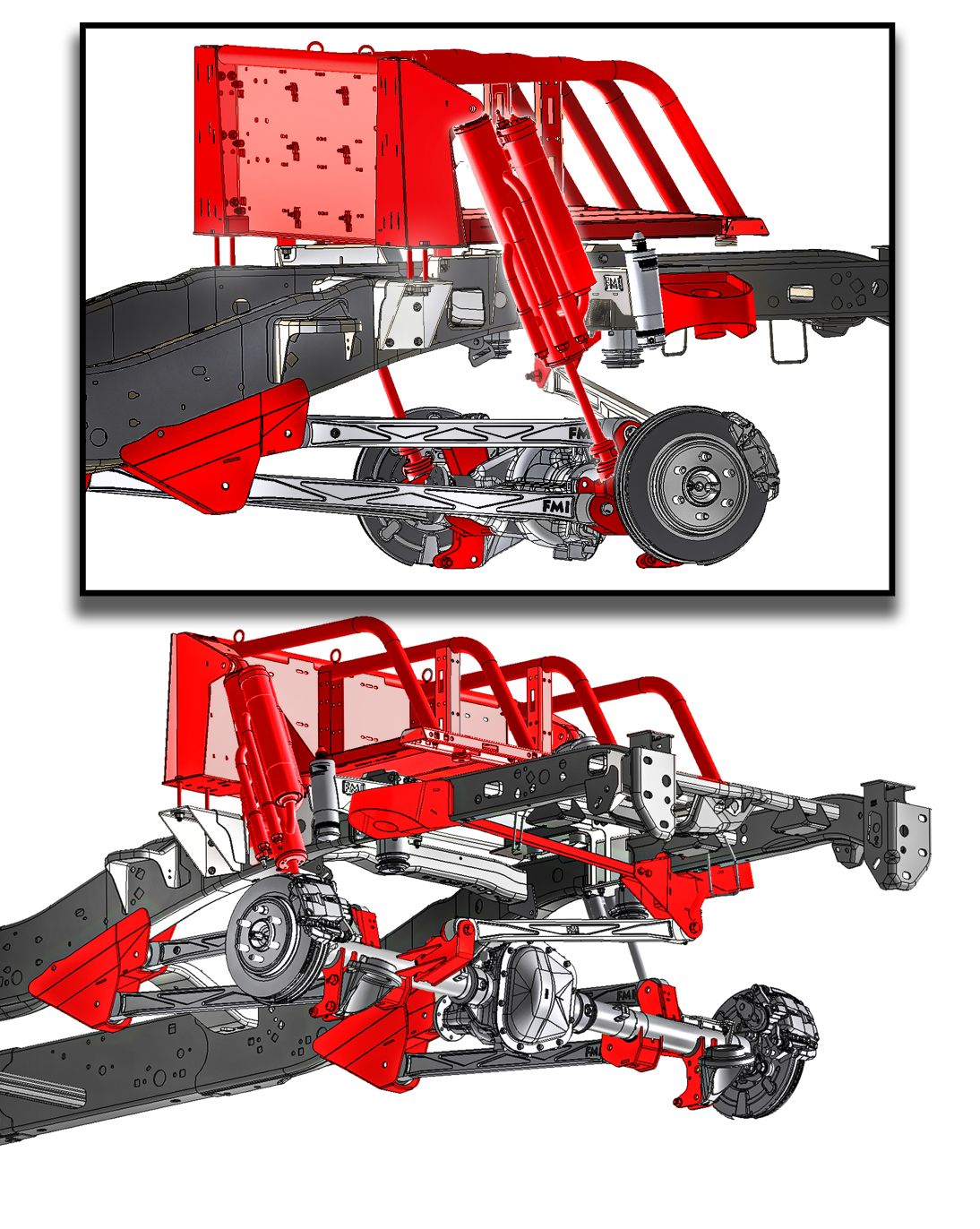

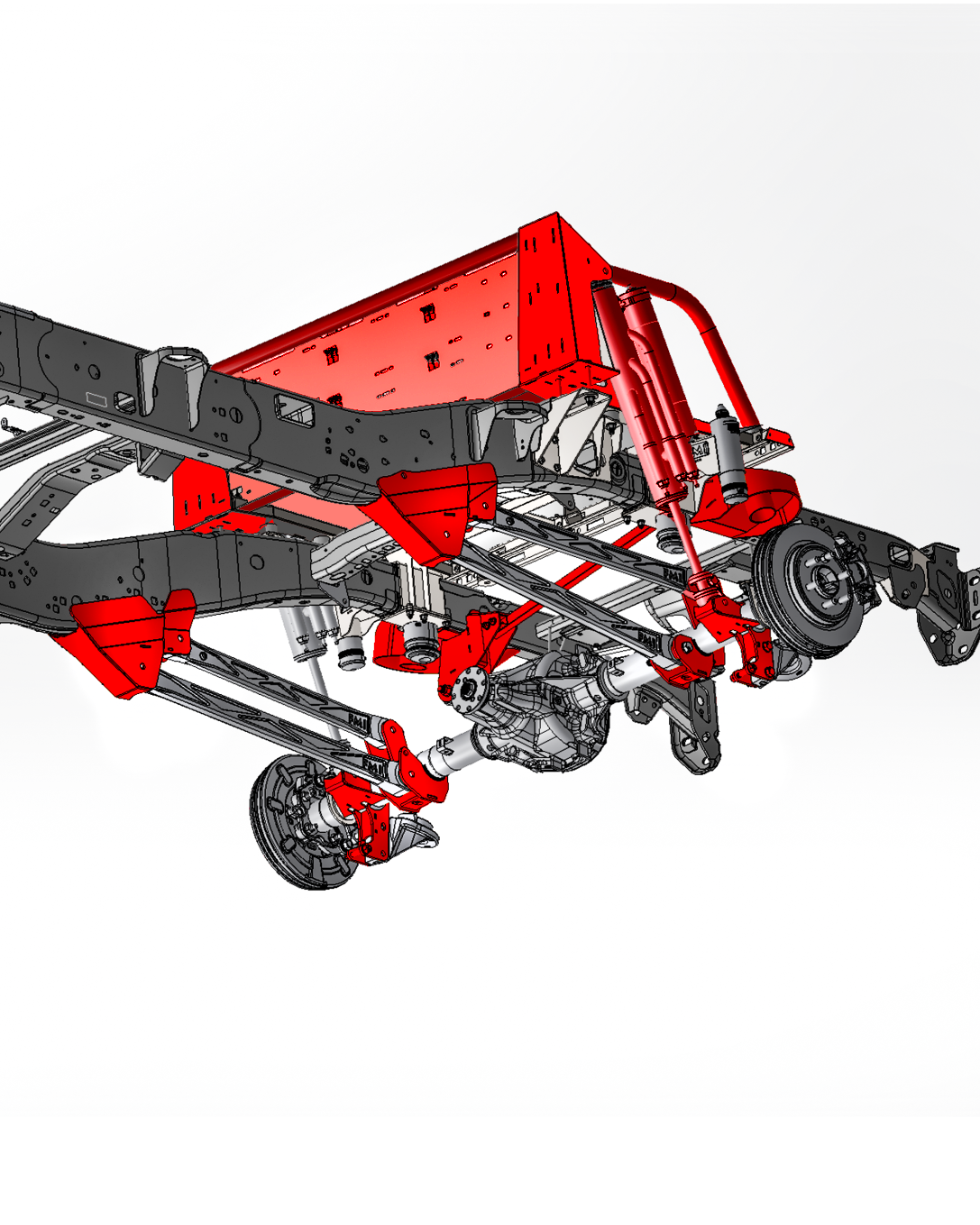

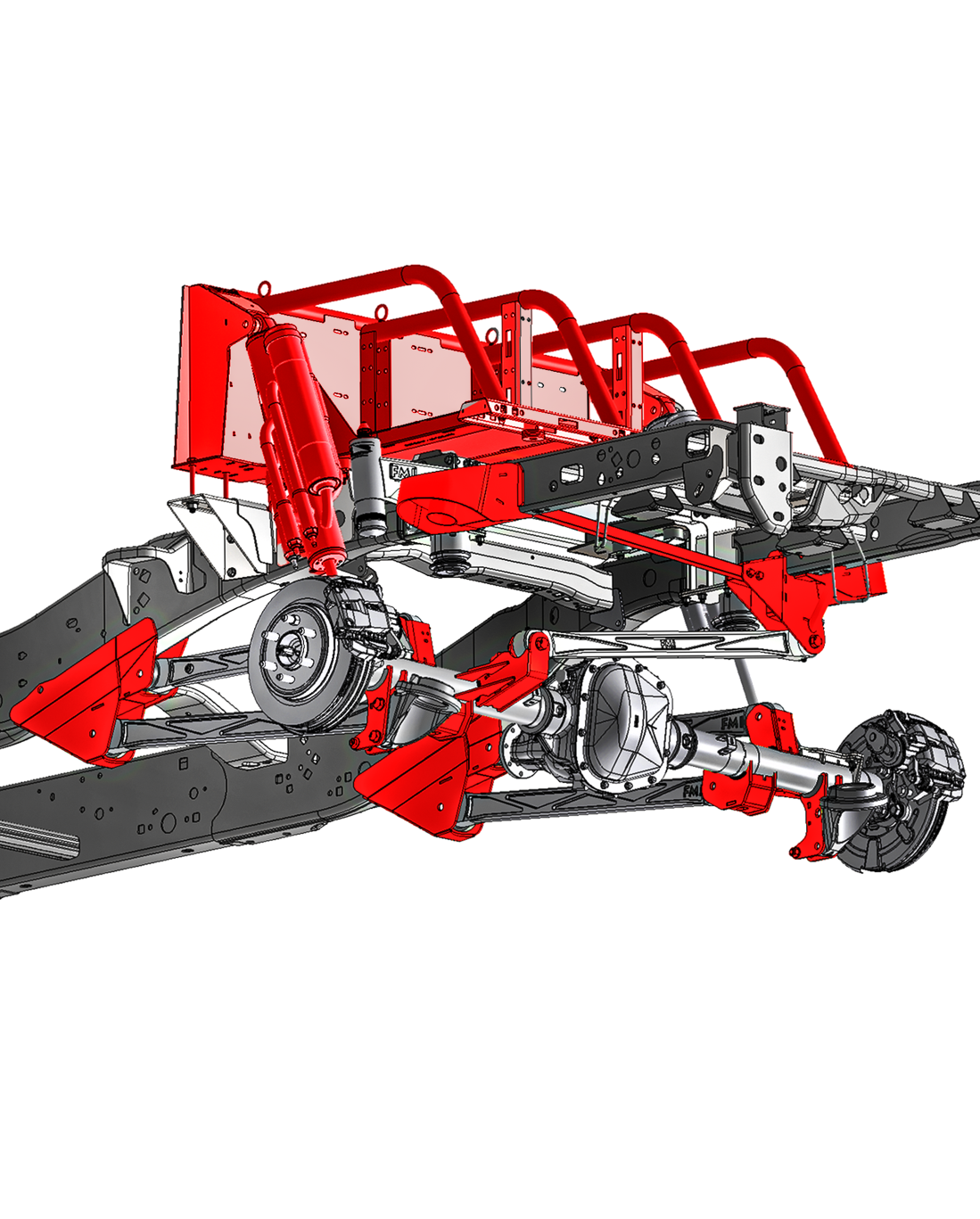

• Rear axle mount kit with all brackets and mounts to convert your rear axle to Gen 3 pickup points
• Hardware kit (nuts, bolts and mounting hardware)

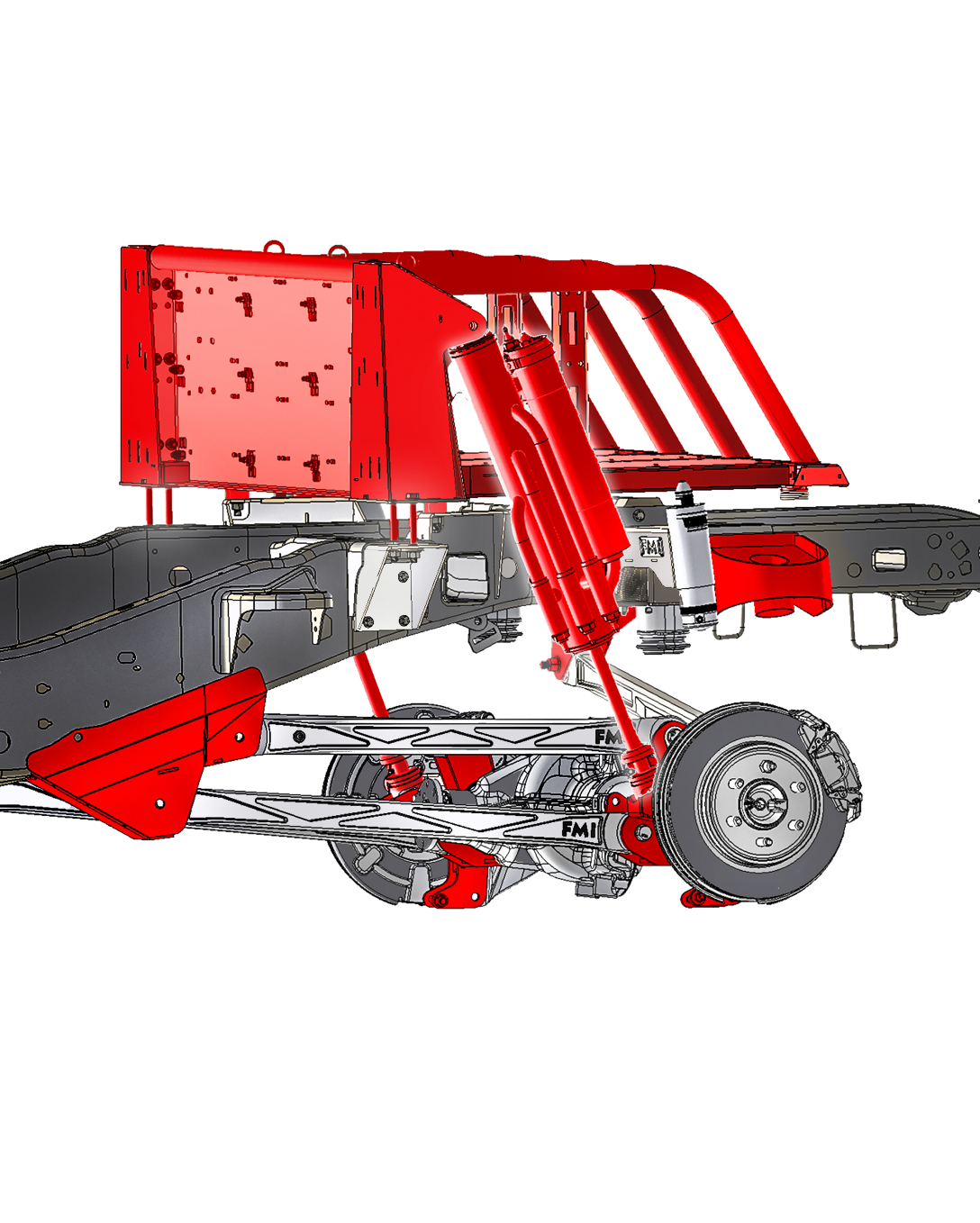

The Gen 3 Raptor rear is a coil-sprung 5-link: links locate the axle, a panhard bar centers it, and the springs and shocks only have to carry and control it. Converting a Gen 2 to the same pickup points means the proven Gen 3 geometry and the whole range of Gen 3 parts become usable on your truck.

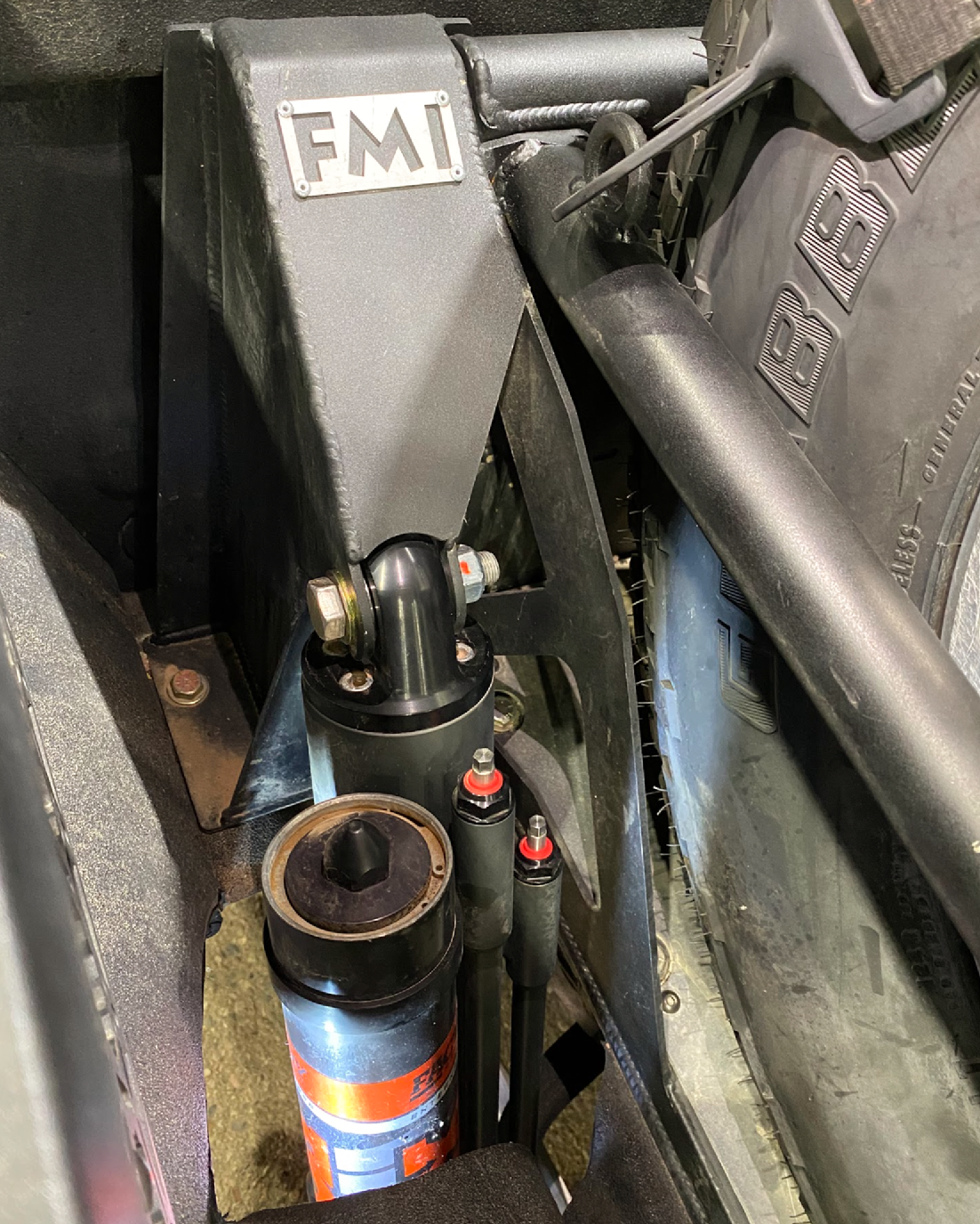

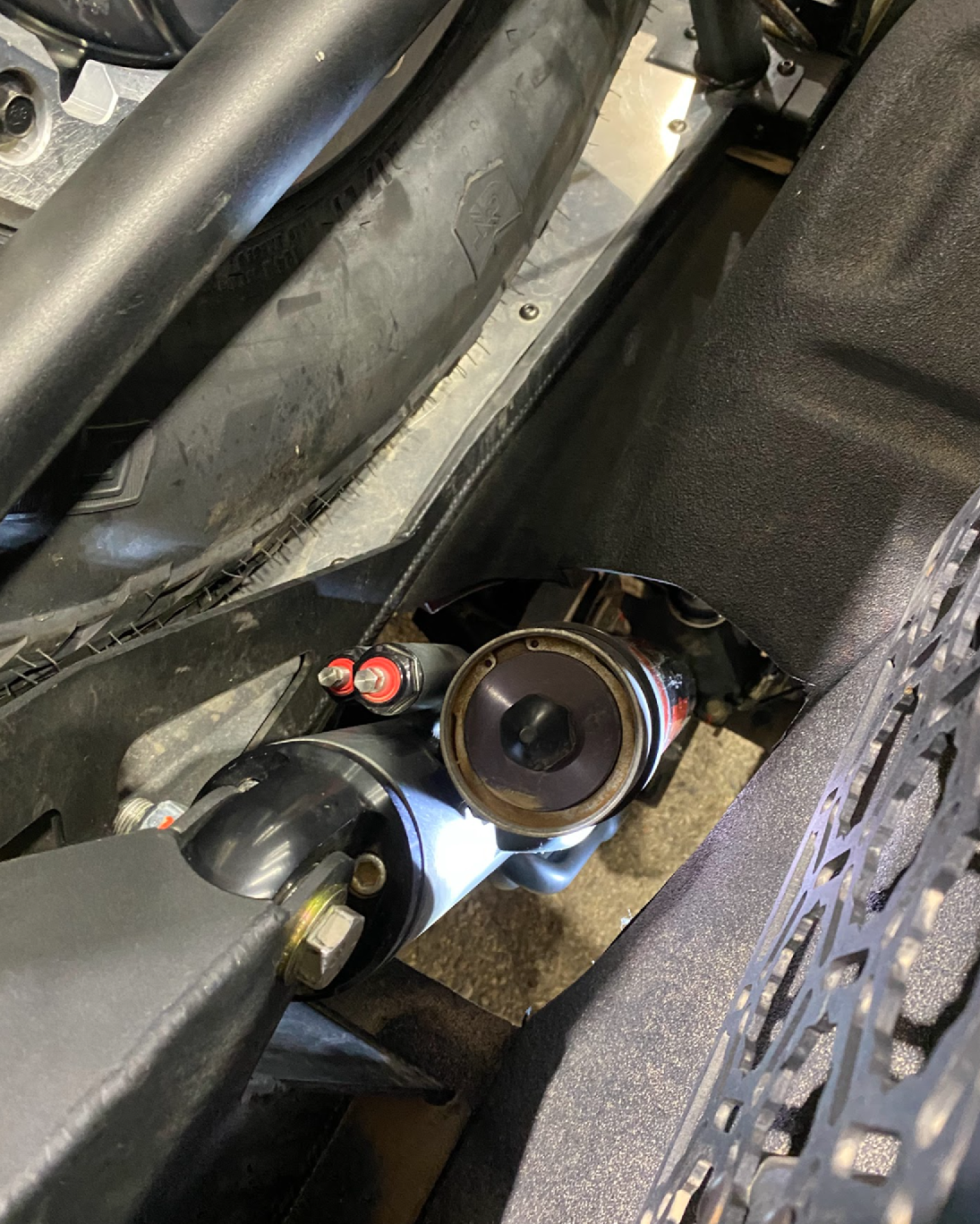

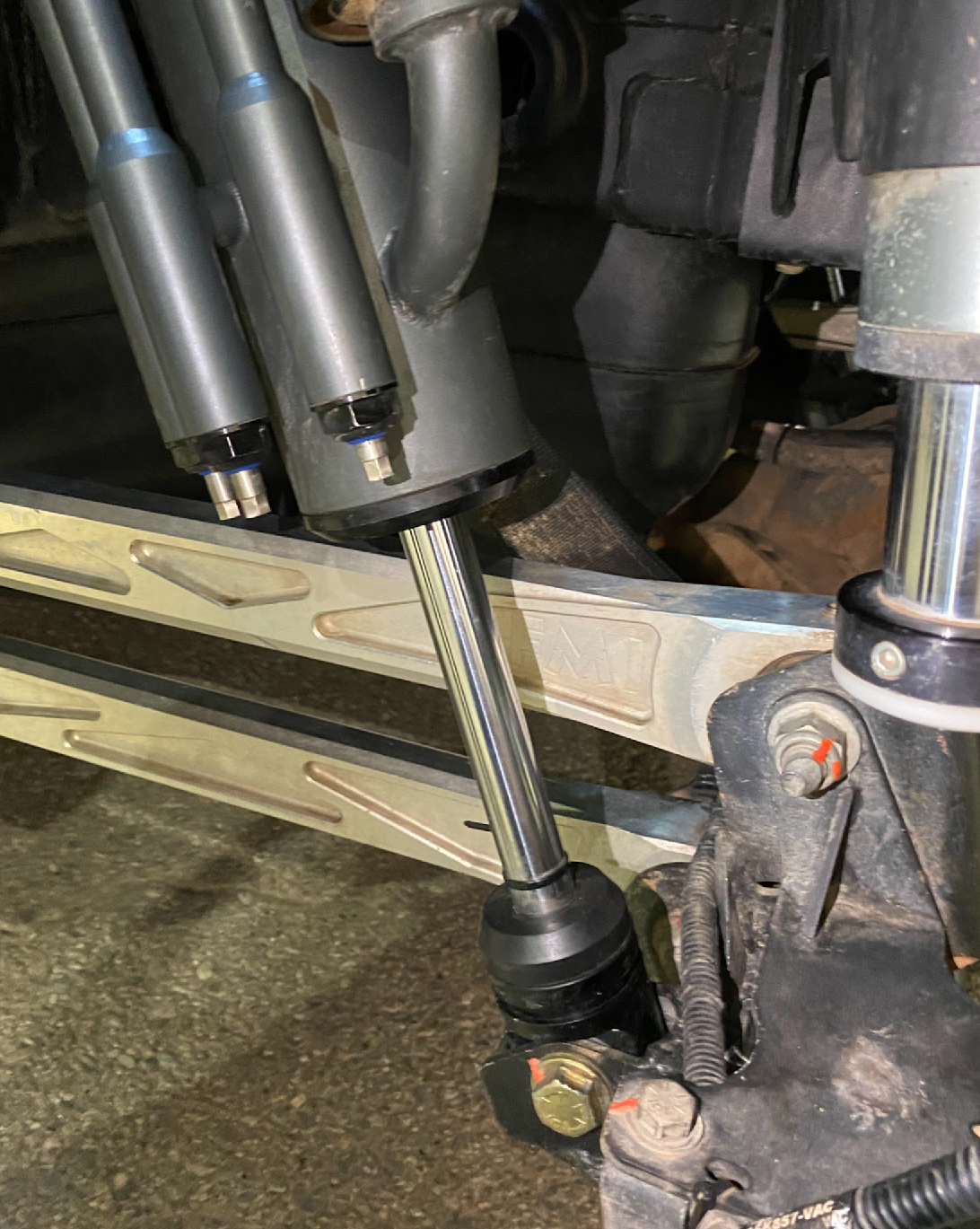

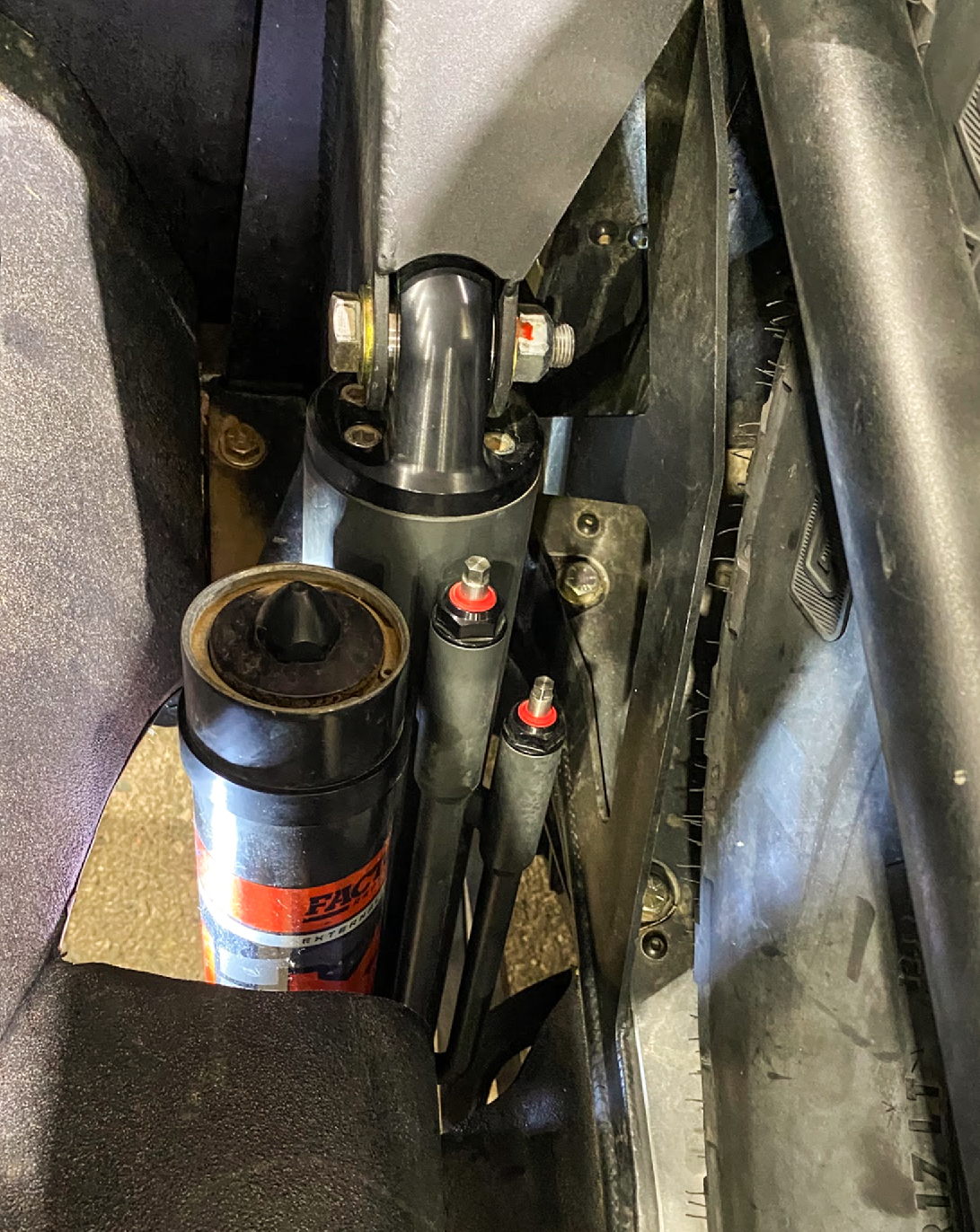

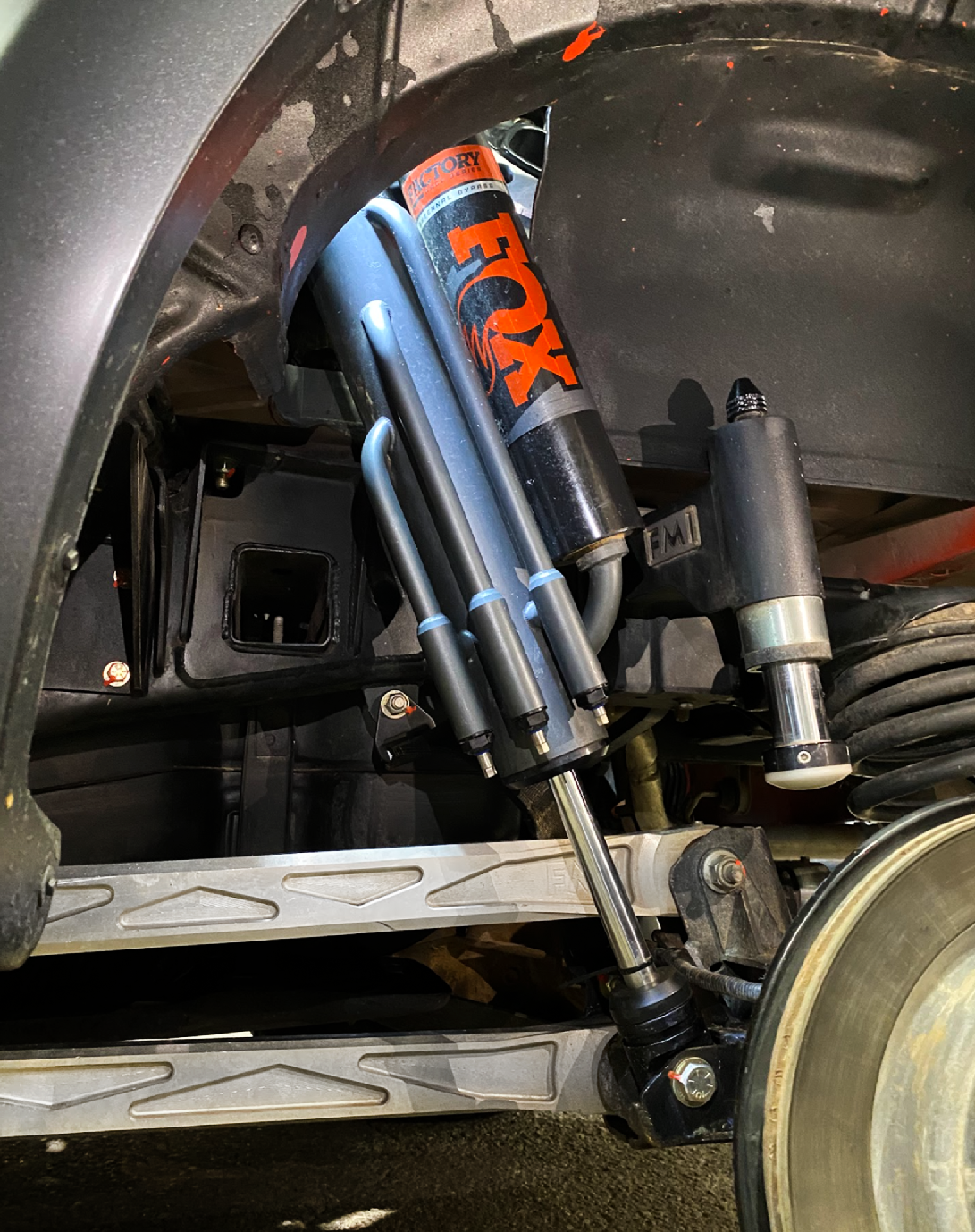

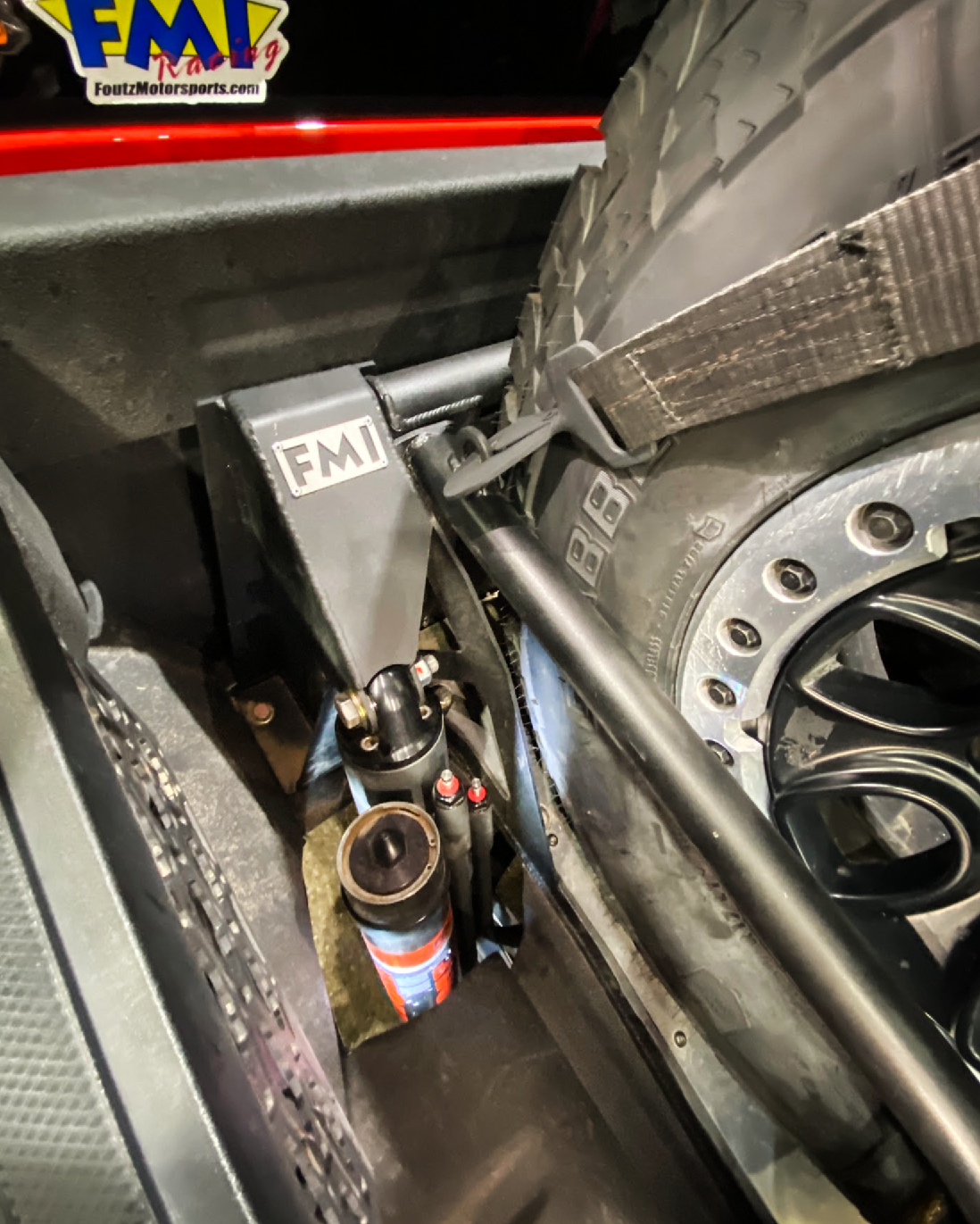

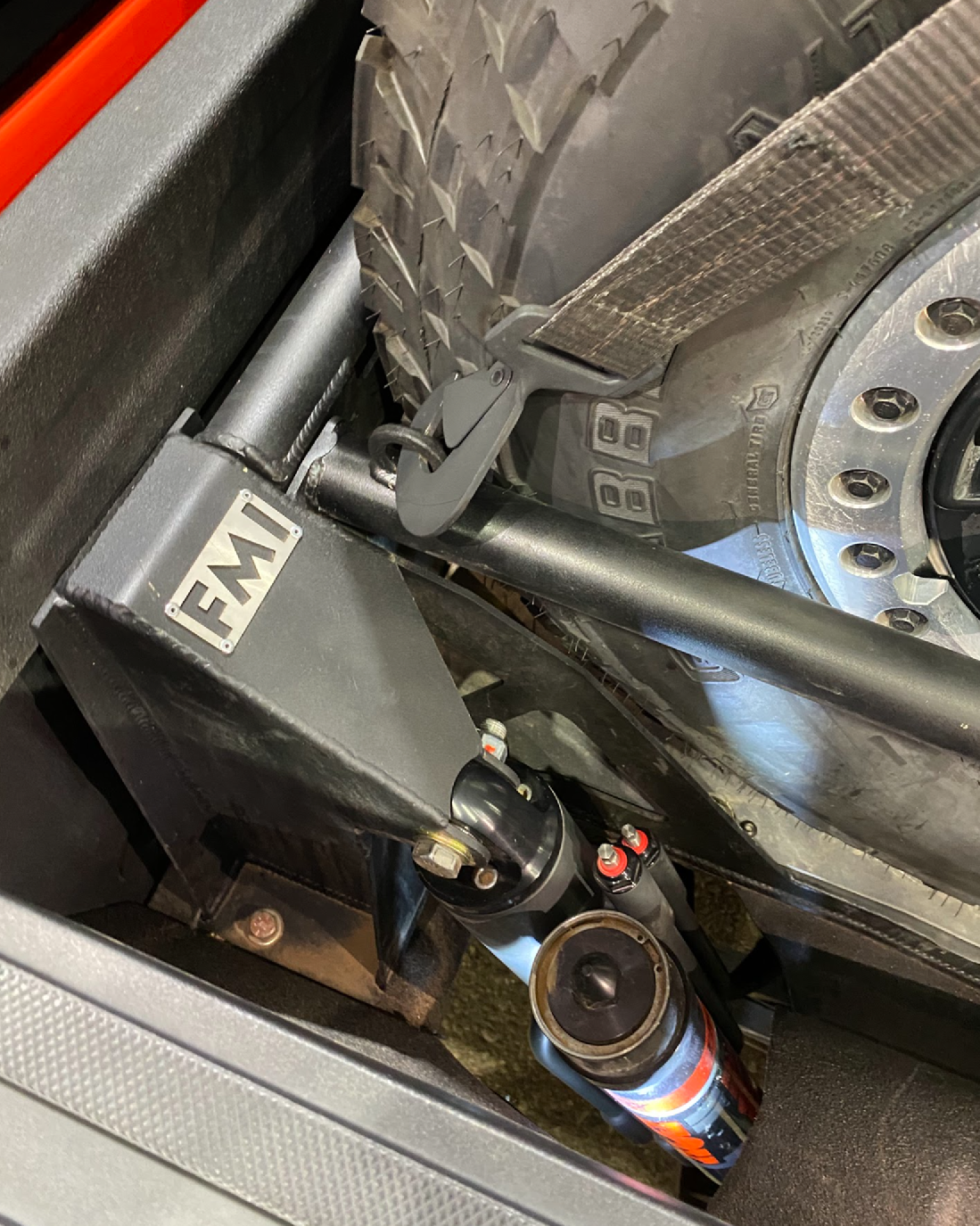

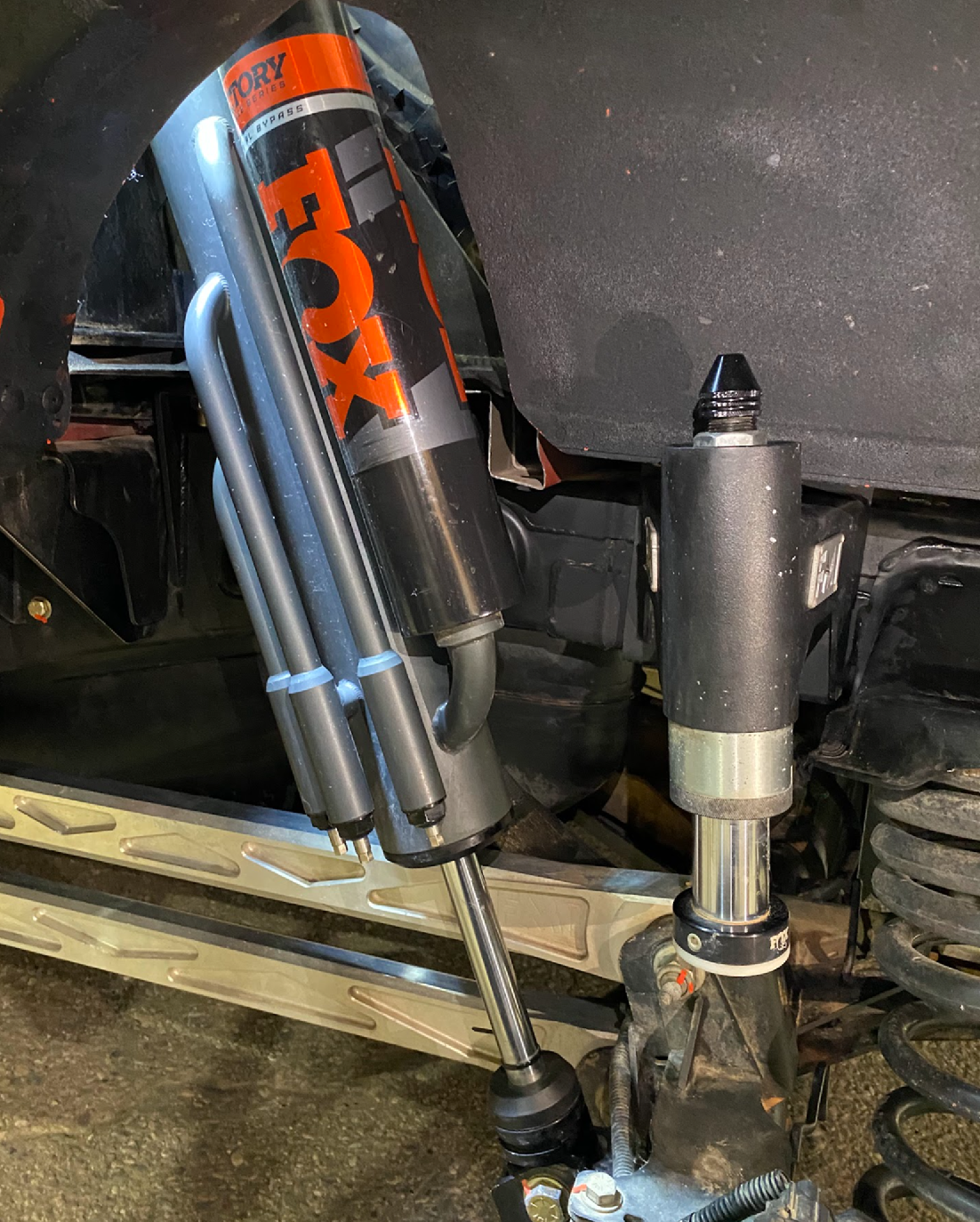

Mounting the bypass shock through the bed gives it the length it needs for nearly 17" of rear wheel travel, with the bypass shock controlling that travel.

• High quality U.S. steel and aluminum, laser cut and CNC bent
• Fixture welded and powder coated black for corrosion protection
• Stainless hardware for the main sections
• Grade 8 hardware for shock mounts and frame attachments
• Modular design you can reconfigure later

Shocks

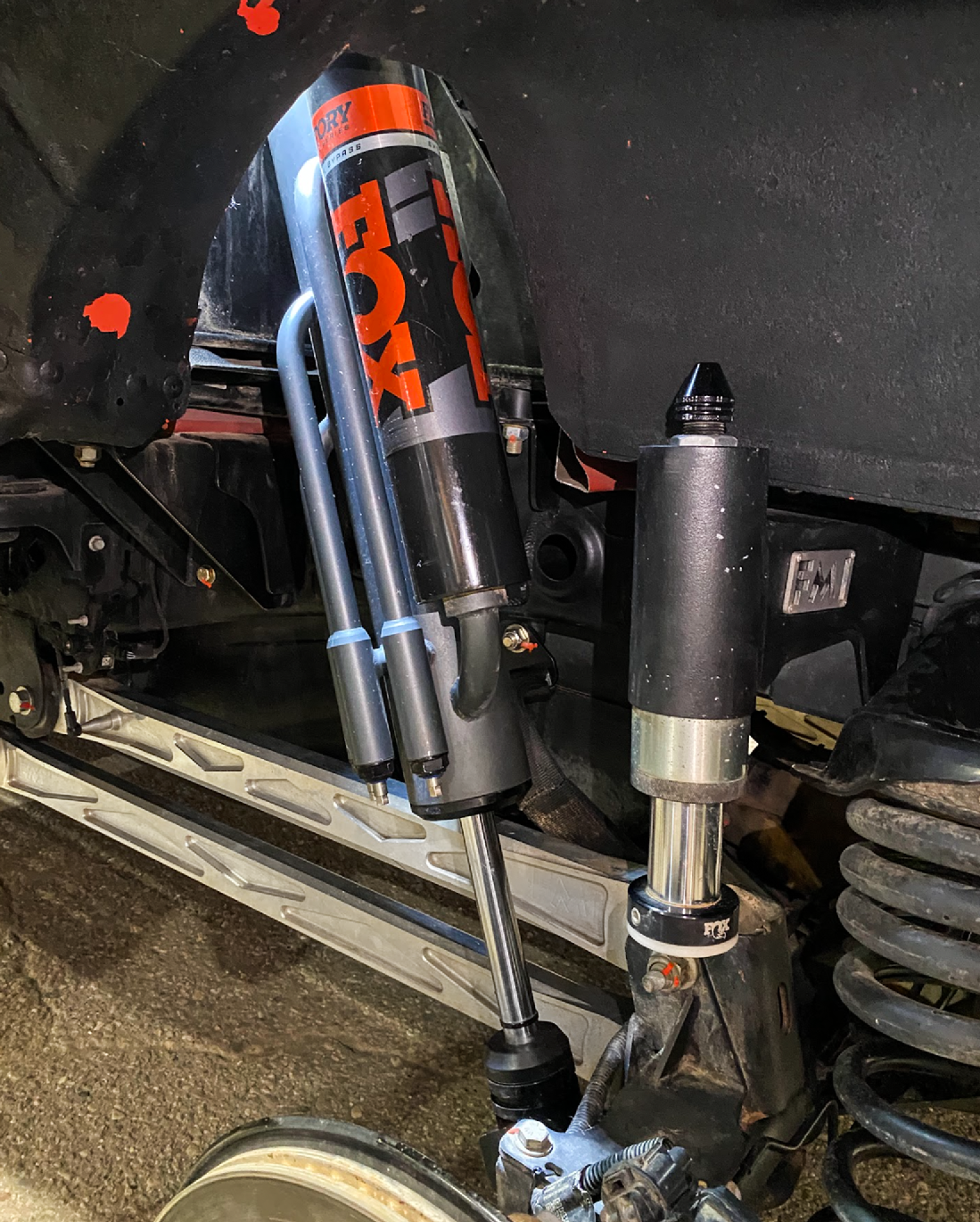

Fits 3.5 x 16" or 4.0 x 16" bypass shocks with piggyback reservoirs, and is compatible with the shocks from all of the popular manufacturers. You can order the shocks with your kit from us, or buy an off-the-shelf shock from any other vendor. If you order shocks from us, check with your FMI sales rep for current timing and availability.

Springs

Not included and must be purchased separately. Use stock Gen 3 take-offs or aftermarket springs.

Rear links and panhard bar

Use stock, billet aluminum, or heavy-duty fabricated adjustable components.

Tires

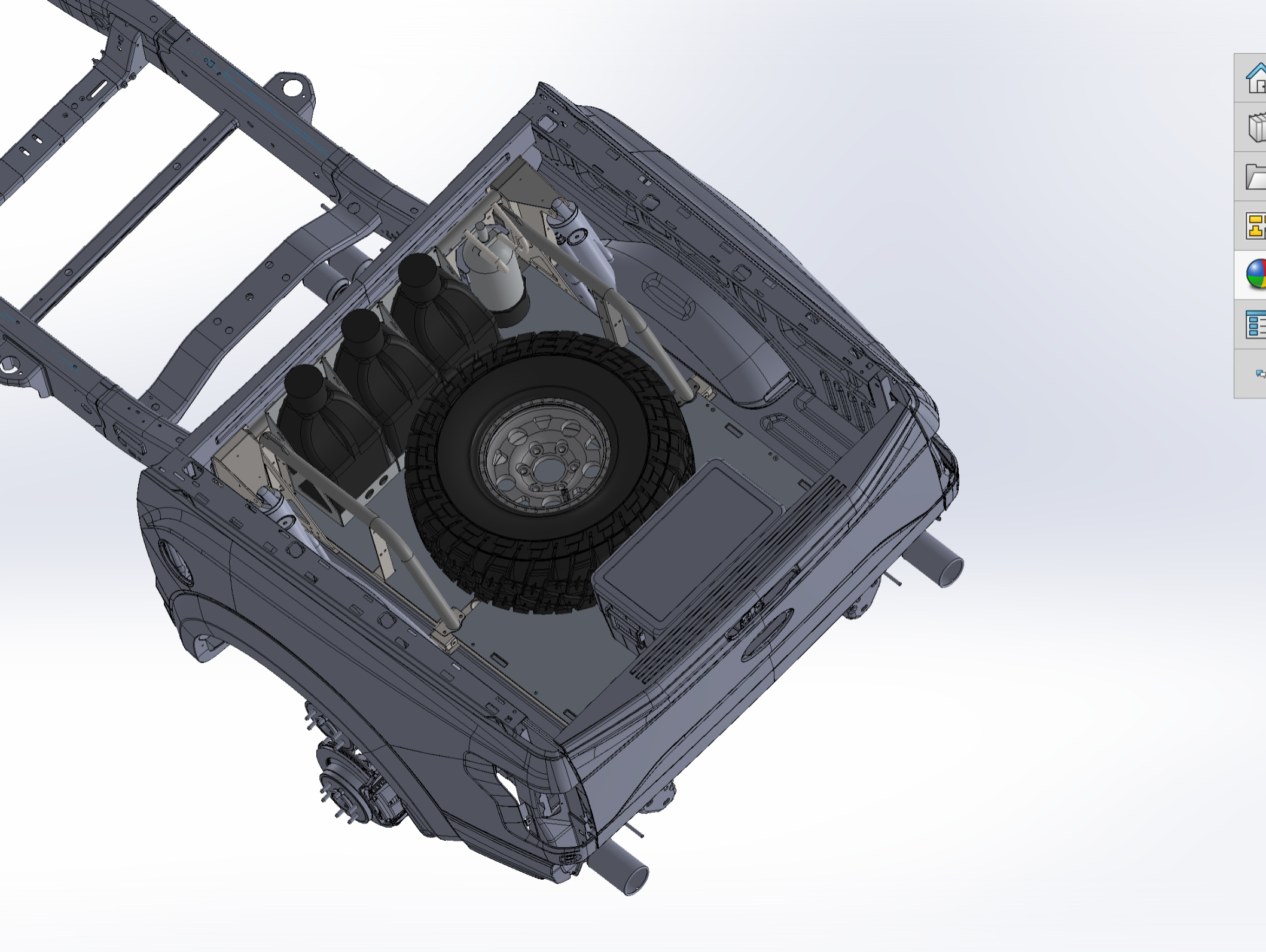

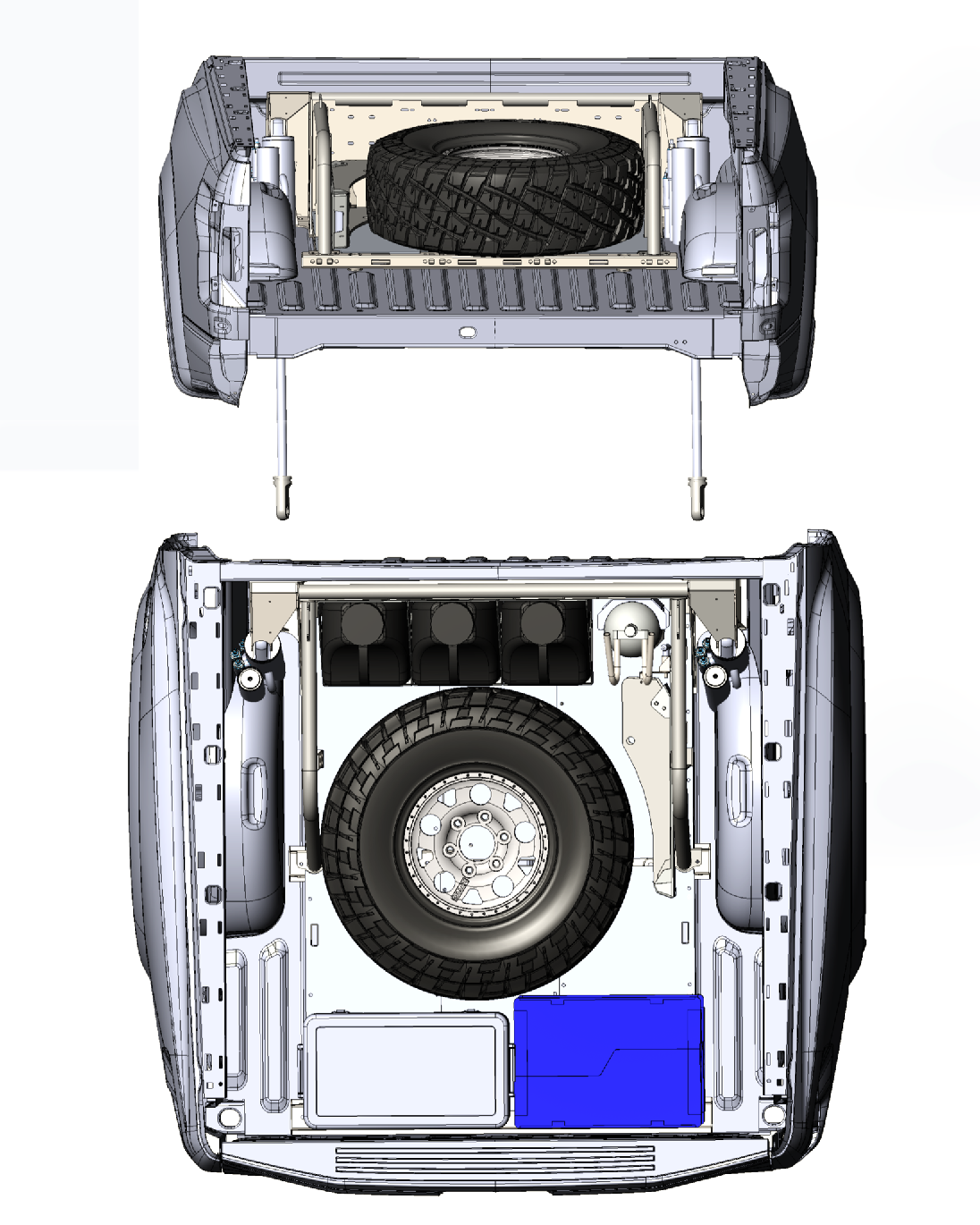

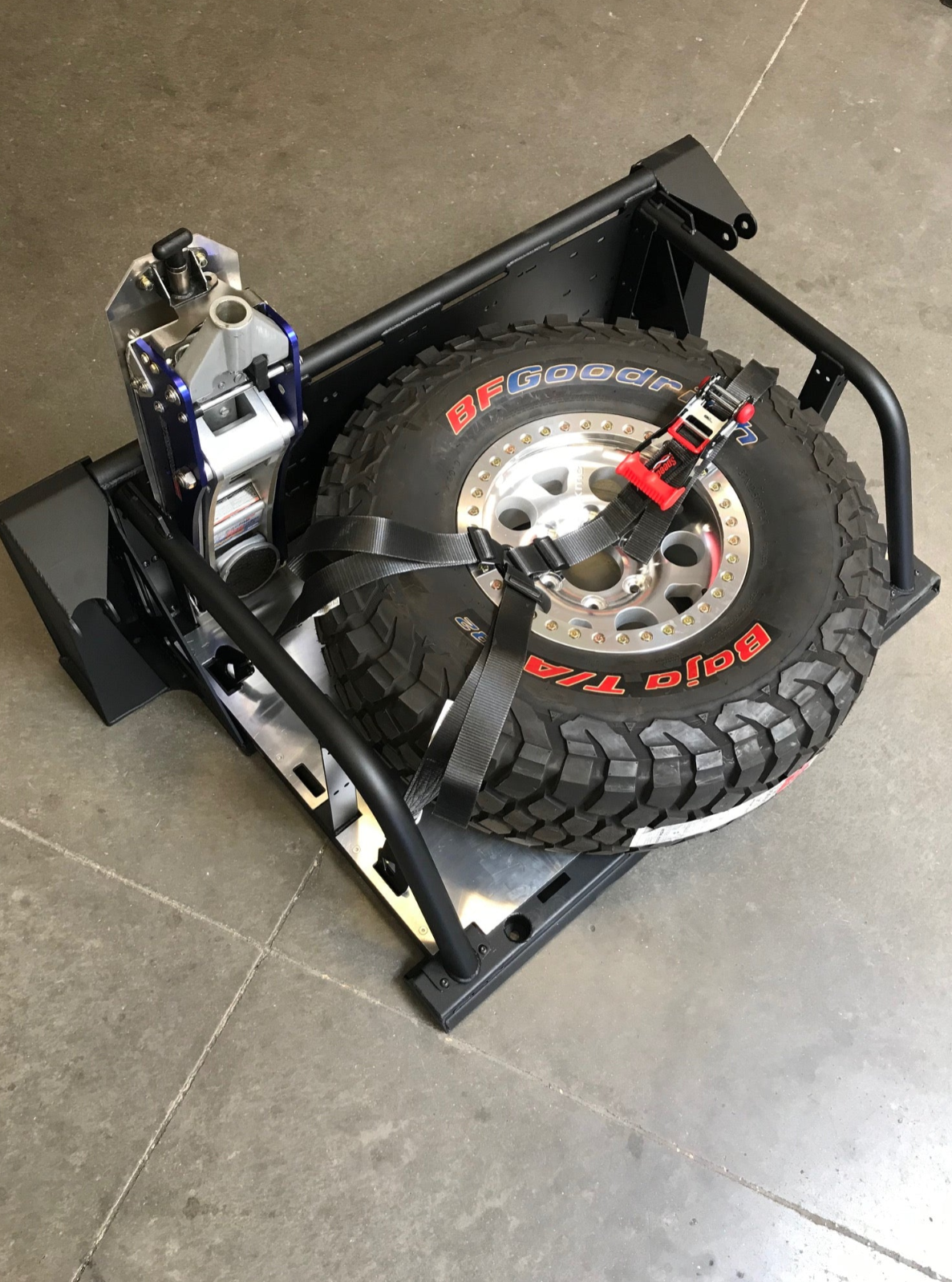

Works with 35" and 37" tires. Lay the spare flat under a bed cover, or run the dual stand-up tire setup with jack and fuel cans. You can switch configurations at any time.

The single lay-down tire works without the rear cargo section or with the fixed rear cargo section. It is not compatible with the upgraded slide-out cargo tray because of the slide-out tray's offset height.

Add-on options

• Bypass shock package

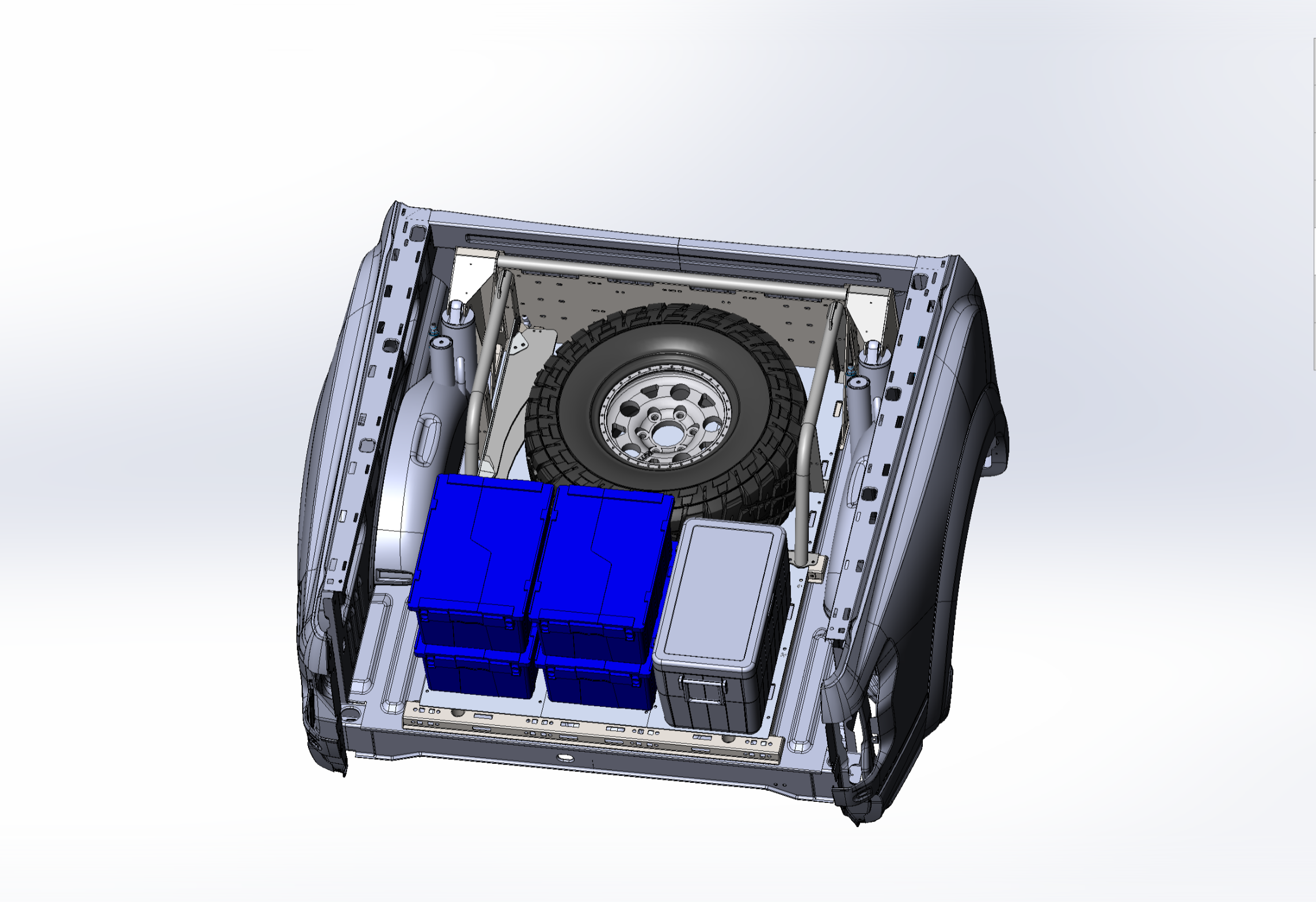

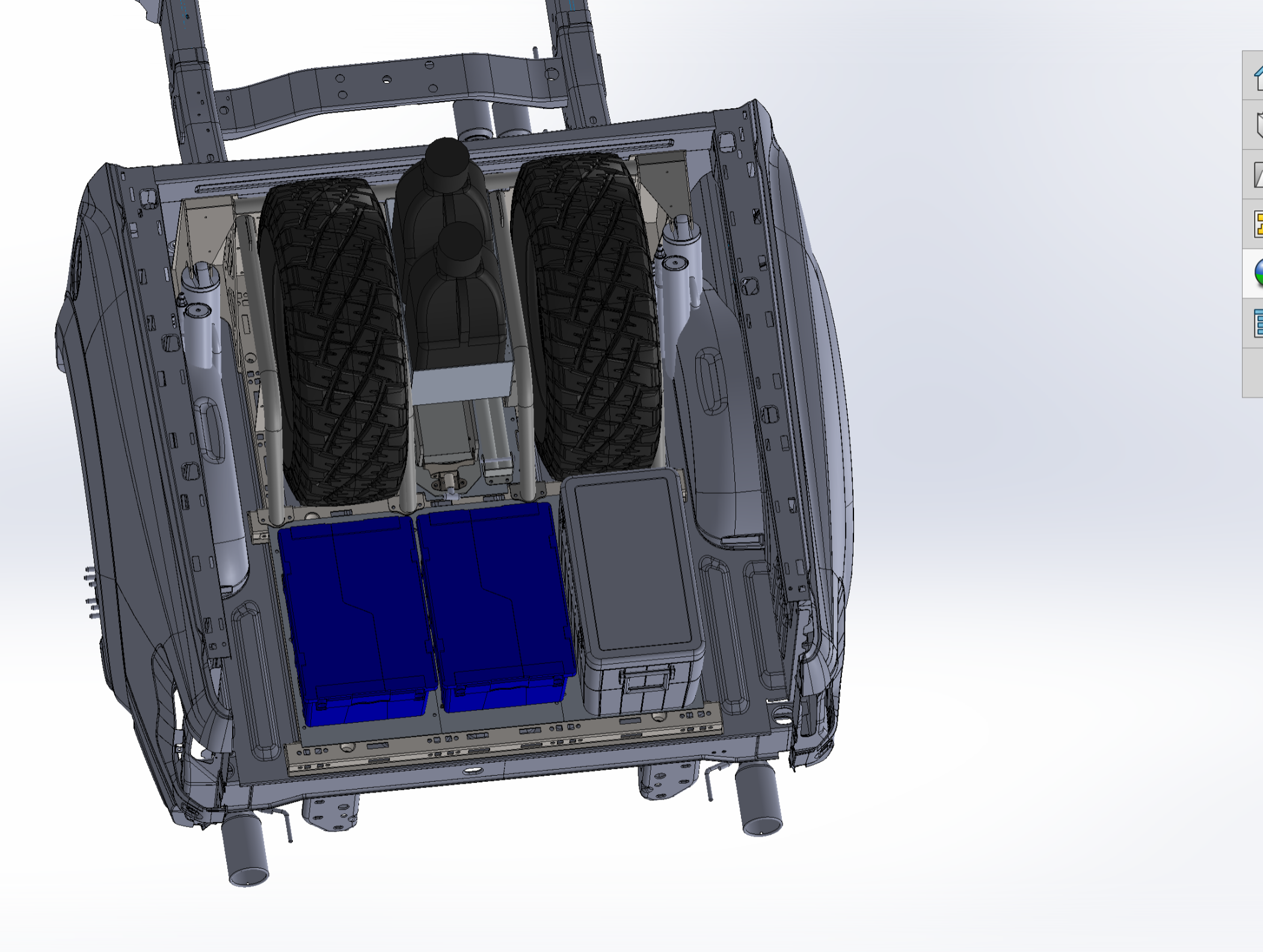

• Dual 5-gallon fuel jugs (only with the dual stand-up tire configuration)
• Rear cargo section
• Quick-release jack kit
• Fuel jug mount tray
• 35" to 40" Y-strap with twisted snap hook
• FMI billet rear links and panhard bar
• FMI rear bump stop kit

Stock rear coil spring lower cast mounts. Source these from the dealership to complete the kit.

Stock rear coil spring top rubber isolators.

Springs. The kit does not come with springs. Buy them separately if you want upgraded aftermarket springs.

2017–2020 Gen 2 Ford F-150 Raptor, at stock Raptor width.

Not compatible with a standard F-150 without a Raptor-width rear axle and the wider rear body. The stock rear springs and panhard bar will not clear at the narrower standard F-150 width.

Requires substantial cutting and welding, and should be installed by a qualified fabricator.

How much rear wheel travel does it give?

Nearly 17" of rear wheel travel, controlled by the bypass shock.

Can I use the FMI Gen 3 rear bump stop kit?

Yes. The Gen 3 Raptor version of the rear hydraulic bump stop kit works with this kit.

Will it work with 35" and 37" tires?

Yes, with no problem.

Does it work with the FMI rear skid plates?

Yes. It works with the FMI rear axle differential skid plate and rear shock skid plates.

Can I put this on a regular F-150?

Only with a Raptor-width rear axle and wider rear body. The stock rear springs and panhard bar won't clear at standard F-150 width.

Are springs included?

No. Use stock Gen 3 take-offs or aftermarket springs. You will also need the stock lower cast spring mounts and upper rubber isolators.

Compatible Foutz Motorsports upgrades:

• Rear hydraulic bump stop kit, Gen 3 Raptor version
• Billet rear suspension links with Ultra-Flex joints
• Billet panhard bar with Ultra-Flex joint
• Rear axle differential skid plate
• Rear shock skid plate
• Rear shock mud flap guards
