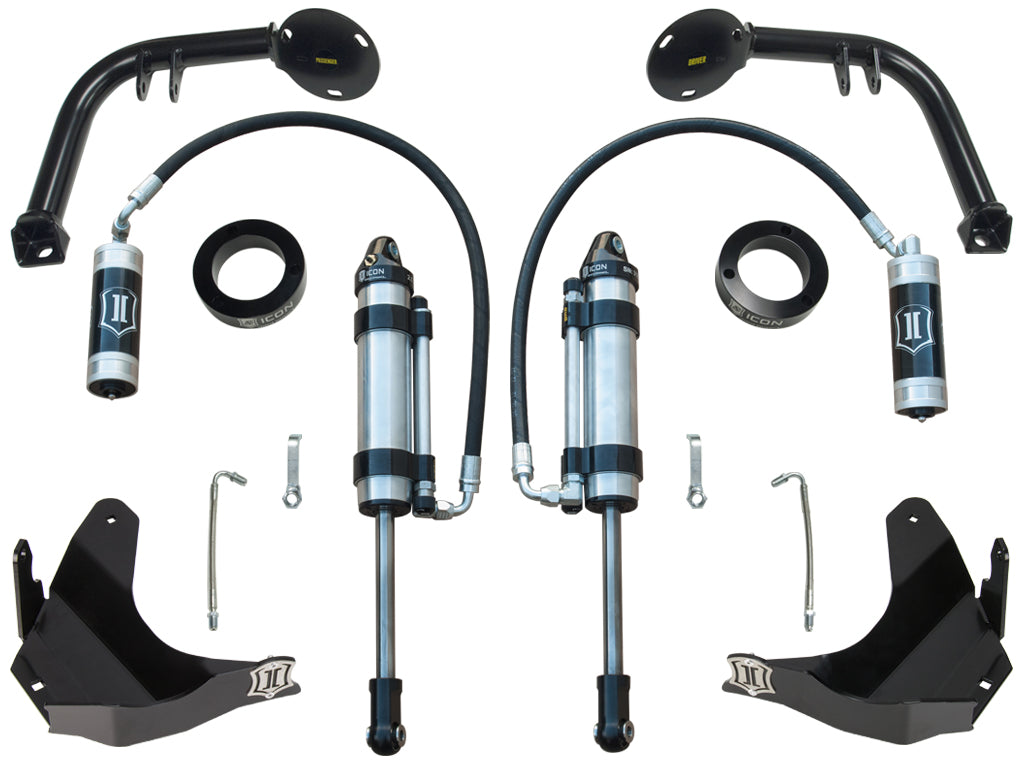

The ICON Vehicle Dynamics S2 Secondary Shock System redefines the off-road capability of the 2016-2023 Toyota Tacoma by allowing for the installation of a secondary shock to an existing ICON coilover setup. The addition of a secondary 2.5 Aluminum Series shock means rougher terrain and larger off-road obstacles can be overcome with confidence as the damping ability of the vehicle's suspension is effectively doubled.
These Omegas Bypass rear shocks combine vehicle-specific valving, multiple shock damping zones, and 28 settings of compression and rebound adjustment to give end-users ultimate control of the performance and ride quality of their Tacoma. As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows 2016-2023 Toyota Tacoma owners to upgrade in steps or all at once.
Features and Benefits:
- The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel skid plates (with incorporated shock mounts) make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product. The system was designed to eliminate the need for any major alteration of the vehicle's frame or any other factory suspension components, and the components are 100 Percent removable in case the system is to be installed on another vehicle. The modular design of the S2 kit also allows for standalone installation of the skid plates, which provides the added benefit of protecting the factory lower control arms from potential trail damage that can be experienced while off-road.
- Drastically improves vehicle damping ability off-road
- Increased vehicle stability on-road
- Utilizes factory lower control arms
- Maintains OE track width
- Vehicle-specific tuned secondary shocks provide increased damping and oil volume
- Omega Series two-tube bypass allows for compression and rebound damping adjustment
- 2.5 Aluminum Series Secondary shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Shocks are fully rebuildable and revalveable
- Mostly bolt-on design makes for straightforward install
Details
- Active Or Passive Suspension: Passive
- Adjustable Compression: Yes
- Adjustable Rebound: Yes
- Adjustable Ride Height: No
- Bushings Included: Yes
- Cylinder Color: Gray
- Cylinder Diameter: 2.5
- Cylinder Finish: Anodized
- Cylinder Material: Aluminum
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Dust Shield Included: No
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: No
- Internal Construction Type: Single Tube
- Lower Mount Type: Eyelet
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
- Remote Reservoir: Yes
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Shock Mounts Included: Yes
- Shocks Included: Yes
- Upper Mount Type: Eyelet
- Valving Type: Digressive
- Add On Part: 252008 - 2.5 X 13 Shock Boot Black (Pair), 252012 - -4 To -10 Hose Shield Kit
