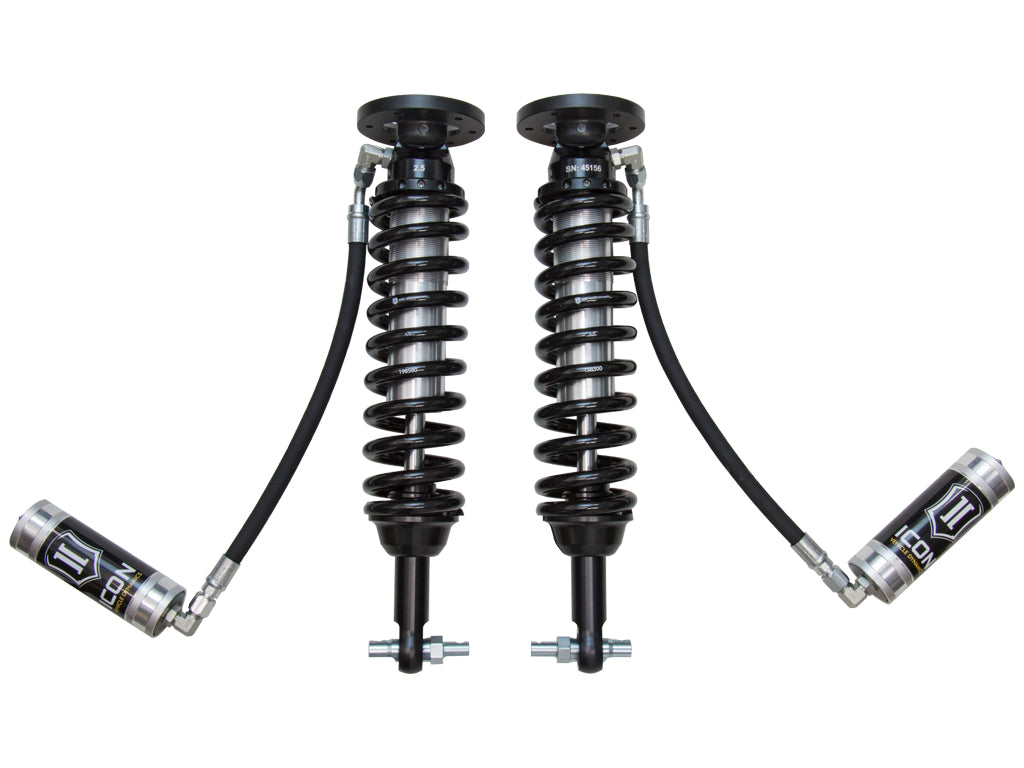

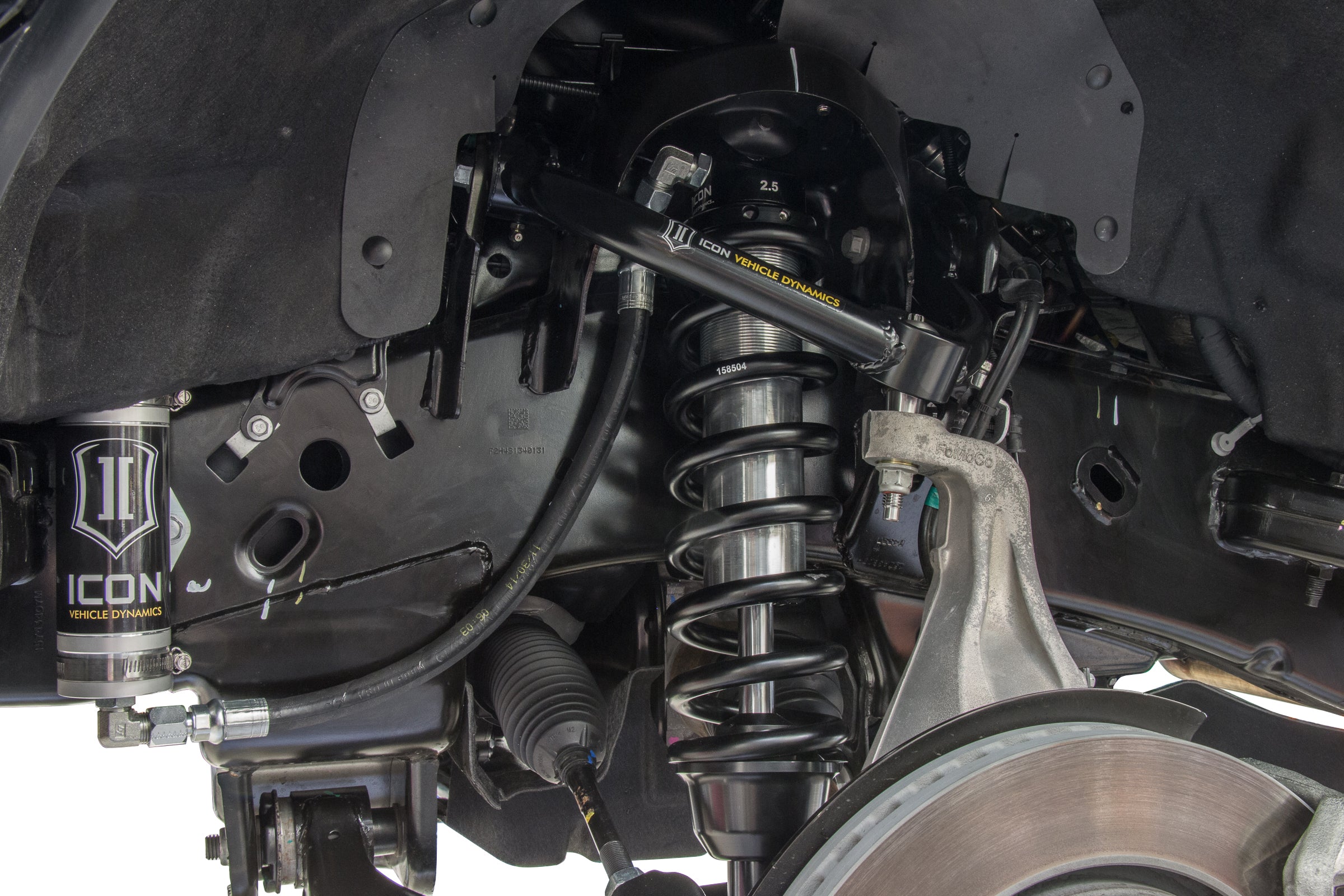

ICON Vehicle Dynamics V.S. Series 2.5 Inch remote reservoir coilover shocks are an incredible upgrade for the front end of the 2015-2020 Ford F150 2WD.
ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-3 Inch of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5 Inch Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your F150.
Features and Benefits:
- Increased wheel travel over stock
- Vehicle specific tuned front shocks for superior shock damping and control
- External reservoir to attain cooler operating temperatures during extended off-road use
- Improved ride quality over stock both on and off-road
- Height-adjustable coilovers offer 1.75-2.63 Inch of lift height adjustment
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8 Inch induction hardened, chrome plated shaft
- High strength alloy CNC machined lower bar pIN
- FK Rod End bearings for extended longevity and minimal deflection
- 100 Percent Bolt-on - no cutting or welding necessary for installation
Details
- Material: Aluminum, Steel
- Active Or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Assembled: Yes
- Body Diameter: 2.5 Inch
- Coil Over Springs Included: Yes
- Compressed Length: 17.24
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Cylinder Material: Steel
- Damping Type: Oil
- Dust Shield Included: No
- Extended Length: 22.61
- Front Spring Rate: 600 Inch
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: Yes
- Internal Construction Type: Single Tube
- Lower Mount Type: Bar Pin
- Maximum Lift: 3.0 Inch
- Maximum Ride Height Raising Distance: 3.0
- Minimum Lift: 1.75 Inch
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset
- Remote Reservoir: Yes
- Reservoir Style: Remote
- Self Leveling: No
- Service Parts: 257337 - 7/8 Shaft 11.25 Oal, 7.00 Travel, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 611019 - Coilover Hardware Kit Pair, 254100G - 1 Gallon Icon Performance Shock Oil, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252003 - Seal Install Tool 2.5/3.0, 252001 - 2.5 Fixed Spanner Wrench, 252002 - Universal Spanner Wrench (2.0/2.5/3.0)
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
- Travel Length: 5.37
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
- Add On Part: 198001 - Billet Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5)
