Foutz Motorsports Billet Half Tie Rod Kit 2010-2014 Ford F-150 SVT Raptor 2017-2025 Ford F-150 Raptor 2023-2025 Ford F-150 Raptor R

Both kits move the outer joint to a 7/8" FK rod end. The difference is what happens inboard of that.

The full billet kit

Replaces the entire tie rod assembly on both sides. It is the ultimate strength upgrade, and it is what most racers and hard chargers run.

The half kit

Keeps the factory inner tie rod, and there are real reasons to want that:

• Less load into the steering rack. The stock inner shaft absorbs and limits what gets transmitted inboard, so the rack sees less.
• A serviceable link in the system. If something does get damaged out on a trail, the factory inner is the easier piece to change in the field.
• The stock tie rod boot stays on the rack. Nothing about the rack seal is disturbed.
• Quicker, easier install. This is a garage-floor job, not a shop job.

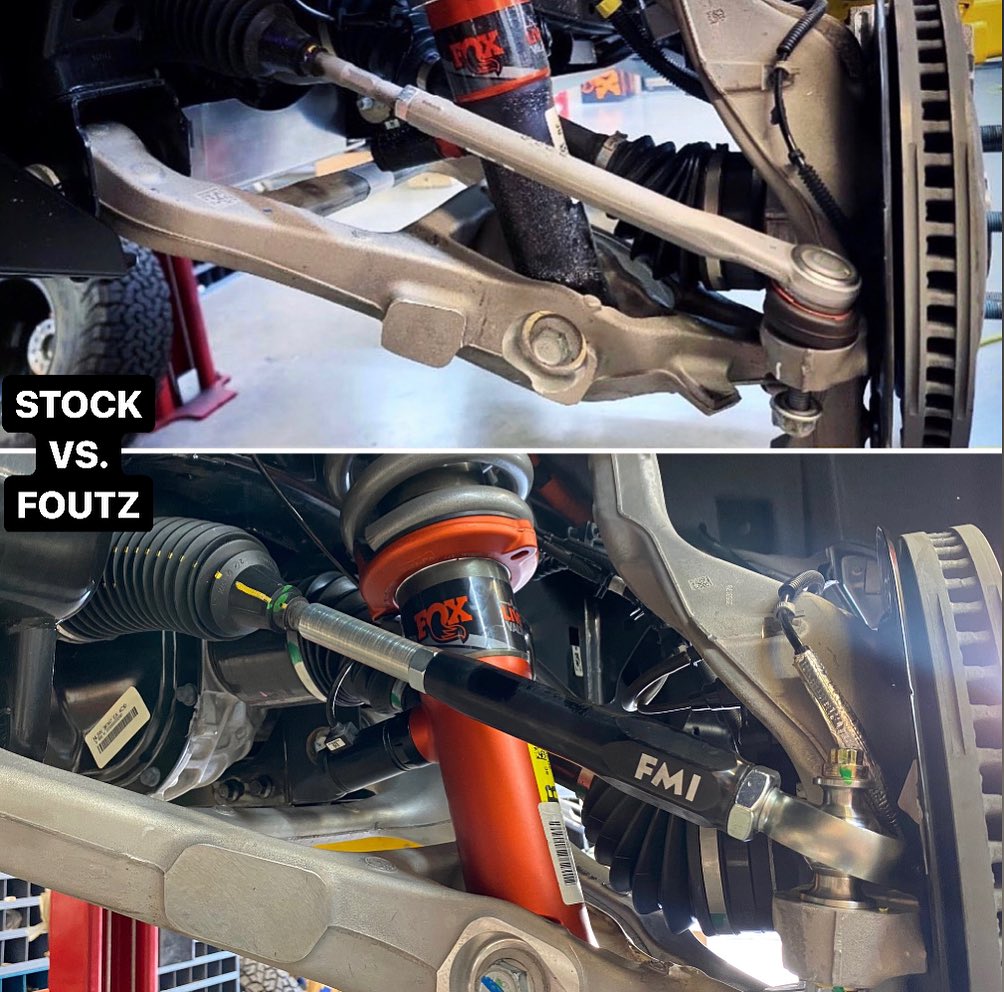

You still get the outer upgrade either way. The half kit is the choice when you want the 7/8" rod end at the wheel and you would rather keep the factory inner protecting your rack. Compare the full Raptor Billet Tie Rod Kit.

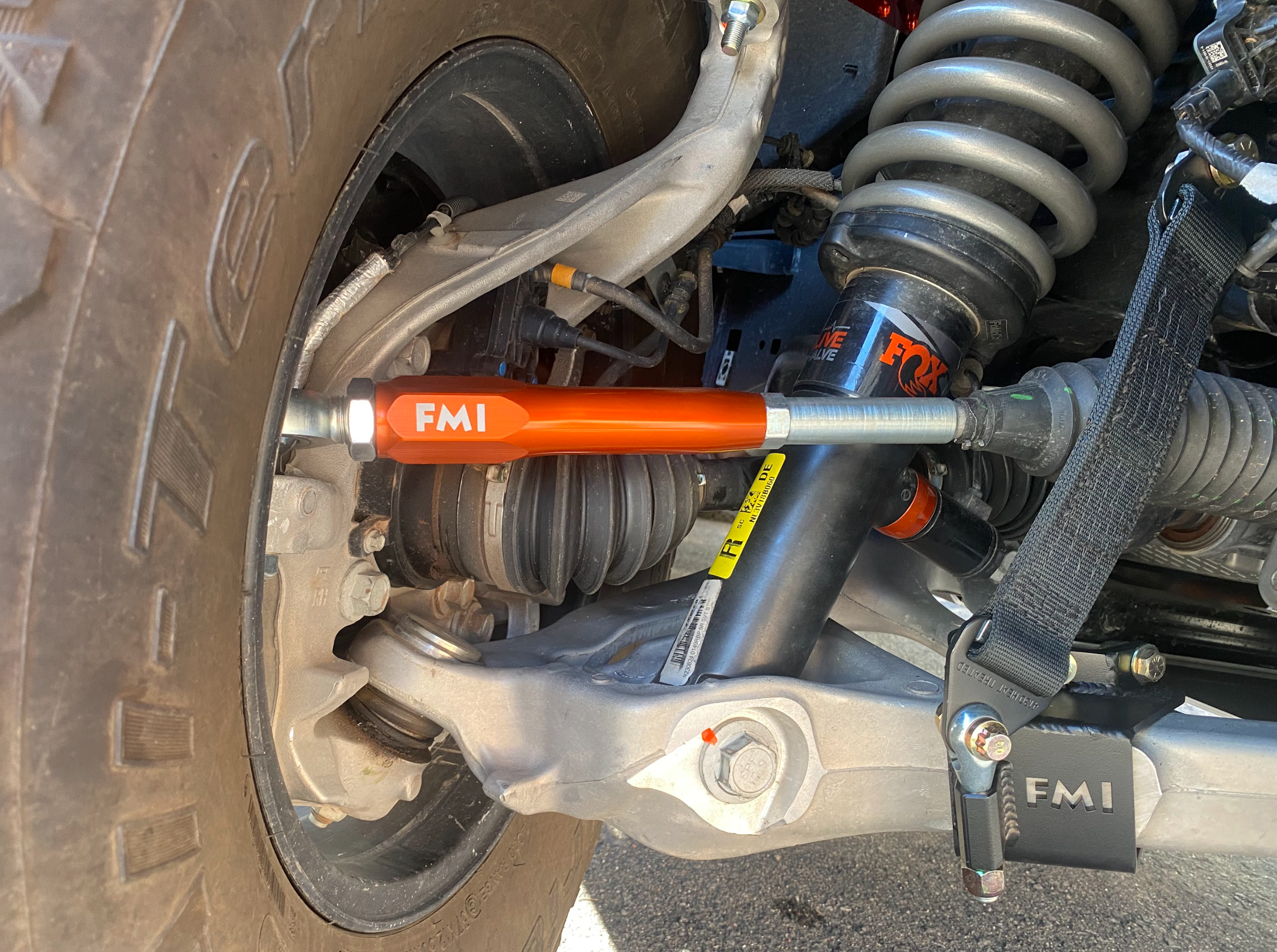

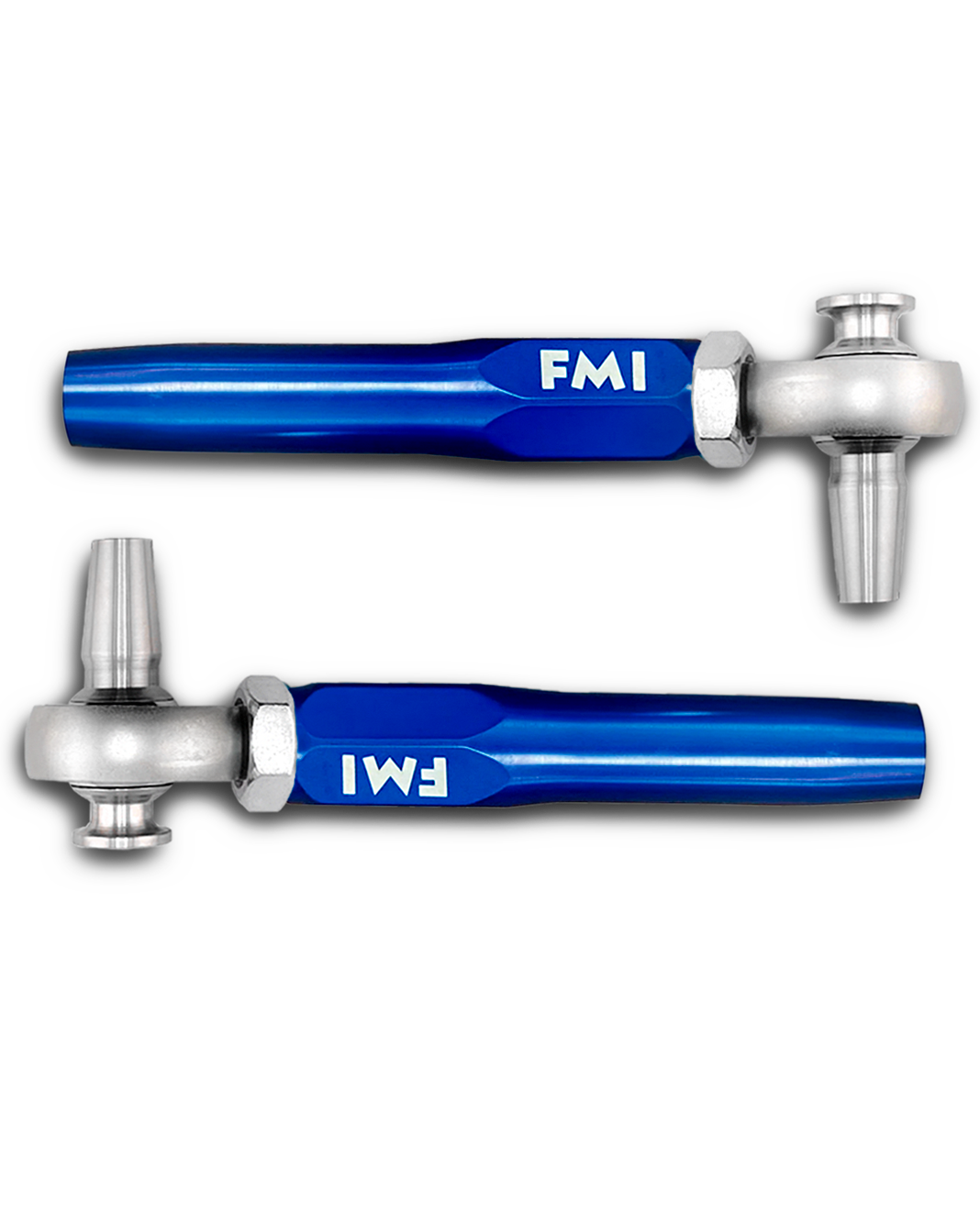

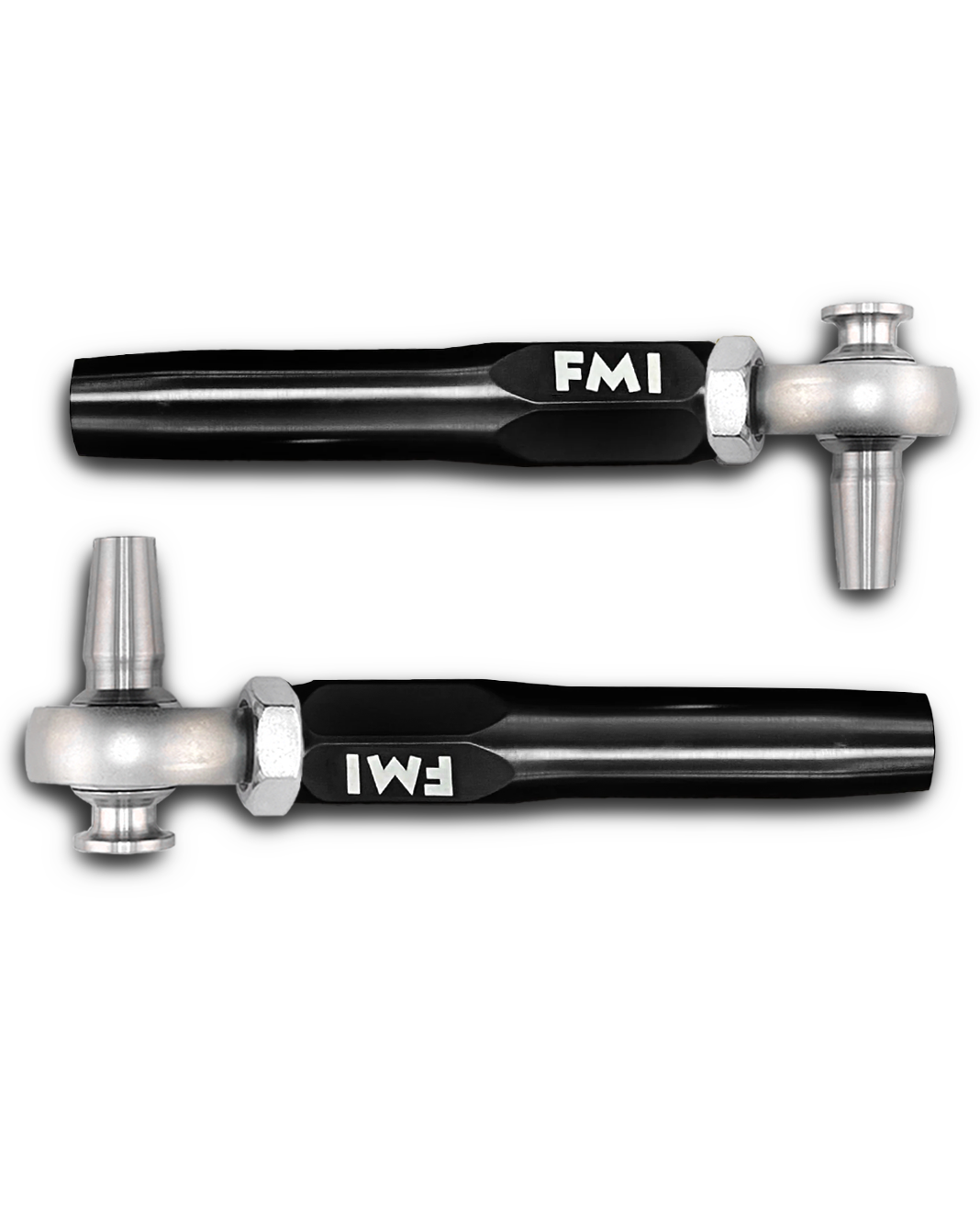

• 2 billet half-length tie rod tubes with 7/8" FK rod ends at the wheel
• 1 hardware kit — 17-4 stainless steel high-misalignment spacers, Grade 8 bolts and lock nuts

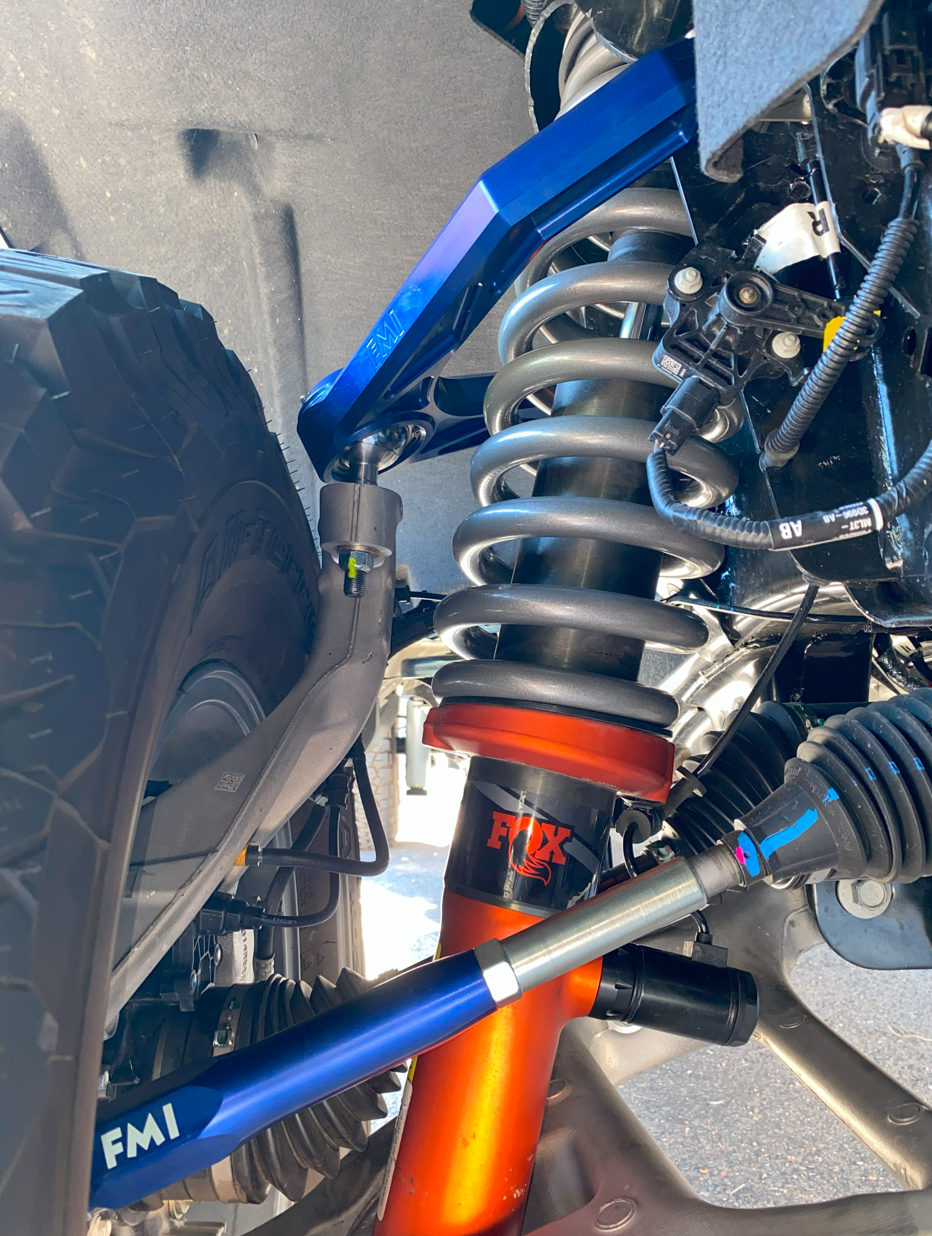

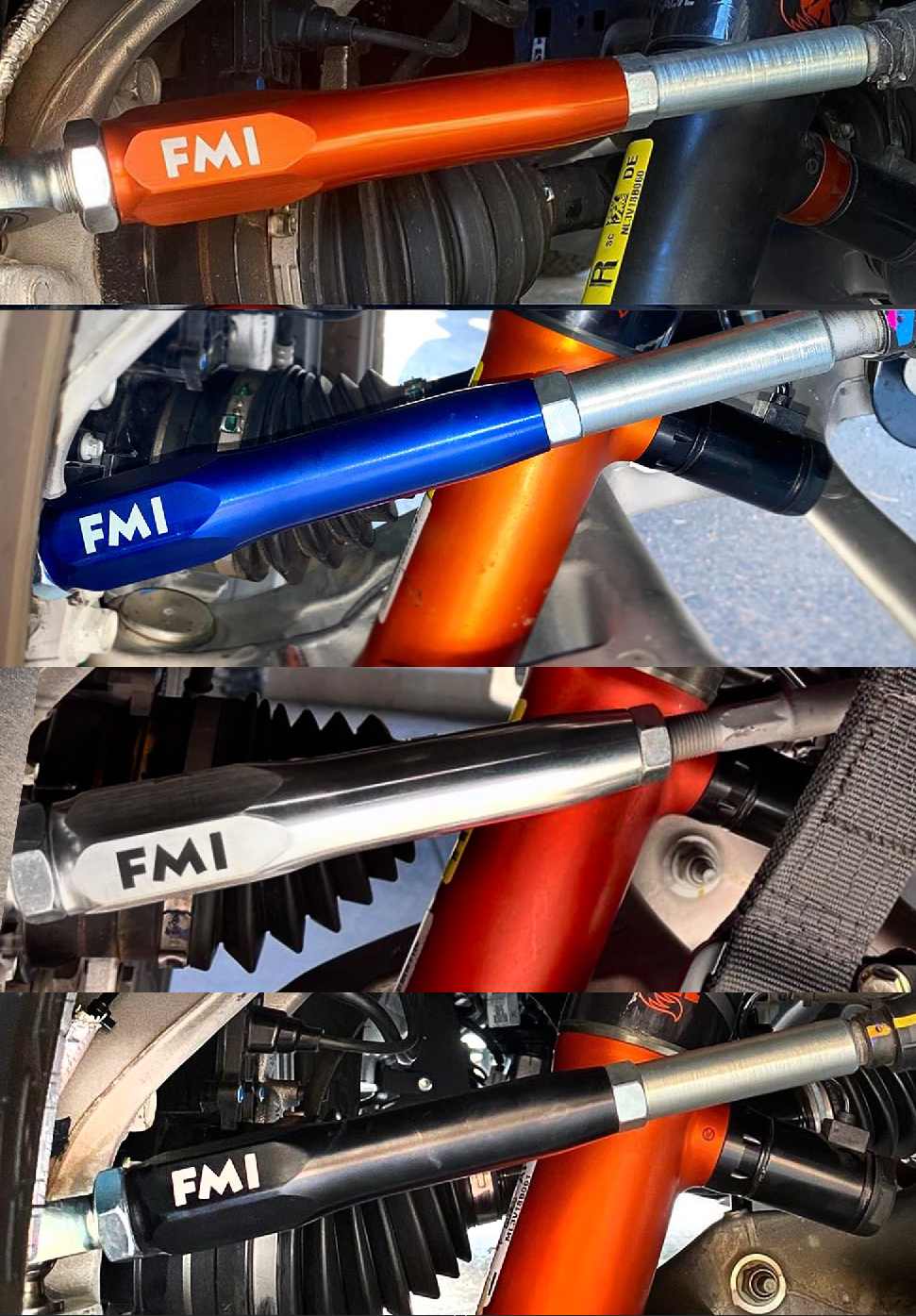

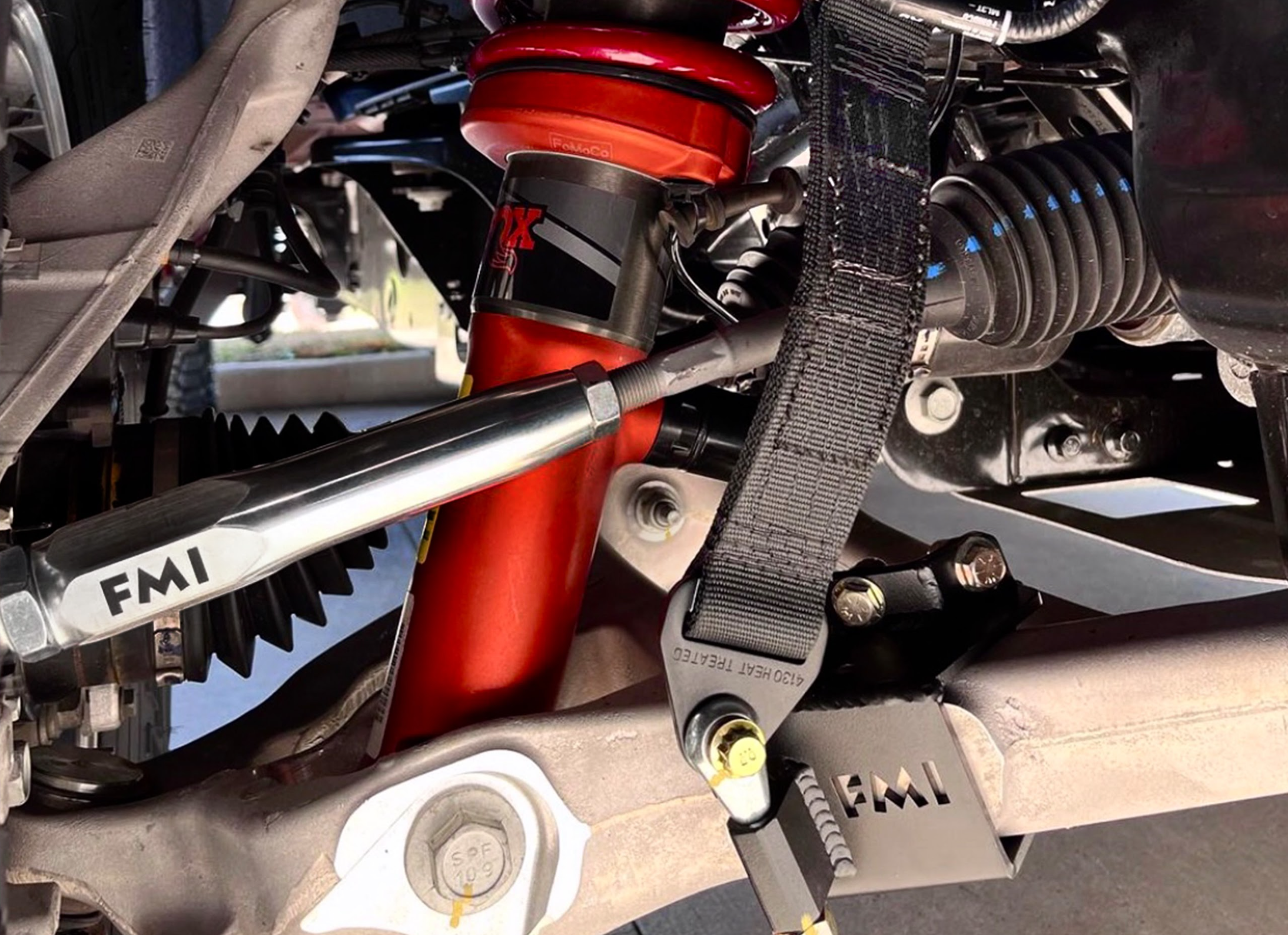

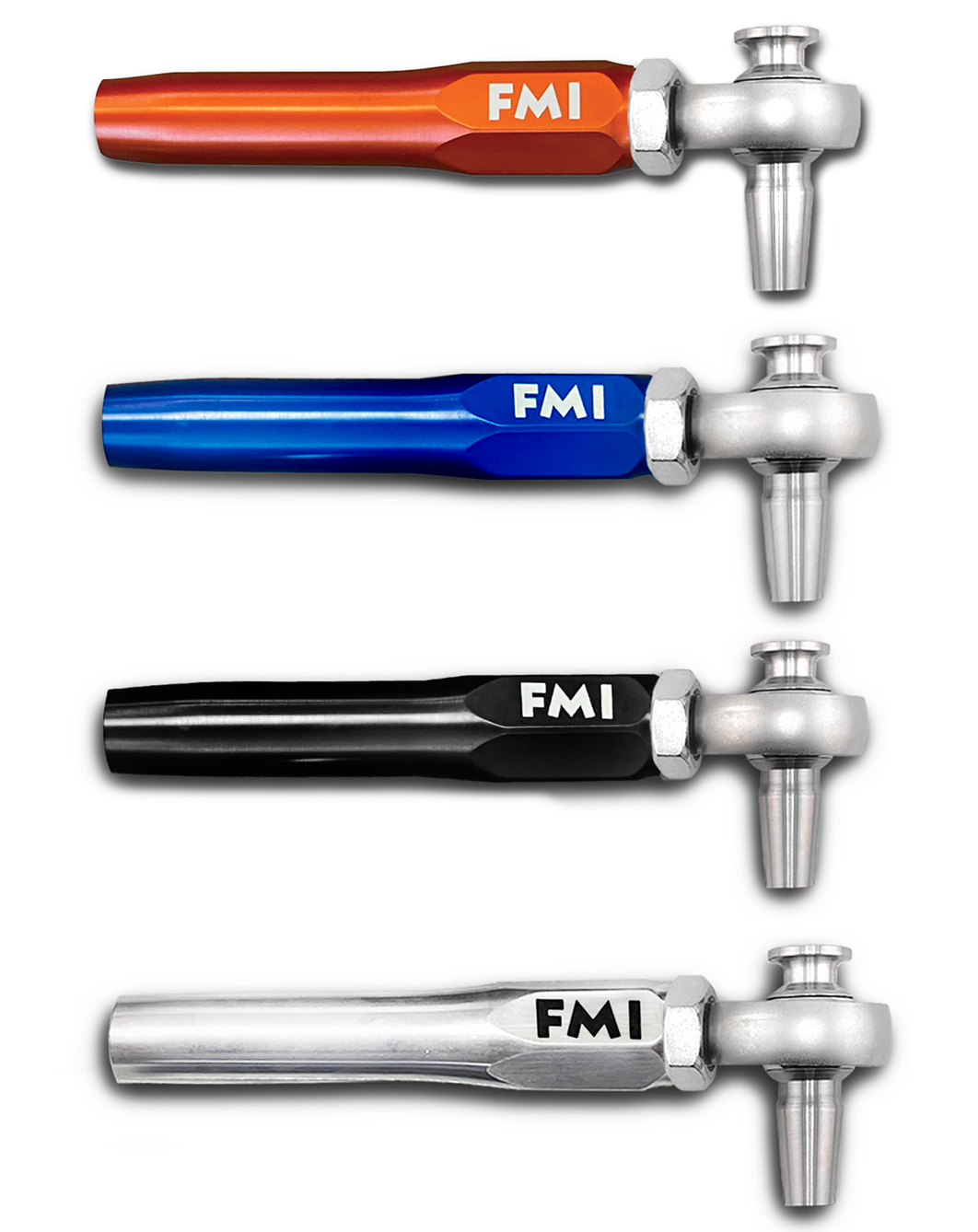

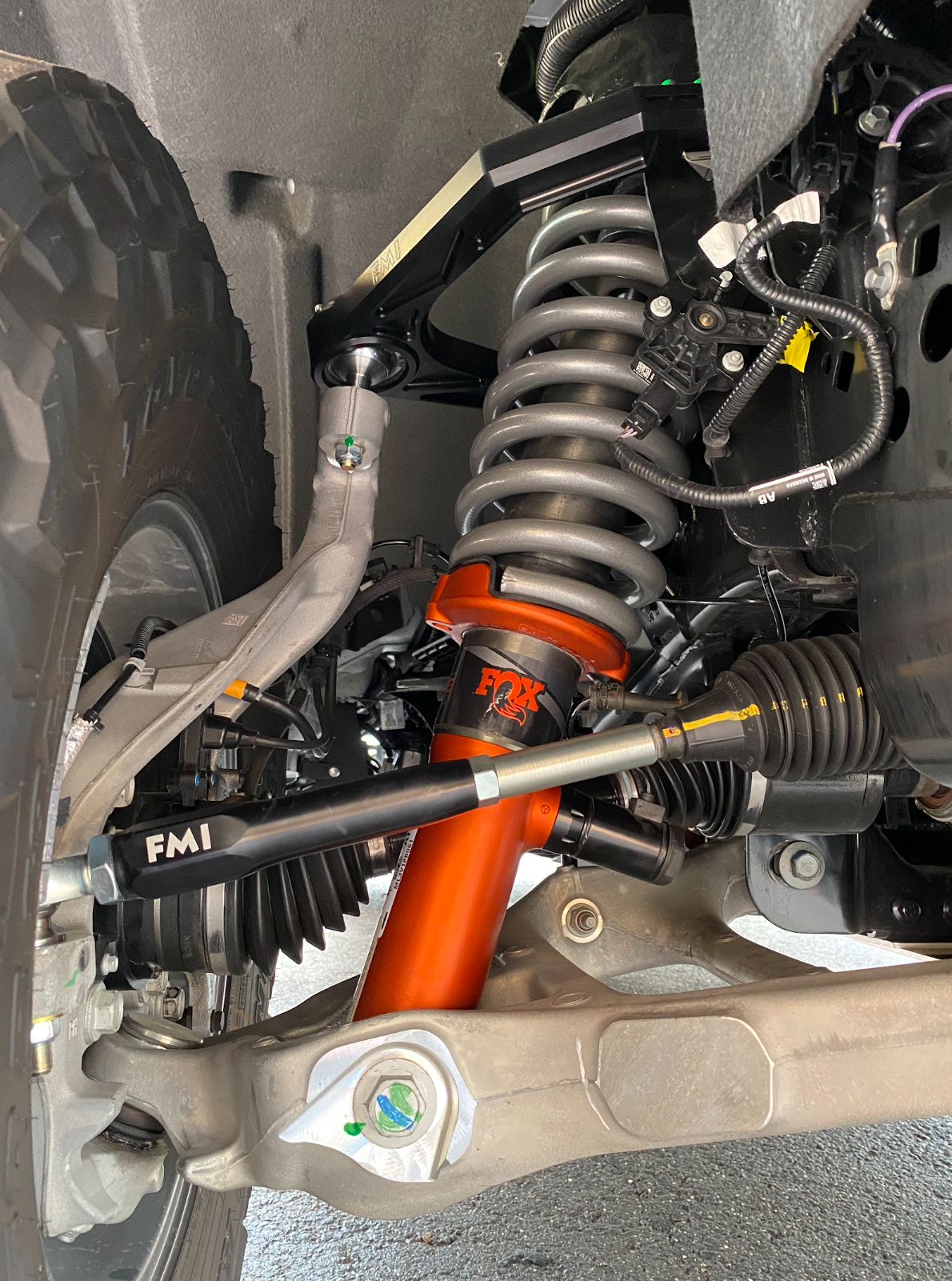

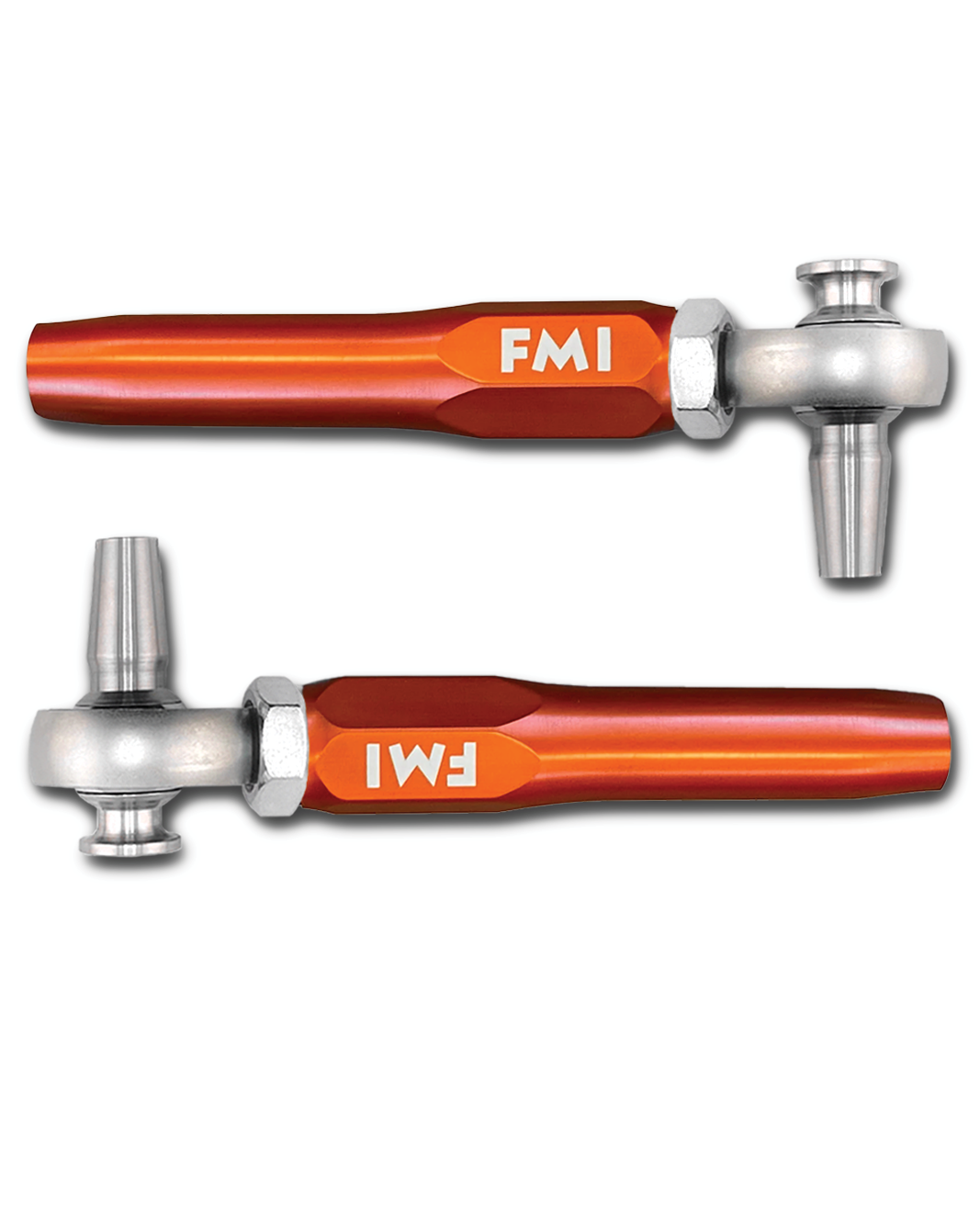

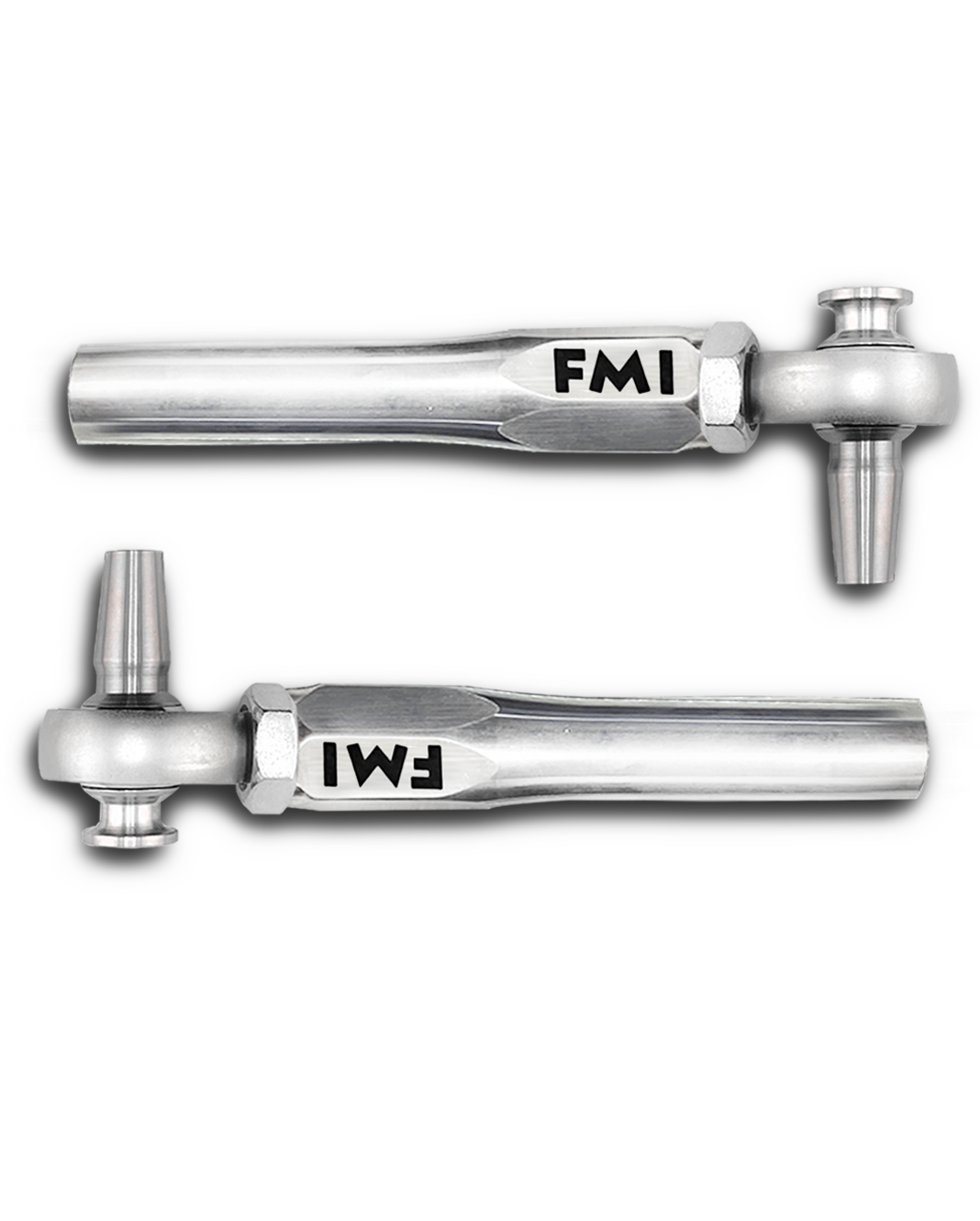

Everything the kit needs to bolt up is in the box. Choose from four finishes: Raw Billet Aluminum, Black Anodized, FOX Orange Anodized and Blue Anodized.

The tie rod support sleeve is not included — it is a separate part, and it is the one thing worth adding at the same time. See the panel below.

• 6061-T6 aircraft-grade aluminum hex stock, CNC machined in-house to our own profile
• Machined flats so you have a real surface to get a wrench on and torque everything down secure
• 7/8" FK rod ends at the spindle for precise steering feel — rebuildable rather than throwaway
• 17-4 stainless steel high-misalignment spacers, custom made, so the joint cycles properly through suspension travel and will not corrode
• Grade 8 bolts and lock nuts

The profile is machined for clearance as well as strength — it is shaped to clear, not just to be thick.

• Gen 1 Raptor — 2010–2014
• Gen 2 Raptor — 2017–2020
• Gen 3 Raptor — 2021–2024
• Gen 3.5 Raptor — 2025–2026
• Raptor R — all years

Driving something else?

• Bronco Raptor billet half tie rod kit
• Bronco HOSS 3.0 billet half tie rod kit
• 6th Gen Bronco billet half tie rod kit
• Ranger Raptor billet half tie rod kit
• Ram TRX and RHO billet half tie rod kit

No drilling. No spindle modifications. No rack work. The factory inner tie rod stays in the truck — you are replacing the outer half and bolting the new rod end to the spindle.

Measure before you take anything apart

Measure the assembled tie rod length before disassembly and write it down, then rebuild to that same measurement.

Do I need an alignment afterward?

We recommend getting an alignment after the install to be safe, even if you measured carefully.

Do the support sleeve at the same time

The outer tie rod is already off at this point, which is exactly what the support sleeve install requires. Doing both in one session saves you a second teardown.

The half kit deliberately keeps your factory inner tie rod. That is good for your rack — but the factory inner is still the factory inner, and it bends in one specific place: right where the threads stop and the shaft steps up into the main body.

The 16mm Raptor Tie Rod Support Sleeve wraps that exact transition and braces it. Running the half kit and the sleeve together is how you get a fully sorted Raptor steering setup: upgraded outer, protected inner, rack still shielded.

It is not included with this kit, and it is worth ordering at the same time — the teardown is the same teardown.

Should I buy the half kit or the full kit?

Full kit for maximum strength and racing or aggressive off-road use. Half kit if you want the outer rod end upgrade while keeping the factory inner to take load off the steering rack, keep a field-serviceable link, and make the install easier.

Does the support sleeve come with this?

No. The sleeve is sold separately and is shown in some photos for context. Order it alongside if you want it — the install overlaps.

Can I install this at home?

Yes. It is a bolt-on at the spindle with no drilling and no rack work. Get an alignment afterward.

Are the rod ends serviceable?

Yes. The 7/8" FK rod ends at the wheel are rebuildable and can be replaced on their own rather than replacing the whole tie rod — see our service parts.

There are no tie rod boots to service on a half kit. Your factory boot stays where it is on the rack. Our replacement tie rod boot kit is for the full billet tie rod kits, not this one.

What colors are available?

Raw Billet Aluminum, Black Anodized, FOX Orange Anodized and Blue Anodized.

How long does it take to ship?

In-stock items normally ship within 48 hours, with standard shipping 3–5 days after leaving our facility. Built-to-order items can take up to 4–6 weeks. We ship to the United States and Canada.
