Description

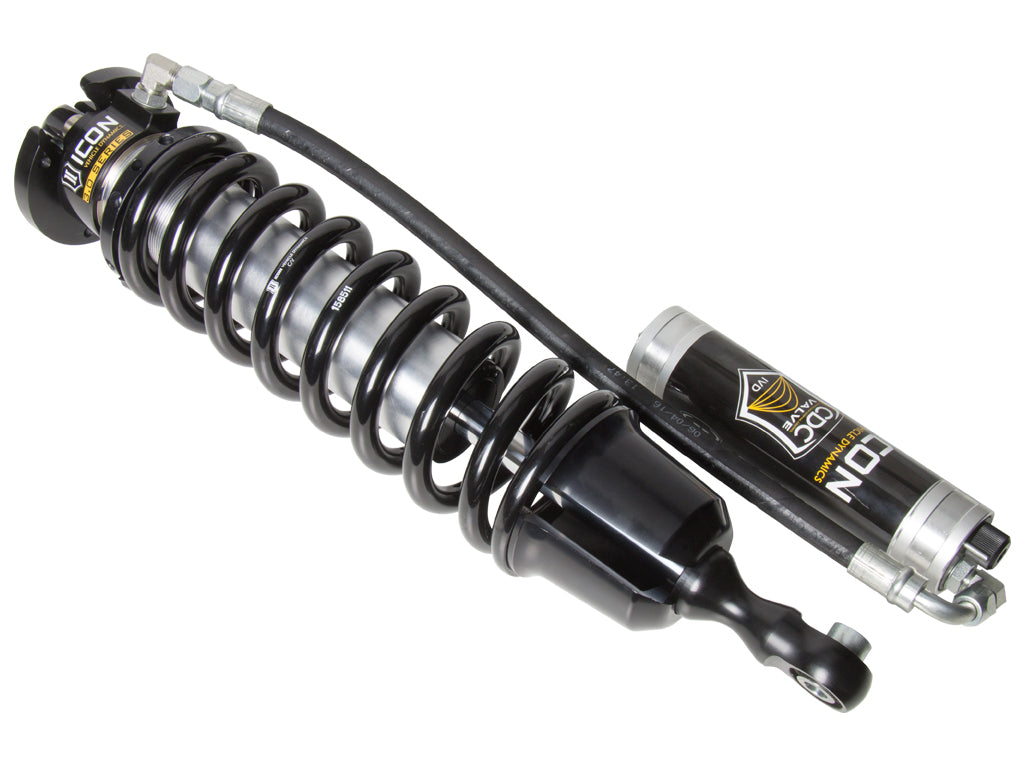

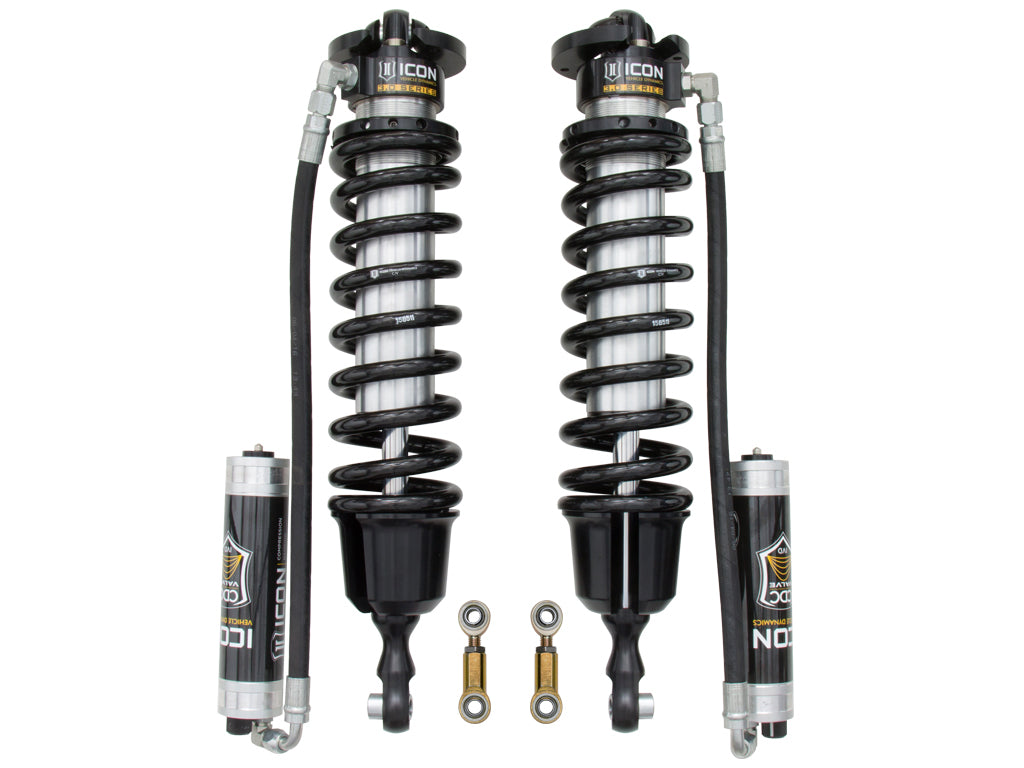

While ICON's 2.5 Series coilovers are an excellent choice for drivers looking for a great all-around performance upgrade, there are a select few drivers seeking to drive their vehicles in a manner and in terrain that beckons for more. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia 3.0 Series Coilover Kit was designed to take the off-road capability of the truck to new levels by increasing wheel travel and significantly improving the damping ability of the front shocks.
Features and Benefits:- Compared to the 2.5 Inch diameter coilovers the 3.0 Series shocks see a piston surface area increase of 50 Percent in the ride zone, and 100 Percent in the InchBump Zone Inch. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40 Percent of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
- These 3.0 Series coilovers were designed as an OEM shock replacement, making install a simple and straightforward bolt-on affair. Built in ride height adjustability yields 1.63-3.5 Inch of front lift height allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components such as ICON engineered coil springs and FK Rod End bearings are used to ensure these shocks function to their maximum potential without issue.
- Significant increase in damping ability for excellent performance in extreme off-road conditions
- Adjustable coilovers provide 1.63-3.5 Inch of front lift height over stock
- Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
- ICON's multi-stage, tunable hydraulic InchBump Zone Inch exponentially increases bottom-out resistance in the last 40 Percent of compression travel
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
- 10 Inch aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
- High quality ICON-engineered coil springs offer increased travel and performance
- PTFE lined COM12 spherical bearings ensure maximum strength and durability
- Heavy duty 1 Inch CNC machined shock shafts
- Multi stage CAD plated shock body with hard anodized piston and top cap

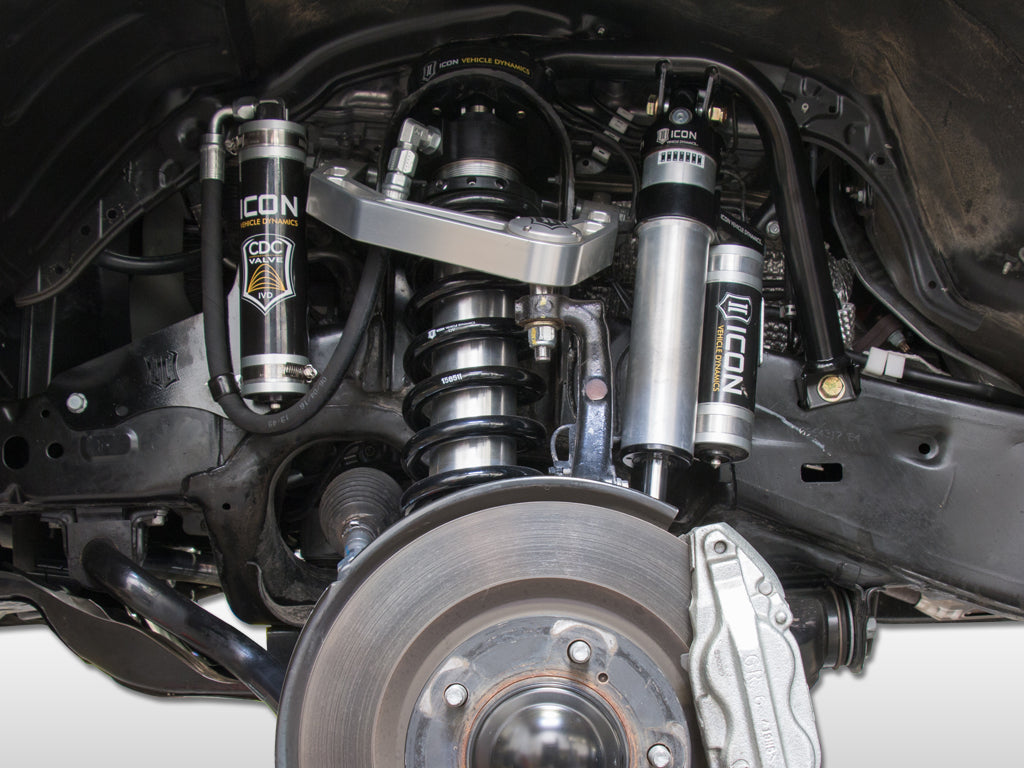

- Direct bolt-in to OEM shock location makes for an easy install
- Fully serviceable
- InchICON 1K Inch tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Material: Steel, Aluminum
- Active Or Passive Suspension: Passive
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Assembled: Yes
- Body Diameter: 3 Inch
- Coil Over Springs Included: Yes
- Compressed Length: 18.63
- Cylinder Color: Gray
- Cylinder Finish: Ceramic Coated
- Cylinder Material: Steel
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Dust Shield Included: No
- Extended Length: 25.4
- Front Spring Rate: 600 Inch
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: No
- Internal Construction Type: Single Tube
- Lower Mount Type: Eyelet
- Maximum Lift: 3.0 Inch
- Maximum Ride Height Raising Distance: 3.5
- Minimum Lift: 1.63 Inch
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset, Icon Alloys - 18x9 Inch W/ 6 Inch Backspace / 25mm Offset, Icon Alloys - 20x9 Inch W/ 6 Inch Backspace / 25mm Offset
- Remote Reservoir: Yes
- Reservoir Style: Remote
- Self Leveling: No
- Service Parts: 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 254100G - 1 Gallon Icon Performance Shock Oil, 302005 - 3.0 Icon Rebuild Kit (All), 252003 - Seal Install Tool 2.5/3.0, 611025 - 07 Tundra Co Hardware Kit Pair
- Shaft Diameter: 1.0
- Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center Of Eyelet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate: 600.0
- Spring Rate Type: Linear
- Travel Length: 6.77
- Upper Mount Type: Mounting Plate
- Valving Type: Compression: Linear, Rebound: Digressive
- Add On Part: 191010 - Icon Raptor 3.0 Coil Wrap W/Logo Pair, 252012 - -4 To -10 Hose Shield Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 51046 - 07-21 Tundra/08-21 Lc200/08-22 Sequoia Bump Stop Spacer Kit, 198001 - Billet Spanner Wrench Kit
/
