Description

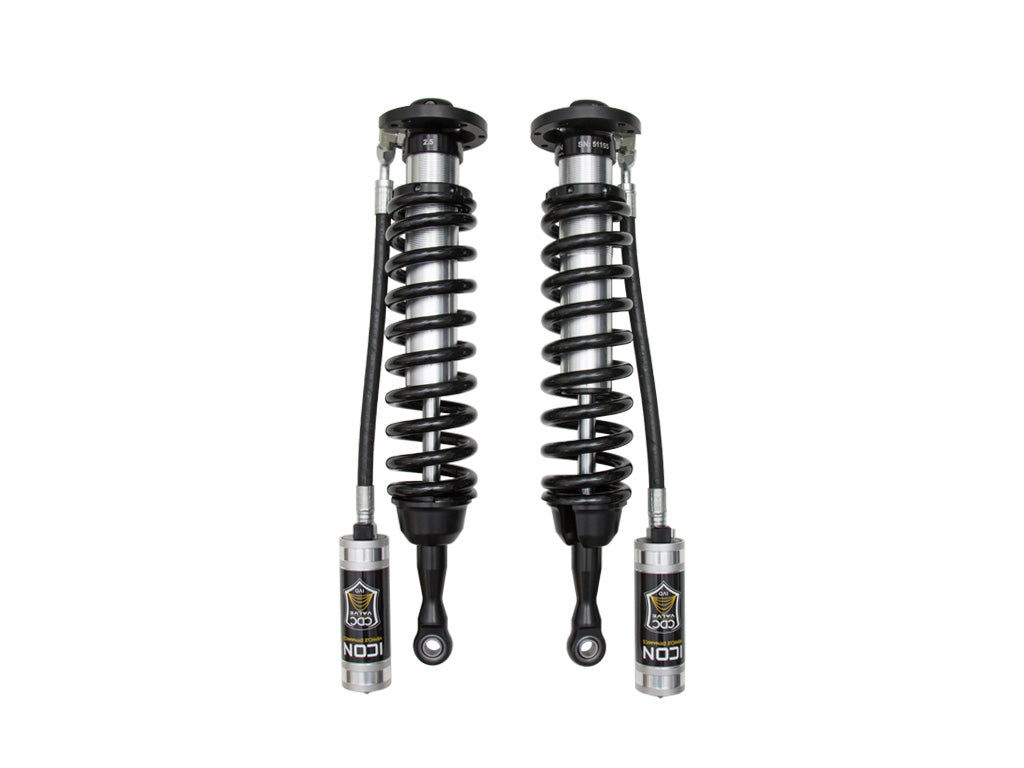

The ICON Vehicle Dynamics V.S. Series 2.5 Inch remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia.
ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1-3 Inch of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard.
When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tundra or Sequoia.
Features and Benefits:- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- Vehicle specific shock length yields maximum wheel travel
- Height-adjustable coilovers offer 1.-3 Inch of lift height adjustment over stock
- 2.5 Inch diameter shock bodies with remote reservoirs
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- Material: Steel, Aluminum
- Active Or Passive Suspension: Passive
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Assembled: Yes
- Body Diameter: 2.5 Inch
- Coil Over Springs Included: Yes
- Compressed Length: 18.88
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Cylinder Material: Steel
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Dust Shield Included: No
- Extended Length: 25.43
- Front Spring Rate: 600 Inch
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: No
- Internal Construction Type: Single Tube
- Lower Mount Type: Eyelet
- Maximum Lift: 3.0 Inch
- Maximum Ride Height Raising Distance: 3.0
- Minimum Lift: 1.0 Inch
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset, Icon Alloys - 20x9 Inch W/ 6 Inch Backspace / 25mm Offset, Icon Alloys - 18x9 Inch W/ 6 Inch Backspace / 25mm Offset
- Remote Reservoir: Yes
- Reservoir Style: Remote
- Self Leveling: No
- Service Parts: 252001 - 2.5 Fixed Spanner Wrench, 252003 - Seal Install Tool 2.5/3.0, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 257337 - 7/8 Shaft 11.25 Oal, 7.00 Travel, 254100G - 1 Gallon Icon Performance Shock Oil, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 611025 - 07 Tundra Co Hardware Kit Pair
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
- Travel Length: 6.55
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
- Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 51046 - 07-21 Tundra/08-21 Lc200/08-22 Sequoia Bump Stop Spacer Kit
