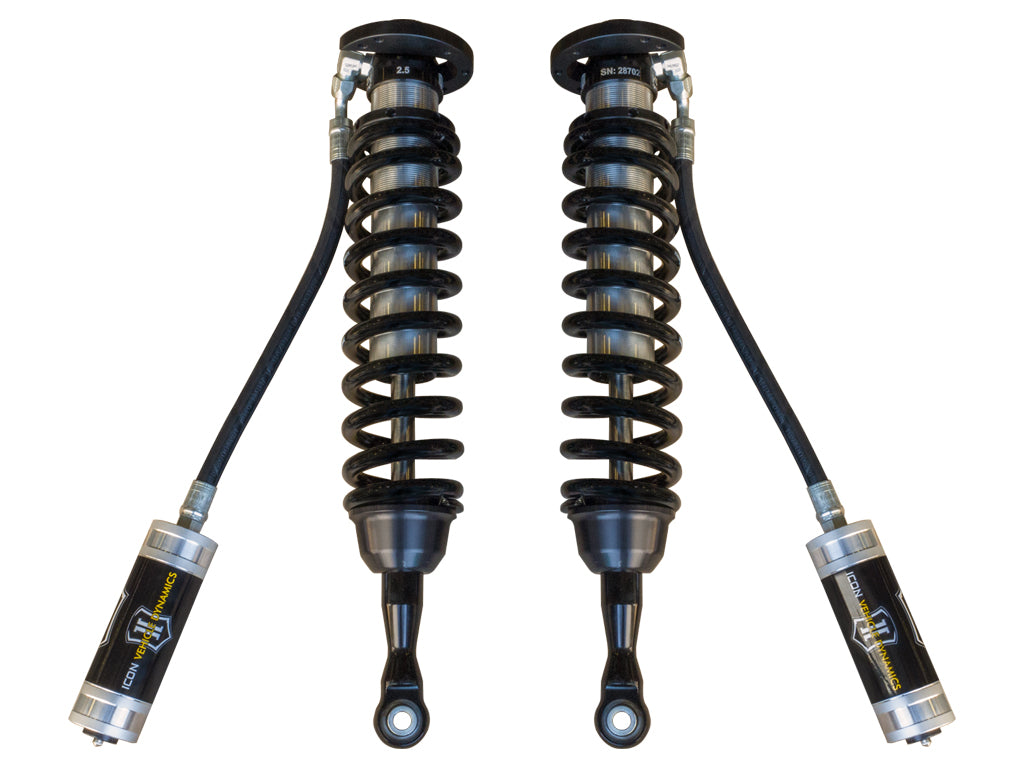

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. These adjustable coilovers allow up 1-3 Inch of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.
ICON's Vehicle-specific shock length and valving, their large 2.5 Inch shock body with increased piston surface area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
Features and Benefits:
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- Vehicle specific shock length yields maximum wheel travel
- Height-adjustable coilovers offer 1.-3 Inch of lift height adjustment over stock
- 2.5 Inch diameter shock bodies with remote reservoirs
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Details
- Material: Steel, Aluminum
- Active Or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Assembled: Yes
- Body Diameter: 2.5 Inch
- Coil Over Springs Included: Yes
- Compressed Length: 18.88
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Cylinder Material: Steel
- Damping Type: Oil
- Dust Shield Included: No
- Extended Length: 25.43
- Front Spring Rate: 600 Inch
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: No
- Internal Construction Type: Single Tube
- Lower Mount Type: Eyelet
- Maximum Lift: 3.0 Inch
- Maximum Ride Height Raising Distance: 3.0
- Minimum Lift: 1.0 Inch
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset, Icon Alloys - 18x9 Inch W/ 6 Inch Backspace / 25mm Offset, Icon Alloys - 20x9 Inch W/ 6 Inch Backspace / 25mm Offset
- Remote Reservoir: Yes
- Reservoir Style: Remote
- Self Leveling: No
- Service Parts: 257337 - 7/8 Shaft 11.25 Oal, 7.00 Travel, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252003 - Seal Install Tool 2.5/3.0, 254100G - 1 Gallon Icon Performance Shock Oil, 611025 - 07 Tundra Co Hardware Kit Pair, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252001 - 2.5 Fixed Spanner Wrench
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate: 600.0
- Spring Rate Type: Linear
- Travel Length: 6.55
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
- Add On Part: 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 51046 - 07-21 Tundra/08-21 Lc200/08-22 Sequoia Bump Stop Spacer Kit, 252012 - -4 To -10 Hose Shield Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit
