The ICON 2.5 Inch suspension system is a great way to lift your 4WD 2017-2019 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 3 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel.

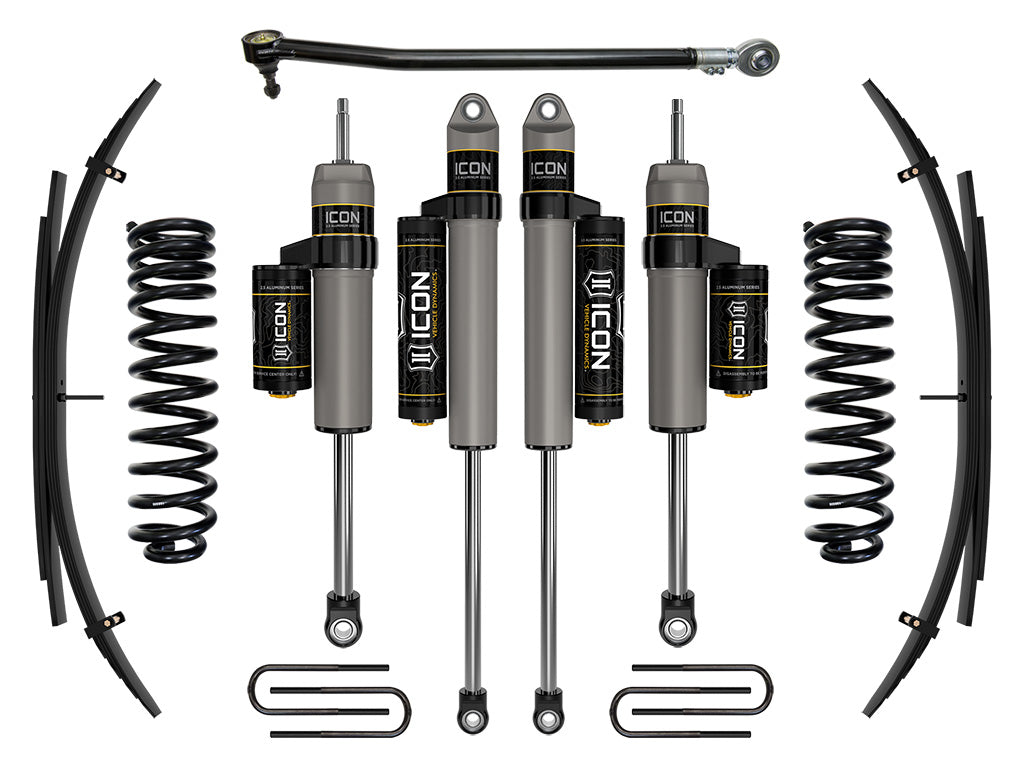

ICON's Stage 3 System is comprised of dual rate coil springs, 2.5 Aluminum Series piggyback reservoir front and rear shocks, adjustable front track bar with massive FK rod end, alignment cams for adding caster, and rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap. ICON 2.5 Inch piggyback reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Features and Benefits:
- ICON engineered dual rate coil springs provide 2.5 Inch of front lift over stock
- Vehicle specific tuned piggyback reservoir 2.5 Aluminum Series shocks
- On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
- Application specific alignment Cams ensure proper caster alignment
- Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
- Increased wheel travel and improved ride quality over stock with no change in towing capacity
- Less body-roll than stock
- Lifetime guarantee that springs won't sag or break
- No drive shaft modifications required
- Shocks are fully rebuildable and re-tunable
- 100 Percent Bolt-on system - no drilling, cutting or welding necessary for install
Details
- Bushings Included: Yes
- Coils Quantity Front: 2.0
- Dual Rate Coil Springs: Yes
- Front Spring Rate Type: Progressive Dual Rate
- Grade Type: Performance
- Leaf Spring Leaf Quantity: 7.0
- Maximum Lift Front: 2.5 Inch
- Maximum Lift Rear: 2.0 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (37 Inch X 12.50 Inch Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 191014 - .25 Inch Collar Spanner Pin Wrench, 61111 - 17-25 FSD Front 2.5 Inch Extended Ss Brake Line Kit, 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit
