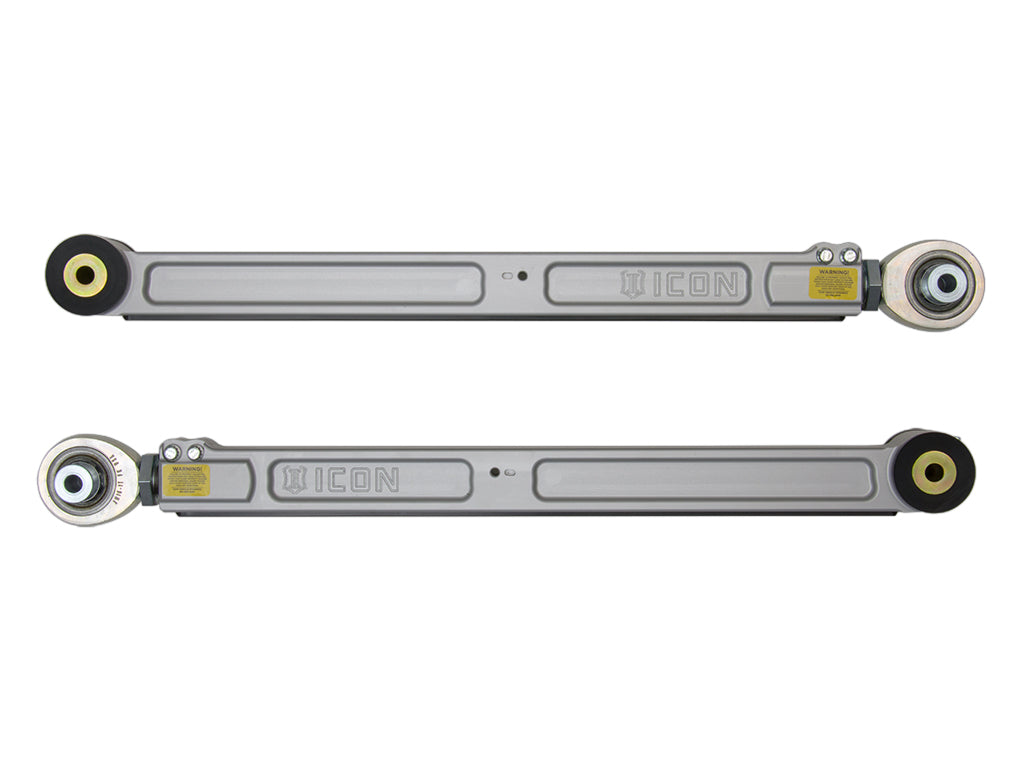

ICON's Billet Aluminum Rear Trailing Arms for the Toyota FJ Cruiser, 4Runner, 200 Series Land Cruiser, and Lexus GX are a great replacement for weak factory lower links. These trailing arms are light, strong, and have been engineered to increase the off-road ride quality the vehicle.

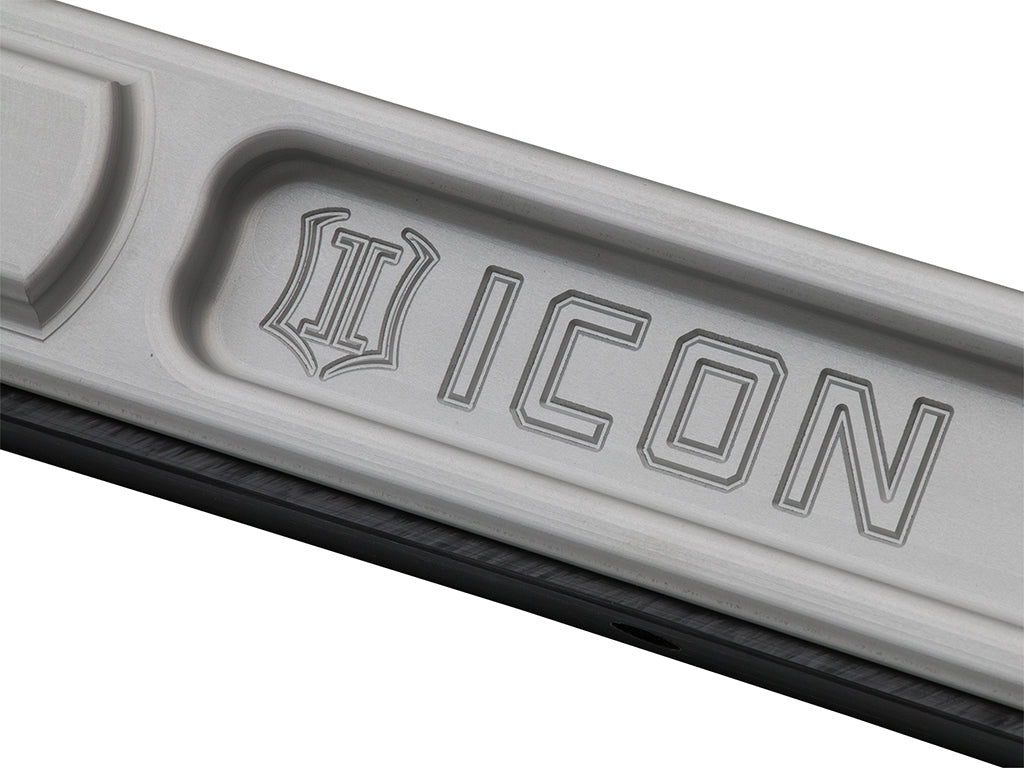

Constructed out of 6061 CNC-machined billet aluminum, these arms also stand out when bolted up on the vehicle. They include 16T Rod Ends that have a load rating of over 40,000 lbs of pressure as well as a dual rate bushing on the axle side for excellent articulation characteristics with minimal deflection.
A replaceable nylon rock slider is incorporated into the design of the arm to prevent any hang-ups on the trail.
Features and Benefits:
- On vehicle length adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
- Vehicle specific, high clearance design for reduced link contact with obstacles
- Replaceable Nylon Rock Slider to protect the link from damage
- CNC machined 6061 aluminum construction
- Large FK Bearing JMX16T PTFE-lined rod ends
- Greaseable, multi-piece polyurethane bushings for maximum angularity and noise isolation
- Covered by ICON's Limited Lifetime Warranty
Details
- Color: Gray
- Material: Aluminium
- Finish: Anodized
- Adjustable: Yes
- Ball Joint Included: Yes
- Ball Joint Mounting Type: Thread In
- Ball Joint Stud Type: Threaded
- Bushing Color: Black
- Bushing Material: Rod End Bearing, Polyurethane
- Bushings Included: Yes
- Construction: Billet
- Control Arm Color: Silver
- Control Arm Construction: Billet
- Control Arm Material: Aluminum
- End 1 Type: Rod End Bearing
- End 2 Type: Bushing
- Grade Type: Performance
- Grease Fitting Included: Yes
- Mounting Hardware Included: Yes
- Pre Greased: No
- Reinforced: Yes
- Service Parts: 614509 - 54000 Bushing And Sleeve Kit
- Suspension Grade Type: Performance
- Suspension Type: Spring, Air
- Add On Part: 191013 - Nipple Greasing Adapter Kit
