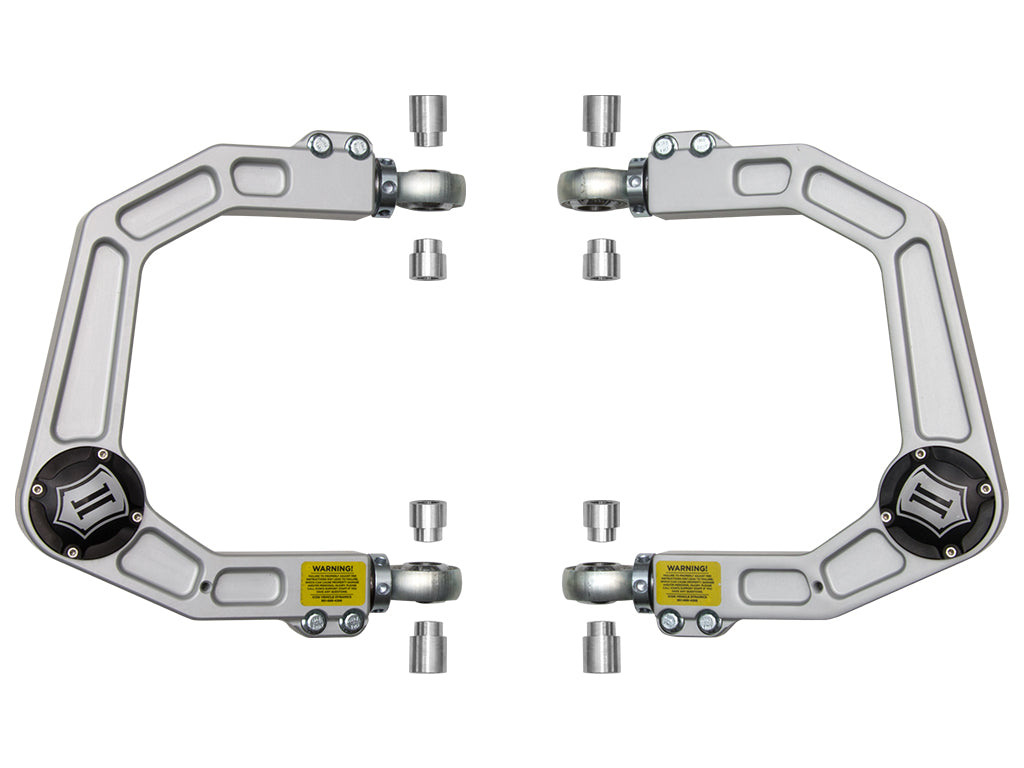

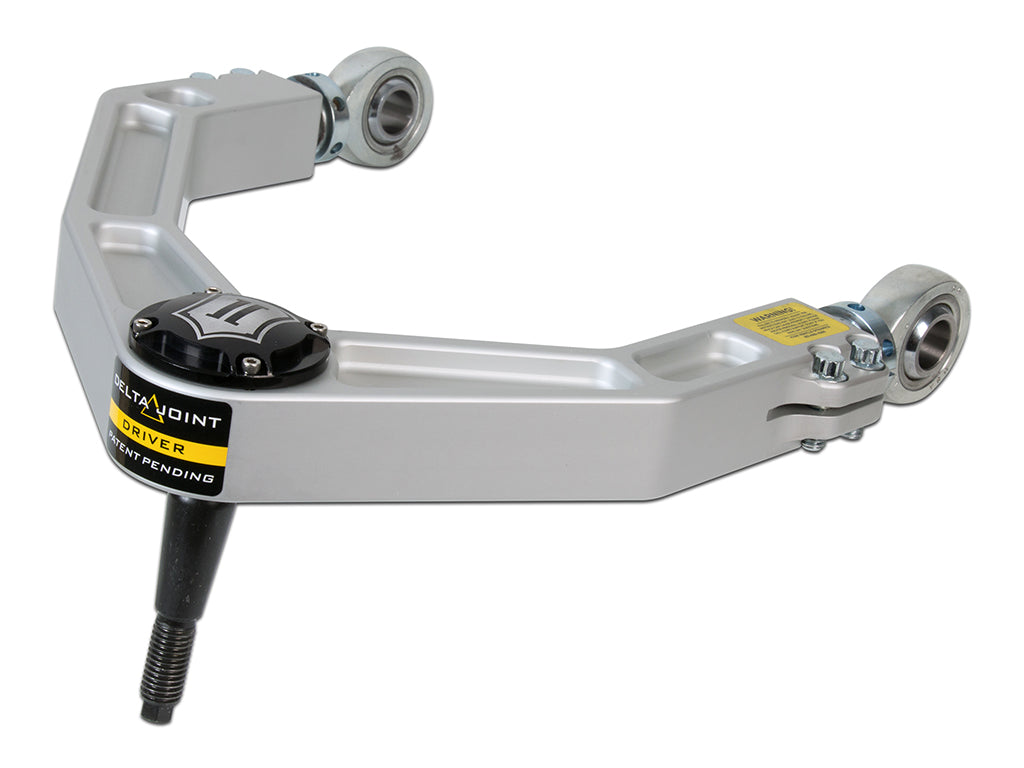

Take the performance of your 2005-2023 Toyota Tacoma to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit. All ICON billet upper control arms are constructed from CNC machined 6061 aluminum and then finished in a matte anodization process for maximum strength and corrosion resistance.
ICON billet aluminum upper control arms feature quality PTFE-lined rod ends and machined adjuster sleeves that allow for on-vehicle alignment adjustment and precision caster and camber tuning. Another major benefit of ICON upper control arms is the potential for increased wheel travel when paired with our extended travel coilovers.
The additional droop travel provided by these components translates into superior performance and ride quality for your 2005-2023 Toyota Tacoma. These upper control arms feature ICON's patented Delta Joint.
The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Features and Benefits:
- Features patended ICON Delta Joint (U.S. Pat. 10,731,700)
- CNC Machined 6061 Billet Aluminum Construction

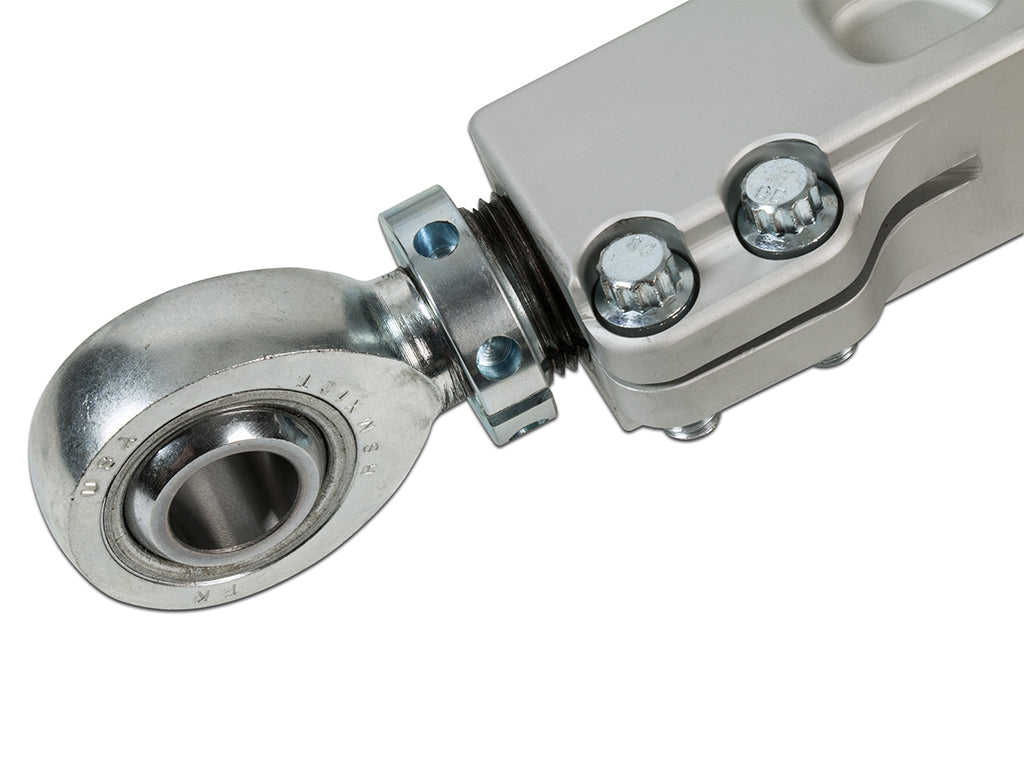

- High-Quality PTFE-lined AAAA Inch FK Rod Ends
- On-Vehicle Adjustable For Quick And Precise Alignment
- Caster and Camber Adjustability Allows For Fine Tuning Of Vehicle Handling
- Matte Anodized Finish Provides Exceptional Corrosion Resistance
- O-ring Sealed Delta Joint Cover Cap For Additional Protection From The Elements
Details
- Color: Gray
- Material: Aluminum
- Finish: Anodized
- Adjustable: Yes
- Adjustable Control Arm: Yes
- Ball Joint Included: Yes
- Ball Joint Mounting Type: Press In
- Ball Joint Stud Type: Threaded
- Bushing Material: Rod End Bearing
- Bushings Included: Yes
- Construction: Billet
- Control Arm Color: Gray
- Control Arm Construction: Tubular
- Control Arm Material: Aluminum
- End 1 Type: Rod End Bearing
- End 2 Type: Ball Joint
- Grade Type: Performance
- Grease Fitting Included: No
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Pre Greased: No
- Quantity: Pair
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset
- Service Parts: 614520 - Delta Joint Install Adapter And Shim
- Suspension Grade Type: Performance
- Add On Part: 191014 - .25 Inch Collar Spanner Pin Wrench, 191013 - Nipple Greasing Adapter Kit
