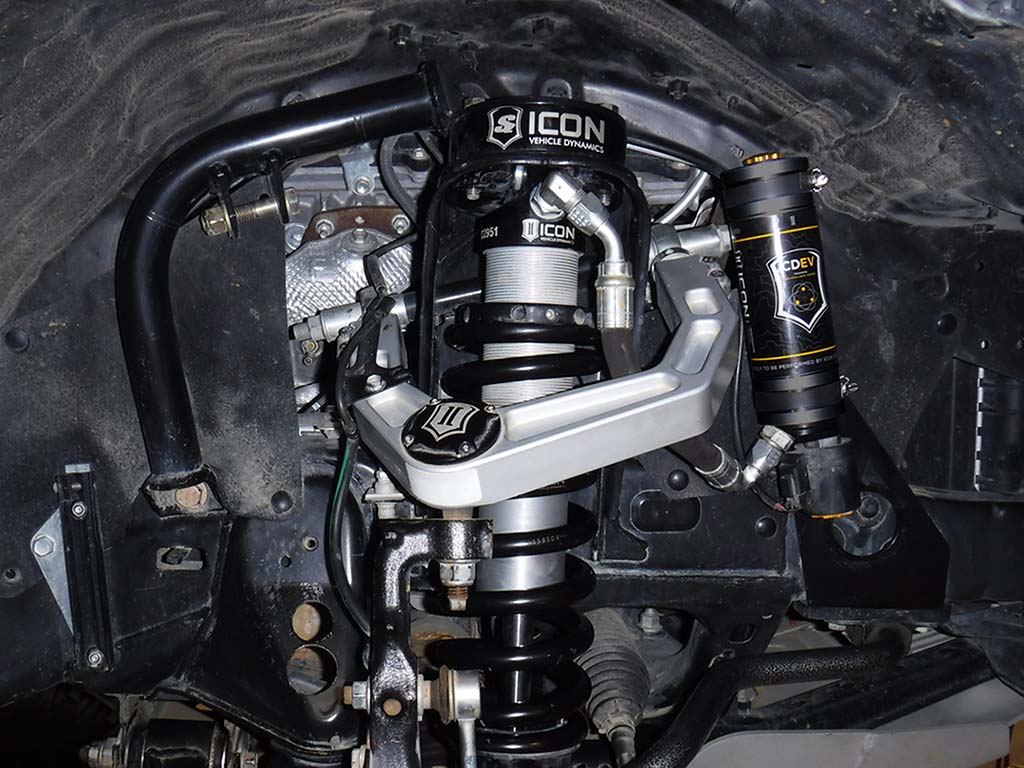

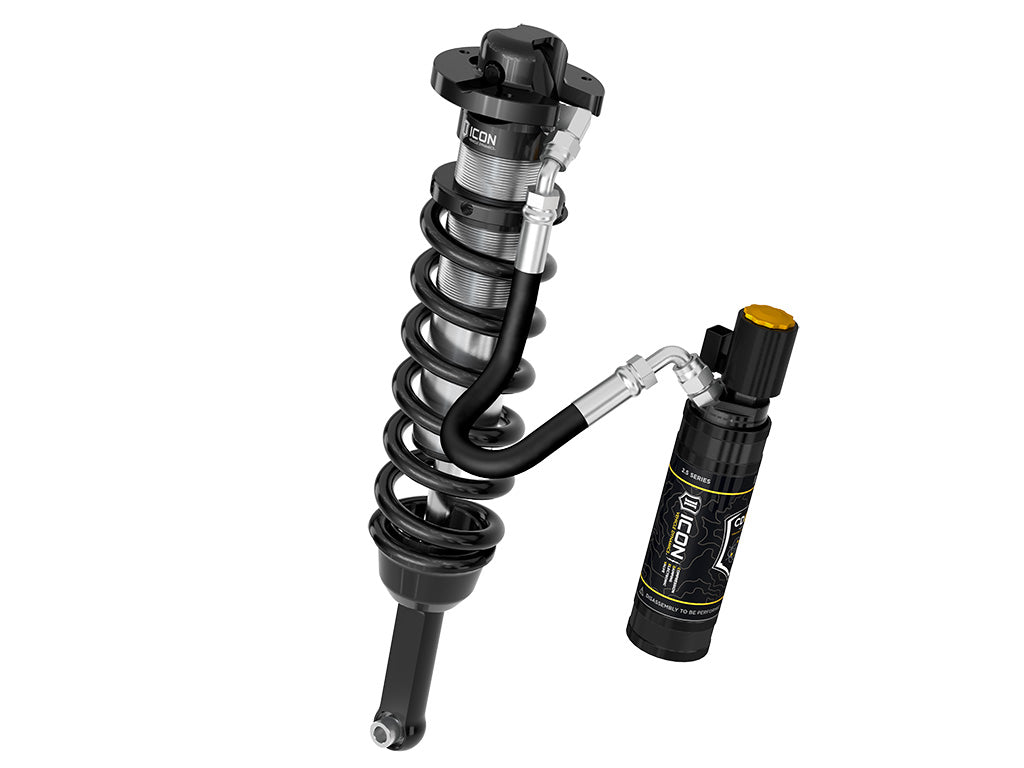

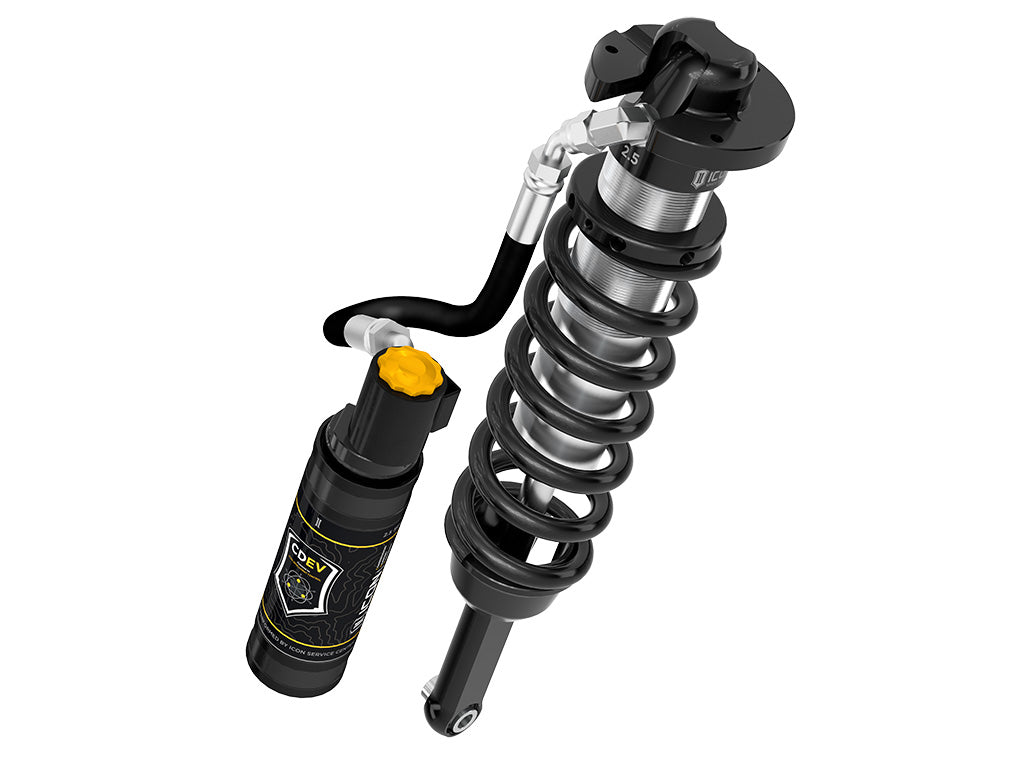

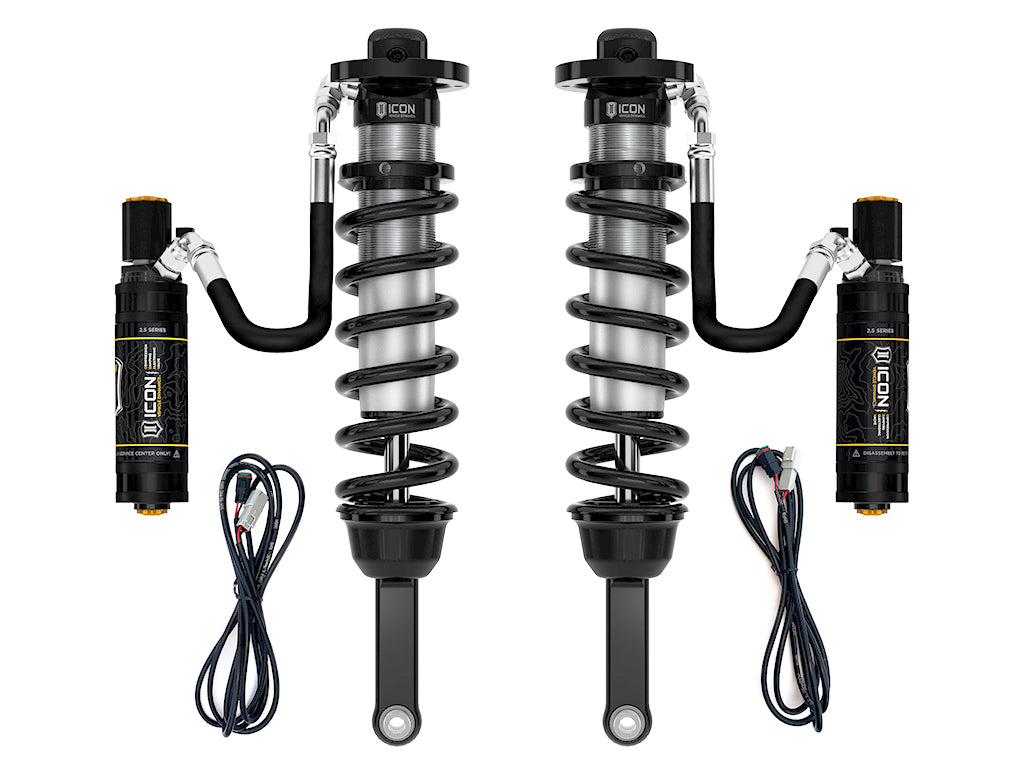

The ICON Vehicle Dynamics V.S. Series 2.5 Inch remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma.
ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5 Inch of lift height adjustability on 2005-2015 Tacomas or 0-2.75 Inch of lift height adjustment on 2016-2023 models for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Features and Benefits:
- Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 0-3.5 Inch (2005-2015 models) or 0-2.75 Inch (2016-2023 models) of lift height over stock
- ICON engineered coil springs with 700 lbs/in spring rate
- External reservoirs to attain cooler operating temperatures during extended off-road use
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8 Inch induction hardened, chrome plated shafts
- FK rod end bearings for extended longevity and minimal deflection
- Bolt-on kit - no cutting or welding necessary for installation
- 100 Percent Rebuildable
- 100 Percent Revalveable
Details
- Material: Steel, Aluminum
- Active Or Passive Suspension: Active
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Assembled: Yes
- Body Diameter: 2.5 Inch
- Coil Over Springs Included: Yes
- Compressed Length: 17.42
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Cylinder Material: Steel
- Damping Adjustment Type: Electronic
- Damping Type: Oil
- Dust Shield Included: No
- Extended Length: 22.57
- Front Spring Rate: 700 Inch
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: No
- Internal Construction Type: Single Tube
- Lower Mount Type: Eyelet
- Maximum Lift: 3.5 Inch
- Maximum Ride Height Raising Distance: 3.5
- Minimum Lift: 0.0 Inch
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
- Remote Reservoir: Yes
- Reservoir Style: Remote
- Self Leveling: No
- Service Parts: 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 254100G - 1 Gallon Icon Performance Shock Oil, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 611067 - Tacoma/FJ Cruiser 4RNR Lower Co Brg/Spcr Kit, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 611019 - Coilover Hardware Kit Pair, 252001 - 2.5 Fixed Spanner Wrench, 252003 - Seal Install Tool 2.5/3.0
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
- Travel Length: 5.16
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
- Add On Part: 57826Ep - 05-23 Tacoma RXT Rear 2.5 VS RR CDEV Pair, 252012 - -4 To -10 Hose Shield Kit, 198001 - Billet Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 53502 - 16-23 Tacoma Iic Install Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit
