Description

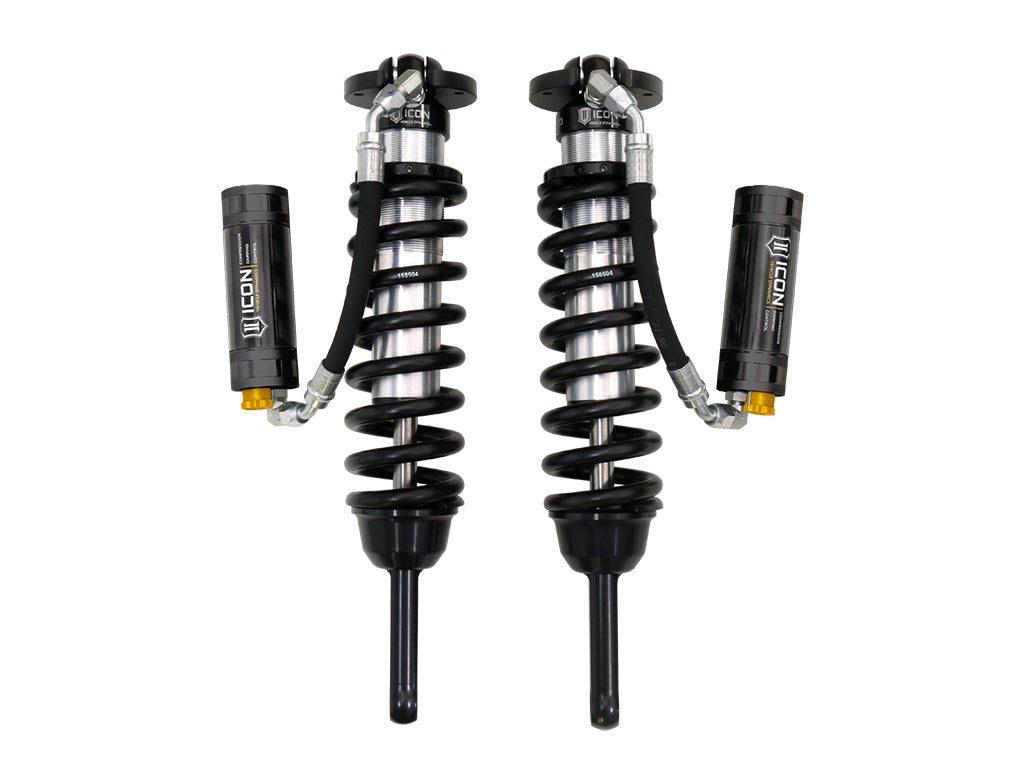

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5 Inch of lift height adjustability on 2005-2015 models or 0-2.75 Inch of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations.
ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance.
CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
Features and Benefits:- Height-adjustable coilovers offer 0-3.5 Inch or 0-2.75 Inch of lift height adjustment depending on year model
- Vehicle specific tuned for superior shock damping and control
- Extended Travel length requires installation of aftermarket front upper control arms
- Kit Includes Sway bar relocation brackets
- Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
- CAD-plated threaded body
- Billet aluminum upper mount
- 5/8 Inch PTFE-lined spherical bearings
- Completely re-buildable
- Hose Length Optimized for Increased Fluid Transfer
- External Reservoirs Ensures Maximum Cooling
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil springs
- Material: Steel, Aluminum
- Active Or Passive Suspension: Passive
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Assembled: Yes
- Body Diameter: 2.5 Inch
- Compressed Length: 17.42
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Cylinder Material: Steel
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Dust Shield Included: No
- Extended Length: 22.57
- Front Spring Rate: 650 Inch
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: No
- Internal Construction Type: Single Tube
- Lower Mount Type: Eyelet
- Maximum Lift: 3.5 Inch
- Maximum Ride Height Raising Distance: 3.5
- Minimum Lift: 0.0 Inch
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset
- Remote Reservoir: Yes
- Reservoir Style: Remote
- Self Leveling: No
- Service Parts: 611067 - Tacoma/FJ Cruiser 4RNR Lower Co Brg/Spcr Kit, 252003 - Seal Install Tool 2.5/3.0, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252001 - 2.5 Fixed Spanner Wrench, 611019 - Coilover Hardware Kit Pair, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 191016 - 7.5 Inch Finned Resi Upgrade Kit, 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 254100G - 1 Gallon Icon Performance Shock Oil
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
- Travel Length: 5.16
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
- Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 51045 - Toyota .25 Inch Bump Stop Spacer Kit, 198001 - Billet Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit
