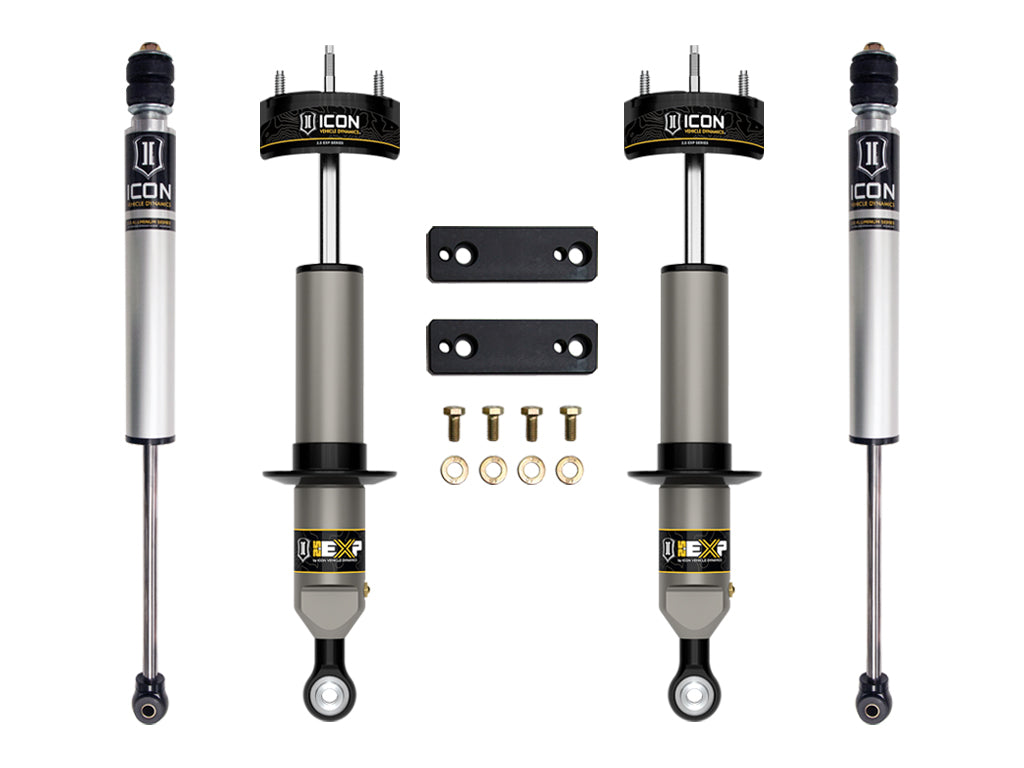

The ICON Vehicle Dynamics Stage 1 EXP suspension system for the 2005-2023 Toyota Tacoma represents our entry level performance suspension system providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 33 Inch tires. This system features the innovative new 2.5 EXP series coilover shocks along with our proven 2.0 Aluminum Series nitrogen charged monotube shocks for the rear.
Features and Benefits:
- This Stage 1 system features the 2005-2023 Toyota Tacoma EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Tacoma's factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers providing 0-2 Inch of suspension lift, custom-tuned performance and maximum travel all in an economical package.
- The included sway bar relocation brackets help minimize sway bar link bind through the suspension travel range and offer's sway bar clearance from the EXP coilovers. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.
- Rounding out the Stage 1 EXP suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2005-2023 Tacoma. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tacoma.
- Vehicle specific design for 2005-2023 Toyota Tacoma
- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 0-2 Inch of front lift over stock with the use of snap ring
- Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
- Allows for full wheel travel without overstressing OE components
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
Details
- Adjustable Damping: No
- Bushings Included: Yes
- Grade Type: Performance
- Maximum Lift Front: 2.0 Inch
- Minimum Lift Front: 0.0 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Minor Fender Trimming May Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 18x9 With 5.00 Inch Backspace / 0mm Offset, 20x9 With 5.00 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 With 4.75 Inch Backspace / 0mm Offset
- Shocks Included: Yes
