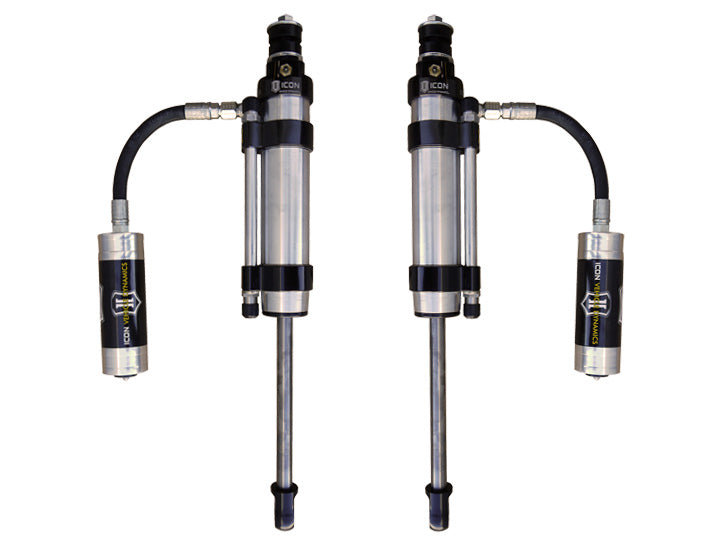

ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves.
Like all ICON shock absorbers, Omega Series shocks are 100 Percent rebuildable and 100 Percent revalveable. ICON's use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal InchBump Zone Inch that when used, creates a significant increase in damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.
Features and Benefits:
- ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
- Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
- Bypass tubes are replaceable in the event of damage
- Internal InchBump Zone Inch increases damping force to provide more control as the shock approaches full compression
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8 Inch diameter induction hardened, chrome plated shock shaft
- Polyurethane bushings and forged steel mounting stems for OE factory type fitment
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100 Percent Rebuildable
- 100 Percent Revalveable
Details
- Adjustable Damping: Yes
- Boot Included: No
- Bore Diameter: 2.25
- Cylinder Color: Gray
- Cylinder Diameter: 2.5
- Cylinder Material: Aluminum
- Damping Adjustment Type: Manual
- Damping Type: Oil
- External Reservoir: Yes
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Mounting Hardware Included: Yes
- Service Parts: 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252003 - Seal Install Tool 2.5/3.0, 257339 - 7/8 Shaft 13.25 Oal, 9.00 Travel, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252001 - 2.5 Fixed Spanner Wrench, 254100G - 1 Gallon Icon Performance Shock Oil, 611006 - 9/16 HD Stem Bushing Kit, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Shoulder Of Stem
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Tube Outside Diameter: 2.5
- Upper Mount Type: Stem
- Add On Part: 252008 - 2.5 X 13 Shock Boot Black (Pair), 252012 - -4 To -10 Hose Shield Kit
