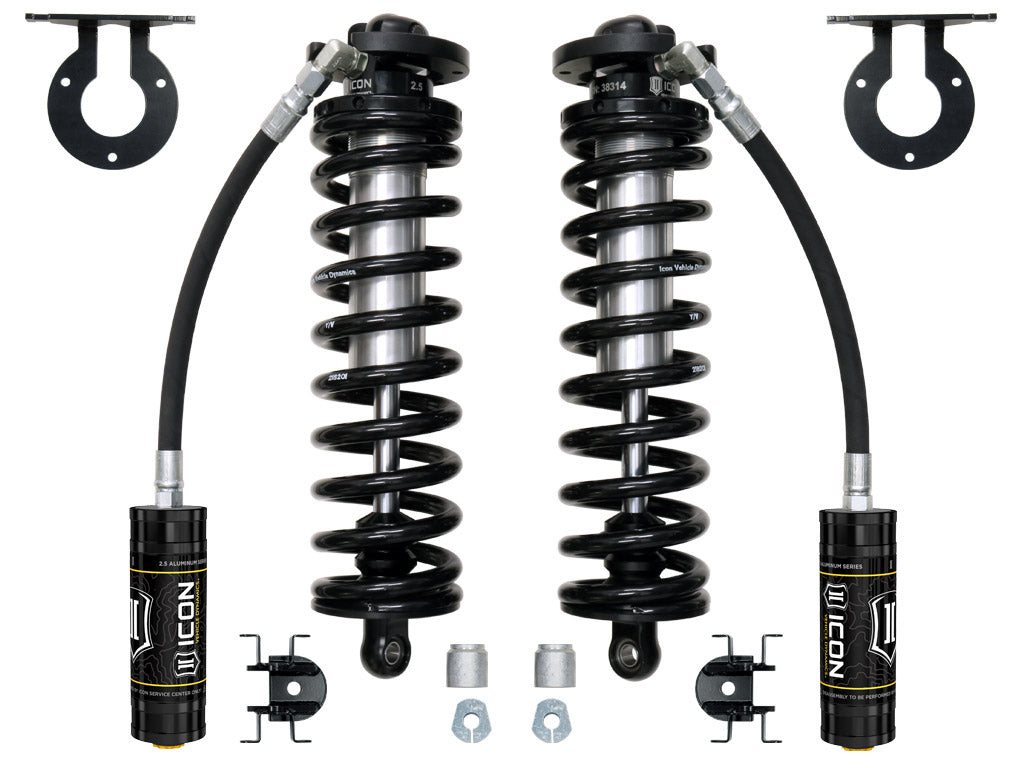

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2023 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment.
The 2.5 Inch Remote Reservoir Coilover featured in these kits is based off of ICON's 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
Features and Benefits:
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers provide 2.5-3 Inch or 3.25-3.75 Inch of lift, depending on year model of truck
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft
- Eibach coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
Details
- Material: Aluminum, Steel
- Active Or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Alignment Cams Included: Yes
- Assembled: Yes
- Body Diameter: 2.5 Inch
- Coil Over Springs Included: Yes
- Compressed Length: 12.75
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Cylinder Material: Steel
- Damping Type: Oil
- Dust Shield Included: No
- Extended Length: 19.71
- Front Spring Rate: 400 Inch
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: Yes
- Internal Construction Type: Single Tube
- Lower Mount Type: Eyelet
- Maximum Lift: 3.0 Inch
- Maximum Ride Height Raising Distance: 3.0
- Minimum Lift: 2.5 Inch
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset
- Remote Reservoir: Yes
- Reservoir Style: Remote
- Self Leveling: No
- Service Parts: 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252001 - 2.5 Fixed Spanner Wrench, 254100G - 1 Gallon Icon Performance Shock Oil, 252003 - Seal Install Tool 2.5/3.0, 257337 - 7/8 Shaft 11.25 Oal, 7.00 Travel, 611019 - Coilover Hardware Kit Pair, 252002 - Universal Spanner Wrench (2.0/2.5/3.0)
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
- Travel Length: 6.96
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
- Add On Part: 252012 - -4 To -10 Hose Shield Kit, 64038 - 17-25 FSD Adj Track Bar Kit, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit, 61111 - 17-25 FSD Front 2.5 Inch Extended Ss Brake Line Kit, 64035 - 05-16 FSD Adj Track Bar W/Fk Rod End
