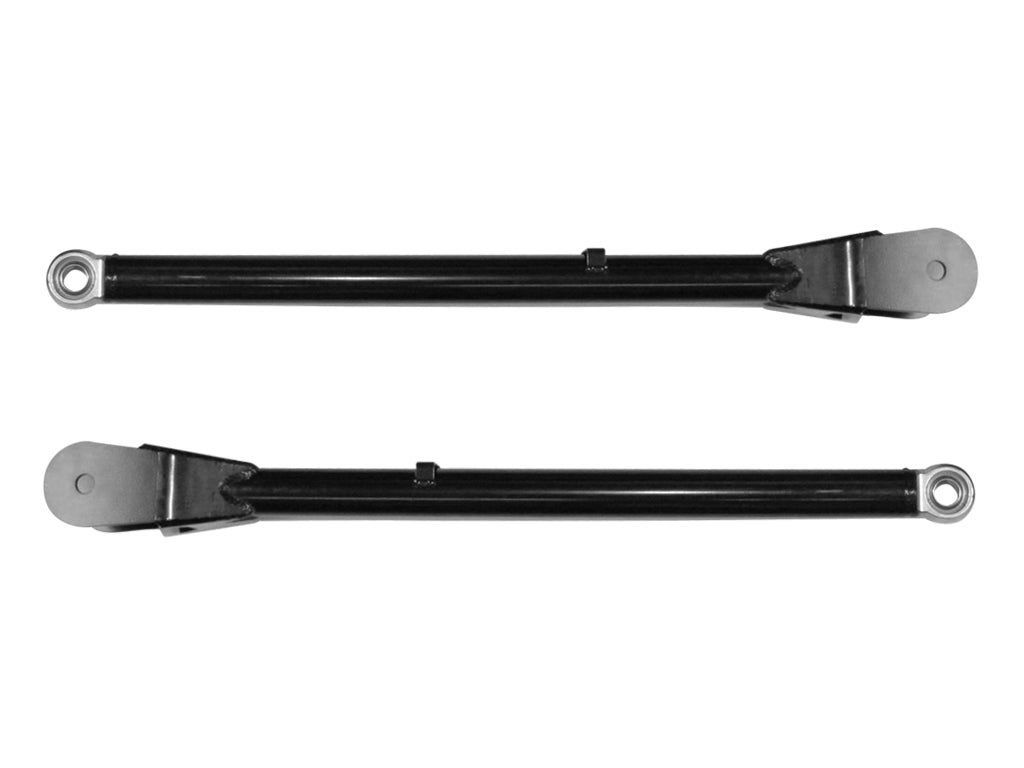

These upper links are an essential component of the ICON 2005-2022 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range.
The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness.
Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.
Features and Benefits:
- The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
- 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
- Improves front end articulation and overall drivability
- Allow on-vehicle caster adjustment via ICON double adjusters in lower links
- Upper links are constructed from CNC machined 2 Inch x .188 Inch wall DOM steel tubing
- PTFE lined FK spherical bearings eliminate deflection
- Corrosion resistant semi-gloss black powder coat finish
- Fabricated components covered under ICON's Limited Lifetime Warranty
Details
- Adjustable: No
- Bushing Material: Rod End Bearing
- Grade Type: Performance
- Service Parts: 614512 - 64031/214030 Bearing And Ret Ring Kit
- Tubing Color: Black
- Tubing Material: Steel
