Get the ultimate look and performance for your Toyota Tacoma with the BDS 6-inch suspension lift kit featuring FOX 2.5 Performance Elite (PE) coil-overs and shocks. These kits feature the new aluminum-bodied FOX 2.5 Performance Elite (PE) coil-over shocks designed specifically to bolt-on performance for increased travel, more adjactability via DSC adjustment, and better heat dispersion allowing you to soak up the roughest terrain on and off-road. Designed to improve stance, performance, and capability, BDS includes everything necessary to set your truck up right with clearance for up to 35 inch tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, this kit pairs the FOX 2.5 PE Coil-Overs with high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.
Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing factory tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, FOX reservoir mounts and supplied hardware packs provide a comprehensive front suspension lift ready for whatever you throw at it.

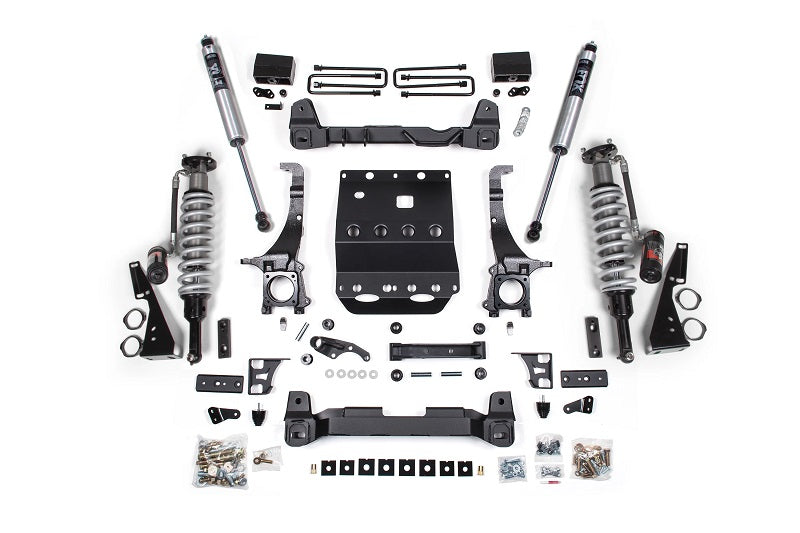

In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts to lift and level the stance without effecting load capacity. For shocks you have the option of FOX 2.0 IFP performance series gas shocks or upgrade to the FOX 2.5 Performance Elite (PE) series remote reservoir shocks to match the front and further enhance vehicle performance and adjustability.
FOX 2.5 PE Coil-Overs:
FOX 2.5 Performance Elite (PE) coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these aluminum bodied FOX 2.5-inch diameter coil-overs are the latest iteration of FOX suspension technology built for abuse.
Lighter design, better heat dispersion, and race-proven components for the best all around product. These include DSC (Dual Speed Compression) adjusters on the remote reservoir for additional fluid capacity and high-speed/low-speed compression tuning to easily dial in performance to
match any terrain with the turn of the knobs.
HD Components:
All BDS kits come with a No Fine Print Warranty and to ensure our kits are the best they can be we use high-strength American steel, high clearance and fully welded crossmembers, the latest
manufacturing processes and quality inspection every step of the way. Get the most out of your truck with BDS Suspension and FOX.
Features:
- Features FOX 2.5 Performance Elite series coilovers and choice of FOX 2.0 or 2.5 (PE) rear shocks for improved ride quality,
- performance, and capability
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Notes:
- 1. Will not work on TRD Pro Models
- 2. Minor welding required
- 3. Requires frame bracket modification
- 4. Stock wheels cannot be reinstalled
- 5. System will work on 2WD PreRunner models
- 6. Kit requires 18 Inch or larger wheels, 17 Inch wheels cannot be used.
Kit Components by Option:

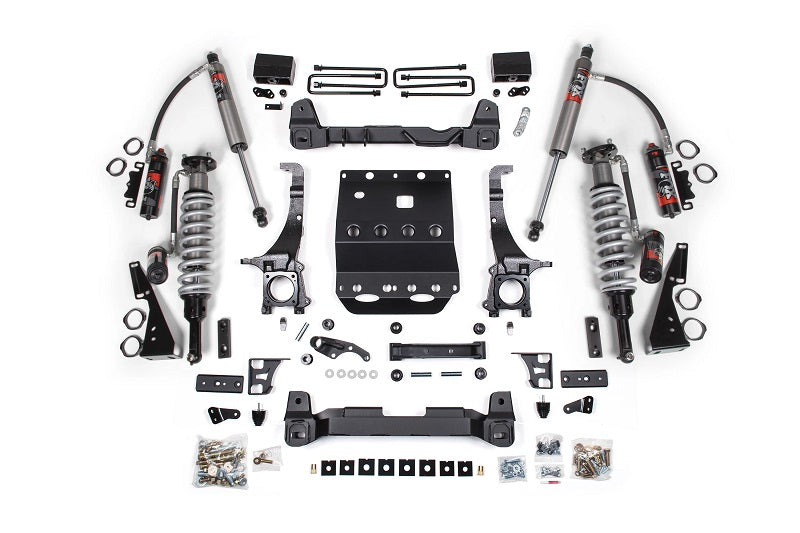

FOX 2.5 Performance Elite (BDS815PES):
- BDS 05-23 Toyota Tacoma, Front Coilover,
- 2.5 Truck PES, R/R, DSC,
- 6 Inch Lift,
- Kit: BDS 05-23 Toyota Tacoma, Rear, 2.5 Truck PES, R/R, DSC,
- 4-6 Inch Lift, 2005-2023 Toyota Tacoma 4 Inch Rear Block Kit,
- 2005-2023 Toyota Tacoma Knuckle Box Kit - DS,
- 2005-2023 Toyota Tacoma Knuckle Box Kit - PS,
- 2005-2015 Tacoma Crossmember Box Kit,
- 2005-2015 Tacoma 4-6 Inch Front Box Kit
