Description
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

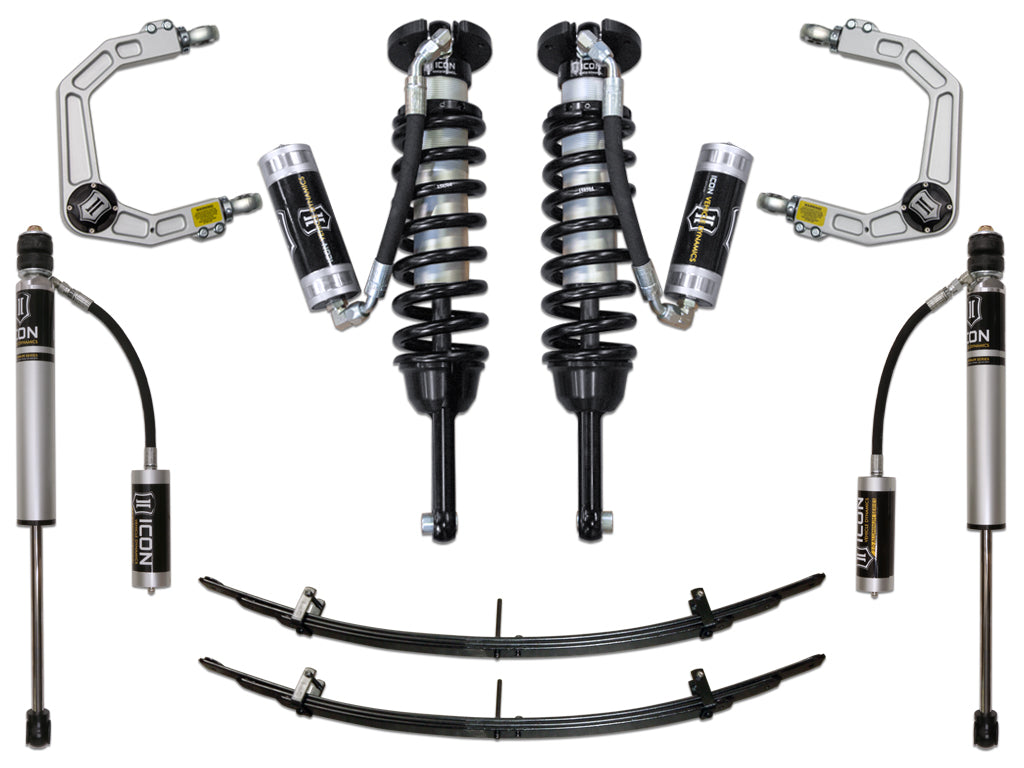

The Stage 4 system includes vehicle-specific tuned 2.5 Inch Extended Travel coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are also height adjustable from 0-3.5 Inch of lift on 2005-2015 or 0-2.75 Inch on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations.
When used with an ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance.
Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10 Percent for a more compliant ride while also providing 1.5 Inch of rear lift over stock.
ICON 2.0 Aluminum Series Remote Reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Features and Benefits:- This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
- Adjustable coilovers provide up to 3.5 Inch of front lift height on 2005-2015 models and up to 2.75 Inch on 2016-2023 models
- Extended Travel coilovers offer maximum wheel travel
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8 Inch shafts
- FK Rod End bearings for extended longevity and minimal deflection
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
- 2.0 Aluminum Series remote reservoir rear shocks with 5/8 Inch shafts
- Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5 Inch of rear lift
- Adjustable Damping: No
- Aftermarket Wheels: 8 Inch Wide Wheel With 5 Inch Backspace
- Bushings Included: Yes
- Coil Quantity Front: 2.0
- Front Spring Rate 1: 650.0
- Front Spring Rate Type: Linear
- Grade Type: Performance
- Leaf Spring Leaf Quantity: 3.0
- Maximum Lift: 3.5 Inch
- Maximum Lift Front: 3.5 Inch
- Maximum Lift Rear: 1.5 Inch
- Minimum Lift Front: 0.0 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Rear Spring Rate Type: Linear
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 20x9 With 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 With 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 With 5 Inch Backspace / 0mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 191013 - Nipple Greasing Adapter Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 252012 - -4 To -10 Hose Shield Kit, 51045 - Toyota .25 Inch Bump Stop Spacer Kit, 198001 - Billet Spanner Wrench Kit, 191014 - .25 Inch Collar Spanner Pin Wrench
