Description

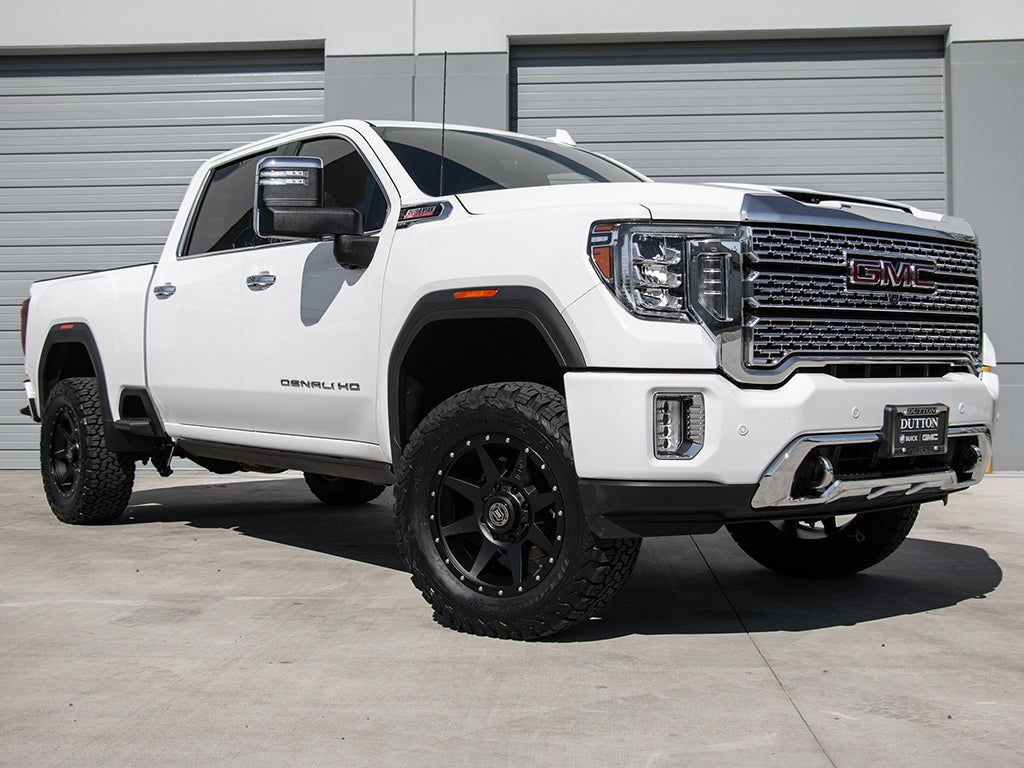

Take the performance of your 2020-Up GM HD truck to new levels with the ICON Vehicle Dynamics Delta Joint billet upper control arm kit. These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties.
FK Rod End 3/4 Inch heim joints provide precise and smooth function throughout the range of travel while also allowing for additional camber and caster adjustment for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the increased wheel travel when paired with our 2.5 series shock absorbers, this translates into superior performance and ride quality for your 2020-Up GM HD.
Features and Benefits:- These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

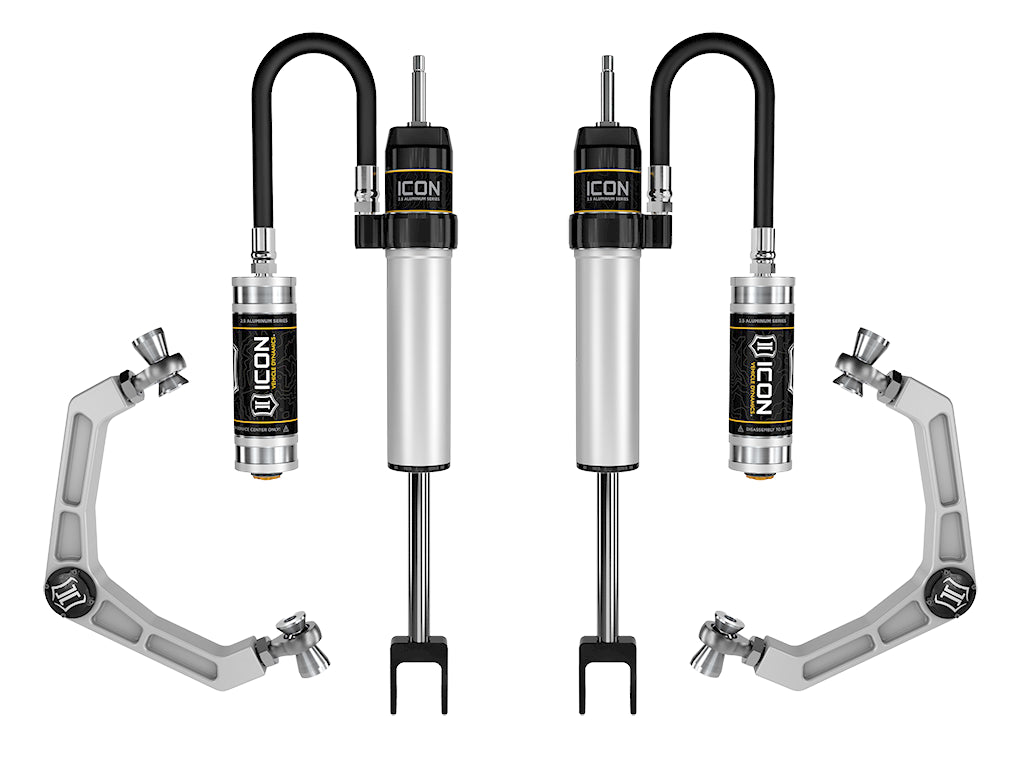

- To ensure compatibility, ICON is no longer offering GM 2500HD/3500HD upper control arms as individual components. Upper control arms can only be purchased in unison with ICON shock absorbers as a complete system. The included ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all of ICON's Shock Absorbers, the V.S. 2.5 Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
- Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
- PTFE Lined 7/8 Inch FK Rod Ends for improved response
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Nitrogen charged monotube design with remote reservoir
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)
- ICON's internal Bump Zone increases damping by 20 Percent to provide more control as the shock approaches full compression
- Built in o-ring sealed dust cover cap
- Vehicle specific taper pin provides OE-like fitment
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 7/8 Inch diameter induction hardened, chrome plated shock shaft
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100 Percent Rebuildable
- 100 Percent Revalveable
- CNC machined 6061 billet aluminum construction for light weight and exceptional strength
- Additional camber and caster adjustability allows for precise wheel alignment
- Finish: Powdercoated
- Adjustable: No
- Ball Joint Included: Yes
- Ball Joint Mounting Type: Press In
- Ball Joint Stud Type: Threaded
- Bushing Color: Gold
- Bushing Material: Rod End Bearing
- Bushings Included: Yes
- Control Arm Color: Silver
- Control Arm Construction: Billet
- Control Arm Material: Aluminum
- Grade Type: Performance
- Grease Fitting Included: Yes
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Pre Greased: Yes
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.5 Inch Backspace / 12mm Offset, Icon Alloys - 18x9 Inch W/ 5.5 Inch Backspace / 12mm Offset
- Service Parts: 614520 - Delta Joint Install Adapter And Shim
- Suspension Grade Type: Performance
- Add On Part: 191013 - Nipple Greasing Adapter Kit, 77202 - 20-Up GM HD Front Splash Guard Kit
/
