Tougher, stronger and more capable - That's the motto that General Motors used when debuting the all-new fleet of heavy-duty trucks in 2020. ICON Vehicle Dynamics stayed true to GM engineers' thought process with the development of our suspension systems for the 2020-UP GM HD 2500/3500 trucks.

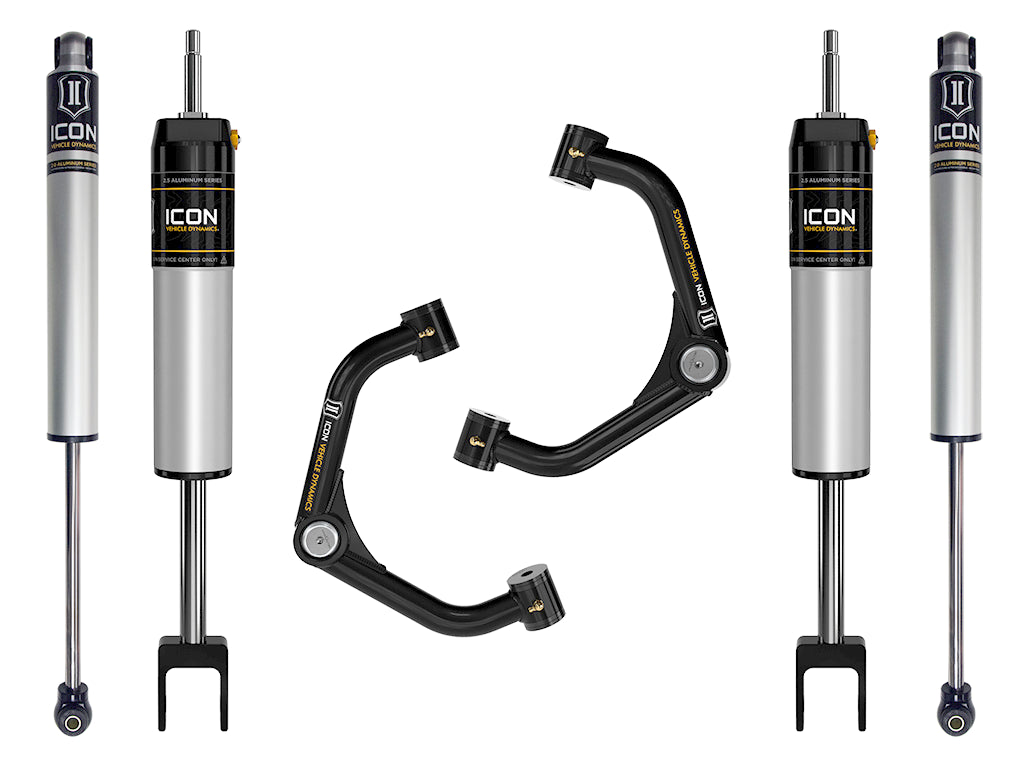

Using ICON's holistic engineering philosophy, our R&D team went above and beyond to develop several stages of complete suspension systems that provide varying levels of adjustability, capability, and overall vehicle performance. ICON's Stage 1 system is comprised of V.S. 2.5 Aluminum Series internal reservoir front shocks, 2.0 Aluminum Series internal reservoir rear shocks, and tubular Delta Joint upper control arms.
The ICON vehicle specific tuned 2.5 Inch front shocks are the key to attaining optimum ride quality and getting that desired comfort with the 3/4 & 1-ton working capability. Additionally, ICON upper control arms improve alignmemt specs, add strength, durability, and when paired with extended travel shocks increases wheel travel 2 inch over the OEM configuration.
While driving the construction site or trails to your favorite dirt bike location, ICON wants you to get there in comfort just like your drive to work.
Features and Benefits:
- This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- 0-2 Inch Adjustable lift height over stock
- Vehicle specific tuned 2.5 Inch front and 2.0 Inch rear shocks for superior shock damping and control
- Improved ride quality over stock with no change in towing capacity
- Wheel travel increase of 2 inch over stock
- 100 Percent Bolt-on system - no drilling, cutting, or welding necessary for install
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant anodized aluminum shock bodies
Details
- Bushings Included: Yes
- Grade Type: Performance
- Maximum Lift: 2.0 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.5 Inch Backspace / 12mm Offset, Icon Alloys - 20x9 Inch W/ 5.5 Inch Backspace / 12mm Offset
- Shocks Included: Yes
- Add On Part: 614700 - 2.0 Shock Boot Kit (Each), 191011 - Tubular UCA Billet Cap Set, 77202 - 20-Up GM HD Front Splash Guard Kit
