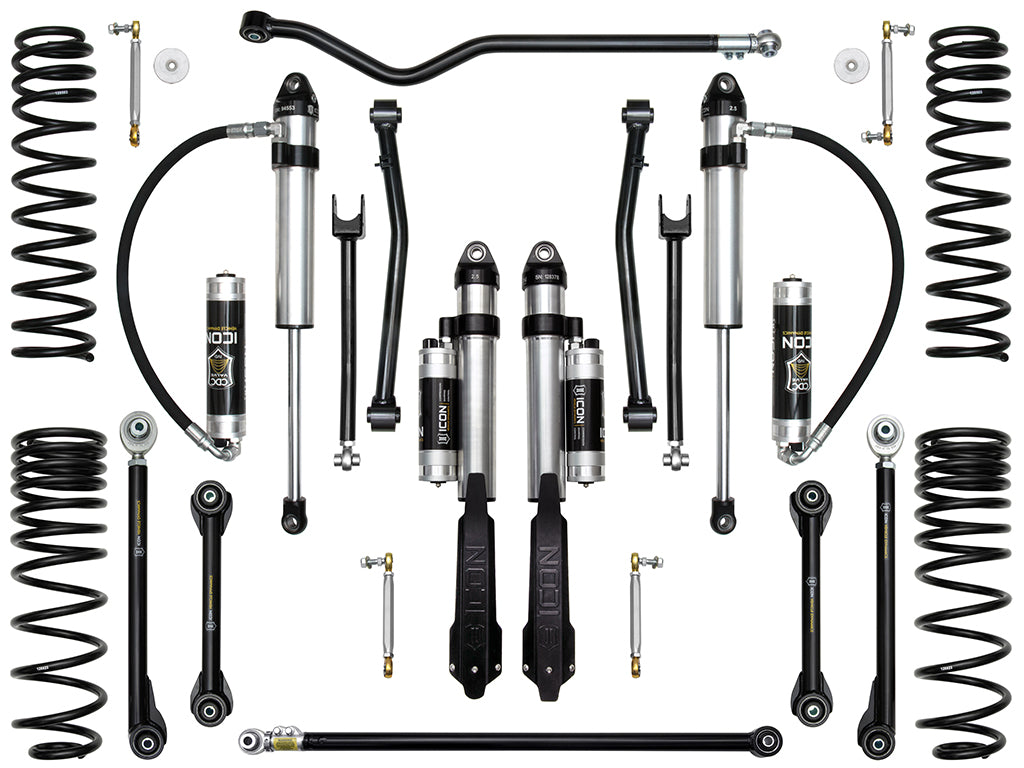

The Stage 8 ICON 2.5 Inch Suspension System for the Jeep Gladiator is the ultimate setup for drastically improving off-road performance and providing an end-user adjustable ride quality for the application that will see heavy off-road use across a wide variety of vehicle loadouts and terrains. This complete suspension system features ICON's proven 2.5 Aluminum Series shocks with CDC Valve technology, 2.5 Inch lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, tubular steel fixed upper and adjustable lower rear links, a billet rear sway bar link kit, front and rear adjustable track bars, and all necessary hardware for install.
This system provides an increase of over 30 Percent front and 20 Percent rear wheel travel and was designed around the use of a 35 Inch tire. For those looking to run a 37 Inch tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
Features and Benefits:
- 2.5 Inch lift height
- Fits 35 Inch tires (37 Inch with extended bump stop spacer kit)
- 33 Percent front, 23 Percent rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Front upper and lower links included for caster angle correction and improved front end articulation
- Rear tubular upper and lower links improve rear end articulation and allow for pinion angle adjustment
- Dual rate front coil springs with lifetime guarantee against sagging/breakage
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations
- Front and rear track bars ensure proper alignment and improved articulation
- Adjustable, billet aluminum front sway bar links
- 100 Percent bolt-on system makes for an easy install
- InchICON 1K Inch tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Details
- Bushings Included: Yes
- Coil Spring End 1 Type: Open
- Coil Spring End 2 Type: Open
- Coils Quantity Front: 2.0
- Coils Quantity Rear: 2.0
- Grade Type: Performance
- Maximum Lift: 2.5 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (37 Inch X 12.50 Inch With Optional Bump Stop Spacer Kit Part # 22071)
- Recommended Aftermarket Wheels: Icon Alloys - 18x9 W/ 4.5 Inch Backspace / -12mm Offset, Icon Alloys - 17x8.5 W/ 4.5 Inch Backspace / -6mm Offset, Icon Alloys - 20x9 W/ 4.5 Inch Backspace / -12mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 252012 - -4 To -10 Hose Shield Kit, 611070 - 20-Up JT Mojave Front 2.5 Misalignment Spacer Kit, 191014 - .25 Inch Collar Spanner Pin Wrench, 22038 - 18-23 JL/20-23 JT 2.0 Centerline Stabilizer Kit, 22071 - 20-Up JT Extended Bump Stop Spacer Kit, 22042 - 20-Up JT / 18-Up JL / 07-18 JK Front Hyd Bump Stop Kit
