Improve the ride and style of your Jeep Wrangler JL 4 Door with this 2-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right withclearance for up to 35 inch Tires while maintaining the factory rake at an affordable price
The lift kit includes front and rear BDS Pro-Ride Coil Springs, bump stop extensions, front lower control arm cam locks, JKS quicker disconnects to unlock the front suspension's potential to flex while maintaining quiet on road operation, rear sway bar links, and your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
- Front Lift Method: Coil Spring
- Rear Lift Method: Coil Springs
- Shocks Included: Yes
- Front Lift Height: 2 inch
- Rear Lift Height: 2 inch
- Non-Rubicon comes from the factory at a lower ride height, and will net slightly over 2 inch - final stance is the same for all models
- Stock wheels cannot be reinstalled without spacers due to rear sway bar interference.
- Will not fit 4xe models.
- Will not fit Rubicon 392 models.
- Does not fit Diesel models
- ProRide coil springs offer improved ride quality and more articulation
- Sway bar quicker disconnects and extended rear link for improved offroad flex
- Front track bar relocation bracket to correctly position the front axle
- Rear track bar bracket repositions rear axle under vehicle
- Lower cam locks to correct caster for alignment
- Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
- Allows clearance for 35 inch Tires
Kit Components by Option:

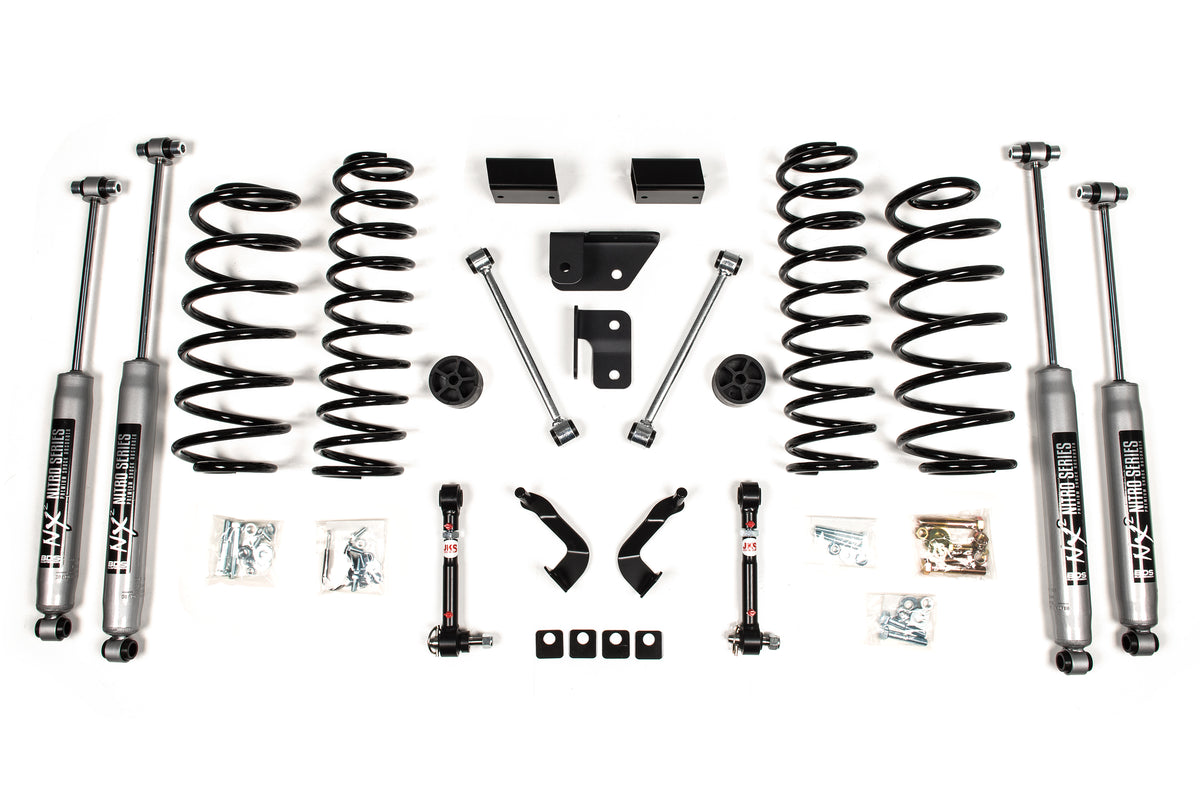

NX2 Nitro Series (BDS1435H):
- Includes one BDS014230, 2018-2025 Jeep Wrangler JL 2 inch Lift Box Kit, UPC Code 658848613922
- Includes one BDS034240, 2018-2025 Jeep Wrangler JL 2 inch Front Coil Spring Box Kit, UPC Code 658848616725
- Includes one BDS034246, 2018-2025 Jeep Wrangler JL 2 inch Rear Coil Spring Box Kit, UPC Code 658848616732
- Includes two BDS85782, 2018-2025 Shock - 26.2 x 15.67 x 2-3/8 - EB1/EB1, UPC Code 711745609785
- Includes two BDS85787, 2018-2025 Shock - 29.78 x 17.59 x 2-3/8 - EB1/EB1, UPC Code 711745609792

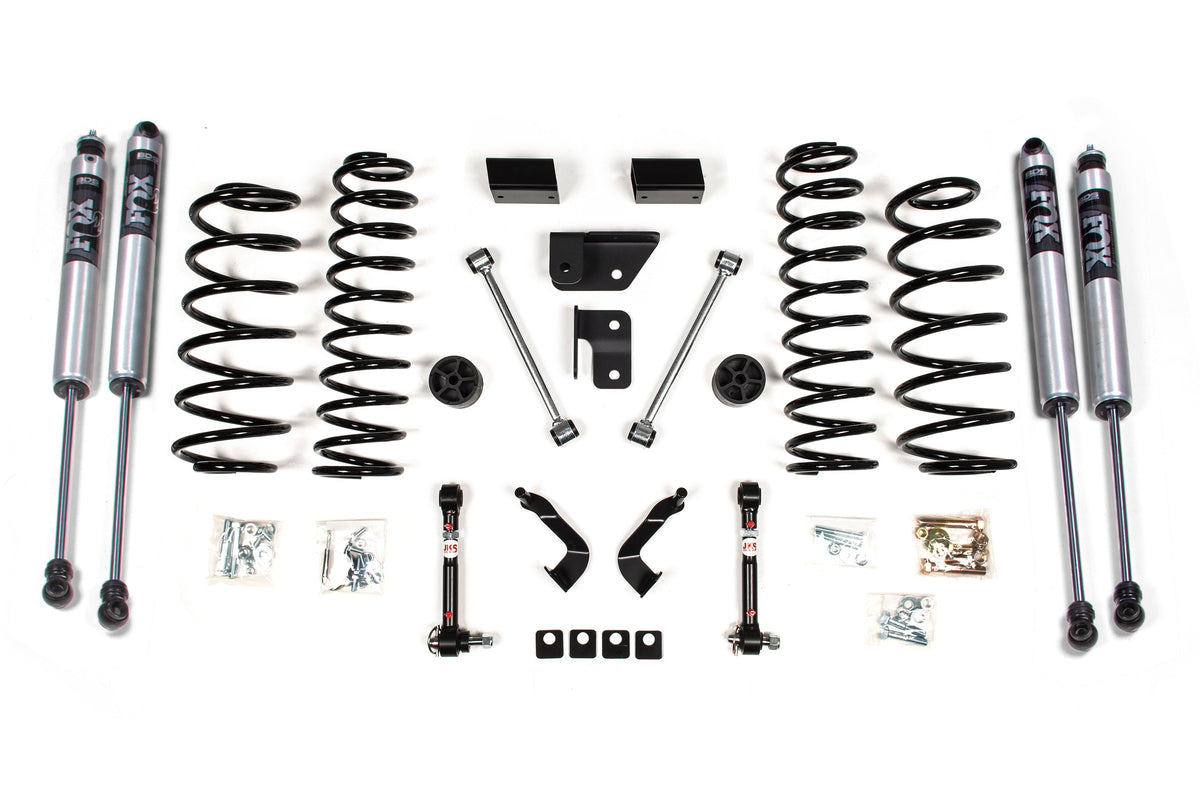

FOX 2.0 Performance Series (BDS1435FS):
- Includes one BDS014230, 2018-2025 Jeep Wrangler JL 2 inch Lift Box Kit, UPC Code 658848613922
- Includes one BDS034240, 2018-2025 Jeep Wrangler JL 2 inch Front Coil Spring Box Kit, UPC Code 658848616725
- Includes one BDS034246, 2018-2025 Jeep Wrangler JL 2 inch Rear Coil Spring Box Kit, UPC Code 658848616732
- Includes two FOX98524177, 2018-2025 Jeep JL Front, PS, 2.0, Internal Floating Piston, 9.6 inch, 2-3 inch Lift, UPC Code 788000423745
- Includes two FOX98524178, 2018-2025 Jeep JL Rear, PS, 2.0, Internal Floating Piston, 11.1 inch, 2-3 inch Lift, UPC Code 788000423783

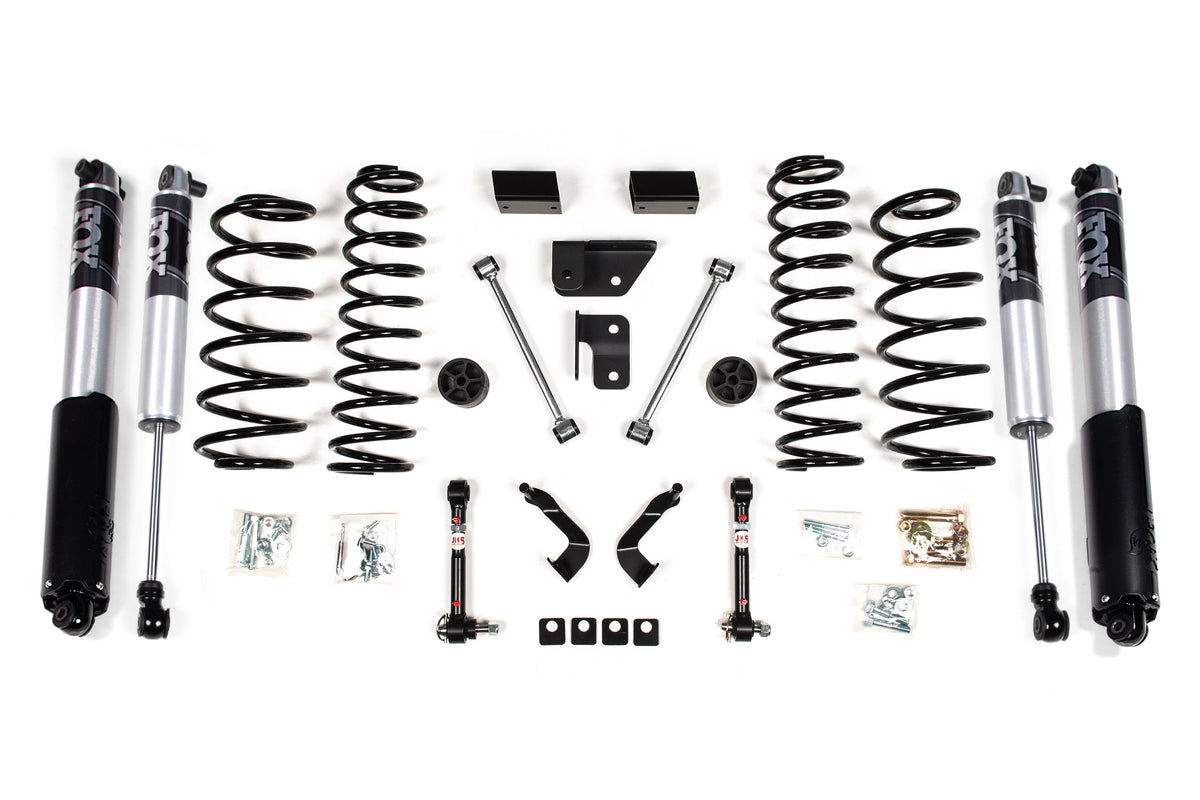

FOX 2.5 Performance Series (BDS1435PS):
- Includes one BDS014230, 2018-2023 Jeep Wrangler JL 2 inch Lift Box Kit, UPC Code 658848613922
- Includes one BDS034240, 2018-2024 Jeep Wrangler JL 2 inch Front Coil Spring Box Kit, UPC Code 658848616725
- Includes one BDS034246, 2018-2024 Jeep Wrangler JL 2 inch Rear Coil Spring Box Kit, UPC Code 658848616732
- Includes one FOX88624155, Kit: 2018-2024 Jeep Wrangler JL, Front and Rear, 2-3.5 inch Lift, 2.5, Internal Floating Piston, UPC Code 814897017788
