Improve the ride and level out your 1999-2004 Ford F250 and F350 Super Duty truck with this 2-inch leveling kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
Up front the lift kit includes Glide-Ride leaf springs, track bar bracket for steering correction, extended sway bar links and custom-tuned nitrogen charged shocks. In the rear this kit utilizes a matching set of NX2 Nitro or FOX Performance shocks.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
- Front Lift Method: Leaf Spring
- Rear Lift Method: Stock
- Shocks Included: Yes
- Front Lift Height: 2 Inch
- Rear Lift Height: 0 Inch
- These truck were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
- Will not fit vehicles manufactured before 3/1/99.
- The stock Super Duty came with a rear 2 Inch, 3 Inch, or 4 Inch rear block. You may need to change the block and/or u-bolts in order to level the truck.
- 003202, #003402, #003602, #003609, #003802, and #003809 come with OE rubber bushings installed
- Confirm build date, front u-bolt type and rear leaf pack overload position before ordering
- Easy, 100 percent Bolt-on installation
- Glideride leaf springs to provide full lift height and increased capacity
- Track bar relocation bracket maintains proper steering angles for improved handling
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Front U-Bolt Type - Radius
This vehicle was manufactured with either square front U-Bolts or radiused front U-bolts. Typically, 1999-2000 are square and 2001-2004 are radiused, but that is not always the case.
The radiused U-bolts aren't square or round, but rather have a gentle radius that matches a cast factory upper U-bolt plate on top of the factory spring. Vehicles manufactured prior to 2-28-99 require yet another different box kit due to a change in the factory track bar.

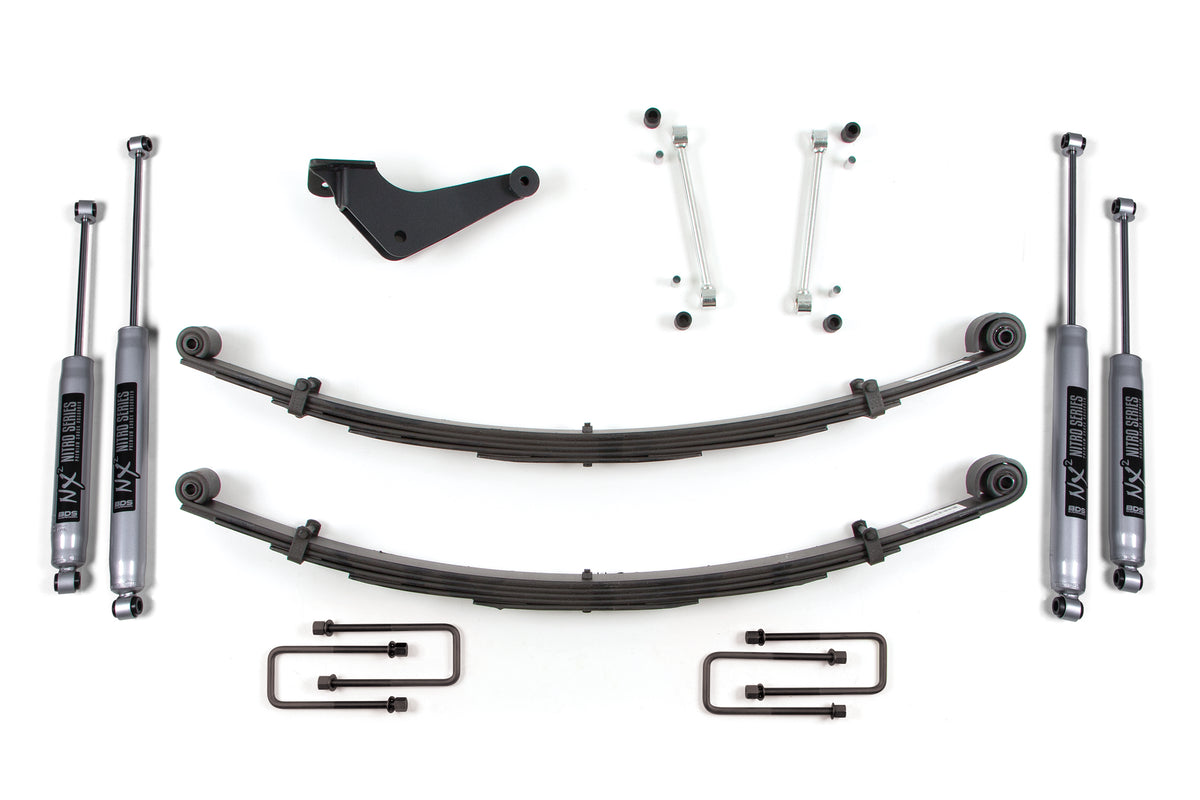

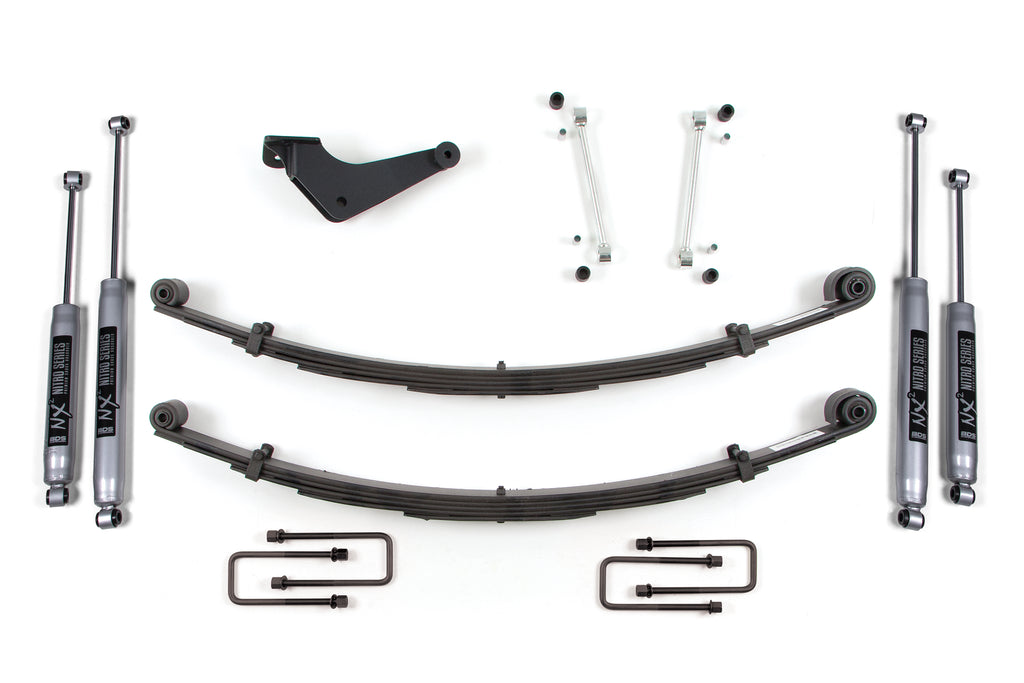

Kit Components:
- Includes two BDS003202, Ford F250/350 2 Inch Front Spring, UPC Code 658848611317
Components by Option:
Radius / NX2 Nitro Series (BDS320H):
- Includes one BDS013253, Ford F250/350 2.5 InchFront Box Kit, UPC Code 658848613205
- Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457
- Includes two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609471
Square / NX2 Nitro Series (BDS313H):
- Includes one BDS013252, Ford F250/350 2.5 InchFront Box Kit, UPC Code 658848613199
- Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457
- Includes two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609471
Radius / FOX 2.0 Performance Series (BDS320FS):
- Includes one BDS013253, Ford F250/350 2.5 InchFront Box Kit, UPC Code 658848613205
- Includes two FOX98224650, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
- Includes two FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
Square / FOX 2.0 Performance Series (BDS313FS):
- Includes one BDS013252, Ford F250/350 2.5 InchFront Box Kit, UPC Code 658848613199
- Includes two FOX98224650, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
- Includes two FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
