Level the stance of your 2017-2019 Ford F250 and F350 Super Duty truck by installing this 2-inch coil spacer leveling kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires at an affordable price.
Up front the lift kit includes billet aluminum coil spacers, track bar bracket for steering correction, alignment cams, and custom-tuned nitrogen charged shocks.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
- Front Lift Method: Coil Spacer
- Rear Lift Method: None
- Shocks Included: Yes
- Front Lift Height: 2 Inch
- Rear Lift Height: 0 Inch
- Easy, 100 percent Bolt-on installation
- Maintains factory like ride quality
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5
- Front Lift Method: Coil Spacer
- Rear Lift Method: None
- Shocks Included: Yes
- Front Lift Height: 2 Inch
- Rear Lift Height: 0 Inch

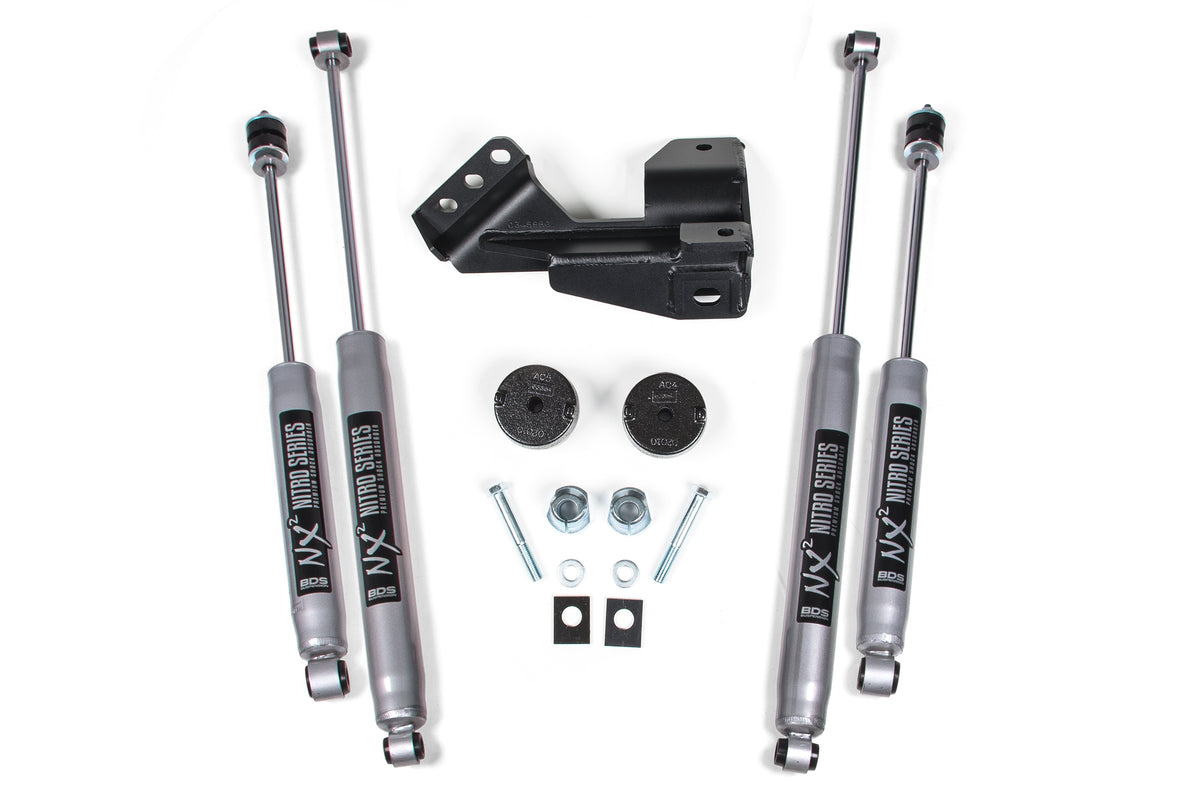

Kit Components:
- Includes one BDS013202, 2017 Super Duty 2 Inch Front Spacer Box Kit, UPC Code 658848613090
Components by Option:
NX2 Nitro Series (BDS1519H):
- Includes two BDS85710, Shock- 22.50 x 13.50 x 2-3/8 - S50/EB2, UPC Code 711745609518
- Includes two BDS85717, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609556
FOX 2.0 Performance Series (BDS1519FS):
- Includes two FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
- Includes two FOX98224717, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
