Level out your 2021-2024 Ford F150 truck and improve the ride with this 2.5 Inch performance suspension system featuring FOX Performance Elite Series 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes FOX Performance Elite Series 2.5 coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX shocks for the smoothest ride.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.
They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.
The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 Inch Inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.
Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
- Front Lift Method: Coil-Over
- Rear Lift Method: None
- Shocks Included: Yes
- Front Lift Height: 2 Inch
- Rear Lift Height: 0 Inch
- Will NOT work with trucks that have CCD (Continuous Controlled Damping)
- Will NOT work with Diesel models.
- Not compatible on trucks with the On-Board Scales option
- Shock length too short for Tremor
- Excludes Raptor
- 35 Inch x 12.5 Inch with 4.75 Inch Wheel Backspacing Recommended
- HD Upper control arms provide superior strength and proper alignment
- Adjustable height to fine tune
- Front FOX 2.5 Performance Elite coil overs for unmatched performance and capability with simple adjustment of settings
- Provides level stance from front to rear
- Easy, 100 percent Bolt On installation
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Adaptive Headlights
This is a factory option where the headlamp beams move in the same direction as the steering wheel, illuminating the path ahead. If you are unsure if equipped, look at your upper control arms for a sensor mounted to them.
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Kit Components:
- Includes one BDS123261, 2021-2024 Ford F150 Upper Control Arm Box Kit W/O Sensor, UPC Code 711745604124
Components by Option:

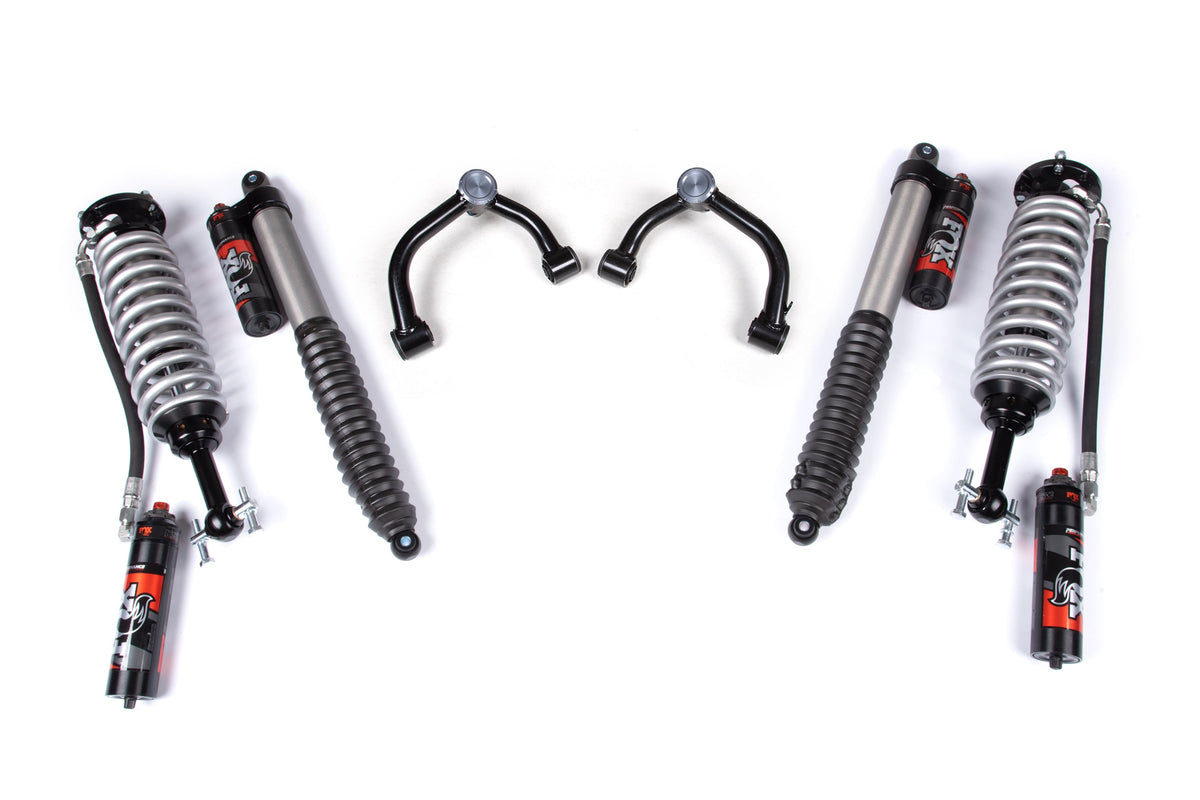

Fox 2.5 Performance Elite Shocks (BDS1912FPE):
- Includes one FOX88306199, Kit: 2021-2024 Ford F150, Front, 2.5 Truck Fox Performance Elite Series, R/R, 0-2 InchРЎСљ Lift, Dual Speed Compression Adjust
- Includes one FOX88326122, Kit:2021-2024 Ford F150, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 0-2 InchРЎСљ Lift, Dual Speed Compression Adjust

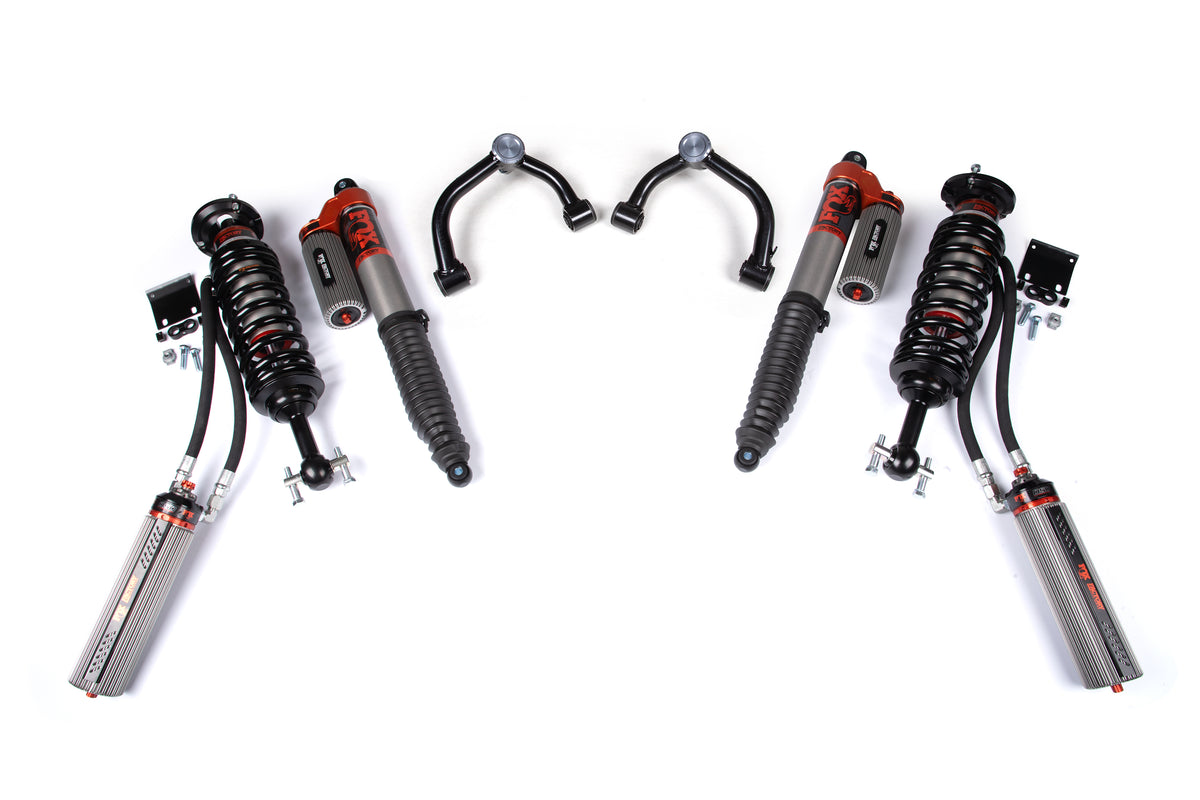

Fox 3.0 Factory Race Shocks (BDS1912FRS):
- Includes one FOX88306191, Kit: 2021-2024 Ford F150, 4WD, Front Coilover, Internal Bypass, NF: 3.0 Series, Recirc R/R, Dual Speed Compression Adjust, 2.5 Inch LIFT
- Includes one FOX88326121, Kit: 2021-2024 Ford F150, Rear, 3.0 Truck FRS, P/B, 0-1 InchРЎСљ Lift, Dual Speed Compression Adjust
