Improve the ride and level out your Ford F250 and F350 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8 inch inch solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.
- Front Lift Method: Coil Spring
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 2.5 inch
- Rear Lift Height: 2 inch
- Coil springs are designed for diesel trucks. Will work on gas trucks and will net roughly 3 inch of front lift.
- Mounting larger Tires on factory wheels is not recommended due to potential brake line clearance issues.
- Factory track bar mounting bolt requires 405 ft-lbs of torque, plan ahead on how to achieve this torque spec.
- Easy, 100 percent Bolt-on installation
- Pro-Ride dual rate coil springs ride smooth through any terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Adjustable solid steel track bar designed to recenter the front axle
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5
Kit Components:
- Includes one BDS013262, 2017-2023 F250/350 2.5 inch Front Box Kit, UPC Code 658848613243
- Includes one BDS013407, 2017-2023 F250 4 inch Rear Block Kit, UPC Code 658848613397
- Includes one BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair, UPC Code 658848616480
- Includes one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, UPC Code 711745604087
Components by Option:
NX2 Nitro Series (BDS1543H):
- Includes two BDS85718, Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609563
- Includes two BDS85720, Shock- 24.00 x 14.50 x 2-3/8 - S50/EB2, UPC Code 711745609587
FOX 2.0 Performance Series (BDS1543FS):
- Includes two FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
- Includes two FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

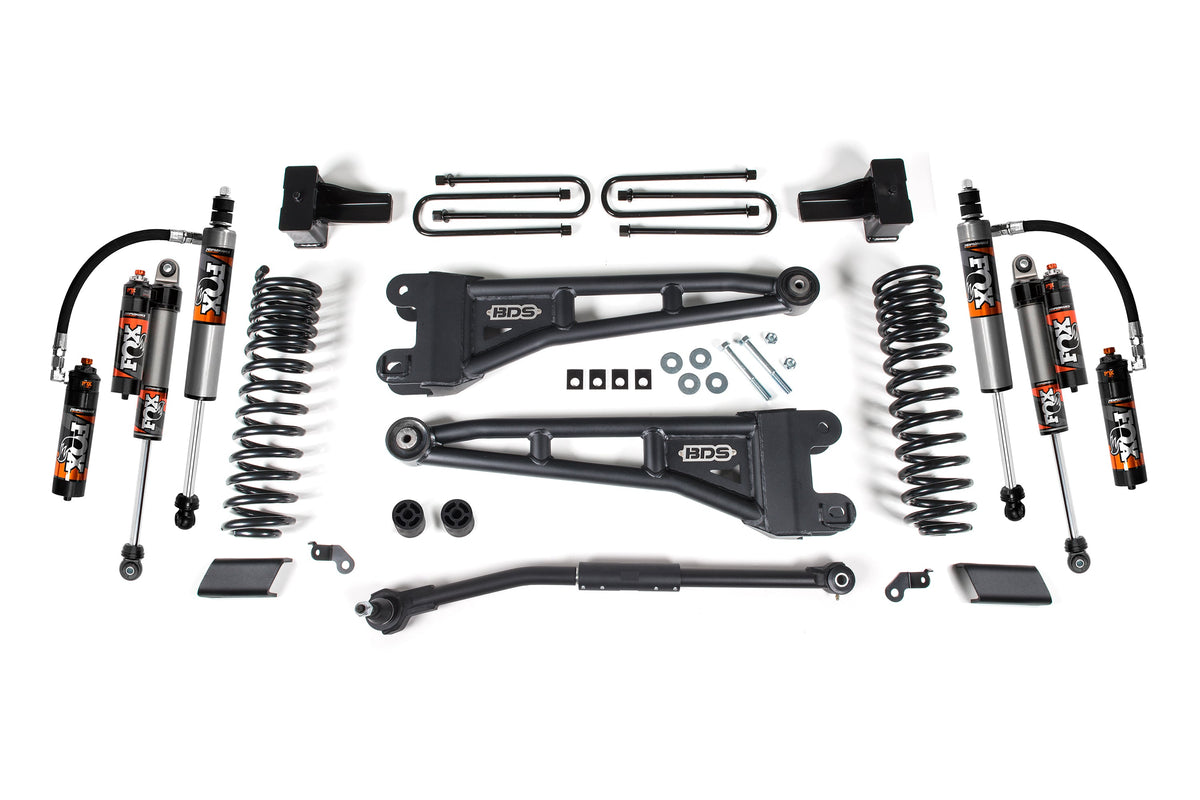

FOX 2.5 Performance Elite (BDS2231FPE):
- Includes one FOX88326096, Kit: 2017-2024 Ford SD Rear, 2.5 Truck Fox Performance Elite Series, P/B, 0-1.5 inch Lift, Dual Speed Compression Adjust
- Includes one FOX88326097, Kit: 2017-2024 Ford SD Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust
