Description

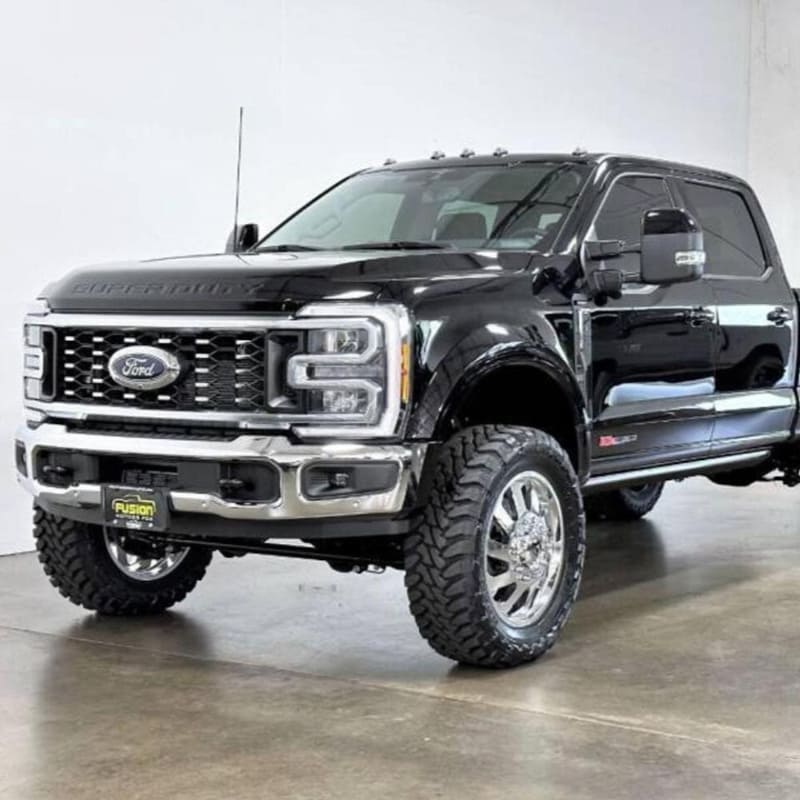

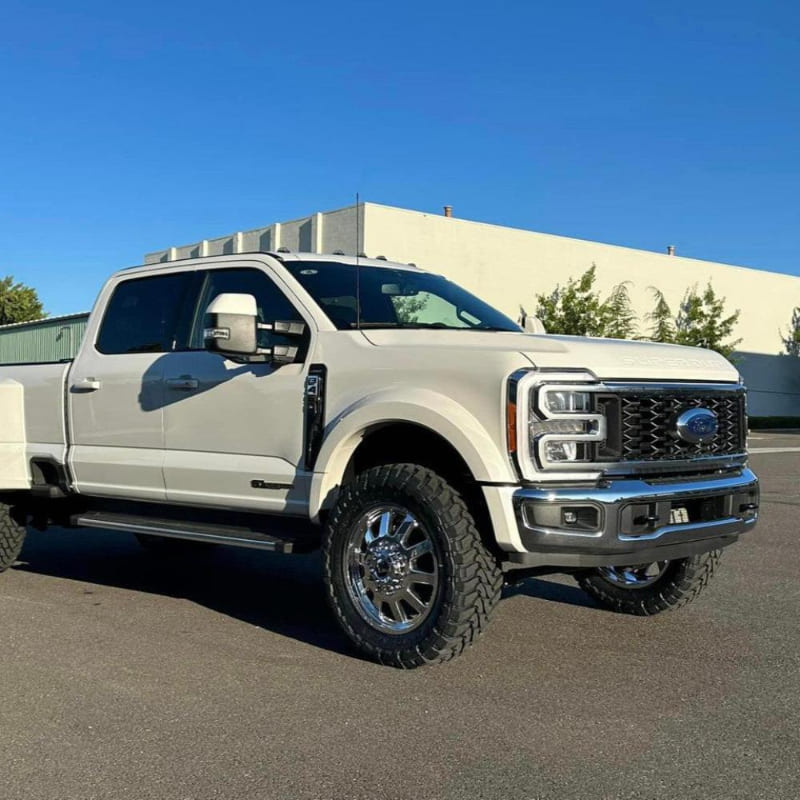

Our top of the line kit for those looking to raise the front of their truck 2.5" while leaving the rear height alone. Our fully loaded kit includes everything we manufacture to improve the ride of your Super Duty including our Dual Steering Stabilizer System, Billet Radius Arms, Radius Arm Drops, Adjustable Track Rod, and Track Rod Bracket. Scroll down to find more about all that is included. Level your truck while greatly improving the ride quality and towing performance at the same time. Add our Torxz traction bars for the ultimate towing experience.

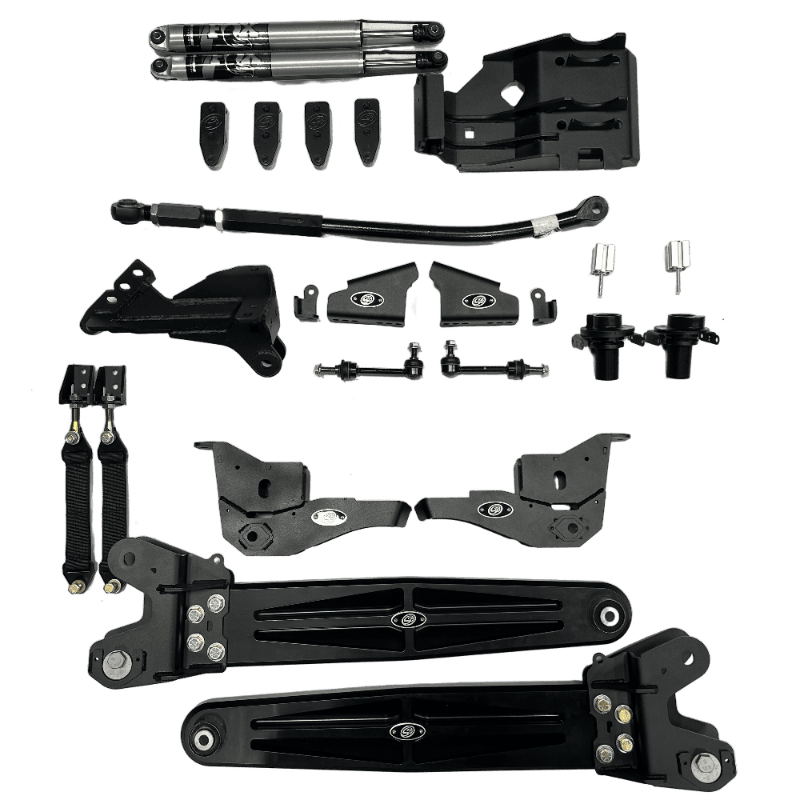

Kit Breakdown
Included:
Optional:
Track Rod Bracket & Adjustable Track Rod - 105077 & 105065 (Included)
An S&B Track Rod relocation bracket is included with all of our leveling and lift kits. Our 105077 track rod bracket is designed to correct the frame side mounting position for all 2.5” to 5.5” lift kits when combined with our adjustable track rod. The bracket itself is made of 3/8” steel for extreme strength and powder coated black for corrosion resistance. We tested almost 20 different revisions of our track rod relocation brackets to perfect the design and ensure the best ride possible. S&B Adjustable track rods are fully adjustable in the truck and built to last. Our max adjuster system allows you to loosen the jam nuts and shorten or lengthen the bar after it is installed in the truck which makes aligning the truck very simple. The track bar utilizes an OEM Ford ball joint on the axle side and an OEM Ford bushing on the frame side so it can be serviced with readily available parts. The Ford bushings also do a great job at isolating vibrations and last much longer than comparable teflon joints.
Radius Arm Drops - 105129 (Included)
S&B radius arm drop brackets are required for any leveling or lift kit. Our 105129 radius arm drops are designed to correct the radius arm mounting position for 2.5” lifts. A metal insert allows for the axle to be installed at a neutral or shifted 0.5" forwards for more clearance between the tire and cab when paired with our bumper spacers. These radius arm drops are the strongest on the market as we have 4 points of attachment on each bracket for secure mounting to the vehicles frame.

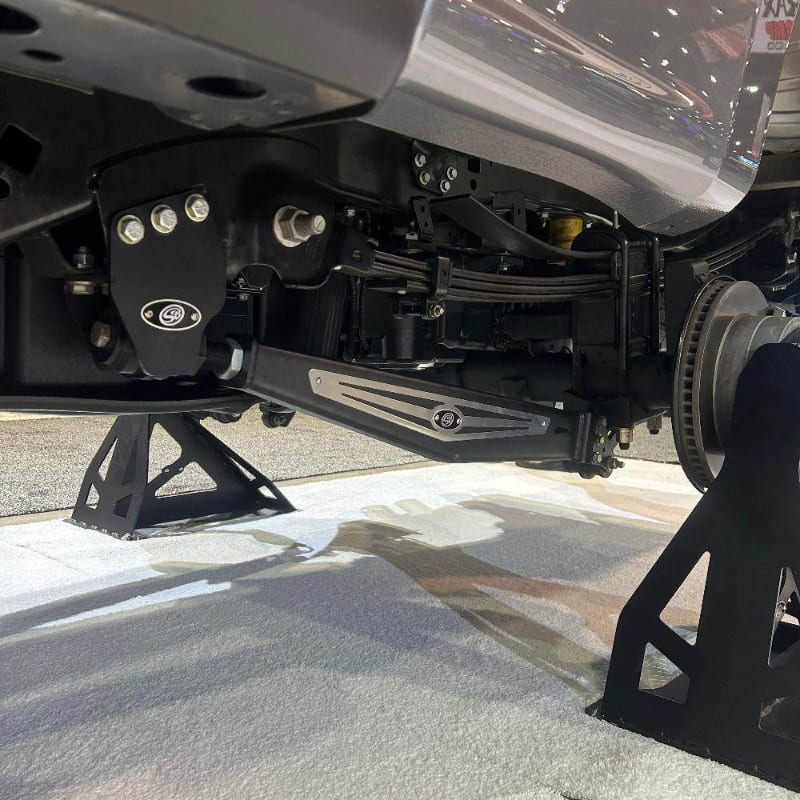

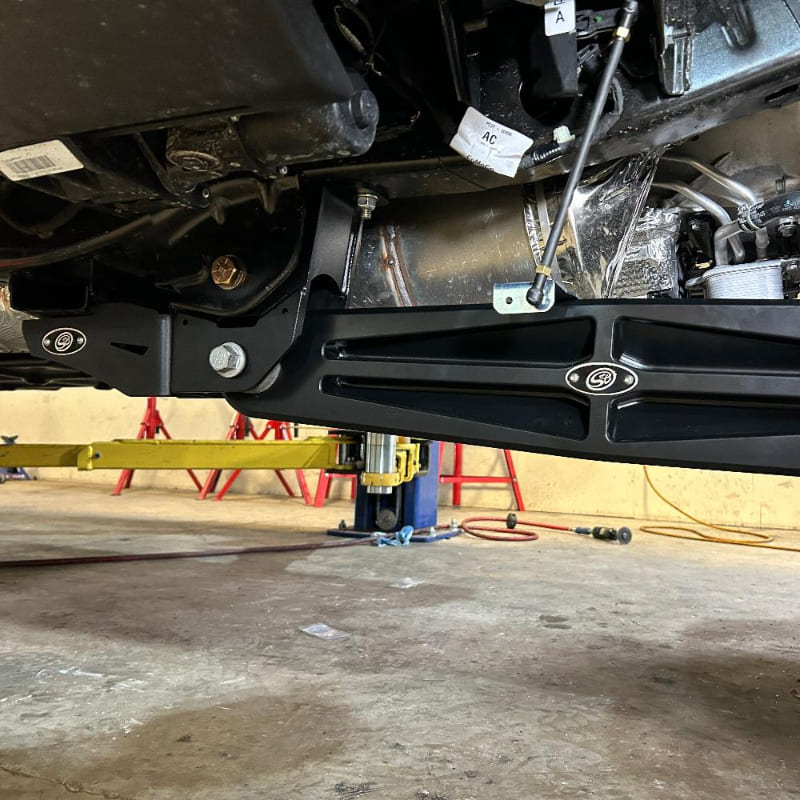

Billet Radius Arms - 105112 (Included)
S&B Billet Radius Arms are machined out of billet 6061 aluminum for optimal strength and weight. They also provide better tire clearance than factory arms due to an angled design and overall thickness. The arms include adjustable caster cam bolts for complete caster control during the alignment process as well as a tab for our 105048 limit strap kit that is required with some shock packages. Our billet radius arms are highly recommended but not required unless your shock package will require limit straps (Kit #105048).
Weight Scale Relocation Kit - 105118 (Optional)
All trucks equipped with a factory weight scale system will require a 105118 Weight Scale Relocation Kit. This kit includes the radius arm brackets for OEM and S&B arms as well as a new rod system that is fully adjustable depending on lift height. We also include brackets in this kit for deleting the weight scale system if you don’t like the look and want to manually adjust your headlights.

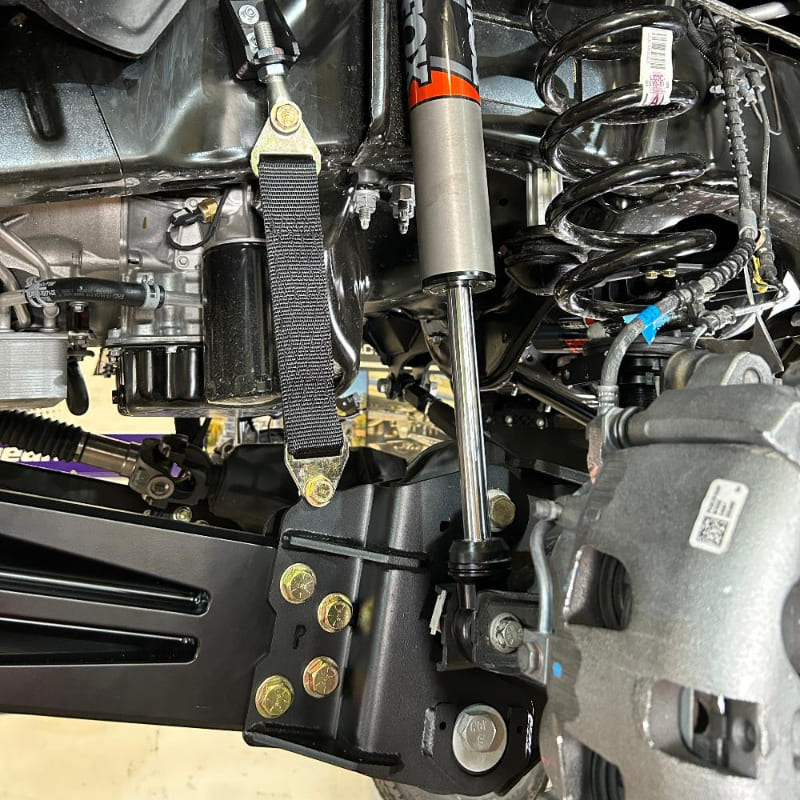

S&B Limit Strap Kit - 105048 (Included)
An S&B 12” limit kit is required for any shock package where the extended shock length will let the spring become loose. The straps bolt to our radius arm on the lower side and our frame mounting bracket on the upper side. We provide tab bolts and a pull through kit to bolt the frame mounting bracket to a boxed frame and installation does not require any welding.
S&B Sway Bar Relocation - 105029 (Included)
S&B Sway Bar relocation brackets and end links are required for all front lifts over 2.5”. These brackets allow you to adjust the sway bar position in the truck front to rear for optimal tire clearance at full lock. We include new, longer end links as well. Maintain the performance and payload capacity of your factory sway bar while allowing for more travel.
S&B Dual Steering Stabilizer Kit - 101534 (Included)
The S&B Dual Stabilizer bracket works with all F450 trucks regardless of lift height and allows for two additional FOX IFP 11.1" Travel Stabilizers to be mounted which are included in our kit. We make the most rigid dual steering stabilizer mount on the market to ensure the stabilizers can do their job without the bracket flexing. Our bracket bolts to the axle with heavy duty 5/8" U-bolts and is constructed entirely from 1/4" steel to ensure it never deflects under load. This is extremely important as reducing deflection maximizes the effect of the stabilizers. We use billet aluminum clamps to secure the outer ends of the stabilizers to the tie rod.
Adjustable Coil Levelers - 105020 (Included)
Adjustable Coil Levelers allow for 2.5 inches of ride height adjustment and allow you to get your trucks lift or level perfect. The levelers are equal to a factory spring perch at their lowest setting and equivalent to a 2.5” lift when maxxed out. We recommend just running the levelers to anyone looking for a 0 to 2.5” lift. We have coil spring kits that can be combined with our adjustable levelers to get more lift as well. Our levelers are designed to work with all OEM coil springs and any aftermarket springs that can mount in factory insulators.
Bump Stop Drop - 101365 (Included)
Our Bump Stop Drop brackets lower the OEM Bump Stop by 2”.
Torxz Traction Control Bars - 102102 (Optional)
Torxz traction control bars control axle wrap so you can brake and accelerate harder without the wheel hop commonly found with rear leaf sprung, solid axle suspensions. Traction control bars eliminate wheel hop and large variations in pinion angle by controlling axle wrap throughout the suspension travel. Our traction control bars are the only ones on the market to utilize urethane bushings on the axle and frame side and do not restrict travel or shock load the frame during extreme acceleration or braking.

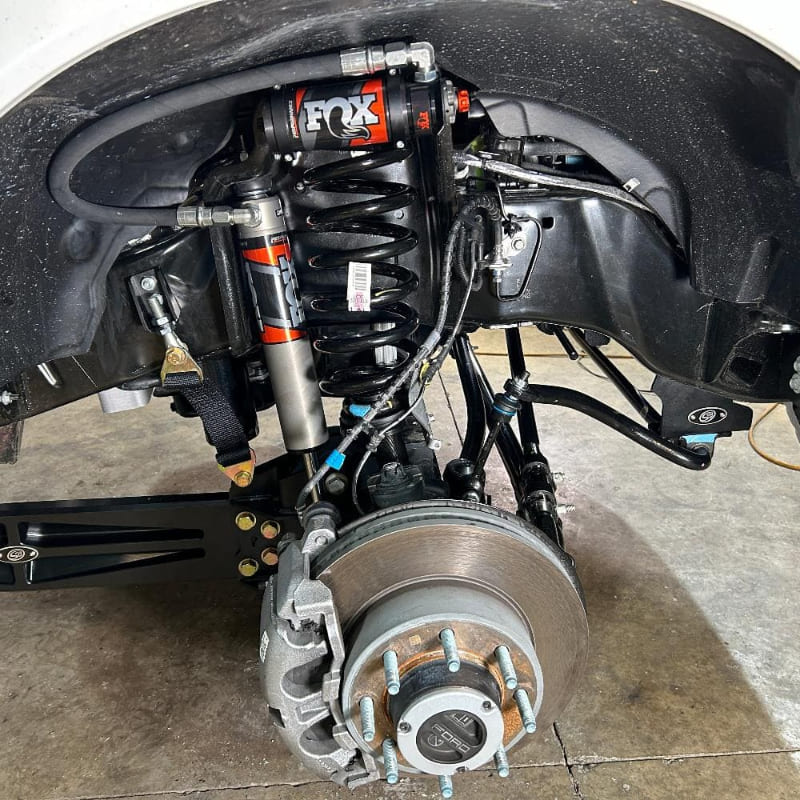

Shock Packages (Optional)
S&B offers three shock packages depending on desired performance and budget. OEM shocks provide a very comfortable ride and we have shock extensions (105074) available to retain your OEM shocks up front. We also have our Steady Valve 2.5” FOX IFP shocks available that are valved in house at S&B to work perfectly with our system. Our most extreme option is the FOX 2.5” Performance Elite System that are fully adjustable for both high and low speed compression. We include a reservoir mounting bracket as well to hang the FOX Reservoir above the coil spring.
Coil Springs (Optional)
S&B leveling kits include Adjustable Coil Levelers which are our preferred method to achieve up to 2.5" of front lift with your factory coils. We also offer optional coil springs for those looking for more than 2.5" of front lift but may not want to step all the way up to our 3.5"- 5.5" kit. Our optional springs provide ~3" of lift on a standard truck with a slightly softer than stock spring rate.
