Description

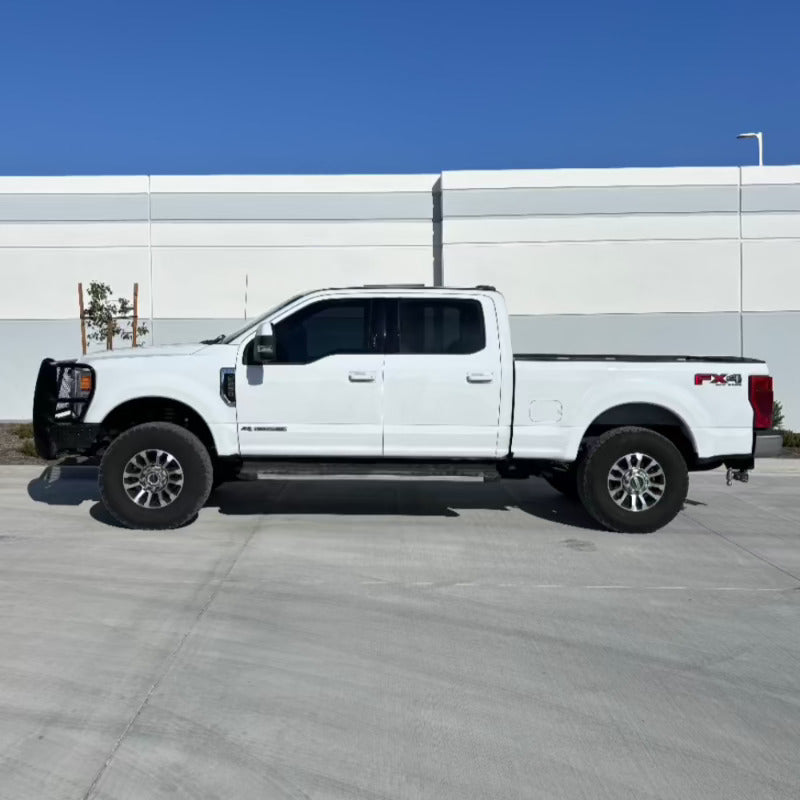

Our top of the line kit for those looking to raise the front of their truck 2.5" while leaving the rear height alone. Our fully loaded kit includes everything we manufacture to improve the ride of your Super Duty including our Steady Track Steering System, Billet Radius Arms, Radius Arm Drops, Adjustable Track Rod, Track Rod Bracket and more! Scroll down to find more about all that is included. Level your truck while greatly improving the ride quality and towing performance at the same time. Add on the optional Torxz Traction Control Bars for the ultimate towing experience.
Check out our Wheel & Tire Fitment Calculator to see what fits with our 2.5" Fully Loaded Kit. Learn more about Tire Fitment with this video.

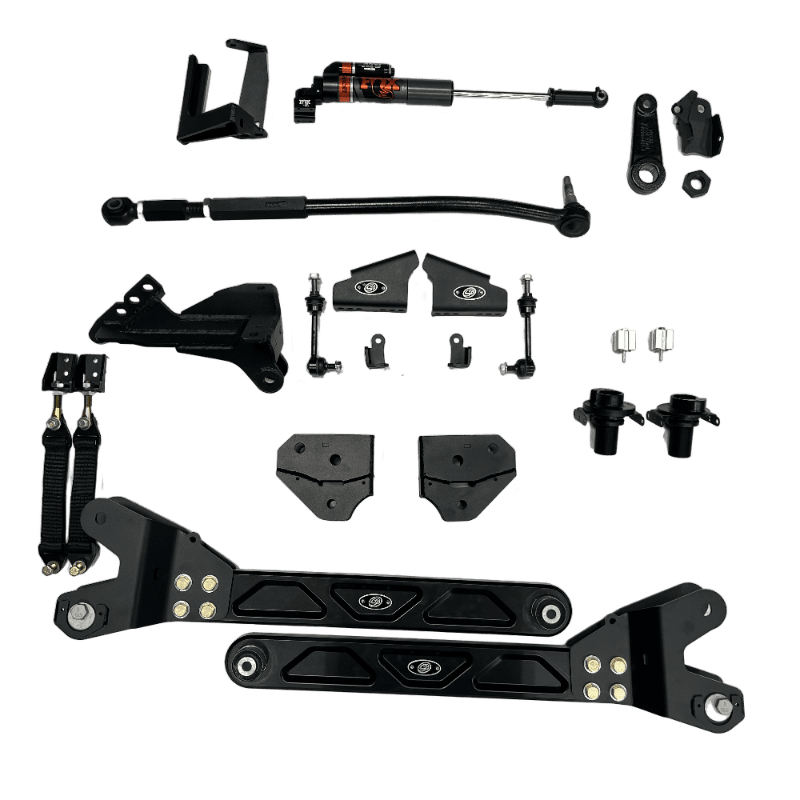

Kit Breakdown
Included:
Optional:

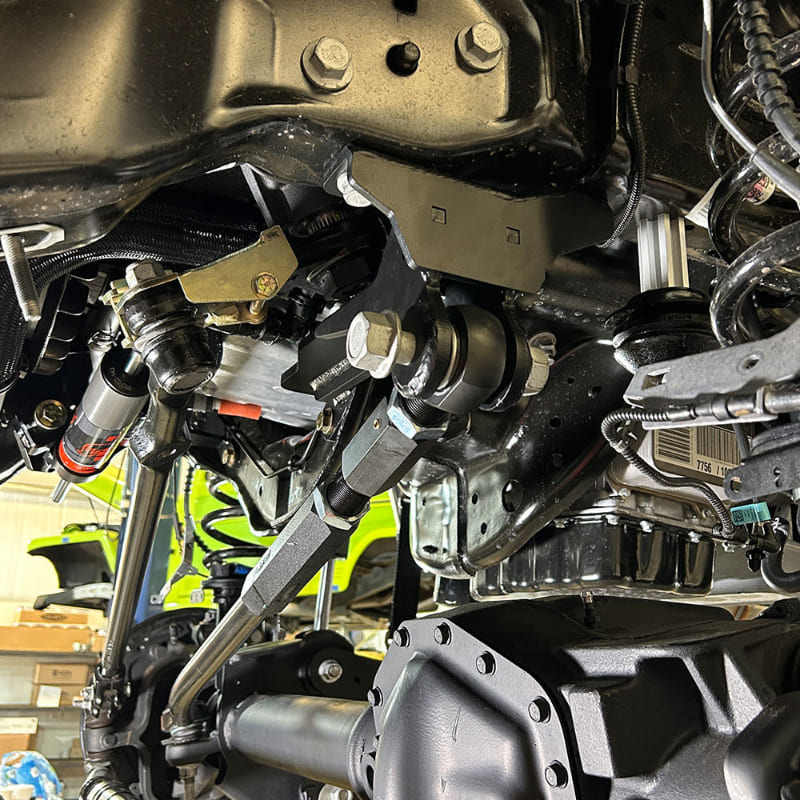

Track Rod Bracket & Adjustable Track Rod - 105017 & 105068 (Included
An S&B Track Rod relocation bracket is included with all of our leveling and lift kits. Our 105017 track rod bracket is designed to correct the frame side mounting position for all 2.5” to 5.5” lift kits when combined with our adjustable track rod. The bracket itself is made of 3/8” steel for extreme strength and powder coated black for corrosion resistance. We tested almost 20 different revisions of our track rod relocation brackets to perfect the design and ensure the best ride possible. S&B Adjustable track rods are fully adjustable in the truck and built to last. Our max adjuster system allows you to loosen the jam nuts and shorten or lengthen the bar after it is installed in the truck which makes aligning the truck very simple. The track rod utilizes an OEM Ford ball joint on the axle side and an OEM Ford bushing on the frame side so it can be serviced with readily available parts. The Ford bushings also do a great job at isolating vibrations and last much longer than comparable teflon joints.

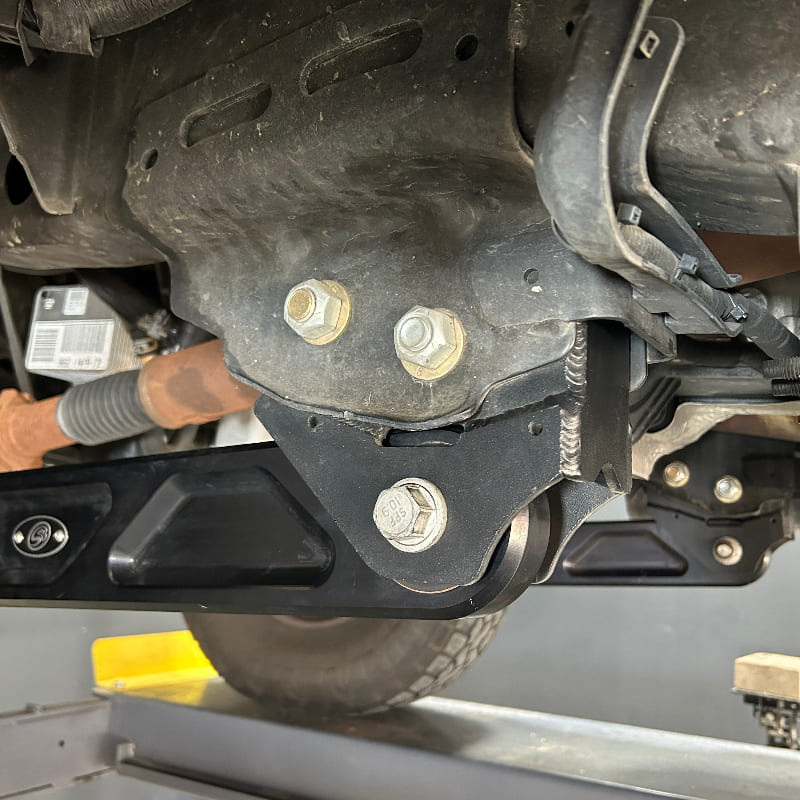

Radius Arm Drops - 105070 (Included)
S&B radius arm drop brackets are required for any leveling or lift kit. Our 105070 radius arm drops are designed to correct the radius arm mounting position for 2.5” lifts. They provide 5* of caster at 2.5" of lift.

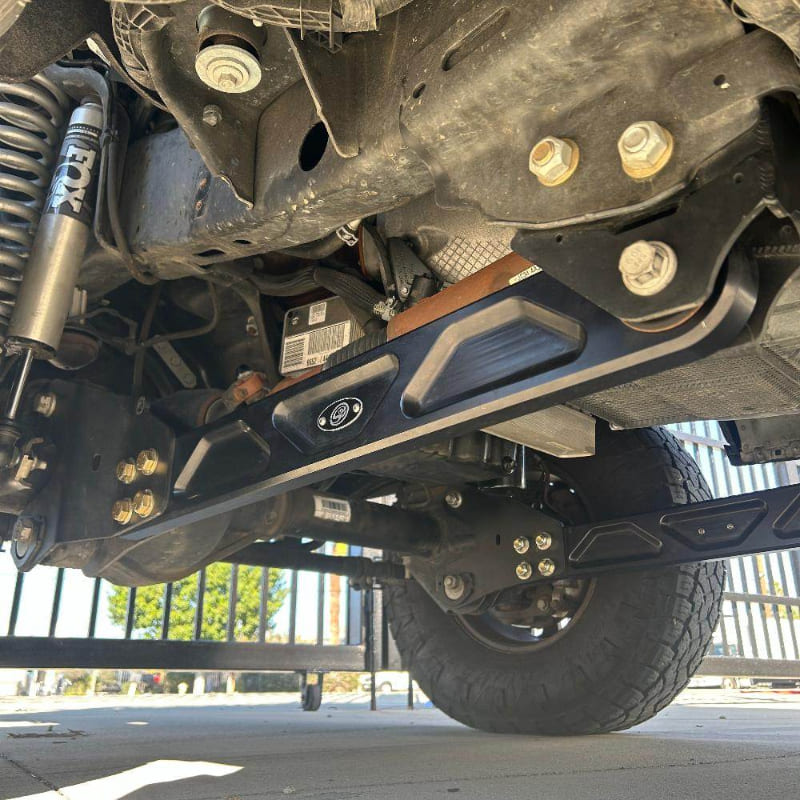

Billet Radius Arms - 101433 (Included)
S&B Billet Radius Arms are machined out of billet 6061 aluminum for optimal strength and weight. They also provide better tire clearance than factory arms due to an angled design and their overall thickness. The arms include adjustable caster cam bolts for complete caster control during the alignment process as well as a mounting tab for our 105048 limit strap kit that is required with some shock packages.
S&B Limit Strap Kit - 105048 (Included)
An S&B 12” limit kit is required for any shock package where the extended shock length will let the spring become loose. The straps bolt to our radius arm on the lower side and our frame mounting bracket on the upper side. We provide tab bolts and a pull through kit to bolt the frame mounting bracket to a boxed frame and installation does not require any welding.
S&B Sway Bar Relocation - 105029 (Included)
S&B Sway Bar relocation brackets and end links are required for all front lifts over 2.5”. These brackets allow you to adjust the sway bar position in the truck front to rear for optimal tire clearance at full lock. We include new, longer end links as well. Maintain the performance and payload capacity of your factory sway bar while allowing for more travel.

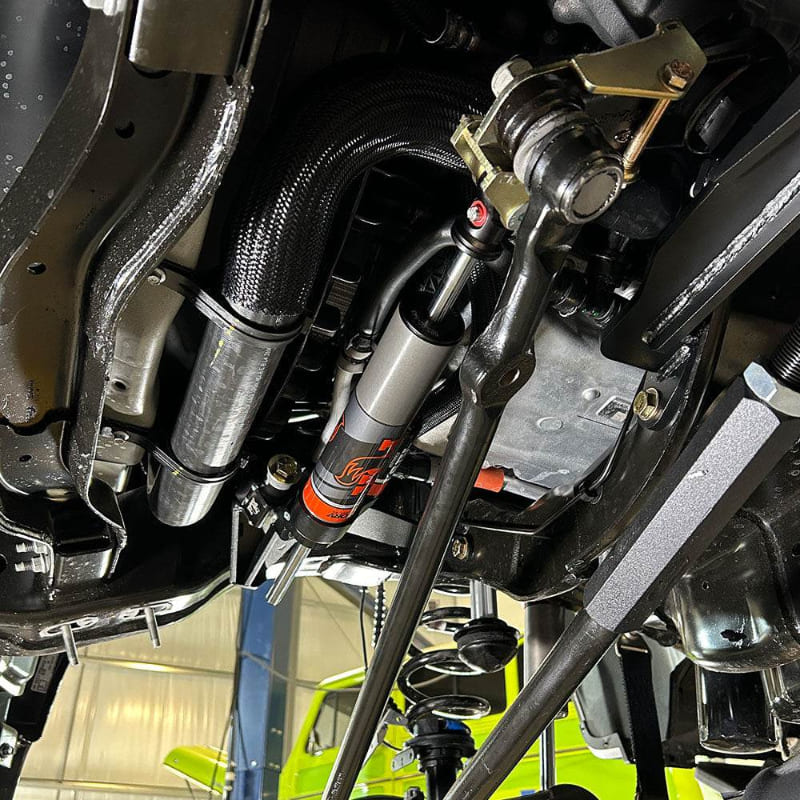

S&B Steady Track System - 105101 (Included)
The S&B Steady Track system includes a FOX ATS Adjustable Stabilizer, stabilizer mounting brackets, and a new OEM Ford pitman arm to make it all compatible. Our steady track system mounts the adjustable ATS stabilizer directly to the pitman arm so it is extremely effective in eliminating all bump steer. The factory pitman arm is replaced with a flat 2011-2016 OEM pitman arm to create the room needed for the ATS stabilizer. This system is paramount to getting your lifted or stock height Super Duty to drive perfectly. The stabilizer is fully adjustable so you can tune it to your preference. This system is a must have and a huge upgrade over any stock or dual stabilizer system.
Adjustable Coil Levelers - 105020 (Included)
Adjustable Levelers allow for 2.5 inches of ride height adjustment and allow you to get your trucks lift or level perfect. The levelers are equal to a factory spring perch at their lowest setting and equivalent to a 2.5” lift when maxxed out. Pair them with our 105082 2.5" Lift Springs for even more adjustability.
2" Bump Stop Drop - 101365 (Included)
Drops the factory bump stop 2" down. We also offer bump stop drops from 1" up to 2-1/2".

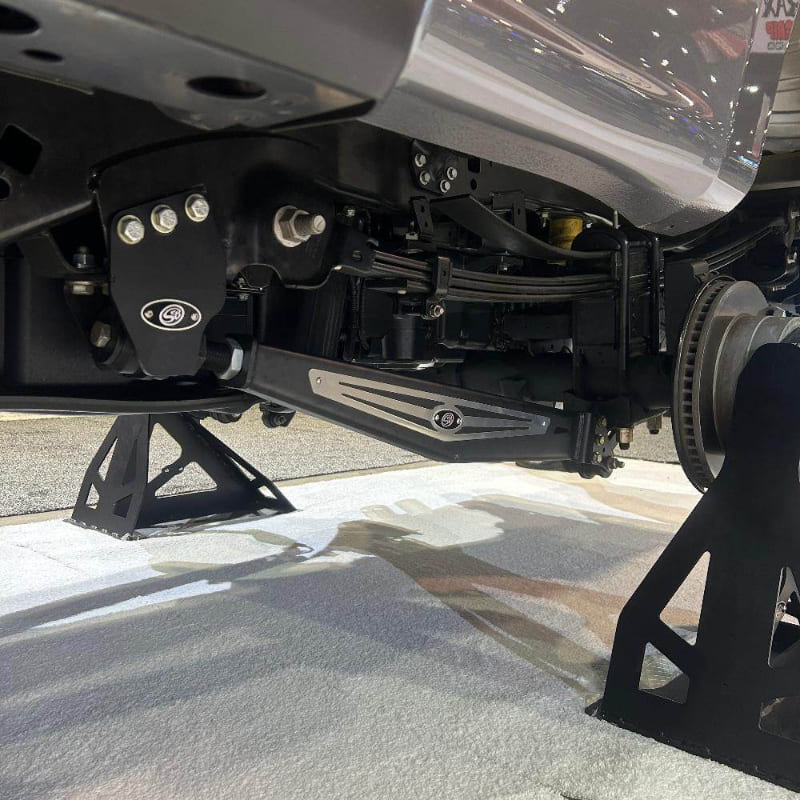

Torxz Traction Control Bars - 102101/102102 (Optional)
Torxz traction control bars control axle wrap so you can brake and accelerate harder without the wheel hop commonly found with rear leaf sprung, solid axle suspensions. Traction control bars eliminate wheel hop and large variations in pinion angle by controlling axle wrap throughout the suspension travel. Our traction control bars are the only ones on the market to utilize urethane bushings on the axle and frame side and do not restrict travel or shock load the frame during extreme acceleration or braking.

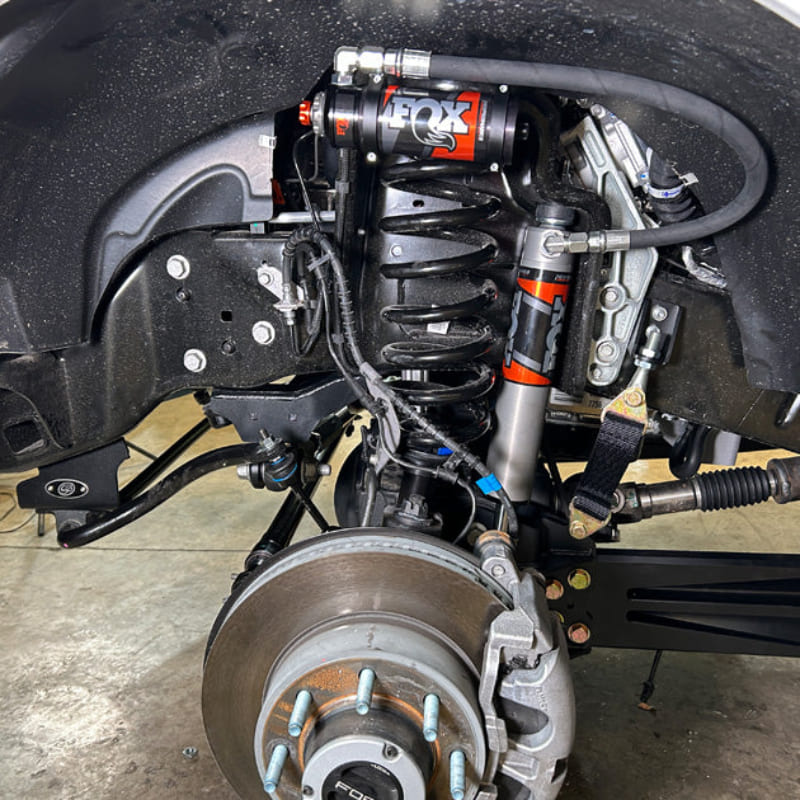

Shock Packages (Optional)
S&B offers two shock packages depending on desired performance and budget. Our Steady Valve 2.0” FOX IFP shocks are valved in house at S&B to work perfectly with our system. Our most extreme option is the FOX 2.5” Performance Elite System that are fully adjustable for both high and low speed compression. We include a reservoir mounting bracket as well to hang the FOX Reservoir above the coil spring.
Coil Springs (Optional)
S&B leveling kits include Adjustable Coil Levelers which are our preferred method to achieve up to 2.5" of front lift with your factory coils. We also offer optional coil springs for those looking for more than 2.5" of front lift but may not want to step all the way up to our 3.5"- 5.5" kit. Our optional springs provide ~3" of lift on a standard 2020-2022 truck and ~2" of lift on a 2020-2022 Tremor truck or 2017-2019 truck with a slightly softer than stock spring rate.
